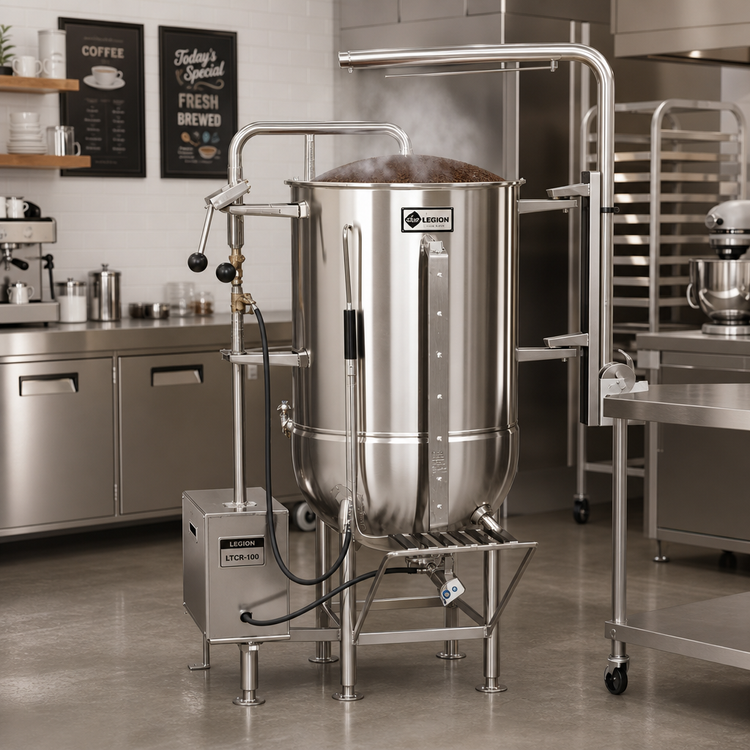

Legion LTCR-100 Direct Steam Coffee Kettle – 100 Gallon
2/3-Jacketed • Floor-Mounted • Made in USABrew up to 1,600 eight-ounce servings of rich, consistently extracted coffee in a single batch. The LTCR-100 combines Legion’s deep-drawn kettle expertise with a purpose-built coffee filtration, recirculation and dispensing system—giving high-volume operations a rugged, all-in-one brewing station that delivers cup after cup of unmistakable quality.
Why You’ll Love It
- 100-gallon (379 L) capacity handles peak demand with ease.
- Direct steam 2/3 jacket heats quickly and maintains gentle, even temperature control.
- Fully stainless construction—liner, jacket, draw-off tube, legs and console—for unmatched durability and sanitation.
- Recirculating pump with automatic timer ensures uniform extraction; manual override lets you fine-tune brew cycles.
- Graduated, break-resistant sight glass shows exact coffee level at a glance.
- Canvas coffee bag with stainless spreader ring and built-in hoist simplifies loading, brewing and clean-out.
- Four heavy-duty 2" legs with reinforced bracing and adjustable flanged feet keep the kettle rock solid on any floor.
- One-piece domed cover captures heat and condensate—no seams, no drips.
- 30 psi operating pressure (ASME certified) provides fast recovery without sacrificing beverage quality.
Standard Features

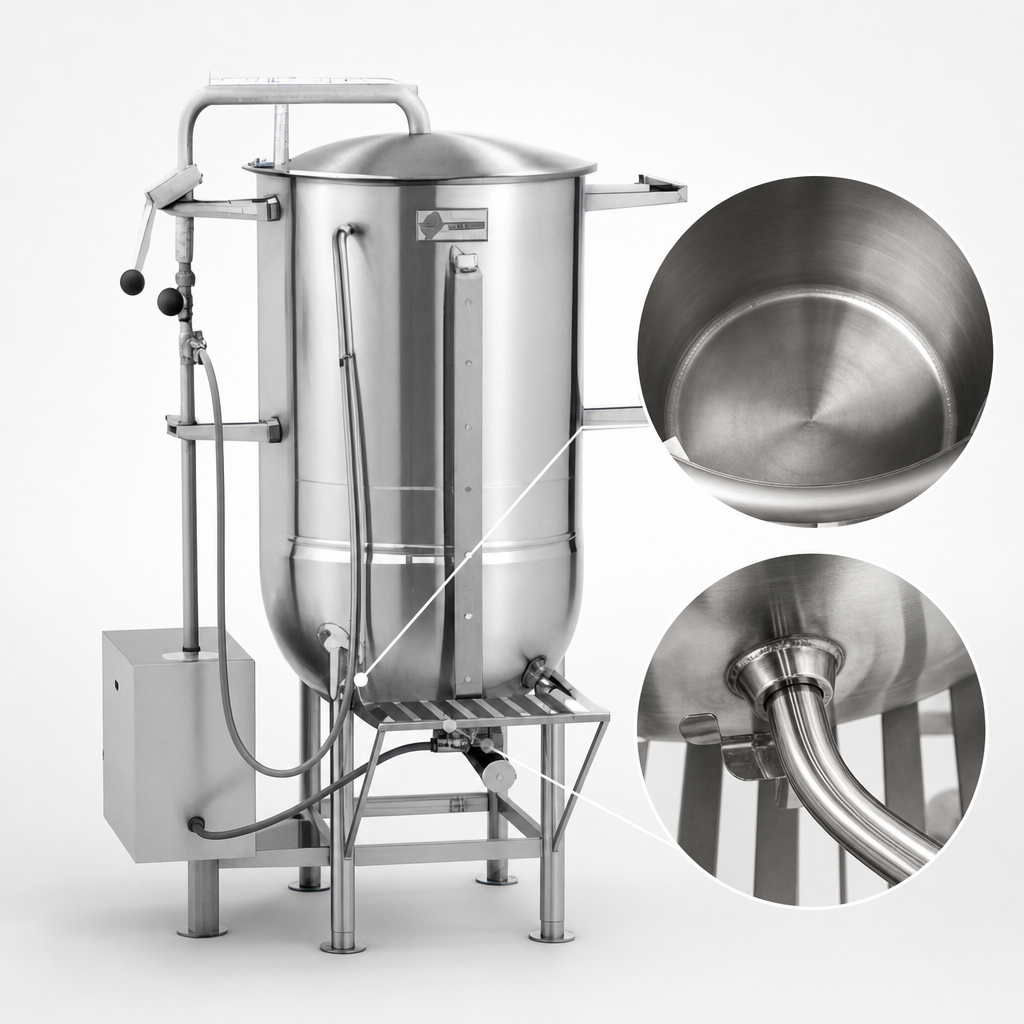

- 304 stainless deep-drawn liner & 2" compression draw-off valve

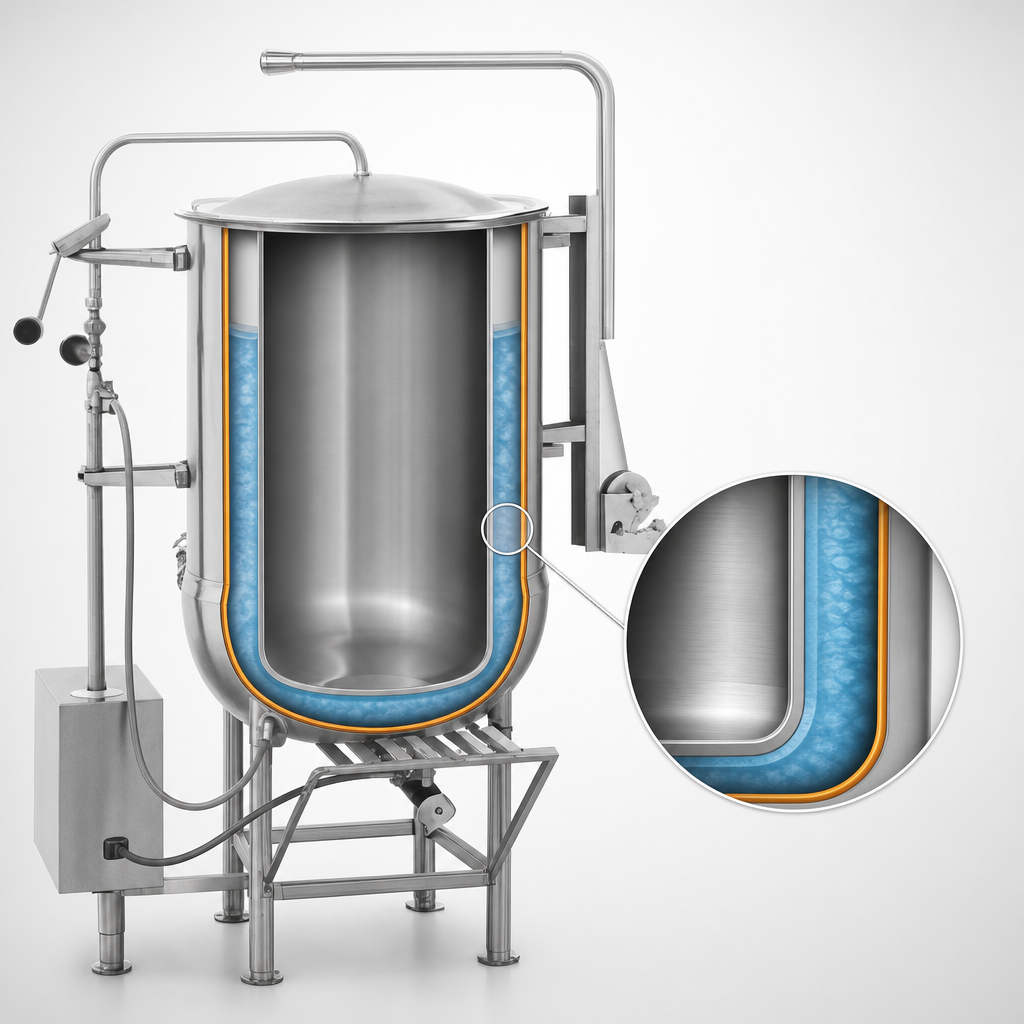

- 304L stainless 2/3 steam jacket
- Seam-welded 304 stainless control console
- Stainless recirculation pump – 1/3 HP, automatic timer & manual controls
- ½" NPT water fill coupling
- Gridded riser basket, canvas coffee bag & stainless spreader ring
- Bag removal hoist for safe, mess-free disposal
Technical Specifications
| Model | LTCR-100 |
|---|---|
| Capacity | 100 gal / 379 L |
| Heating Method | Direct steam, 2/3 jacket |
| Operating Pressure | 30 psi (207 kPa) maximum |
| Materials | 304 stainless liner, draw-off tube, cover, legs & control console; 304L jacket |
| Draw-Off Valve | 2" compression, 304 stainless |
| Recirculation Pump | 1/3 HP motor; automatic timer & manual override |
| Level Indicator | Graduated, break-resistant sight glass |
| Cover | One-piece domed, hinged |
| Mounting | Floor-mounted, four 2" diameter legs with adjustable flanged feet & reinforced bracing |
| Utilities Required | 30 psi steam supply • 115/220/230/208/460 V (select), 1/3 HP electrical for pump • ½" potable water |
| Overall Height | 81.0" (206 cm) |
| Footprint (W × D) | ≈ 62.0" × 63.4" (157 × 161 cm) |
| Compliance | ASME, NSF & applicable U.S./Canadian approvals |
Dimensions are from factory drawings and are subject to change without notice. Always consult the installation manual and rough-in drawings before finalizing utility connections.
Recommended Applications
- High-volume cafeterias & corporate dining
- Convention centers & stadium concessions
- Correctional & military foodservice
- Large-scale catering and commissary kitchens
Need a different capacity or optional accessories such as lockable lids, elevated draw-off faucets or remote coffee fill? Contact us for a custom LTCR configuration that matches your operation.
