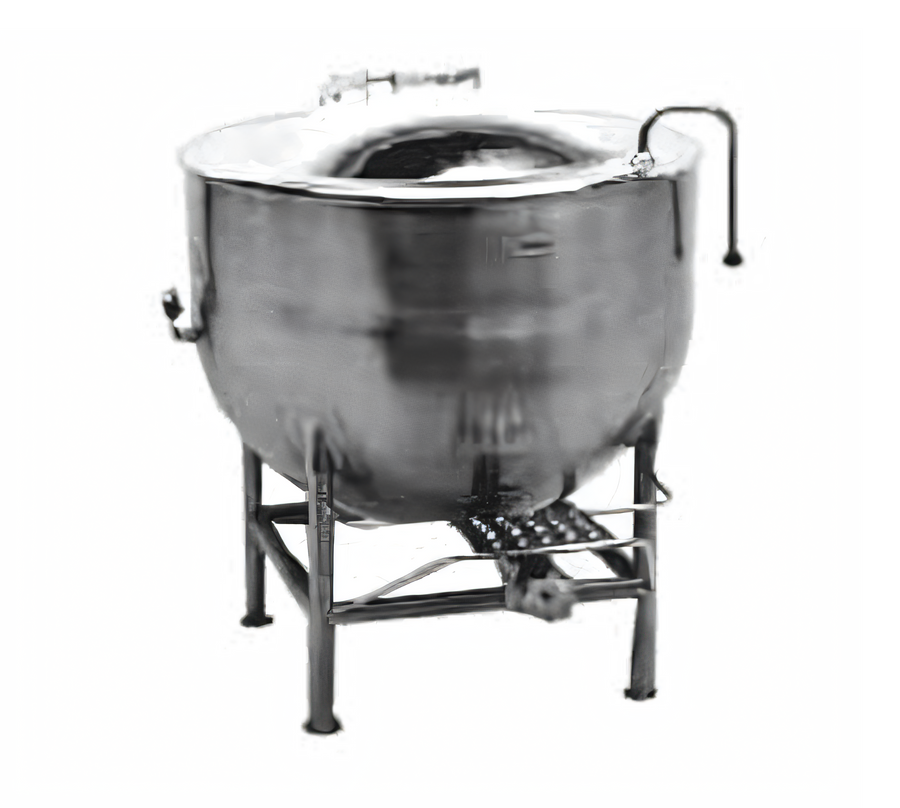

Legion 80-Gallon Direct Steam Kettle with Twin-Shaft Mixer
Model LT-80 MV | 2/3 Jacketed • Stationary • Made in USAEngineered for high-volume production, the Legion LT-80 MV combines a seamless 80-gallon direct-steam kettle with a powerful twin-shaft agitator. Enjoy faster heat-up, consistent results and effortless clean-up—batch after batch.
Key Advantages
- Seamless 304 SS kettle liner & 304L jacket—no crevices, no pitting, easier sanitation.
- 2/3 steam jacket rated to 30 psi for rapid, even heating.
- Factory-mounted two-speed agitator (46 / 23 RPM) prevents scorching and eliminates hot spots.
- Counter-rotating beater (120 / 60 RPM) breaks up lumps and promotes uniform texture.
- Removable nylon scraper blades continuously sweep the kettle wall for maximum heat transfer.
- 2″ 304 SS compression draw-off valve with ¼″ perforated disk strainer for clog-free portioning.
- (3) 2″-diameter stainless legs with reinforced bracing and adjustable flanged feet—rock-solid stability.
- Actuator-assisted domed cover and agitator lift for safe, one-handed operation.
- Built & certified to ASME and NSF standards in Waynesboro, Georgia.
Specifications
| Capacity | 80 gal / 303 L |
|---|---|
| Heat Source | Direct external steam (2/3 jacketed) |
| Operating Pressure | 30 psi / 207 kPa |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | 304L stainless steel |
| Agitator Type | Twin-shaft anchor & counter-rotating beater |
| Agitator Speeds | High 46 RPM | Low 23 RPM |
| Beater Speeds | High 120 RPM | Low 60 RPM |
| Draw-Off Valve | 2″ compression, 304 SS |
| Strainer | ¼″ perforated disk (removable) |
| Cover | One-piece domed, actuator-assisted |
| Mounting | (3) legs, 2″ Ø, adjustable flanged feet |
| Construction | All stainless steel—liner, jacket, legs, draw-off & welds |
Ideal Applications
- Bulk soups, sauces & chowders
- Pasta, rice & grain cook-ups
- Puddings, custards & confectionery fillings
- Central kitchens, commissaries & correctional facilities
Looking for water-fill faucets, basket inserts or higher-pressure jackets? Contact us—Legion offers a full range of factory options to custom-fit your workflow.
Product Weight:
468.0 lbFrequently Asked Questions
