Legion LT-80 Steam Kettles
Description

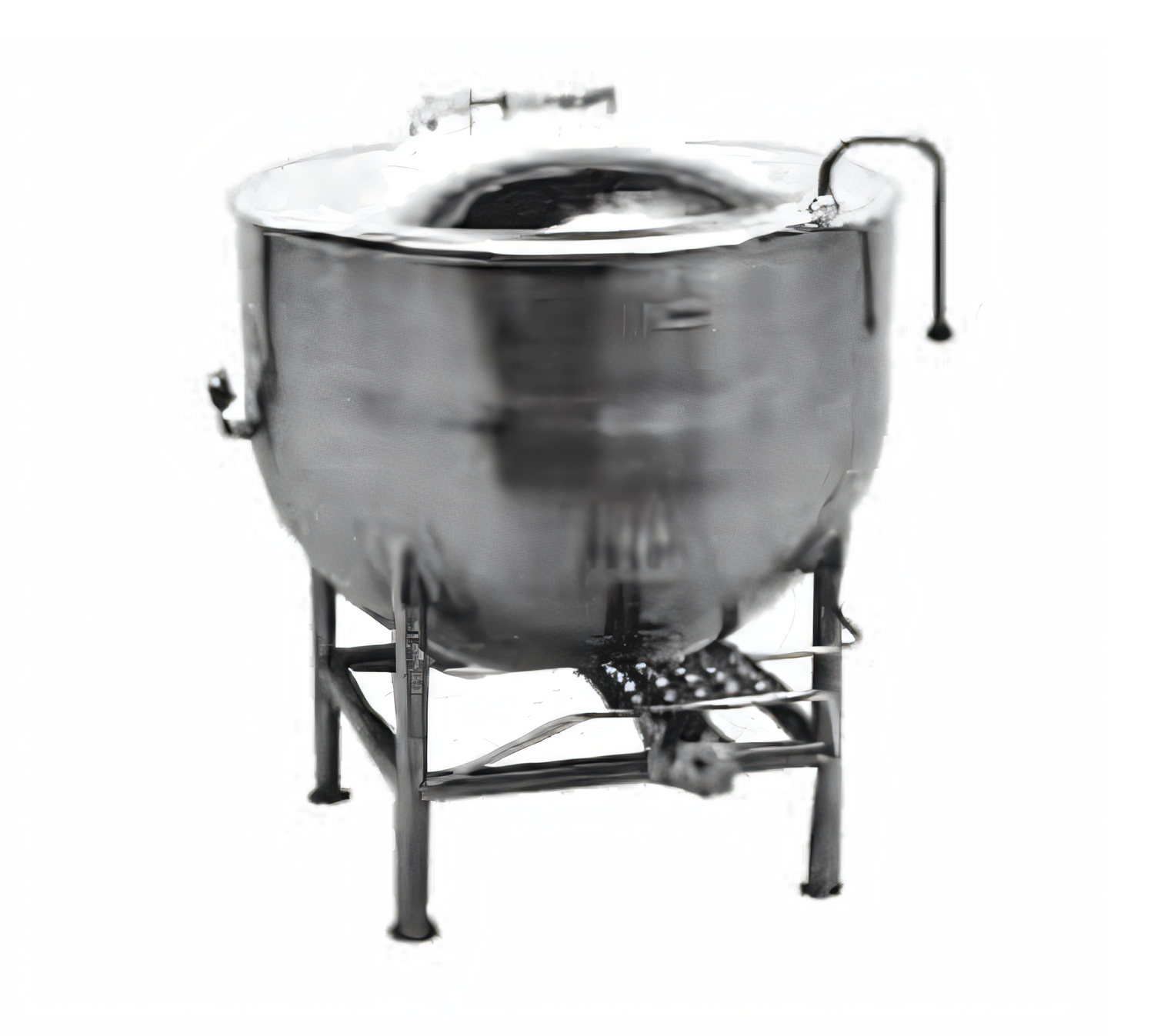

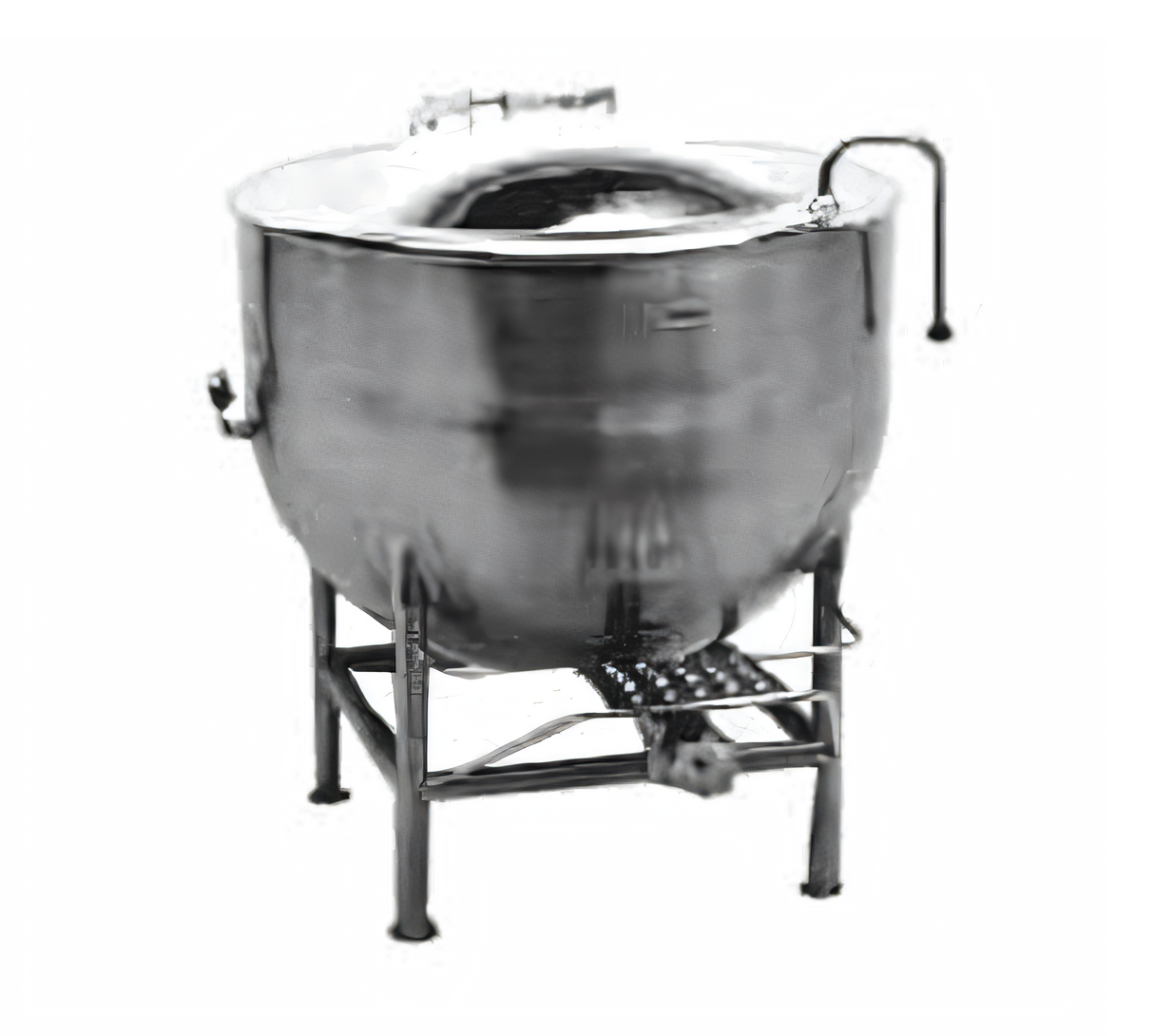

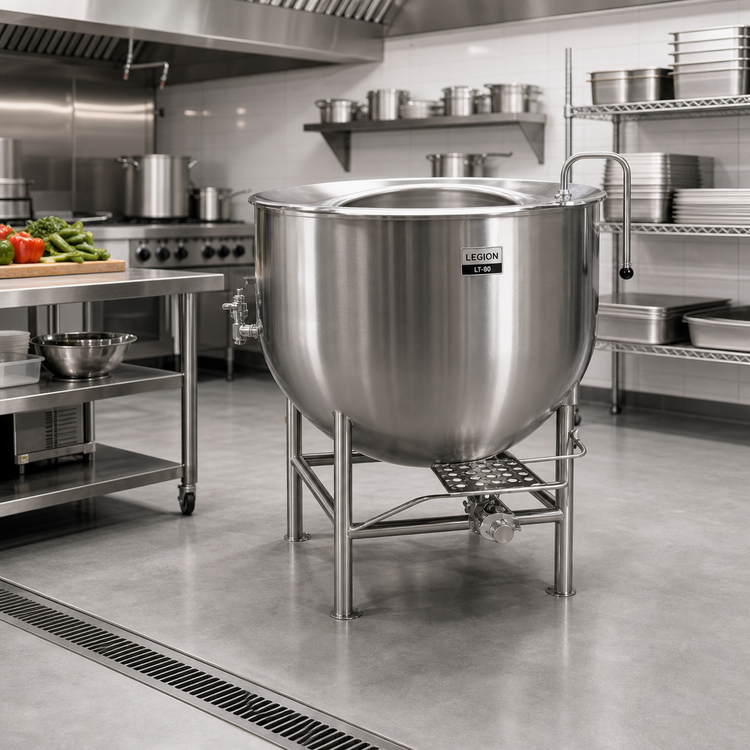

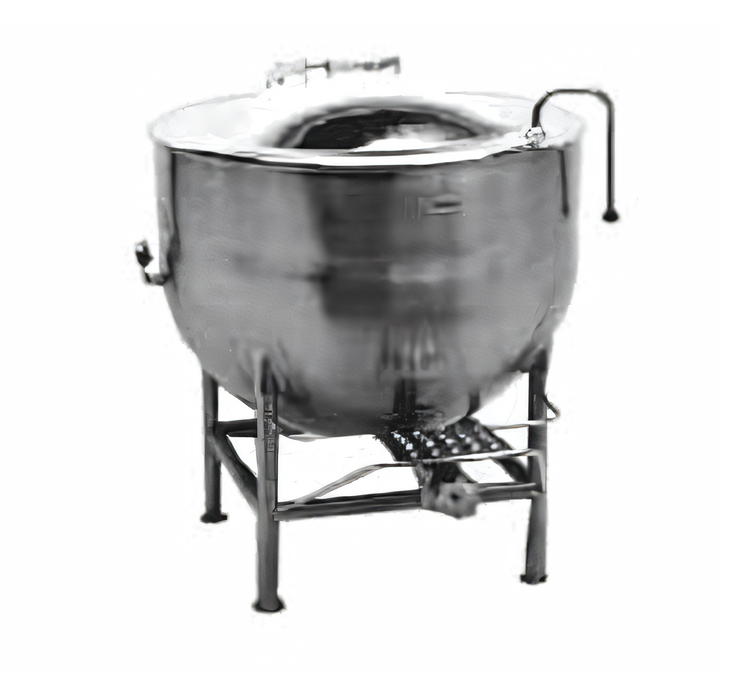

Legion LT-80 Direct Steam Kettle – 80 Gallon
2/3 Jacketed • Deep-Drawn 304 Stainless • Made in USAEngineered for high-volume, scratch-cook operations, the Legion LT-80 stationary kettle delivers fast, even heat transfer, rock-solid stability, and the sanitary performance you demand from a premium 304-stainless foodservice kettle. From simmering sauces to boiling pasta or steaming seafood, this 80-gallon workhorse keeps production moving while protecting flavor, nutrients, and your bottom line.
Key Features & Benefits
- Seamless, deep-drawn 304 stainless kettle liner for easy cleaning and maximum food safety.

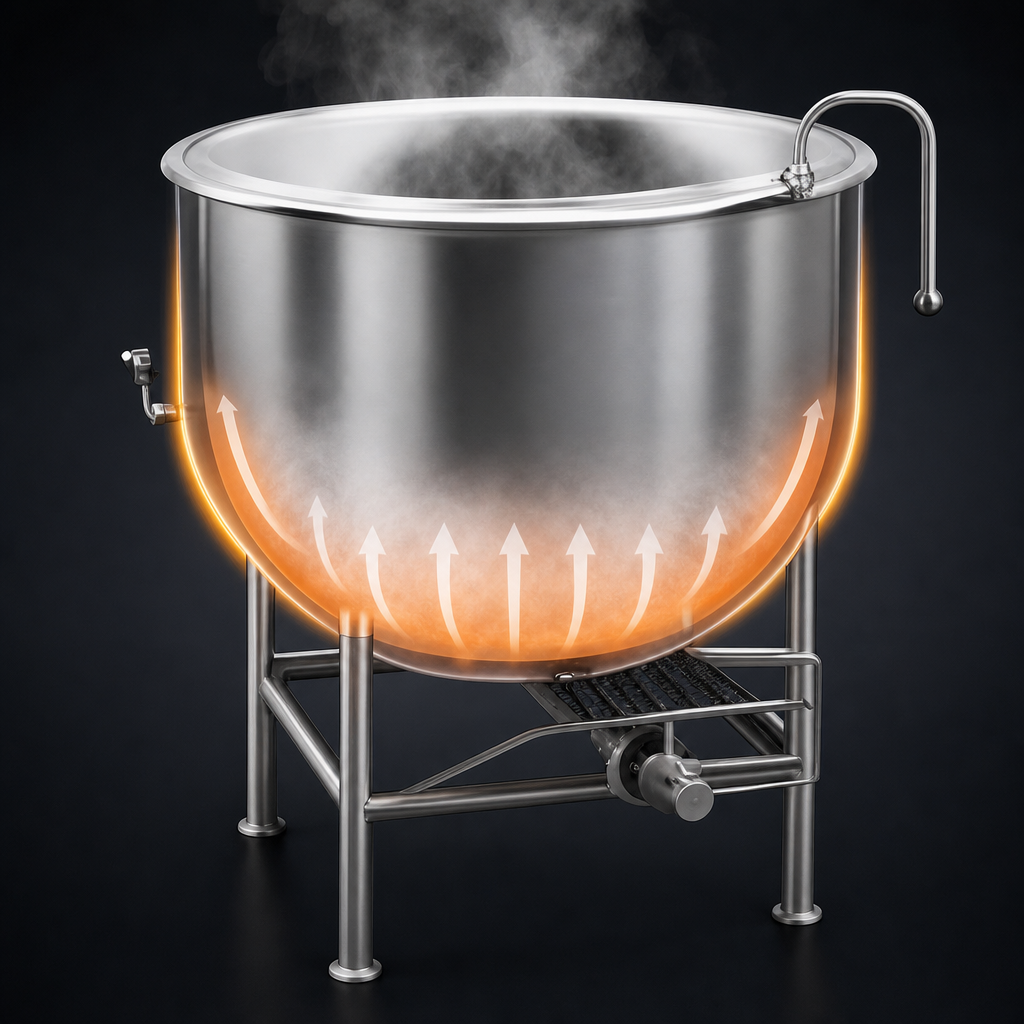

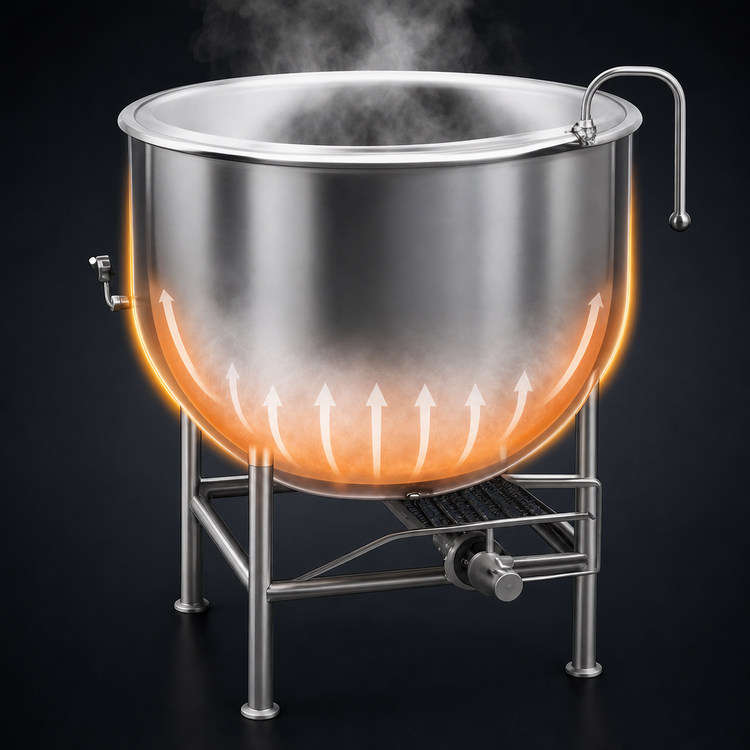

- 304L seamless 2/3 steam jacket provides rapid, uniform heating with no hot spots.
- 2 in. compression draw-off valve with ¼ in. perforated stainless strainer for smooth, clog-free dispensing.
- Actuator-assisted, one-piece domed cover reduces operator effort and minimizes heat loss.
- (3) reinforced 2 in. Ø stainless legs with adjustable flanged feet keep the kettle level and secure on uneven floors.
- 30 psi operating pressure – ideal for most direct-steam plant utilities.
- Built to ASME & NSF requirements; fabricated and assembled in Waynesboro, GA, USA.
Technical Specifications
| Model / Type | LT-80 – Stationary, Leg-Mounted |
|---|---|

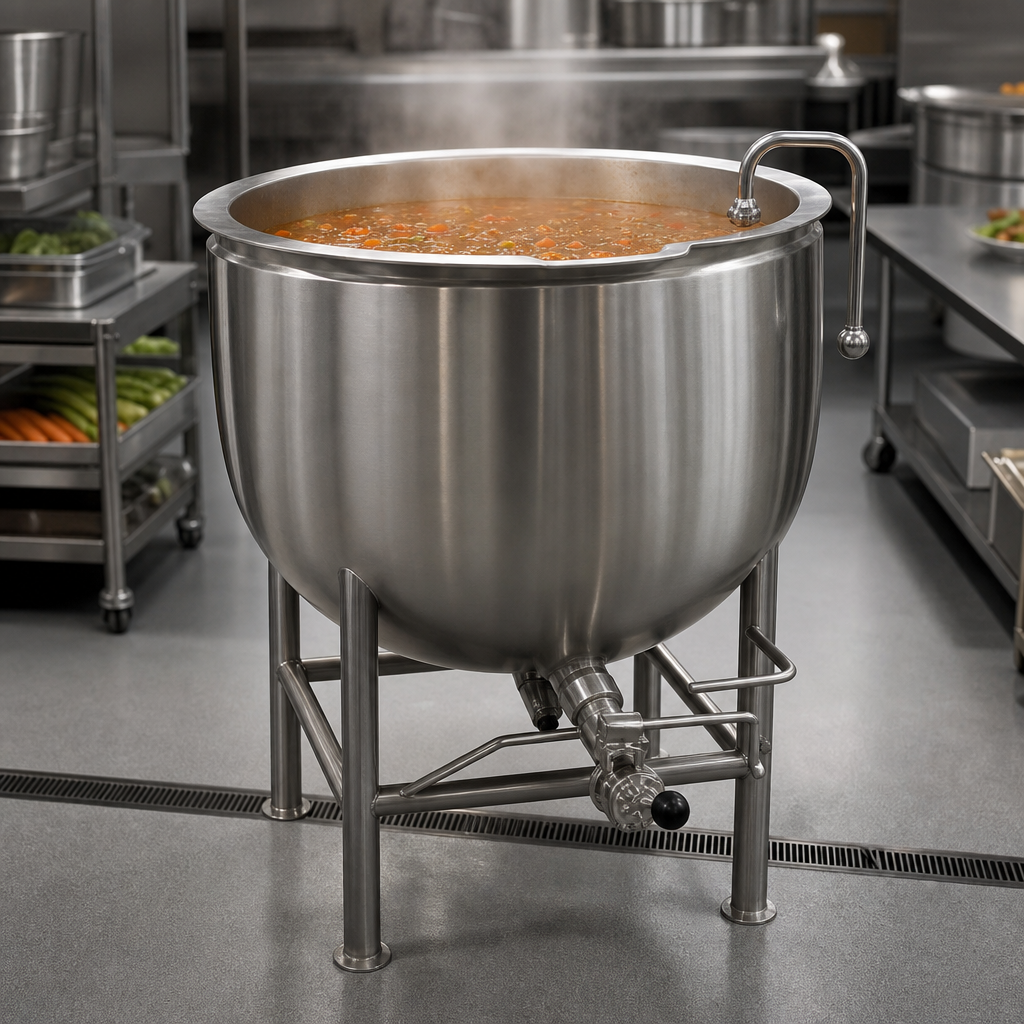

| Capacity | 80 gal | 303 L |
| Construction | All 304 & 304L stainless steel, deep-drawn kettle & jacket, seam-welded leg sockets |
| Jacket Coverage | Two-thirds (2/3) of kettle body |
| Operating Pressure | 30 psi (2.1 bar) maximum |
| Draw-Off Valve | 2 in. 304 SS compression style w/ ¼ in. perforated strainer disk |
| Cover | One-piece domed 304 SS, actuator assisted |
| Legs / Feet | (3) 2 in. Ø stainless legs, reinforced bracing, adjustable flanged feet |
| Steam Connections | 1 in. NPT inlet • ¾ in. NPT condensate outlet |
| Approx. Dimensions * | Rim Diameter 32.5 in | Overall Depth 27.6 in | Height to Rim 67.8 in | Clearance under Valve 14 in |
*Dimensions taken from manufacturer’s specification drawing; allow space for steam and plumbing connections.
Covered by Legion’s standard commercial warranty: 12 months from installation (15 months from ship date). Extended warranty plans are available.
