Legion LT-50 Steam Kettles
Description

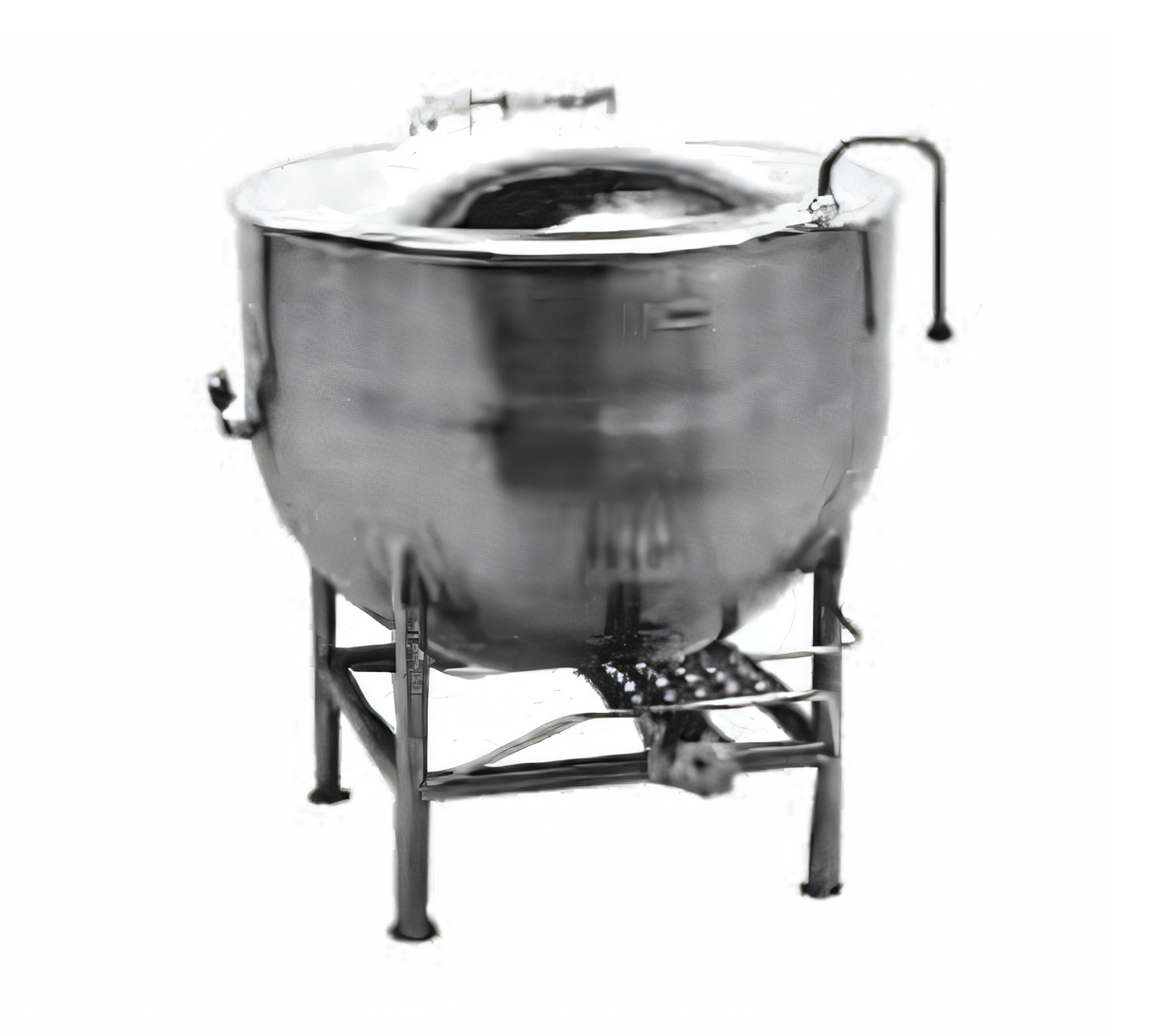

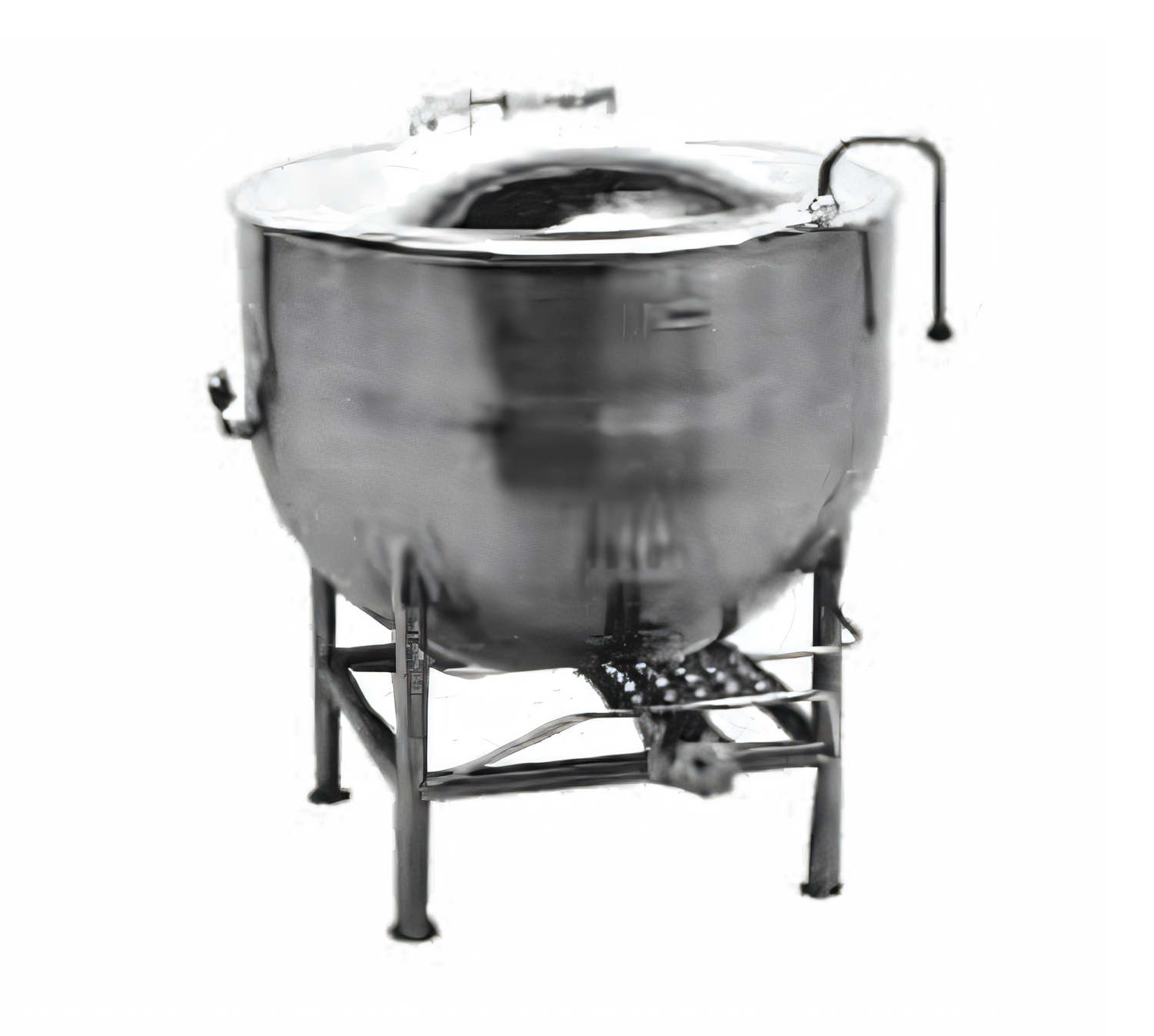

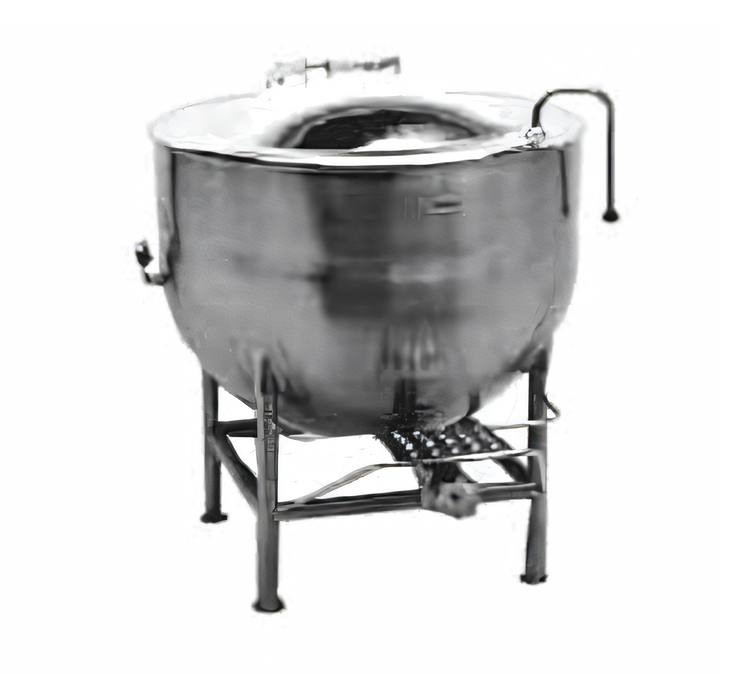

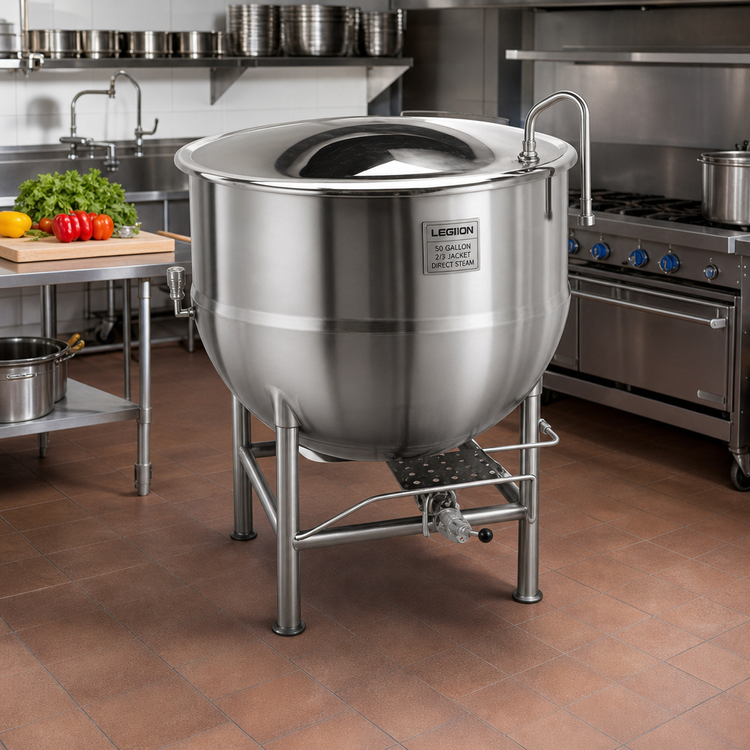

Legion LT-50 Stationary Direct Steam Kettle — 50 gal / 189 L
Seamless 304 Stainless • 2/3 Jacket • 30 psi Operating PressureBuilt in the USA for institutional and high-volume kitchens, the Legion LT-50 delivers fast, even, and energy-efficient steam cooking in a rugged, easy-to-clean package. Connect it to your in-house steam supply and start producing soups, sauces, stocks, pastas, and more with the consistency only a direct-steam kettle can provide.
Key Features

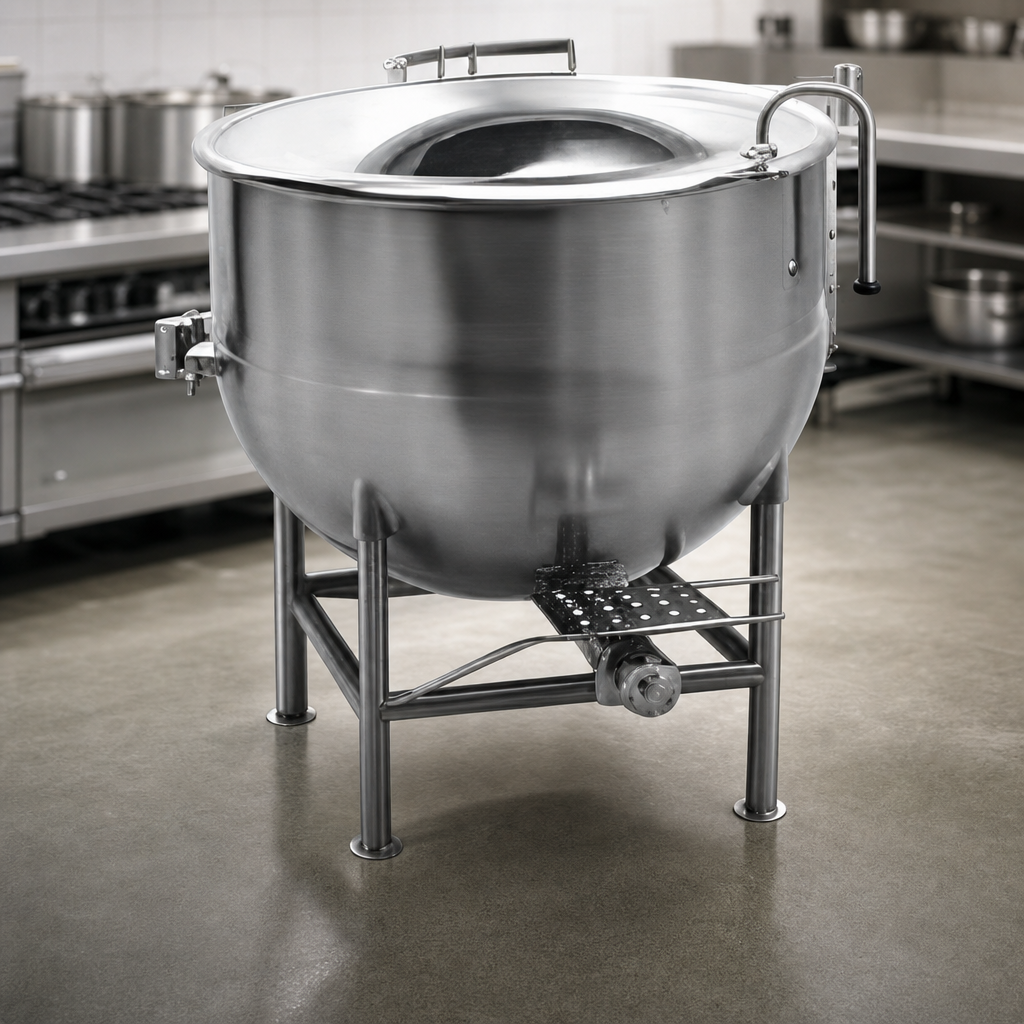

- 50 gallon (189 litre) capacity — ideal for mid-size batch production.

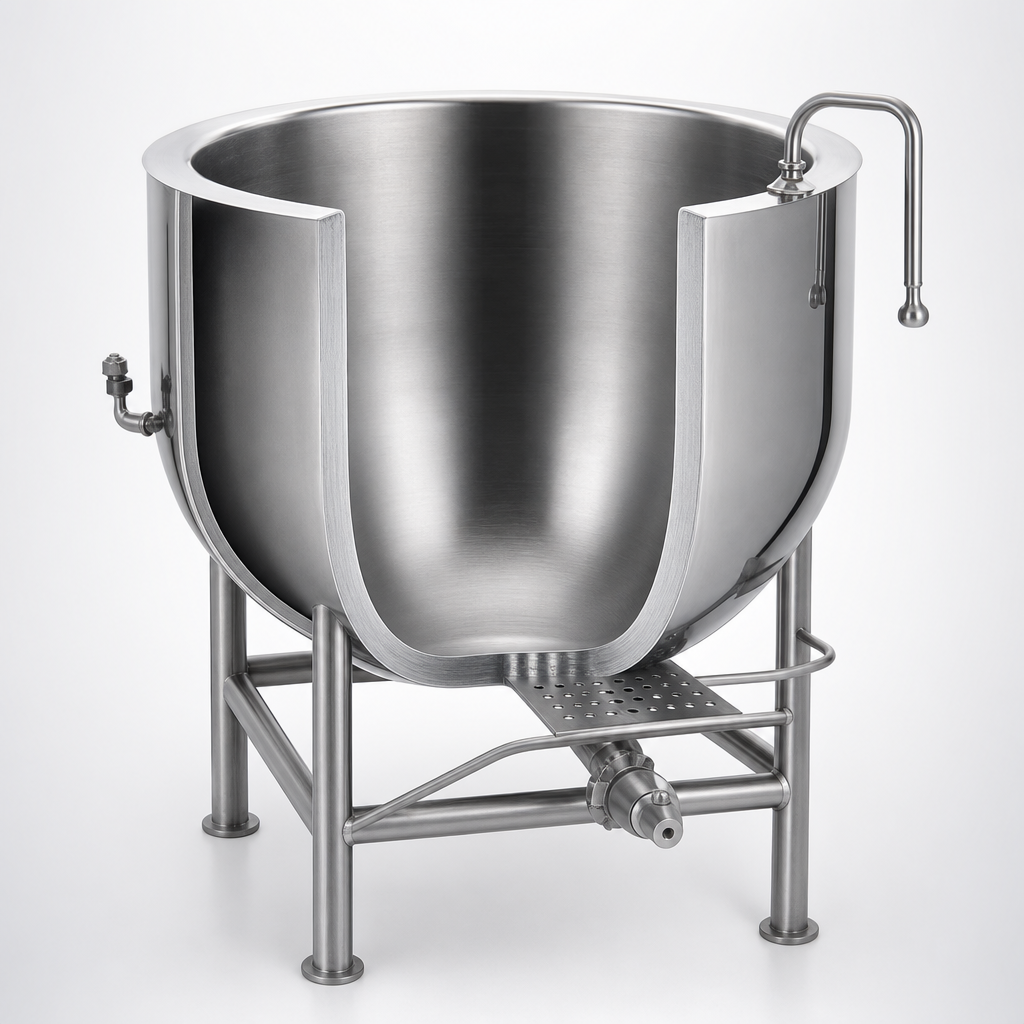

- Seamless deep-drawn 304 stainless steel kettle liner eliminates crevices that can harbor food soil.
- 304L seamless 2/3 jacket provides maximum heat transfer surface for faster heat-up and recovery.
- 30 psi working pressure delivers temperatures up to 274 °F (134 °C) for rapid cooking.
- Heavy-duty 2" compression draw-off valve with 304 SS tube and welds for quick, clog-free portioning.
- Includes removable perforated disk strainer (¼" holes) to keep solids away from the valve seat.
- Three 2"-diameter stainless steel legs with reinforced bracing and adjustable flanged feet for rock-solid floor mounting.
- NSF-listed and ASME-coded; manufactured to meet or exceed applicable agency standards.
- Made in Waynesboro, Georgia, USA.
Technical Specifications
| Model | LT-50 (Stationary, leg-mounted) |
|---|---|
| Capacity | 50 gal / 189 L (to rim) |
| Heat Source | Direct external steam — connect to existing steam boiler |
| Jacket Coverage | 2/3 of kettle sidewall |
| Operating Pressure | 30 psi (2.07 bar) |
| Liner Material | Seamless 304 Stainless Steel |
| Jacket Material | Seamless 304L Stainless Steel |
| Draw-off Valve | 2" compression type, 304 SS, with ¼" perforated strainer |
| Steam Inlet / Outlet | ¾" NPT inlet • ½" NPT condensate outlet |
| Overall Dimensions* | Approx. 29.5" Ø x 69.0" H (footprint Ø 23.8") |
| Legs / Feet | (3) 2"-dia. stainless legs with adjustable flanged feet |
| Country of Origin | USA |
*Dimensions taken from manufacturer’s drawing; confirm clearances before installation.
Popular Factory Options & Accessories
- 3" draw-off valve
- Single or double fill faucet with 12" / 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Two-speed mixer / agitator assembly
- Actuator-assisted domed cover
- Prison-security fasteners and lockable lid
- Kettle care & cleaning kit
Covered by Legion's 12-month parts & labor warranty (15 months from ship date). Extended warranties available.
