Legion LT-40MV Steam Kettles
Description

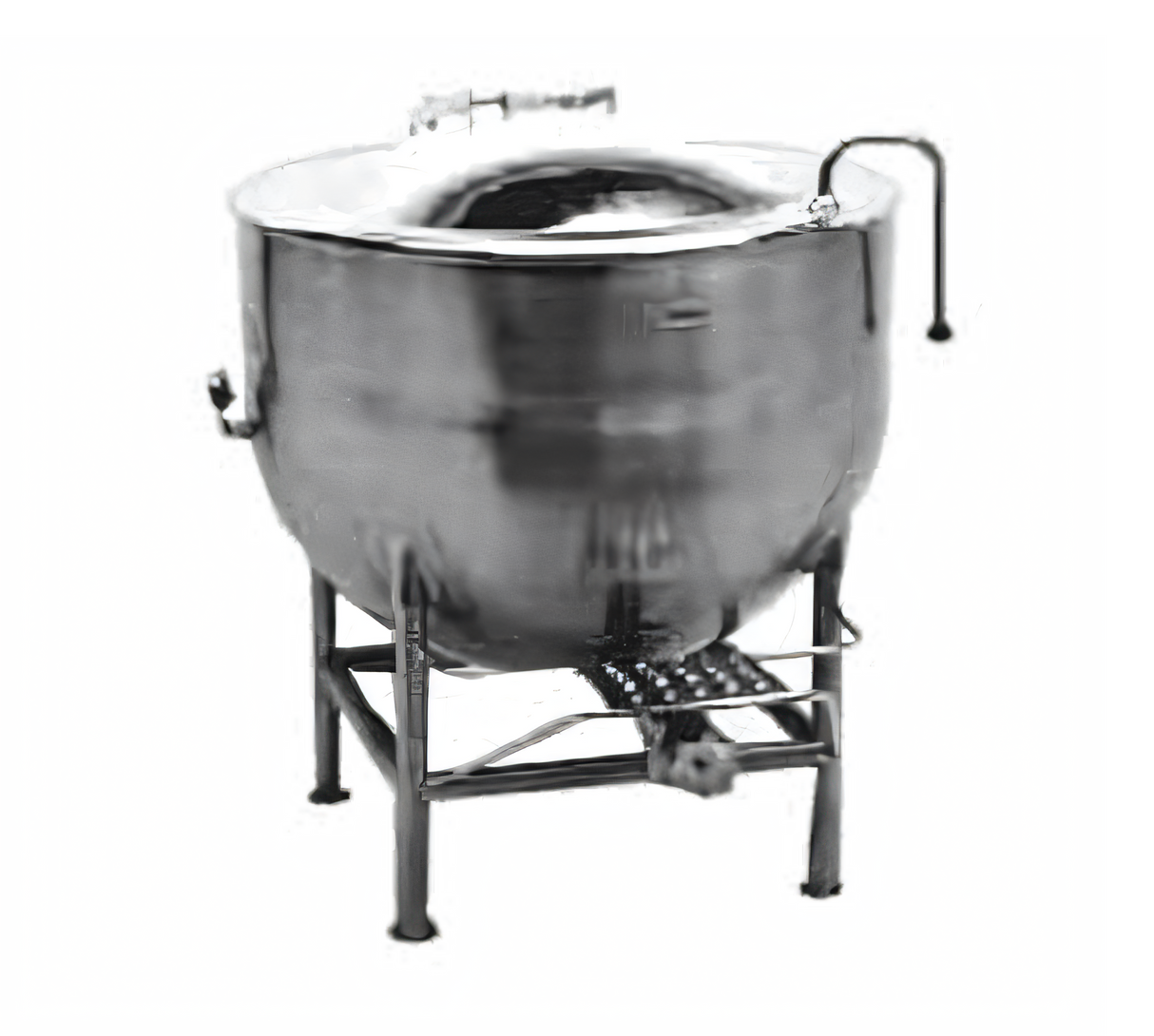

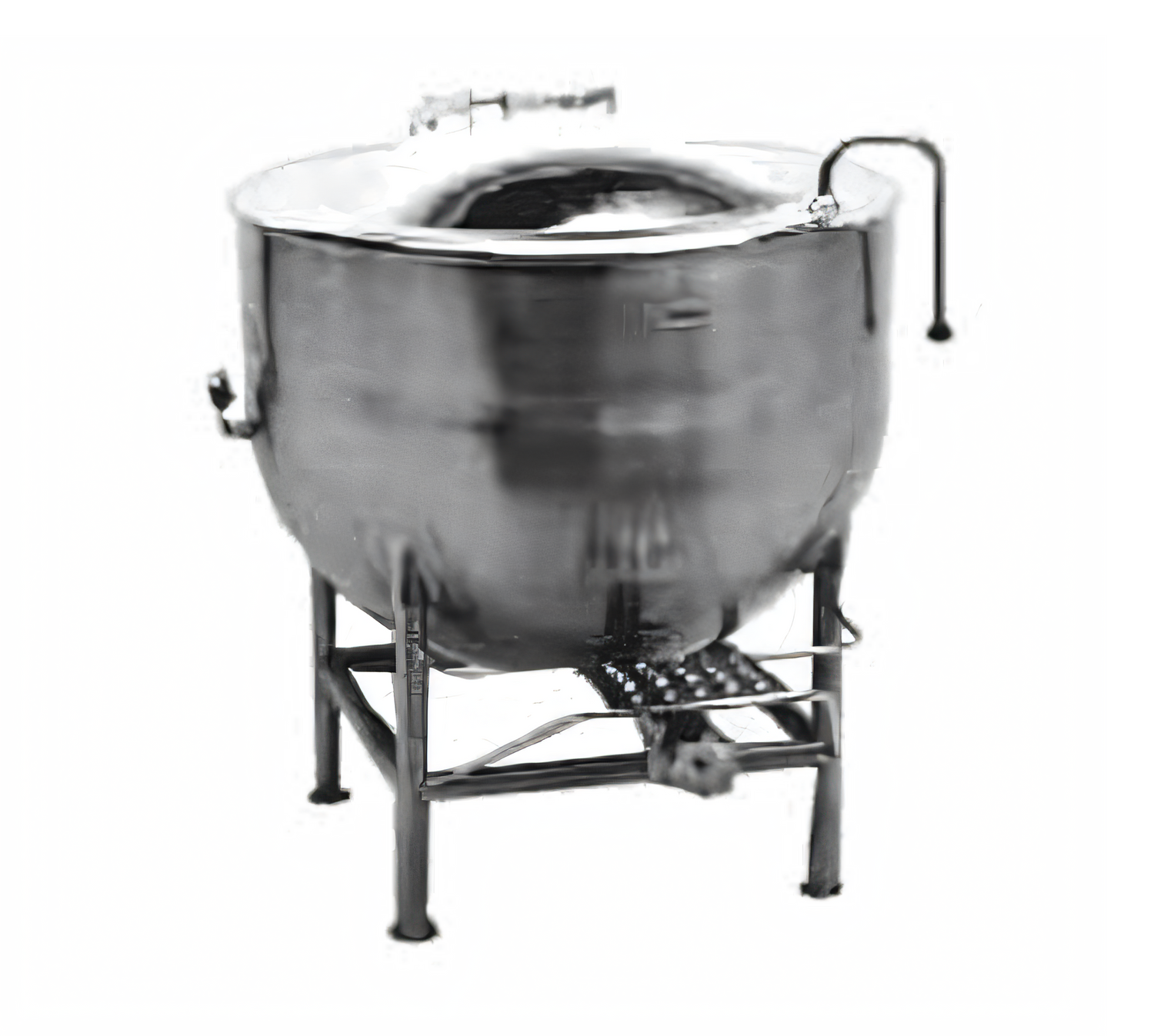

Legion LT-40 Stationary Direct Steam Kettle
with Integrated Twin-Shaft Mixer
40 gal | 2/3-Jacketed | 30 psi | 304 Stainless Steel
Built for heavy-duty production kitchens, the American-made Legion LT-40 combines the proven performance of a deep-drawn, 2/3 jacketed steam kettle with the productivity of a factory-mounted twin-shaft mixer. This all-in-one solution delivers faster batch times, consistent product quality and easier clean-up — perfect for soups, sauces, confectionery fillings and more.
Why choose the LT-40?
- 40 gallon (151 L) working capacity – ideal for medium-volume production
- Seamless 304 stainless kettle liner and 304L stainless jacket for maximum corrosion resistance
- 30 psi direct-steam jacket delivers rapid, even heating without hot spots
- Factory-installed twin-shaft, 2-speed agitator keeps even thick products moving and lump-free
- 2" compression draw-off valve with removable 1/4" perforated disk strainer for chunk-free portioning
- (3) reinforced 304 stainless steel legs with adjustable flanged feet for rock-solid, level installation
- Actuator-assisted domed cover lifts effortlessly for single-operator use
- NSF-listed, ASME-code stamped and built in the USA
Integrated MV-Series Mixer
- Enclosed, balanced aluminum mixer bridge keeps drive components out of the food zone
- Totally-enclosed gear motor – 2 speed (High 1.5 HP / Low 0.75 HP) for 40 gal capacity
- Anchor-style main agitator contours to the kettle wall while removable nylon blades scrape the surface continuously
- Counter-rotating stainless beater improves agitation in the kettle center for uniform mixing
- Bayonet-mount shafts remove in seconds for cleaning or for kettle-only operation
- Safety interlock prevents high-speed start-ups with the agitator raised
- Actuator-assisted bridge lift with positive rim lock for quick kettle access
Specifications
| Capacity | 40 gal / 151 L |
|---|---|
| Operating Pressure | 30 psi (2 bar) max. |
| Jacket Coverage | 2/3 of kettle surface |
| Draw-Off Valve | 2" 304 SS compression type, removable perforated disk strainer (1/4" holes) |
| Construction | Seamless 304 SS liner, 304L SS jacket, 304 SS legs & bracing |
| Legs / Base | (3) legs, 1 5/8" Ø with adjustable flanged feet |
| Cover | One-piece domed stainless cover, actuator assisted |
| Mixer Motor | TEFC gear motor – Low 0.75 HP @ 23 RPM / High 1.5 HP @ 46 RPM (main agitator) |
| Mixer Electrical | 208, 230 or 460 V / 3 ph / 60 Hz (other voltages available) |
| Steam Connections | 3/4" NPT inlet • 1/2" NPT condensate outlet |
| Overall Dimensions* | Dia. 25.5" • Rim Ht. 54.8" • Overall Ht. 65.3" |
*Dimensions taken from manufacturer drawings and include mixer assembly in the lowered position.
Utility Requirements
- Steam supply (minimum 30 psi, clean/dry)
- Condensate return or drain
- Electrical service for mixer motor (voltage & phase as ordered)
- Level floor capable of supporting ≈ 650 lb loaded weight
Manufactured to applicable ASME, NSF and UL standards. Legion Industries continually improves products; specifications are subject to change without notice.
