Legion LT-30MV Steam Kettles
Description

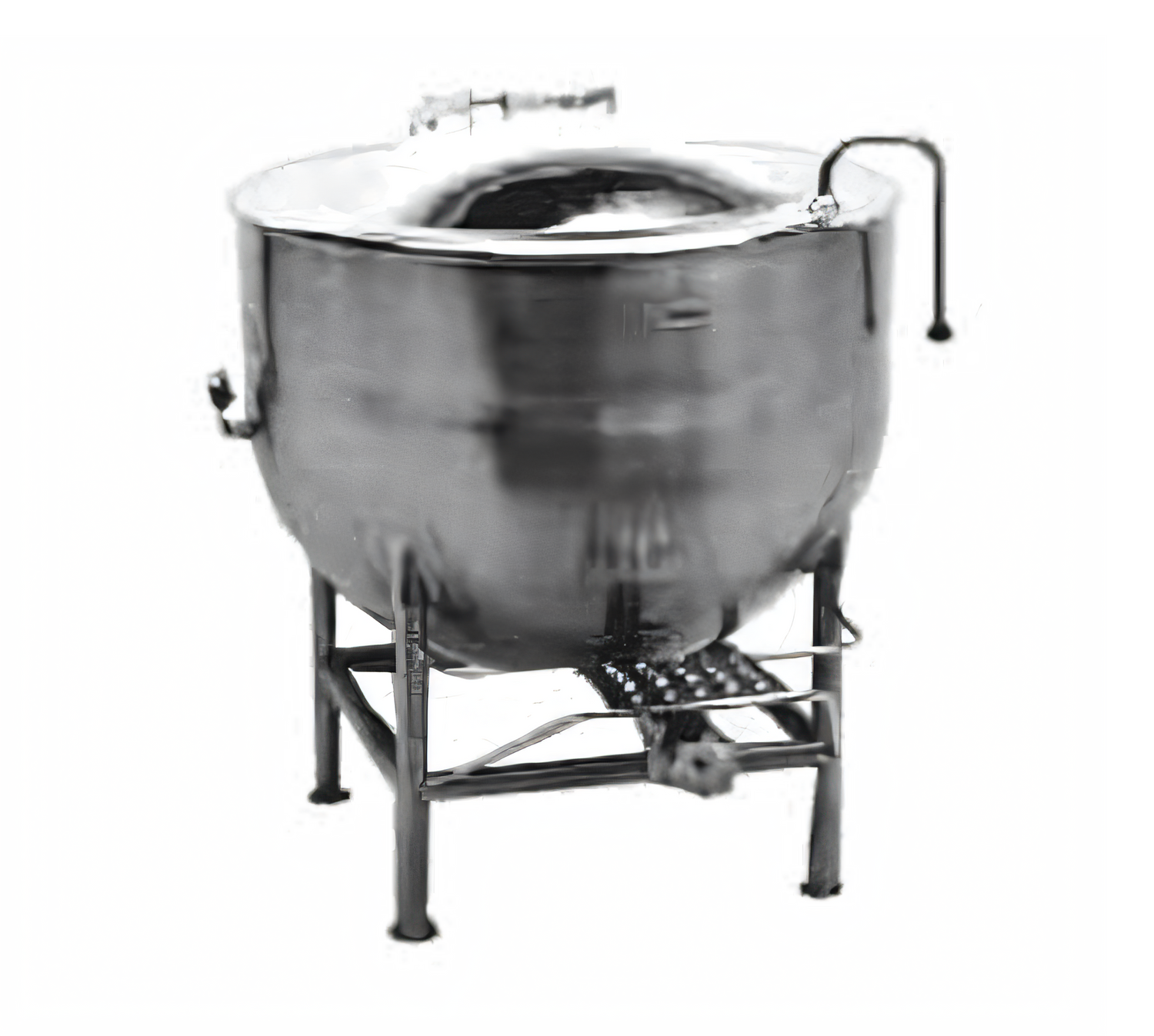

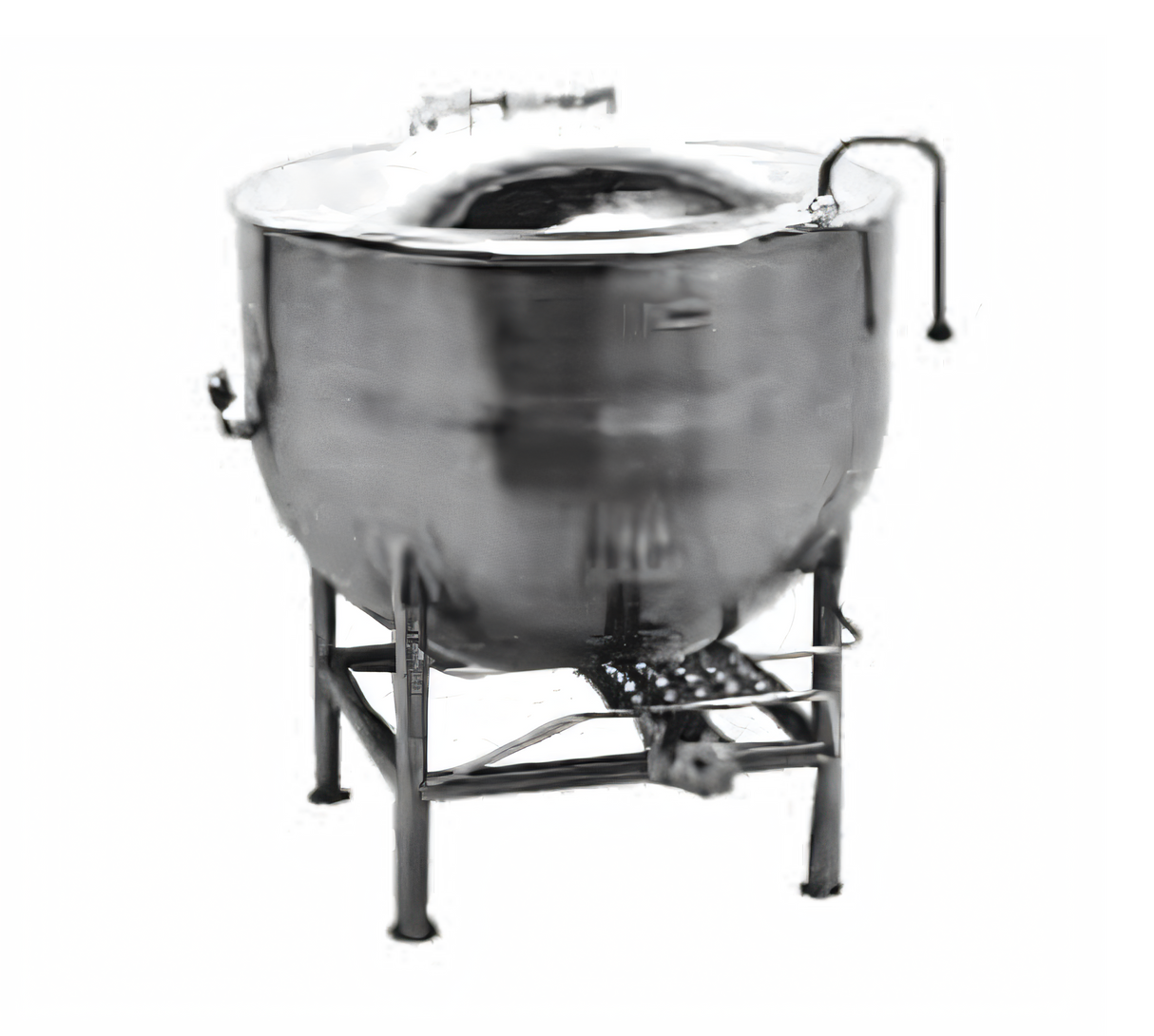

Legion LT-30 Direct Steam Kettle with 2-Speed Mixer – 30 Gal
2/3-jacketed • 304 Stainless Steel • 30 psi Operating PressureBuilt for demanding commercial kitchens, the Legion LT-30 stationary kettle combines rapid, even steam heating with a robust twin-shaft mixer so you can braise, simmer and finish high-yield batches without constant hand stirring. Deep-drawn stainless construction, a sanitary 2″ draw-off and scraper agitator deliver uncompromising durability and productivity in just 6 sq ft of floor space.
Why you’ll love it
- 30 gal (114 L) working capacity – ideal for sauces, soups, fillings and more.
- Seamless 304 SS kettle liner & 304L 2/3 steam jacket for superior hygiene and heat transfer.
- Twin-shaft 2-speed agitator:
- Anchor-style main agitator hugs the kettle wall.
- Counter-rotating secondary beater breaks up particulates.
- Removable nylon scraper blades keep product moving and prevent scorching.
- Enclosed, balanced aluminum mixer bridge with totally-enclosed gear motor for long service life.
- 2″ compression draw-off valve with ¼″ perforated stainless disk strainer – portion or filter product right from the kettle.
- Three 1 ⅝″ Ø stainless legs with reinforced bracing and adjustable flanged feet for secure bolt-down installation.
- 30 psi design pressure accepts low-pressure direct steam supplies.
- Made in the USA and built to ASME & NSF standards.
Technical specifications
| Model | LT-30 DS-MV |
|---|---|
| Capacity | 30 gal / 114 L |
| Construction | Seamless 304 SS liner, 304L 2/3 jacket |
| Operating pressure | 30 psi (2.1 bar) |
| Agitator drive | Twin-shaft, 2-speed gear motor (23 & 46 RPM main) |
| Draw-off | 2″ compression valve with ¼″ perforated strainer |
| Steam connection (In) | ¾″ NPT |
| Condensate (Out) | ½″ NPT |
| Inside diameter | ≈ 23″ (584 mm) |
| Inside depth | ≈ 20 ½″ (521 mm) |
| Overall height (to rim) | ≈ 35 ⅝″ (905 mm) |
| Overall height (with mixer) | ≈ 62″ (1575 mm) |
| Leg pattern (center-to-center) | 13″ (330 mm) |
What’s in the box
- Legion LT-30 stationary kettle with integrated MV mixer assembly
- Lift-off 304 SS domed cover
- 2″ perforated disk strainer (¼″ holes)
- Adjustable flanged feet hardware
- Owner’s/installation manual & warranty registration
Backed by a 12-month parts & labor warranty from date of installation (15 months from ship date).
