Legion LT-30 Steam Kettles
Description

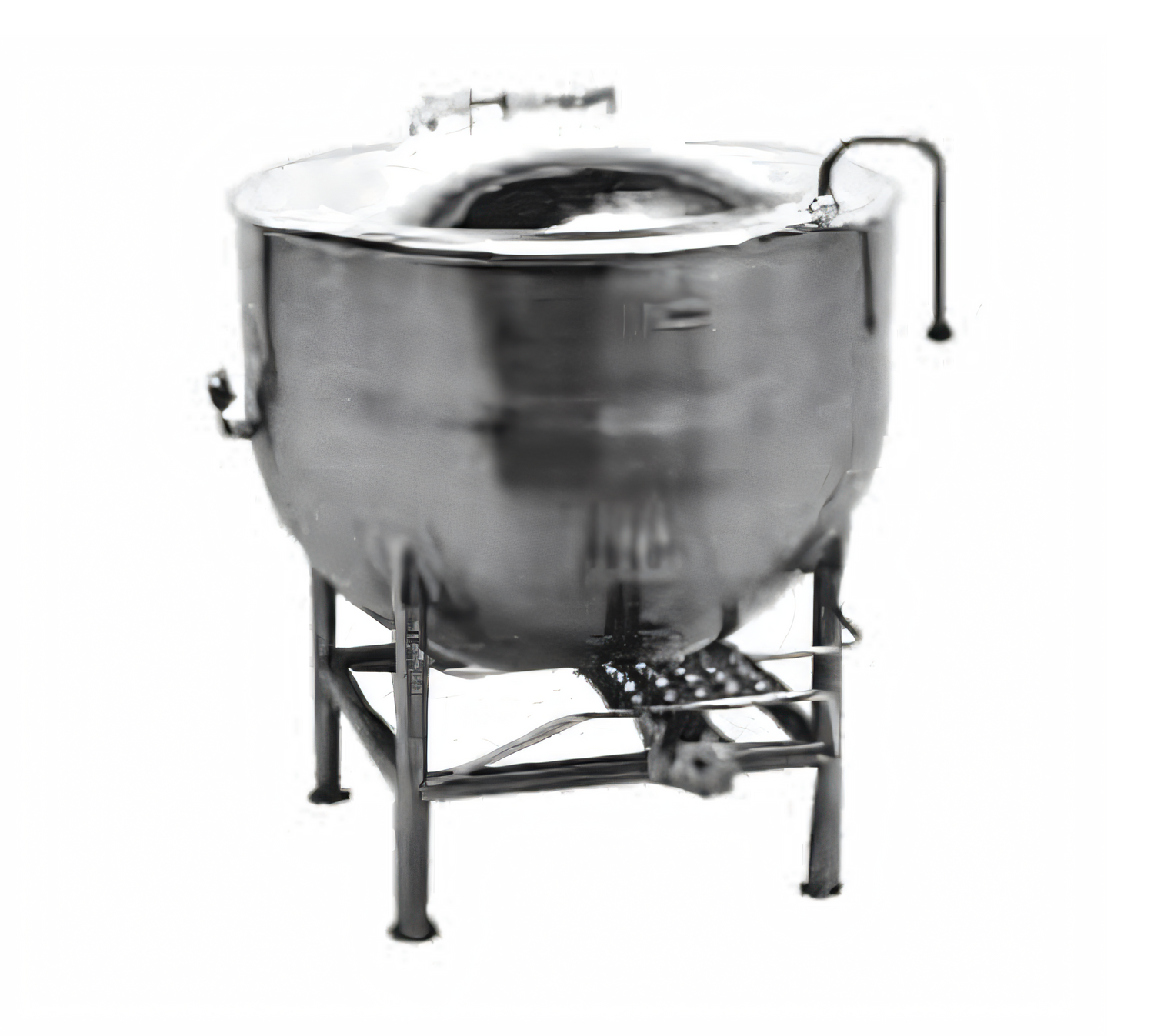

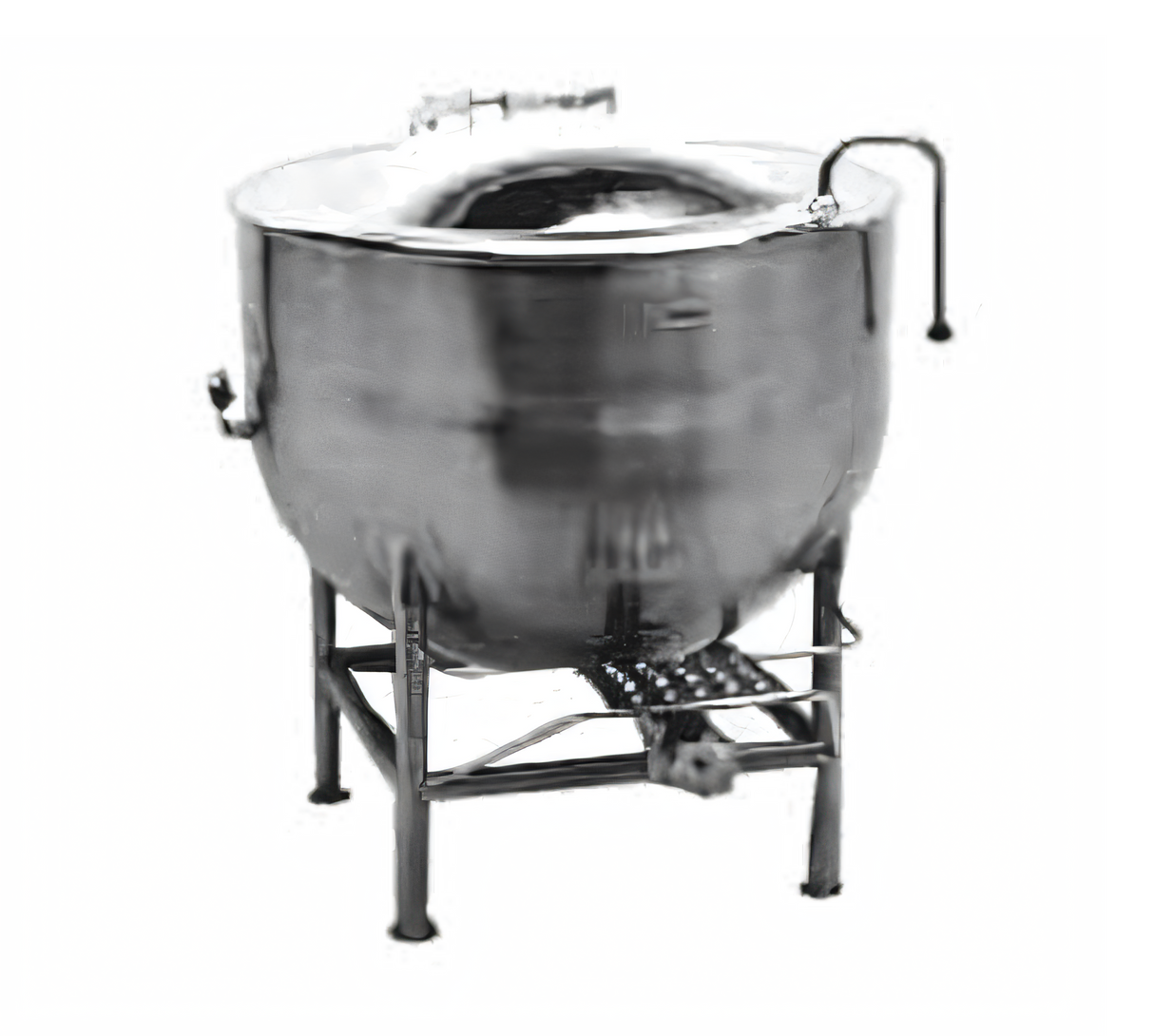

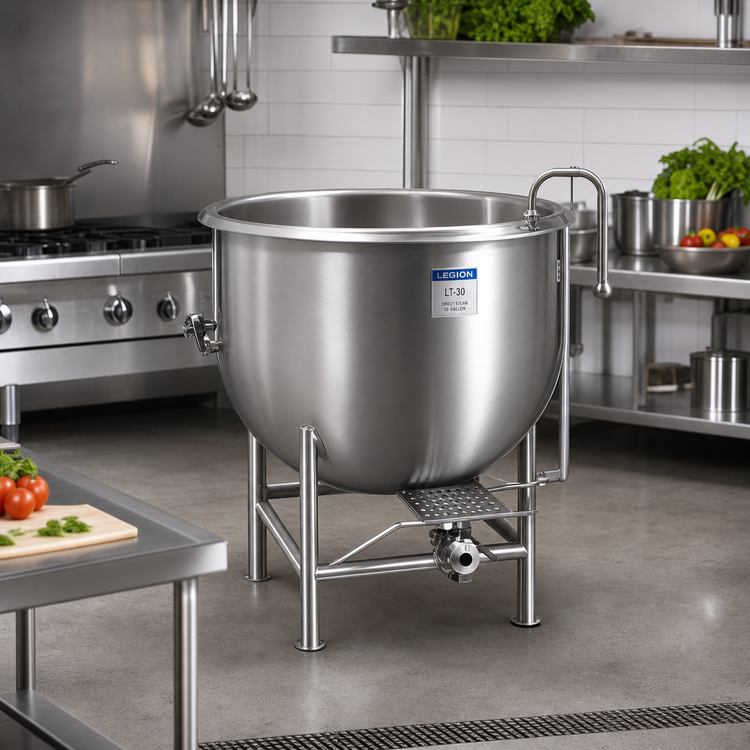

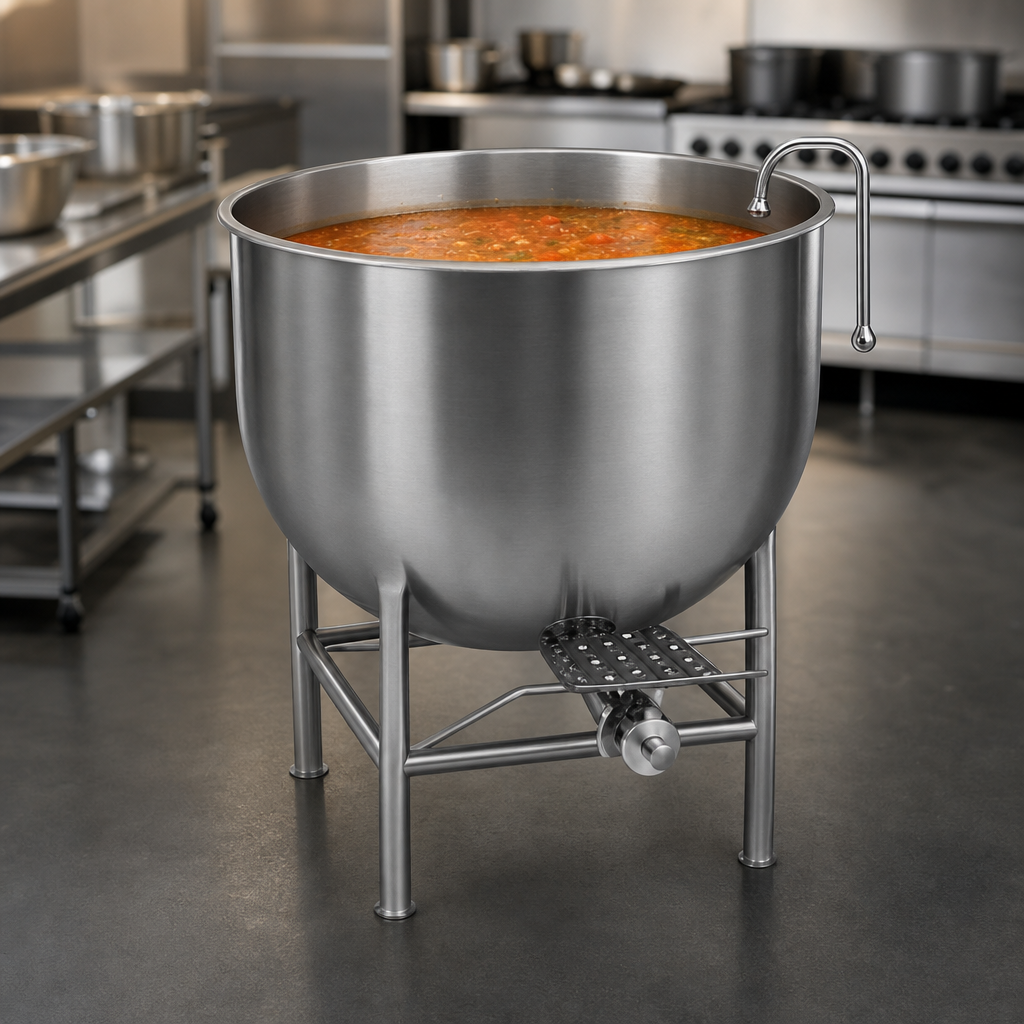

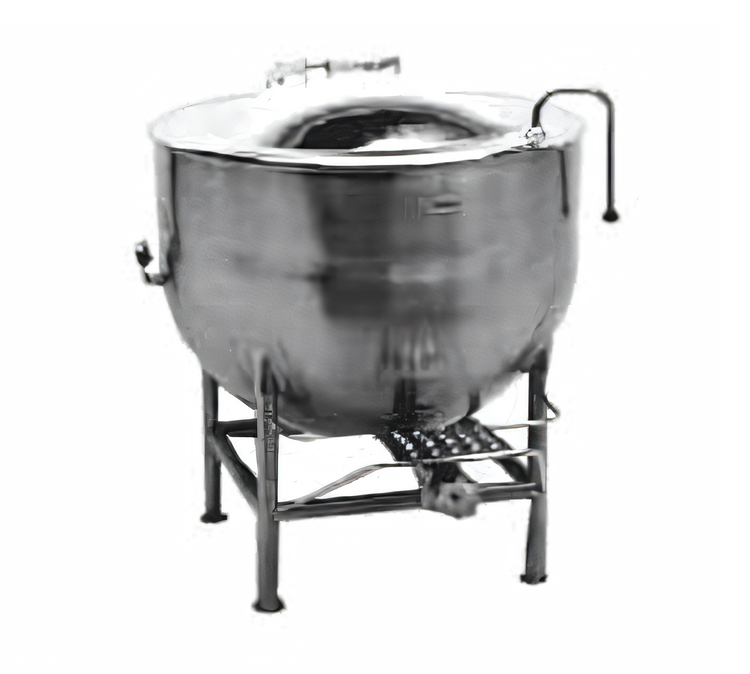

Legion LT-30 Stationary Direct Steam Kettle – 30 Gallon

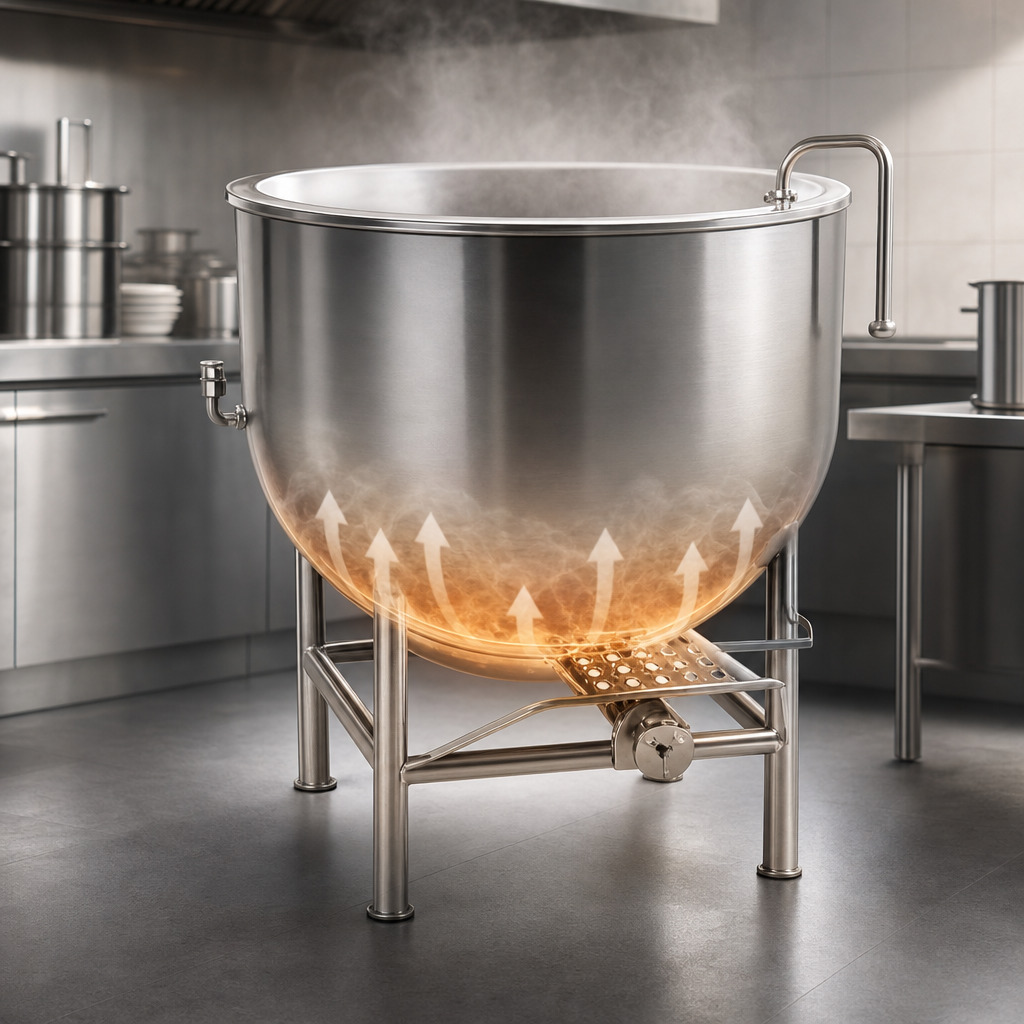

2/3-Jacketed • 304 Stainless Steel • Made in USABuilt for high-volume, high-quality production, the 30-gallon Legion LT-30 delivers rapid, even steam heat for soups, sauces, stocks, pasta, vegetables, and more—all while standing up to the daily rigors of a busy commercial kitchen.
Why You’ll Love It
- Seamless deep-drawn 304 stainless steel kettle liner for superior sanitation and easy clean-up.
- 2/3 jacket design maximizes heat transfer for faster cook times and energy efficiency.
- Factory-installed 2" compression draw-off valve with ¼" perforated disk strainer—ideal for bag-free straining of stocks and broths.
- All-stainless construction—including jacket, legs, sockets, and bracing—for unmatched corrosion resistance.
- (3) 1 5⁄8" diameter legs with adjustable flanged feet provide rock-solid stability and easy floor anchoring.
- 30 psi operating pressure handles today’s high-performance boiler systems.
- Domed, one-piece stainless steel cover helps retain heat and reduce evaporation (included).
- Manufactured and ASME-certified in the United States.
Technical Specifications
| Model & Capacity | LT-30 • 30 gal (114 L) |
|---|---|
| Operating Pressure | 30 psi (2.07 bar) |
| Jacket Coverage | 66 % of kettle height (2/3 jacket) |
| Draw-Off Valve | 2" compression type, 304 SS ¼" perforated strainer disk |
| Construction | Seamless 304/304L stainless—liner, jacket, legs, bracing, cover |
| Steam Inlet / Outlet | ¾" NPT inlet • ½" NPT condensate outlet |
| Overall Dimensions * | A 23", B 20.3", C 35.6", D 20.5", E 10.2" |
| Floor-to-Rim Height | J1 61.6" • J2 51.8" |
| Center of Draw-Off (S) | 13.0" above floor |
*Refer to spec drawing for complete dimensional data.
Perfect For
- Batch-cooking sauces, gravies, and soups
- Pasta, rice, and grain preparation
- Braising meats or sautéing vegetables in volume
- Reducing stocks and demi-glace
Popular Accessories (Sold Separately)
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly
- 2-speed mixer/agitator kit
- Lift-off or 2-piece hinged covers
- Tri-basket or nylon bag inserts for pasta & bulky foods
- Higher operating-pressure configuration
Legion equipment is built to comply with applicable ASME and NSF standards. Third-party approvals (UL, ETL, CSA, etc.) available where required.
