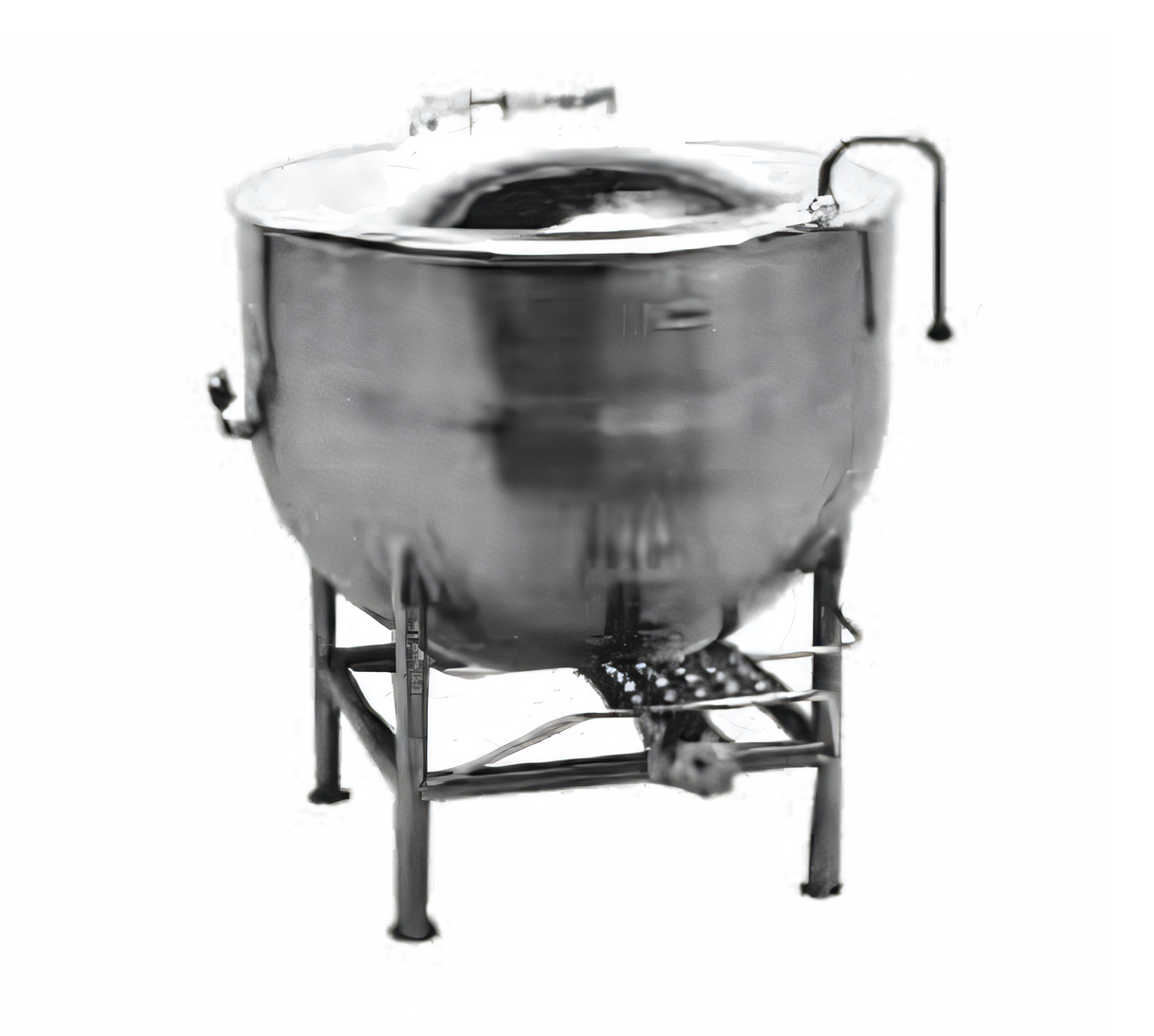

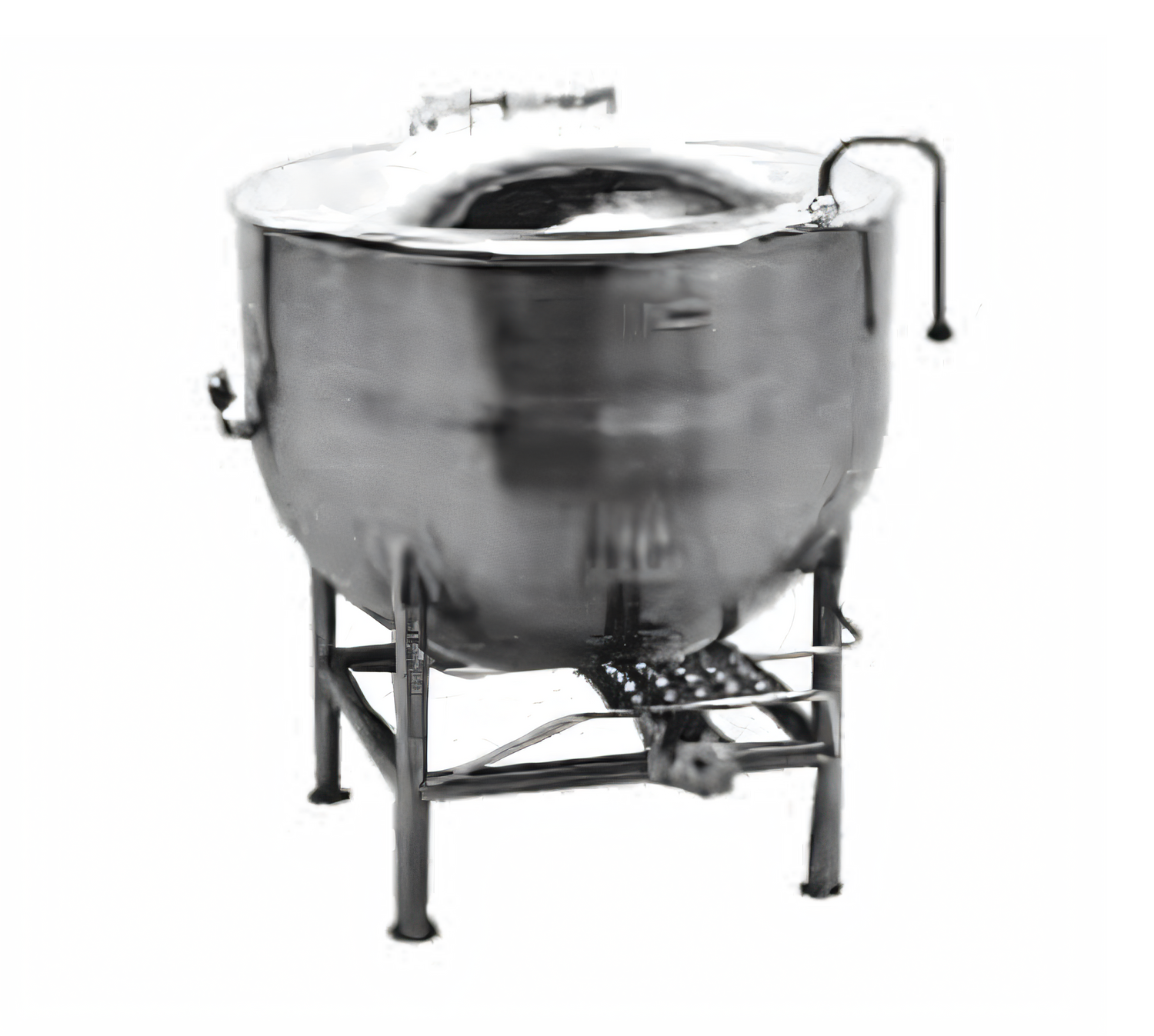

Legion LT-20 Direct Steam Kettle with 2-Speed Mixer – 20 Gal.
Stationary • 2/3 Jacketed • 304 Stainless Steel • 30 psiBuilt in the USA for demanding commercial kitchens, the 20-gallon Legion LT-20 couples rapid, even direct-steam heating with a robust 2-speed twin-shaft agitator. From delicate sauces to high-viscosity fillings, you’ll achieve perfectly blended, scorch-free results while shaving valuable minutes off your production schedule.
Key kettle advantages
- Seamless deep-drawn 304 stainless steel liner for easy cleaning and maximum durability.
- 304L stainless 2/3 steam jacket speeds heat-up and maintains uniform temperatures.
- Rugged 2" compression draw-off valve with 1/4" perforated disk strainer for lump-free portioning.
- (3) 1 5/8" Ø stainless legs with reinforced bracing & adjustable flanged feet – rock-solid stability on any floor.
- 30 psi ASME-code stamped jacket handles higher steam pressures for faster batch times.
Integrated 2-speed mixer benefits
- Balanced aluminum bridge with totally enclosed gear motor – built for continuous service.
- Anchor-style 304 SS main agitator hugs the kettle wall; removable nylon scraper blades prevent scorching.
- Counter-rotating 304 SS secondary beater keeps product in constant motion for superior homogeneity.
- Bayonet-mount agitator & beater remove in seconds for thorough sanitation or kettle-only use.
- Actuator-assisted lift raises the entire mixer assembly for safe, unobstructed access.
- Safety interlock prevents high-speed starts unless the agitator is fully engaged and latched.
Technical specifications
| Model / Capacity | LT-20 / 20 gal (76 L) |
|---|---|
| Construction | All-welded 304 & 304L stainless steel |
| Jacket type / Pressure | 2/3 steam jacket, 30 psi operating |
| Agitator motor | 2-speed, 1 HP (High) / ½ HP (Low) | 46 / 23 RPM main agitator |
| Secondary beater RPM | 120 RPM (High) / 60 RPM (Low) |
| Draw-off | 2" compression valve with ¼" perforated strainer disk |
| Legs / Feet | (3) stainless legs, reinforced; adjustable flanged feet |
| Steam connections (NPT) | ¾" inlet | ½" condensate outlet |
| Overall height (J1) | 56.0" (mixer down) |
| Overall width (A) | 22.0" |
| Front-to-back (C) | 31.0" |
| Shipping weight | Approx. 315 lb / 143 kg |
Electrical, steam and condensate utilities must be sized and installed by a qualified professional. Specify voltage, phase and hertz for mixer motor at time of order.
Backed by Legion’s 12-month parts & labor warranty. Extended coverage available.
