Legion LT-150 Steam Kettles
Description

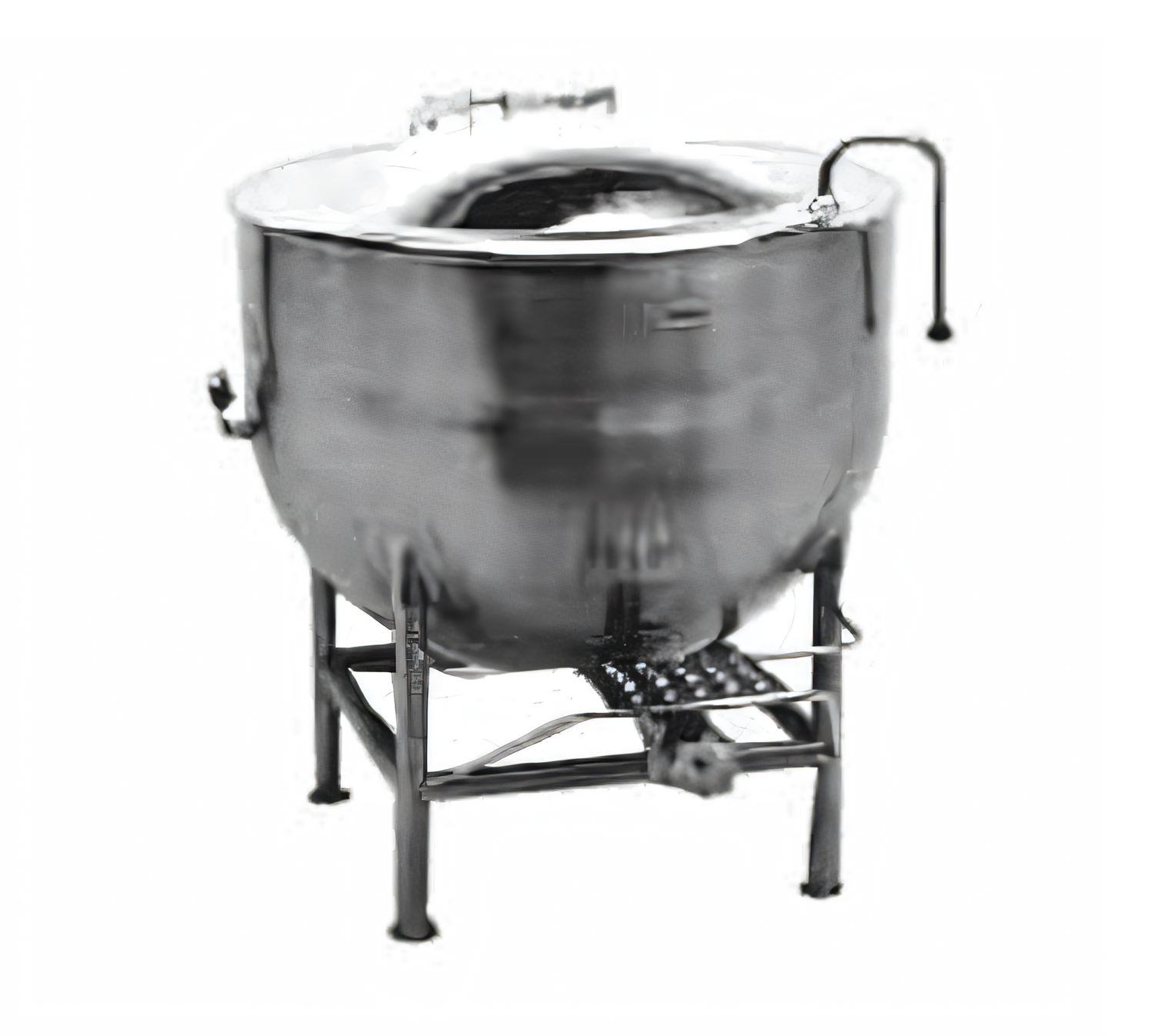

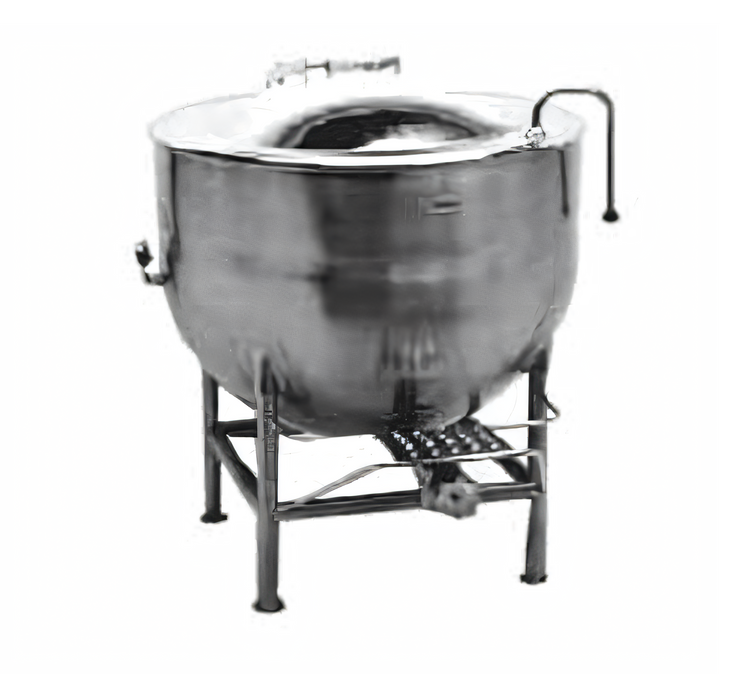

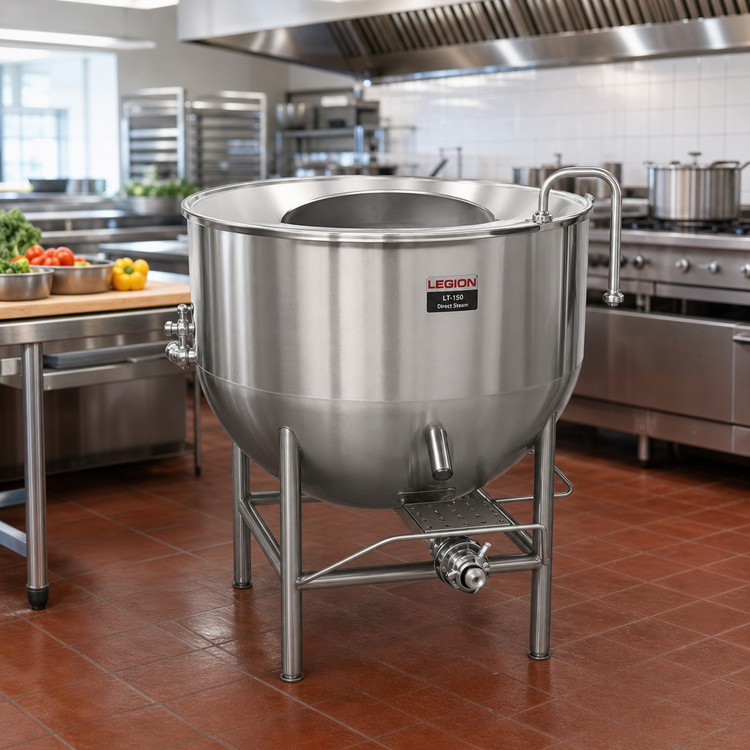

Legion LT-150 Stationary Direct Steam Kettle – 150 gal.
Deep-drawn 304 stainless | 2/3 jacket | Made in USABuilt for high-volume, high-efficiency production, the Legion LT-150 delivers 150 gallons (568 L) of consistent, steam-powered cooking capacity in a rugged, easy-to-clean package. From soups and sauces to stocks and stews, this fully jacketed kettle keeps your kitchen moving and your labor costs down.
Why this kettle stands out

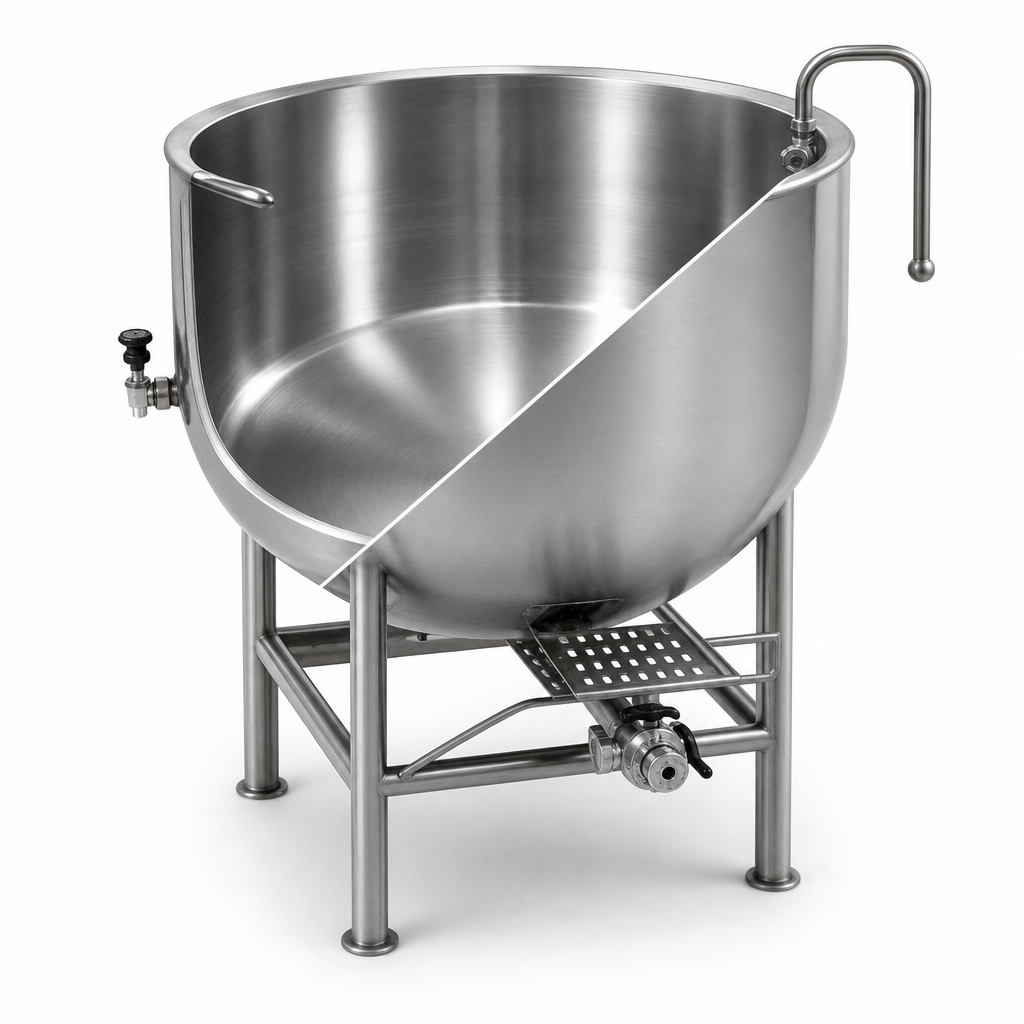

- Seamless deep-drawn 304 stainless steel liner for superior sanitation and easy cleanup.
- Full 2/3 steam jacket (304L stainless) delivers rapid, even heating with no hot spots.
- Factory-installed 2 in. compression draw-off valve with ¼ in. perforated disk strainer—perfect for broth clarity and smooth portioning.
- Actuator-assisted domed cover (one-piece 304) allows effortless, controlled opening and closing.
- Four heavy-duty stainless legs with reinforced bracing and adjustable flanged feet for rock-solid stability and easy floor anchoring.
- Rated to 25 psi operating pressure for fast recovery and energy efficiency.
- Complies with ASME and NSF standards; proudly made in Waynesboro, GA, USA.
Ideal for
- Central kitchens & commissaries
- School & university foodservice
- Correctional facilities
- High-volume restaurants & catering operations
- Food manufacturers preparing fillings, sauces, or beverages
Technical specifications
| Model | LT-150 (Direct Steam) |
|---|---|
| Capacity | 150 gal. / 568 L |
| Kettle liner | Seamless deep-drawn 304 stainless steel |
| Steam jacket | 2/3 jacket, 304L stainless steel |
| Operating pressure | 25 psi (max.) |
| Draw-off valve | 2 in. compression style, 304 stainless |
| Strainer | Removable perforated disk, ¼ in. holes |
| Cover | One-piece domed 304 stainless, actuator-assisted |
| Mounting | (4) stainless legs, 2 in. Ø with reinforced bracing |
| Footing | Adjustable flanged feet (floor anchor ready) |

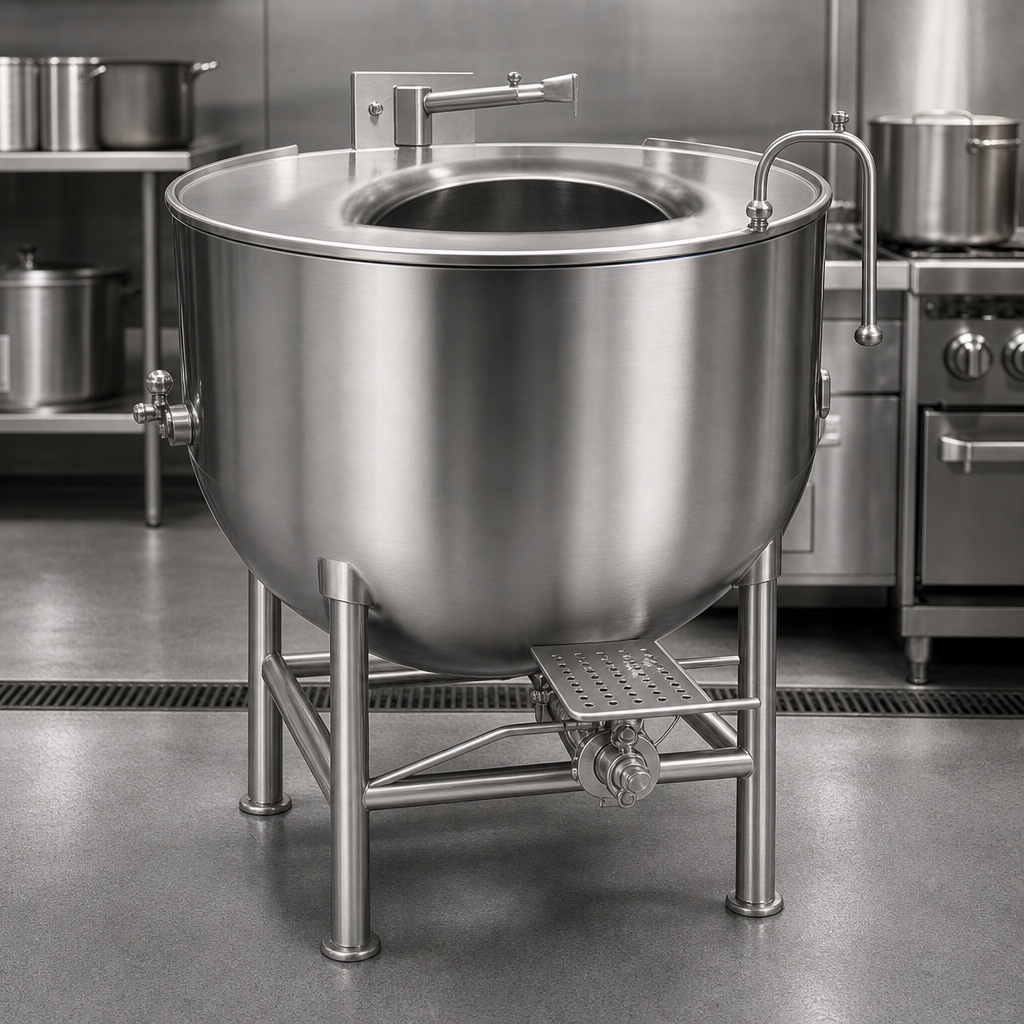

| Construction | All-welded stainless steel |
| Compliances | ASME Section VIII, NSF |
| Country of origin | USA |
Dimensional data (inches)
| Overall height (J1) | 92.4 |
|---|---|
| Working height (J2) | 72.8 |
| Diameter (A) | 44.0 |
| Front-to-rear (B) | 30.4 |
| Floor-to-draw-off (H*) | 13.5 † |
| Steam inlet (Q) | 1¼ in. NPT |
| Condensate outlet (R) | ¾ in. NPT |
† “H” varies slightly with draw-off size selection.
Utility requirements
- Steam supply up to 25 psi via 1¼ in. NPT inlet
- Gravity condensate return (¾ in. NPT)
- Level, non-combustible floor capable of supporting 1,060 lb (empty) plus product weight
Upgrade your production line with the performance and reliability of Legion’s flagship 150-gallon steam kettle—order yours today and keep the kitchen rolling.
