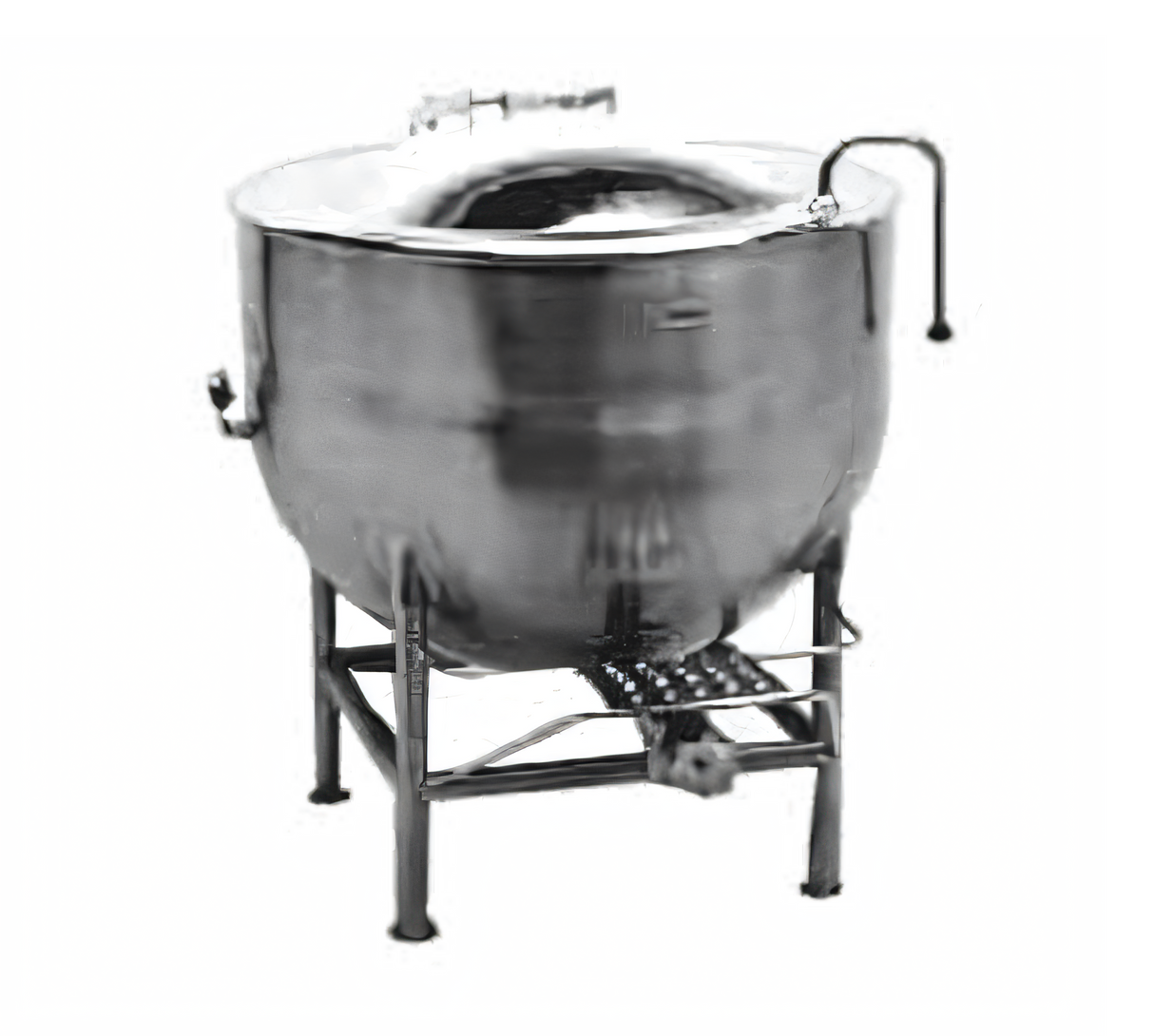

Legion LT-100 | Stationary Direct Steam Kettle with 2-Speed Mixer – 100 gal
2/3 Jacketed • 304 Stainless Steel • Made in the USABuilt for high-volume, high-yield production, the Legion LT-100 stationary kettle combines a seamless, deep-drawn 304 stainless vessel with a powerful twin-shaft agitator. From creamy chowders to thick caramel, the LT-100 delivers uniform cooking, efficient mixing and years of trouble-free service.
Kettle Highlights
- 100-gallon (379 L) working capacity – ideal for commissaries, schools & central kitchens
- Seamless 304 SS kettle liner eliminates interior welds and sanitation “catch points”
- 2/3 steam jacket (304L) for rapid, even heat transfer
- Certified 25 psi operating pressure
- 2″ 304 SS compression draw-off valve with perforated ¼″ strainer disk
- One-piece, actuator-assisted 304 SS domed cover (easy lift & self-balanced)
- Four 2″-diameter leg assemblies with reinforced cross-bracing & adjustable flanged feet
- ASME-constructed & NSF-listed; fabricated in Waynesboro, Georgia
Integrated MV Twin-Shaft Agitator
- Totally-enclosed gear motor, factory set for two operating speeds (Low: 23/60 RPM • High: 46/120 RPM main/secondary)
- High-torque 2 HP (high) / 1 HP (low) drive handles dense sauces & delicate creams alike
- 304 SS anchor-style main agitator hugs kettle wall for complete scraping
- Counter-rotating 304 SS secondary beater promotes thorough product movement
- Removable nylon scraper blades prevent scorching and are dishwasher-safe
- Bayonet-mount shafts lift out with an actuator-assist arm for quick cleaning or kettle-only use
- Positive rim-lock & safety interlock block high-speed starts unless mixer is fully engaged
Why Operators Choose Legion
- Deep-draw fabrication yields stronger, lighter kettles with superior sanitation
- All-stainless construction—inside, outside, legs and fittings—resists rust & harsh cleaners
- Field-proven since 1946; supported by nationwide parts & service network
- Customizable with faucets, strainers, baskets and security packages (sold separately)
At-a-Glance Specs
| Capacity | 100 gal / 379 L |
|---|---|
| Kettle Material | Seamless 304 SS liner, 304L 2/3 jacket |
| Operating Pressure | 25 psi (direct steam) |
| Agitator Drive | Twin-shaft, two-speed gear motor (2 HP / 1 HP) |
| Agitator Speeds | Low: 23 RPM main / 60 RPM secondary High: 46 RPM main / 120 RPM secondary |
| Draw-off Valve | 2″ compression, 304 SS, w/ ¼″ perforated strainer |
| Support | (4) 2″ Ø 304 SS legs with adjustable flanged feet |
| Cover | One-piece, domed, actuator-assisted stainless steel |
| Certifications | ASME, NSF |
Steam supply, electrical connection for mixer and any optional accessories must be installed by qualified personnel and conform to local codes. For dimensional drawings, utility locations and accessory compatibility, please refer to the factory engineering print or contact our team.
Product Weight:
939.0 lbFrequently Asked Questions
