Legion LT-100 Steam Kettles
Description

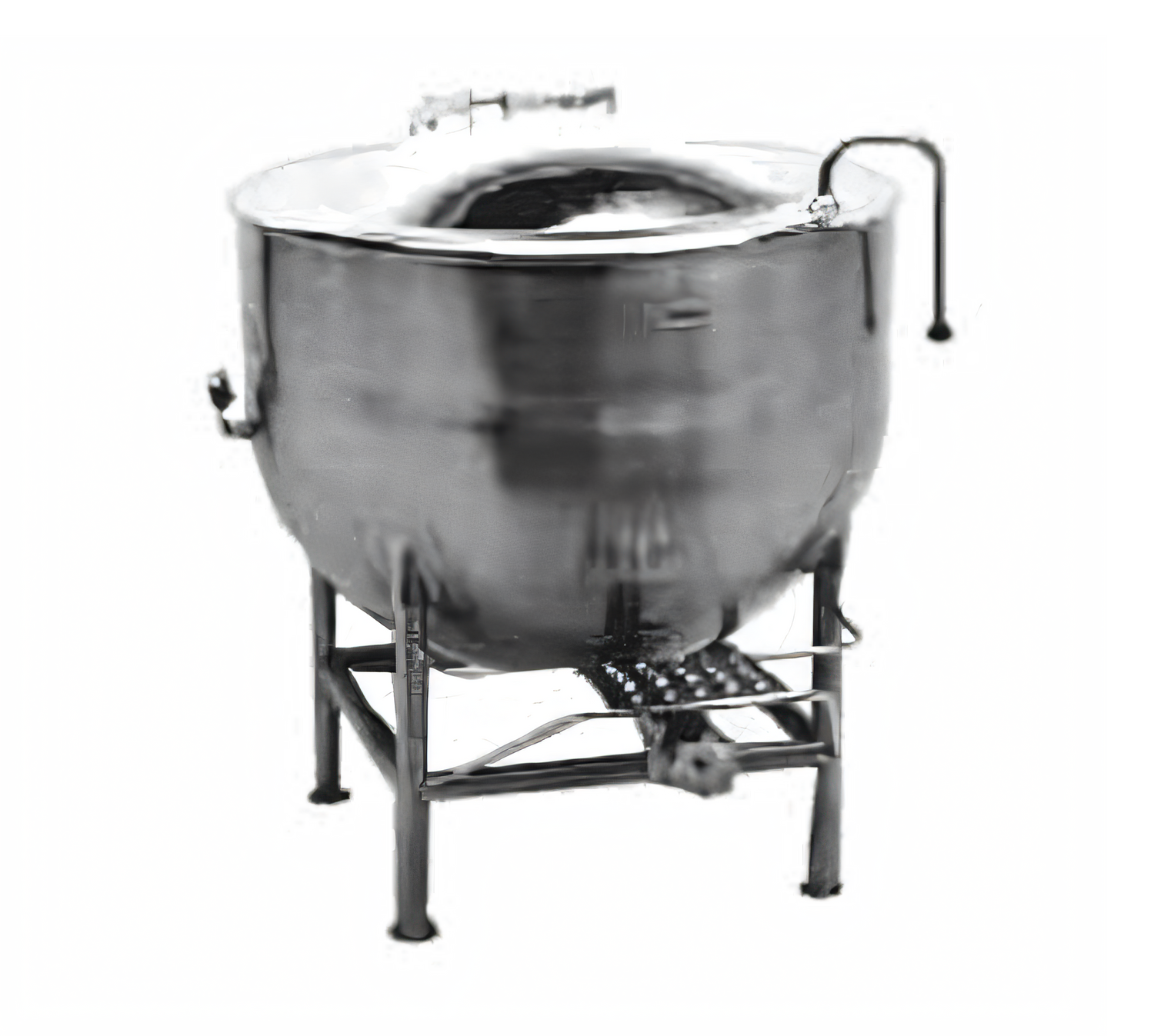

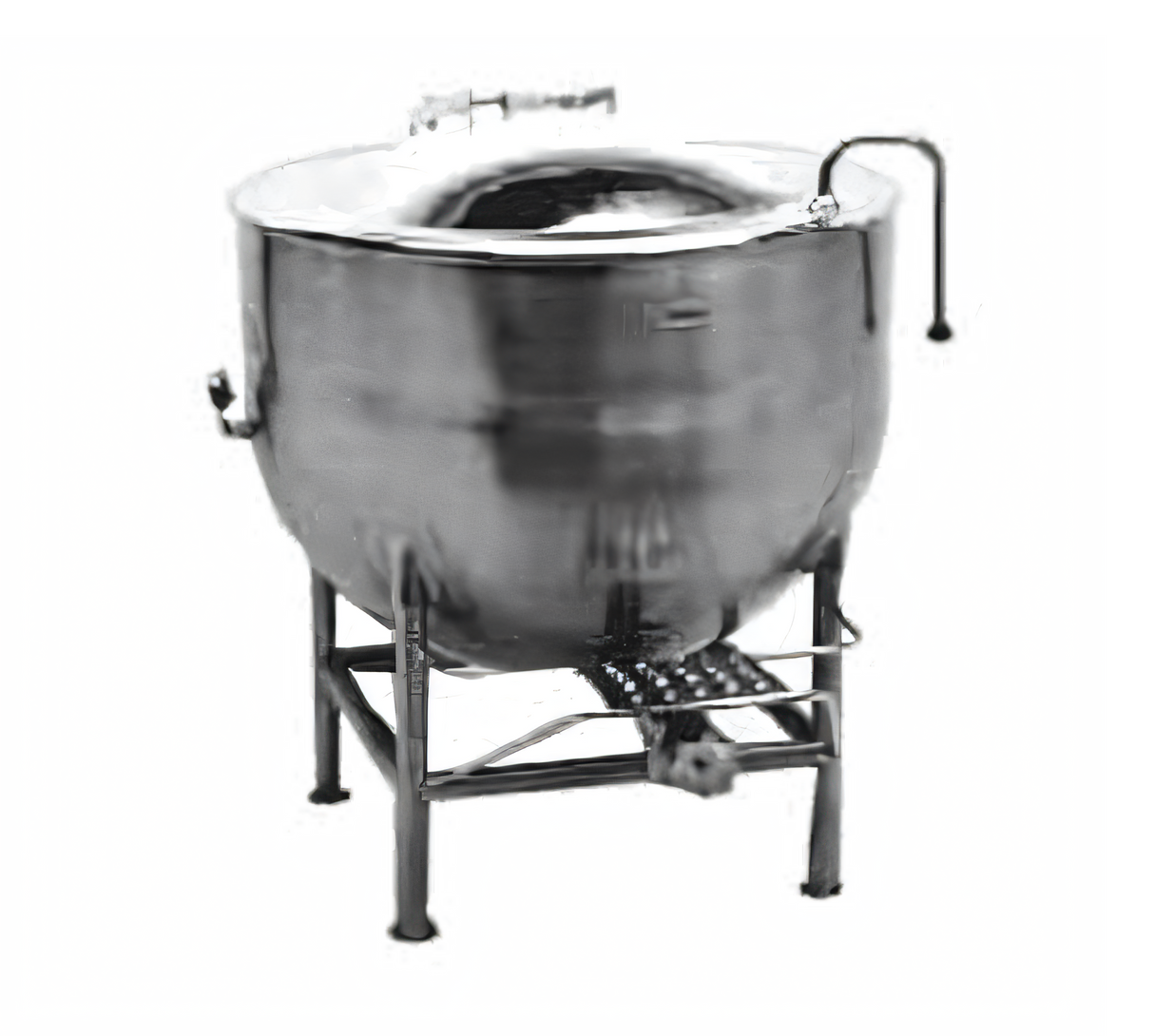

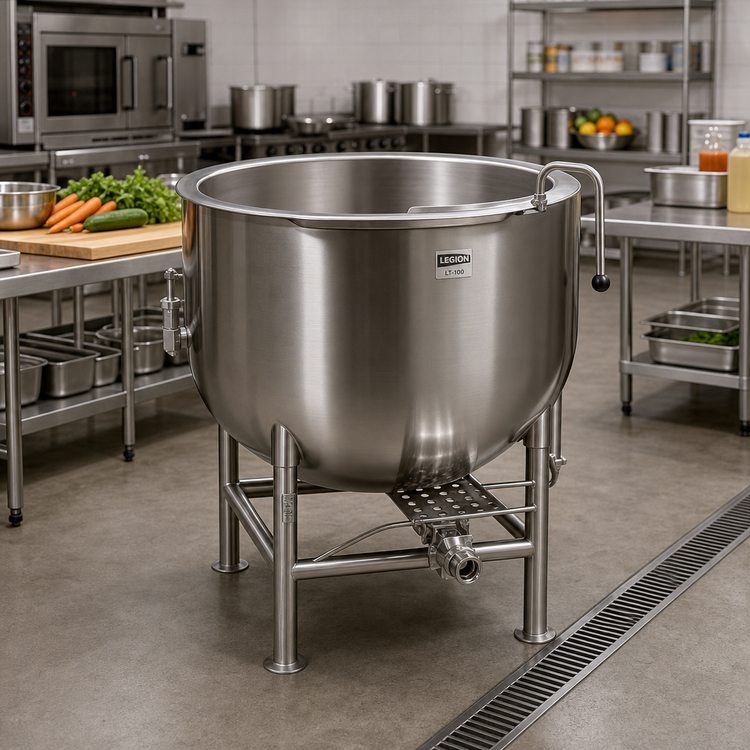

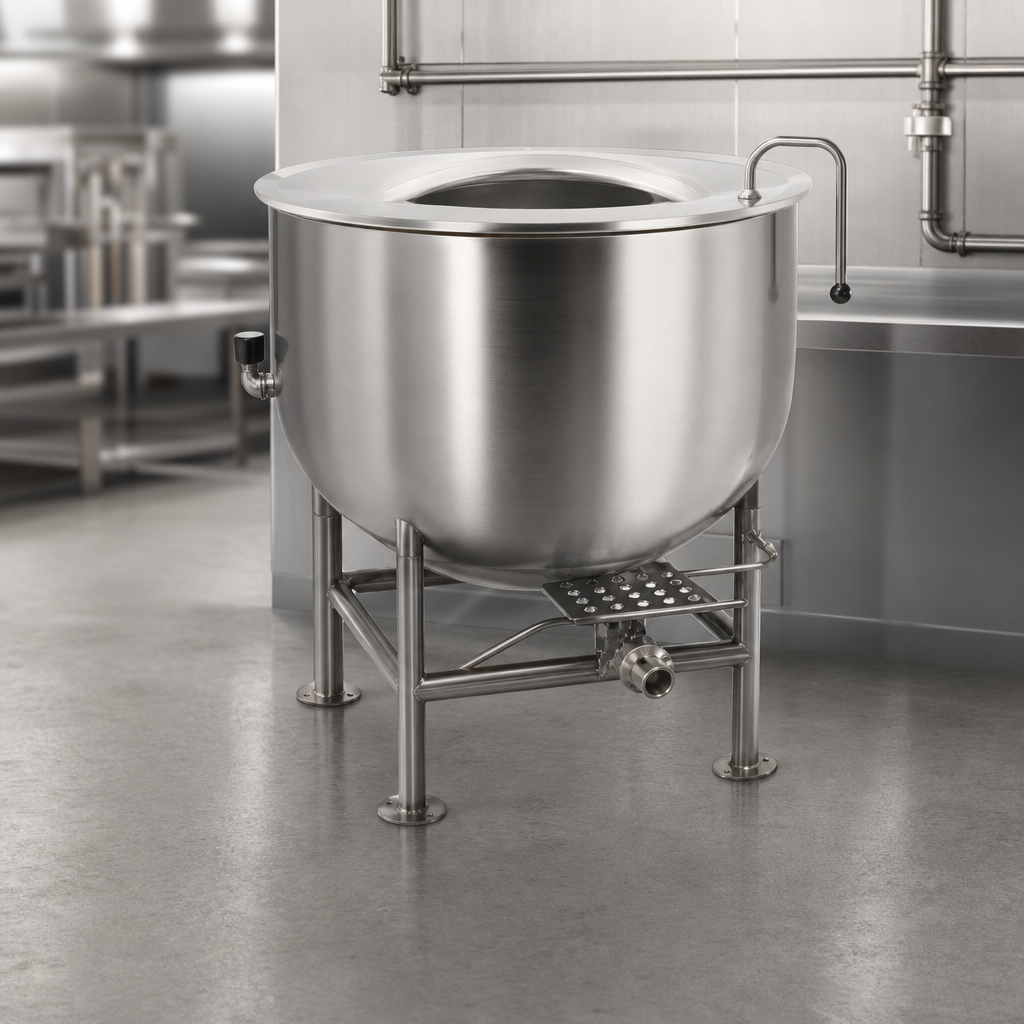

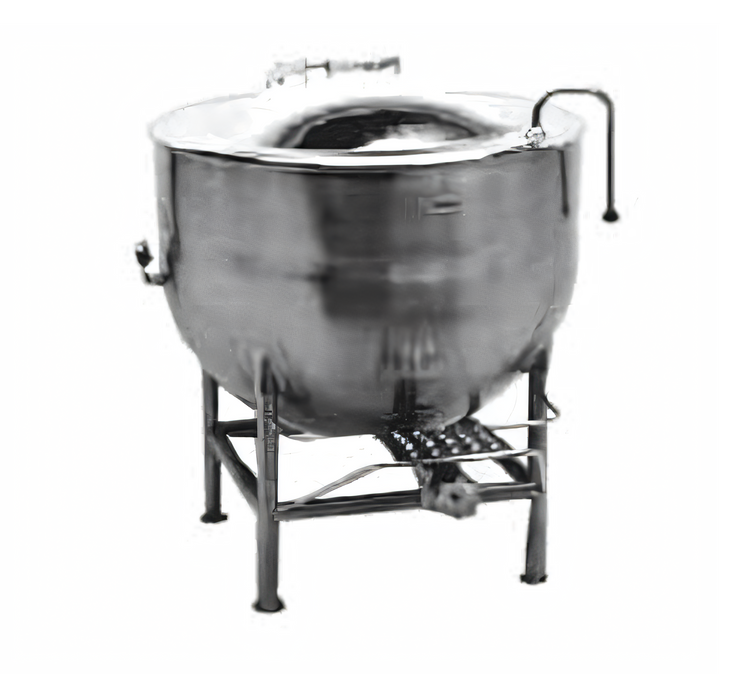

Legion LT-100 Stationary Direct Steam Kettle – 100 gal
2/3 Jacketed • Seamless 304 Stainless • Made in USABuilt for the demands of high-volume, scratch-cook operations, the LT-100 pairs a seamless 304 stainless kettle liner with a powerful 2/3 steam jacket to deliver fast, even heating and years of trouble-free service.
Key Performance Benefits

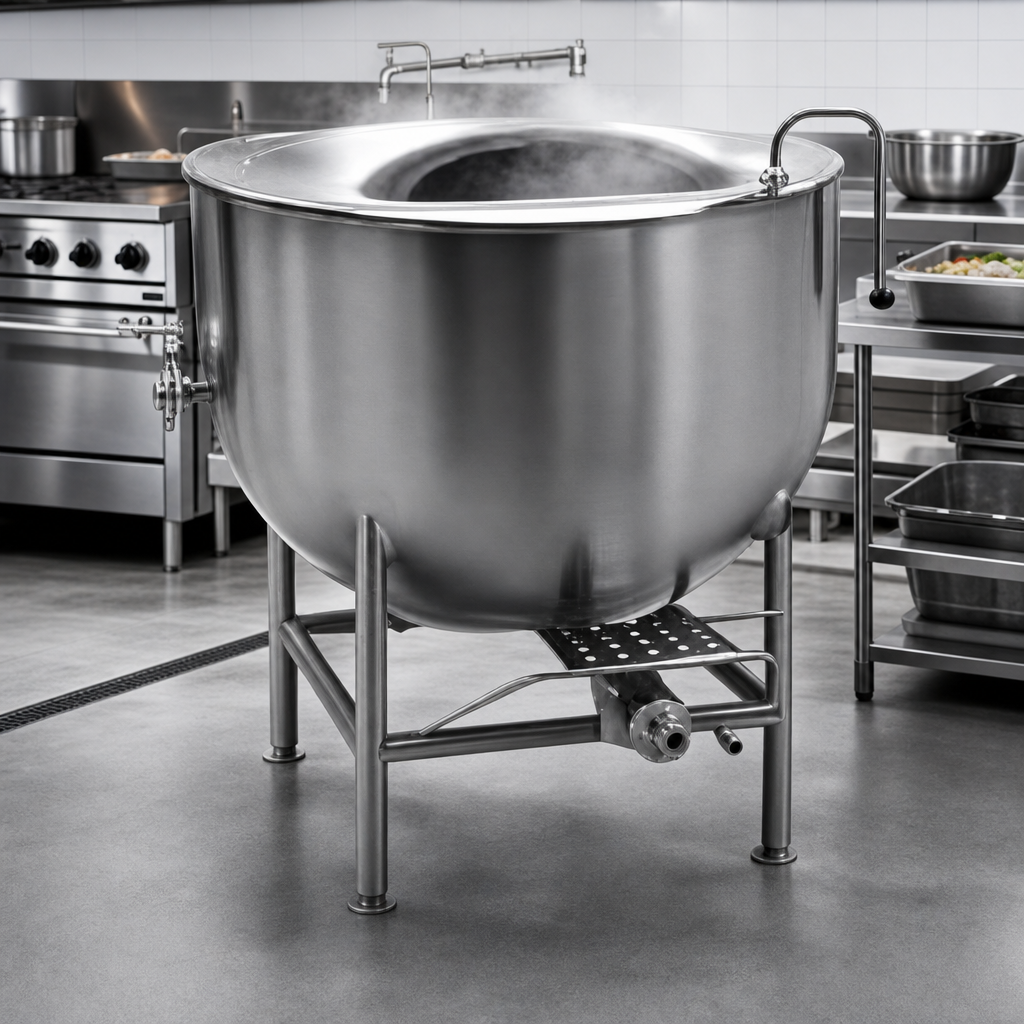

- 100 gal (379 L) working capacity—ideal for soups, sauces, stews and bulk braising.
- Deep-drawn, one-piece 304 stainless liner eliminates crevices for superior sanitation and easy cleaning.
- 2/3 jacketed design distributes steam evenly over the sidewalls and bottom for rapid heat-up and gentle, uniform cooking.
- ASME-stamped for 25 psi direct steam operation—connects directly to your central boiler.
- 2″ 304 stainless compression draw-off valve with ¼″ perforated disk strainer for clog-free portioning and broth draining.
- Actuator-assisted, one-piece domed cover retains heat and can be opened with minimal effort.
- Four 2″-diameter stainless legs with welded sockets, reinforced bracing and adjustable flanged feet for secure floor anchoring.
- NSF-compliant construction and fabricated in the USA to meet UL, ETL, CSA and other major approvals.
Specifications
| Model | LT-100 (Stationary, Leg Mounted) |
|---|---|
| Capacity | 100 gal / 379 L |
| Liner Material | Seamless 304 stainless steel |
| Jacket Material | 304L stainless, 2/3 coverage |
| Operating Pressure | 25 psi (direct steam) |
| Cover | One-piece, domed, actuator-assisted stainless cover |
| Draw-Off | 2″ compression valve with ¼″ perforated strainer |
| Steam Connections | 1″ NPT inlet / ¾″ NPT outlet |
| Overall Height (J1) | 82.7″ (210 cm) – cover closed |
| Rim Diameter (A) | 39″ (99 cm) |
| Front-to-Back (C) | 40.7″ (103 cm) |
| Center of Draw-Off to Floor (S) | 17.8″ (45 cm) |
| Leg Configuration | 4 × 2″ Ø stainless legs, adjustable flanged feet |
Ideal For
- Central & commissary kitchens
- Correctional and other institutional facilities
- Large-scale catering & banqueting operations
- Hospitals, universities, military bases and more
Covered by Legion’s standard 12-month parts & labor warranty (90-day coverage on wear parts). Need a different valve, water fill faucet, or basket kit? Contact us for factory-installed options & accessories.
