Legion LT-10 Steam Kettles
Description

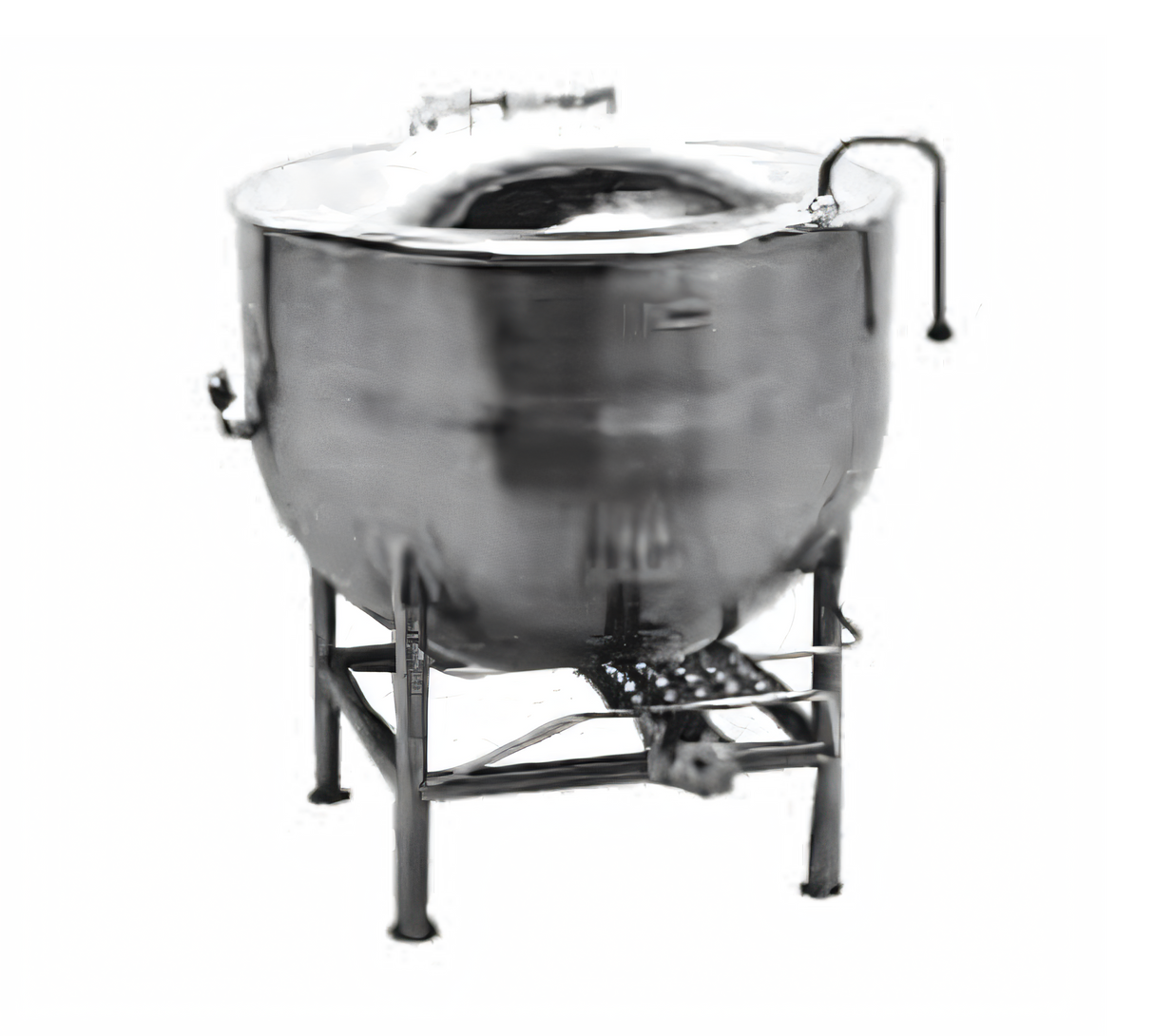

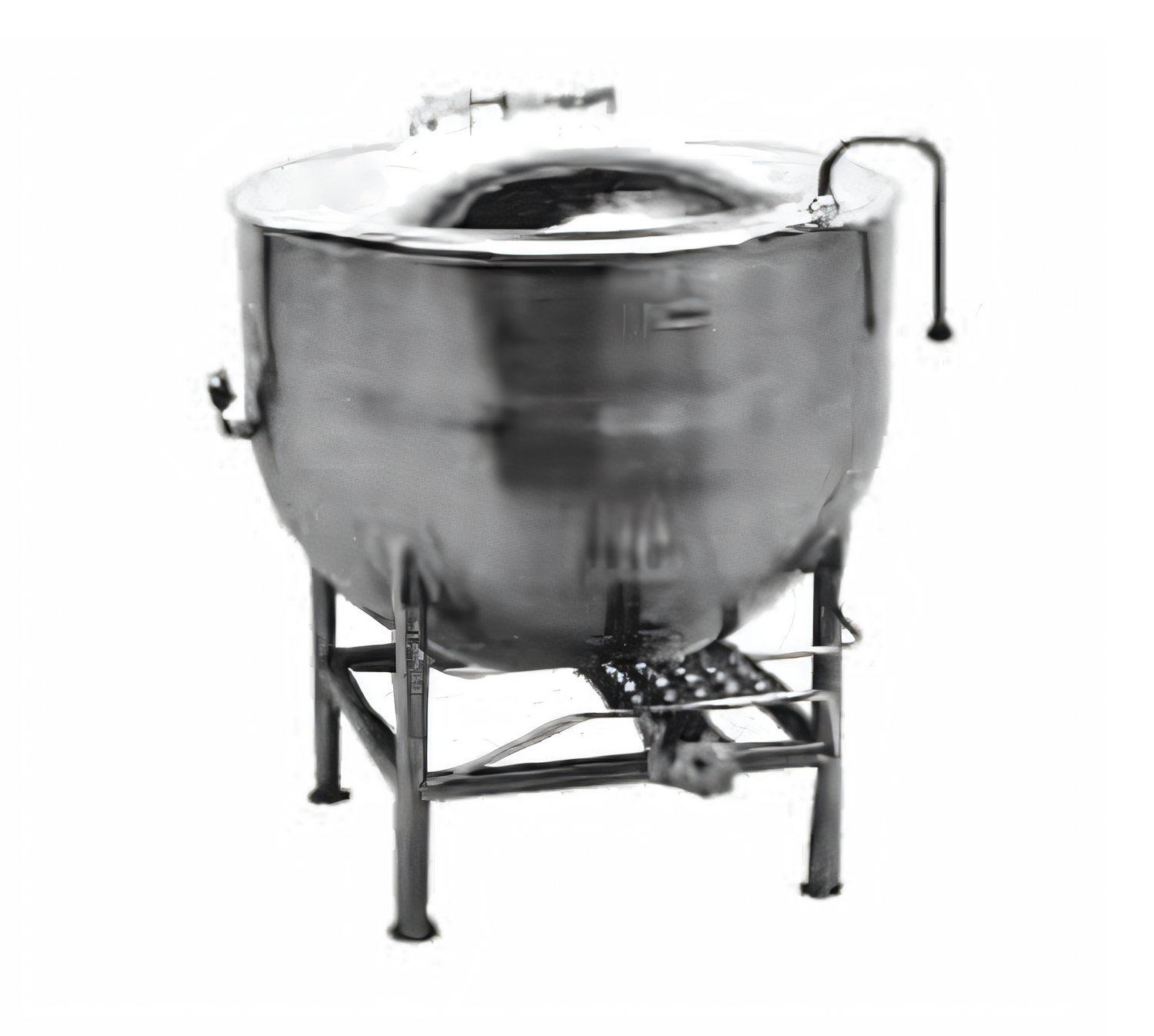

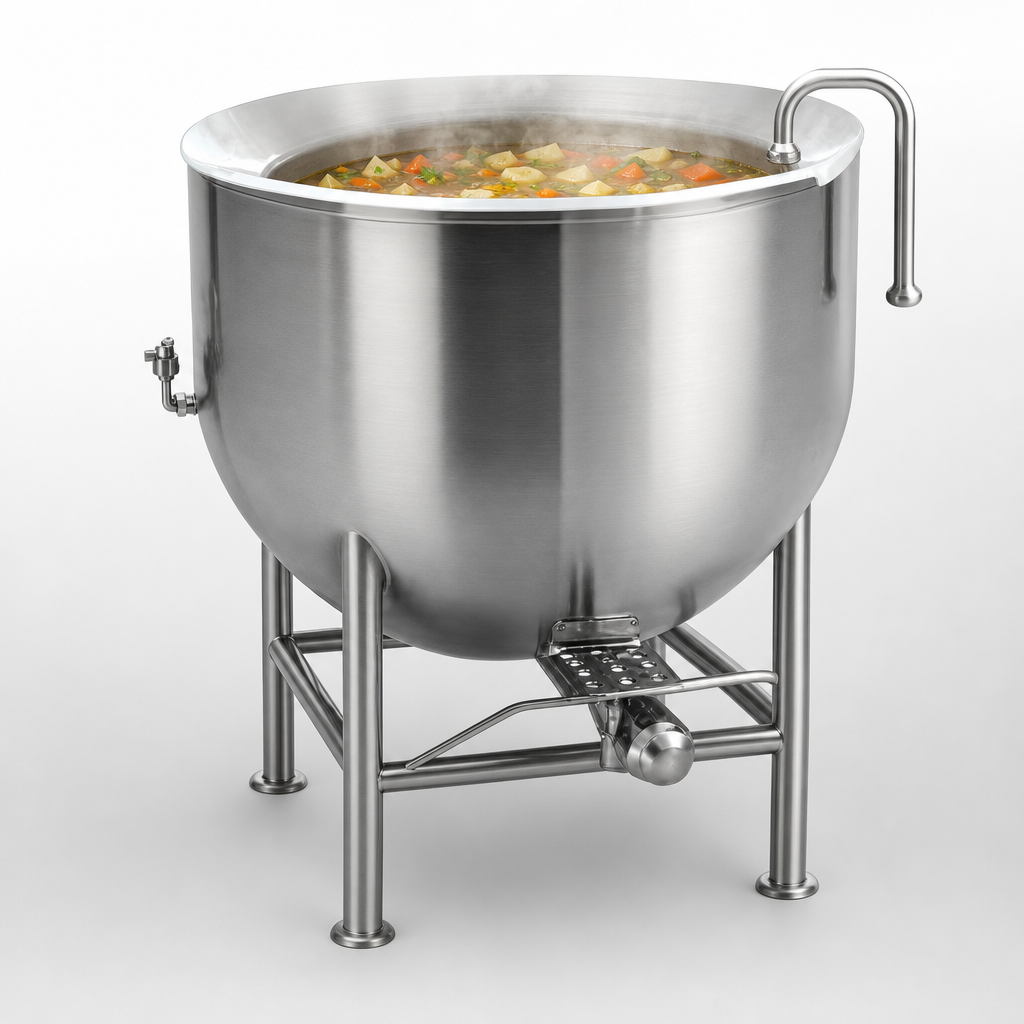

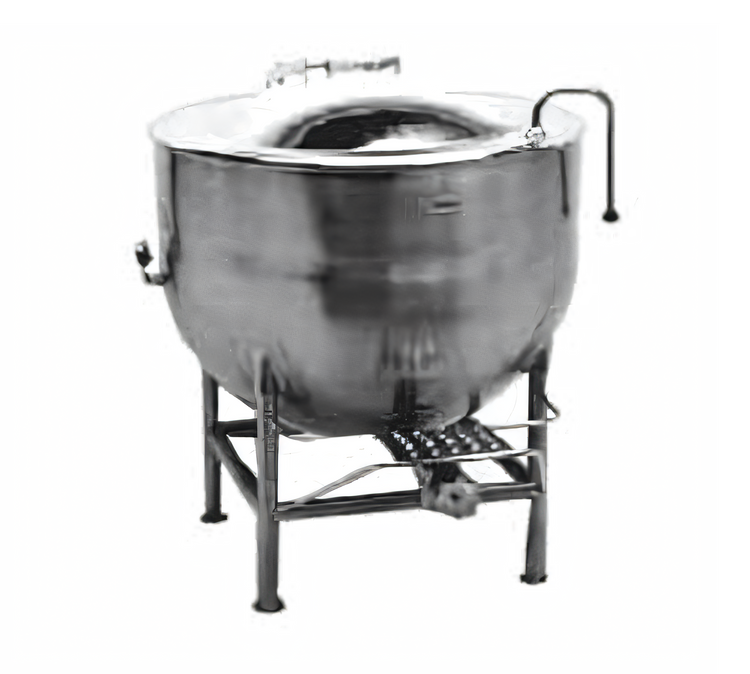

Legion LT-10 Stationary Direct Steam Kettle – 10 Gal.
2/3-Jacket • 304 Stainless Steel • 2” Draw-Off Valve • Made in USABuilt for compact kitchens that refuse to compromise on durability or output, the LT-10 combines Legion’s seamless deep-drawn construction with the speed and consistency of direct steam. Perfect for small batch soups, sauces, stocks and more, this 10-gallon kettle delivers fast heat-up, even cooking and effortless product transfer through its 2 inch draw-off valve.
Why you’ll love it
- Seamless 304 stainless steel liner – no internal welds to trap food soil.

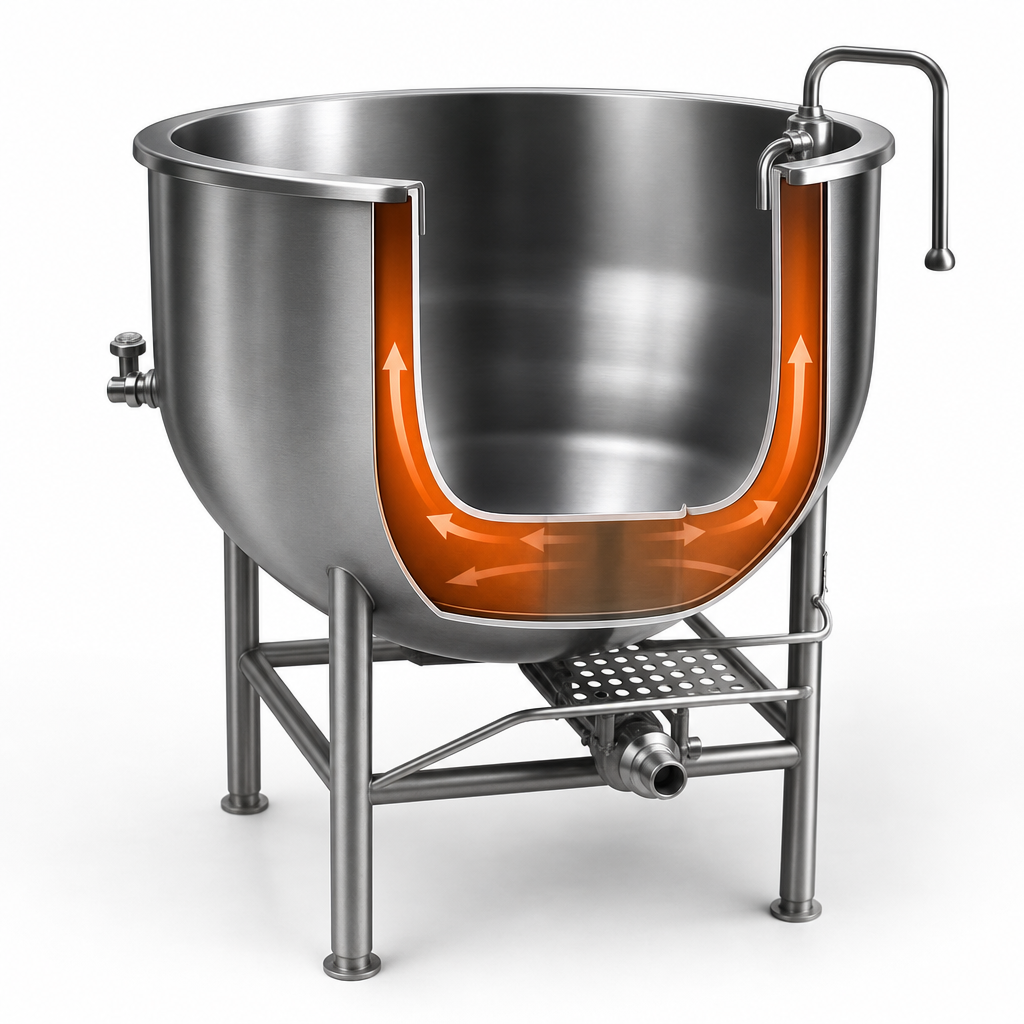

- 2/3 jacketed body for uniform heat distribution and minimal scorching.
- 2" compression draw-off valve with removable ¼" perforated strainer for quick, clog-free portioning.
- Reinforced leg-mounted design (three 1 ⅝" Ø legs) with adjustable flanged feet for rock-solid stability.
- Rated to 30 psi operating pressure for rapid recovery between batches.
- All-welded 304 jacket, leg sockets and bracing – built to withstand rigorous commercial use.
- NSF-listed and ASME-certified; proudly made in the USA.
Technical Specifications
| Capacity (working) | 10 gal / 38 L |
|---|---|
| Heating source | Direct external steam (inlet/outlet: ½" NPT) |
| Jacket coverage | 2/3 of kettle body |
| Operating pressure | 30 psi maximum |
| Kettle liner | Seamless 304 stainless steel, deep-drawn |
| Jacket material | 304L stainless steel |
| Draw-off valve | 2" 304 stainless compression type, with ¼" hole perforated disk strainer |
| Mounting | (3) stainless legs, 1 ⅝" Ø, reinforced bracing, adjustable flanged feet |
| Overall height | 48.5" (to kettle rim) |
| Diameter × depth | 16" × 14" kettle body |
| Net weight | Approx. 155 lb (shipping) |
| Country of origin | USA |
Popular add-ons
- Single or double fill faucet with 12"/18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Pressure reducing valve for high-pressure steam lines
- Lift-off or hinged stainless cover
- Basket inserts, strainer bags & measuring strip kits
- Mixer/agitator (2-speed) for continuous stirring applications
Backed by Legion’s 12-month parts & labor warranty (15 months from ship date with registration).
