Legion LSWT-60 Steam Kettles
Description
Legion LSWT-60 Stationary Direct Steam Kettle – 60 Gal.
Full-jacketed • Deep-drawn 304 stainless • Wall-bracket mountedPurpose-built for high-volume, high-speed commercial production, the USA-made LSWT-60 delivers 60 gallons (227 L) of perfectly even, steam-powered cooking capacity while keeping your floor clear. A seamless 304 stainless liner and full jacket distribute heat uniformly at up to 30 psi, letting you finish large batches of soups, sauces, stocks or pasta in record time—with less scorching, stirring and labor.

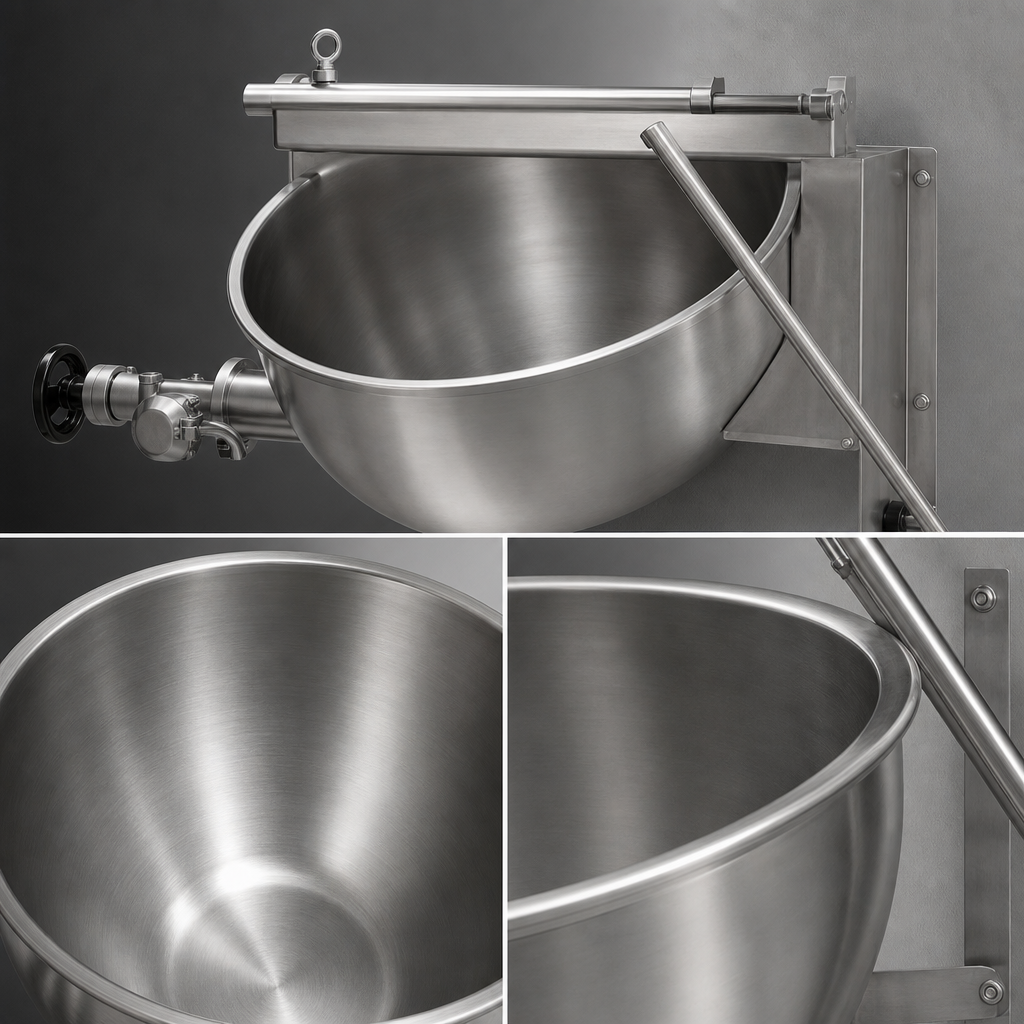

Key performance advantages- Seamless, deep-drawn 304 stainless kettle liner for maximum durability and easy sanitation
- Full 304L stainless jacket powered by direct steam, 30 psi operating pressure

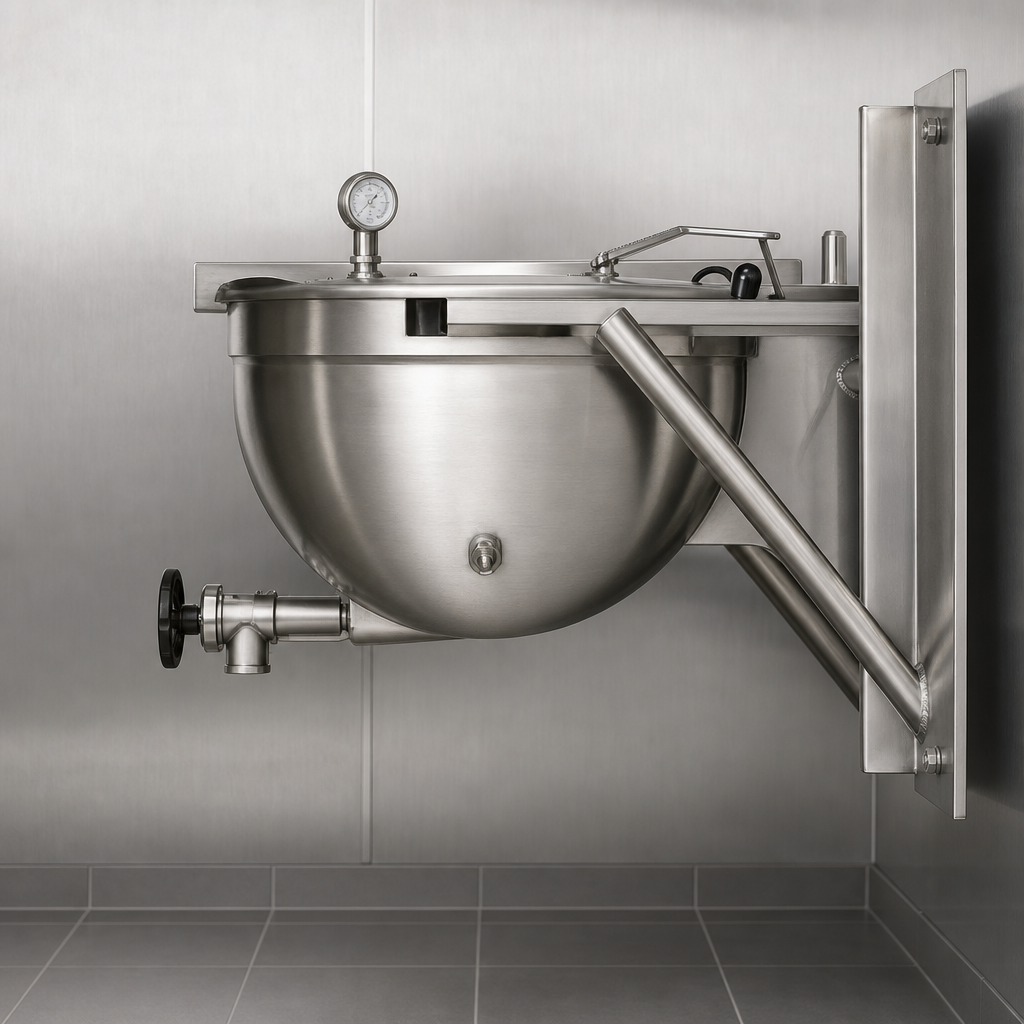

- Wall-mounted support arms—304 stainless and seam-welded—free up floor space and simplify cleaning
- One-piece domed cover with actuator assist (standard on 40–100 gal. models) for effortless opening/closing
- 2 in. compression draw-off valve with matching 304 stainless tube & welds
- Perforated disk strainer (¼ in. holes) keeps food particles out of your plumbing
- Made in the USA and built to meet or exceed ASME, NSF and other applicable standards
| Capacity | 60 gal | 227 L |
|---|---|
| Model | LSWT-60 (stationary, wall-bracket mounted) |
| Liner & Jacket Material | Seamless deep-drawn 304 / 304L stainless steel |
| Operating Pressure | 30 psi (direct steam) |
| Draw-off Valve | 2 in. 304 SS compression type |
| Strainer | 304 SS disk, ¼ in. perforations (removable) |
| Cover | One-piece domed, actuator-assisted, 304 SS |
| Mounting | Stainless welded wall-bracket arms (hardware by others) |
| Approx. Shipping Weight | Consult factory |
- Batch cooking of soups, stews & chili
- Reduction of sauces & stocks
- Pasta, rice and grain preparation
- Blanching and holding of vegetables
- Re-thermalizing prepared foods
- Single or dual fill faucet with 12 in./18 in. swing nozzles
- 48 in. flexible spray hose (vinyl or stainless)
- Mixer/agitator (2-speed)
- Lift-off or two-piece hinged cover
- Air eliminator, pressure-reducing valve & connection plumbing kits
- Basket inserts, measuring strip, kettle care kit & more
Need a custom configuration? Contact us for additional draw-off options, security packages or higher pressure ratings.
Legion Industries warrants this kettle to be free from defects in material and workmanship for 12 months from installation (15 months from ship date). See complete warranty for exclusions and terms.
