Legion LSWT-50 Steam Kettles
Description

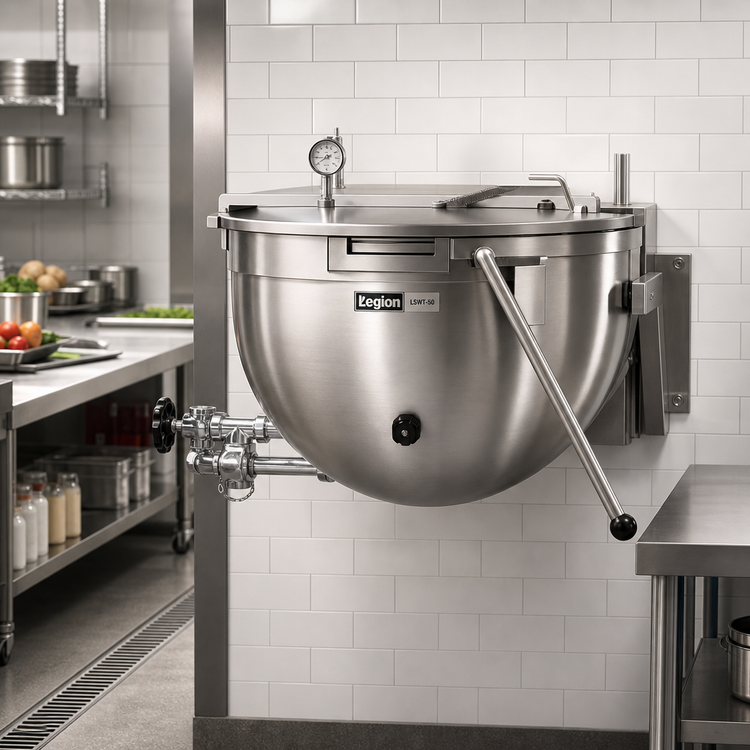

Legion LSWT-50 Stationary Direct Steam Kettle
50 gal / 189 L • Wall-Mounted • Full-Jacketed 304 SSEngineered for high-volume production kitchens, the Made-in-USA Legion LSWT-50 gives you 50 gallons of reliable, even heat in a space-saving wall-bracket design. A seamless 304 stainless steel liner, full steam jacket and actuator-assisted cover combine to deliver rock-solid durability, rapid heat-up and exceptional operator safety.
Why You’ll Love It

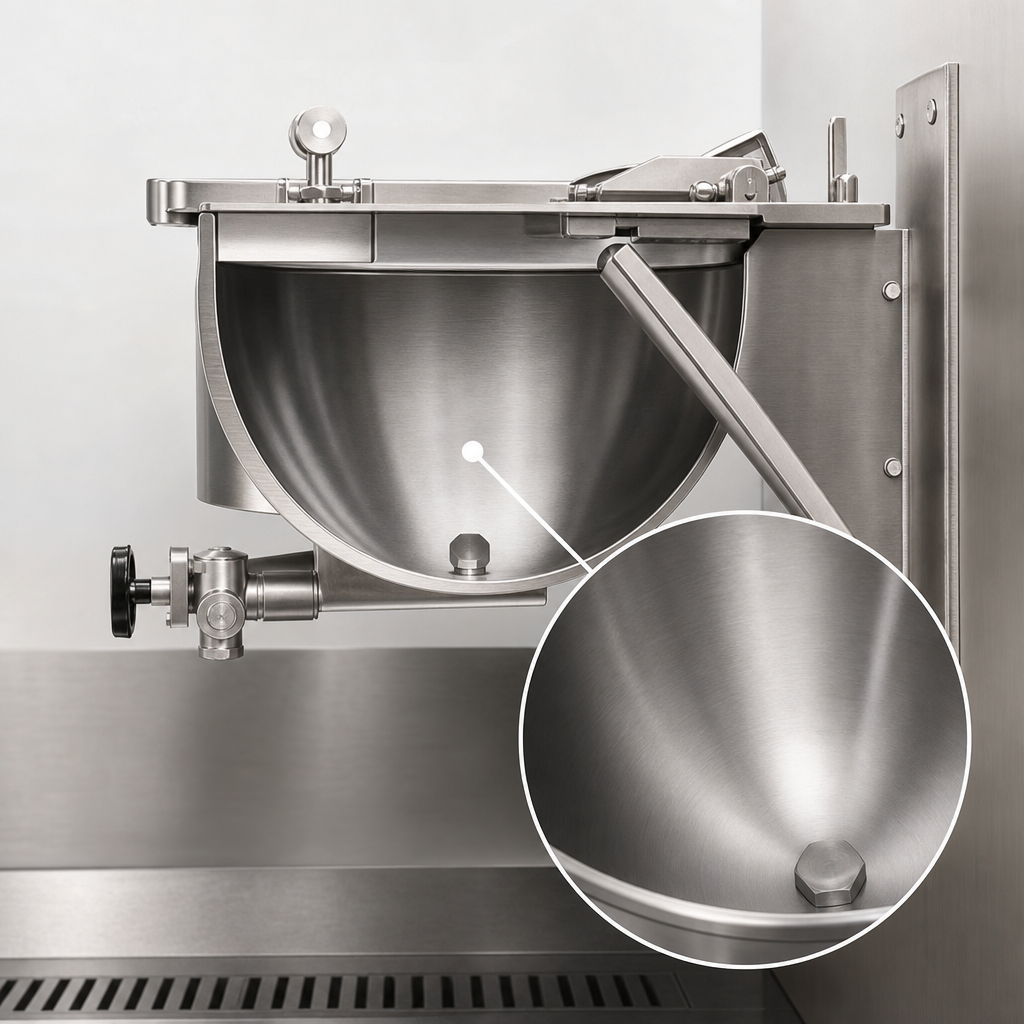

- Deep-drawn 304 SS liner & 304L full jacket—no crevices, no leaks, easy sanitation

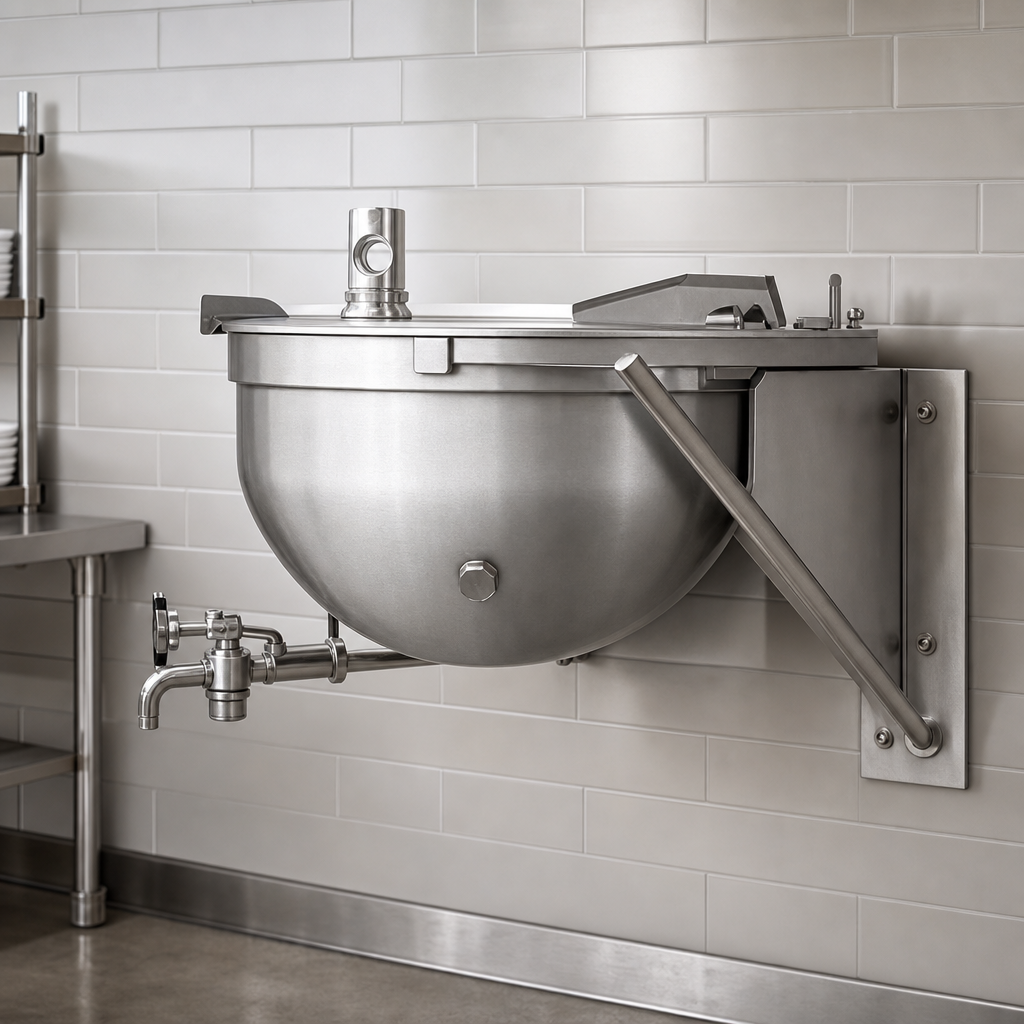

- Wall-mounted support arms are seam-welded 304 SS—frees up valuable floor space
- Actuator-assisted, one-piece domed cover (standard on 40–100 gal) allows safe, effortless opening
- 2 in. compression draw-off valve with ¼ in. perforated disk strainer for quick, clog-free product transfer
- 30 psi operating pressure handles demanding production schedules without breaking a sweat
- Approved & stamped to applicable ASME & NSF standards for commercial foodservice equipment
Built to Work as Hard as You Do
- Seamless kettle body formed from a single sheet of 304 stainless steel—no rolled or welded seams in the food zone
- 304 SS draw-off tube & welds resist pitting from salt, starch and cleaning chemicals
- Full-coverage steam jacket maximizes heat transfer for faster start-ups and reduced energy waste
- 1 in. NPT steam inlet / ¾ in. NPT condensate return (right-hand side) simplify hook-up
- Perforated ¼ in. strainer disk protects the valve from pasta, grains and vegetable debris
Technical Specifications
| Model | LSWT-50 |
|---|---|
| Capacity | 50 gal | 189 L |
| Heating source | Direct steam, full jacket |
| Operating pressure | 30 psi | 207 kPa max |
| Draw-off valve | 2 in. compression type with ¼ in. perforated strainer |
| Cover | One-piece domed 304 SS, actuator-assisted |
| Steam connections | Inlet – 1 in. NPT | Return – ¾ in. NPT |
| Mounting | Wall-bracket, 304 SS seam-welded support arms |
| Interior finish | 180-grit (No. 4) sanitary polish |
| Compliance | ASME Section VIII, NSF, UL-Sanitation |
| Country of origin | United States of America |
What’s Included
- LSWT-50 steam kettle with wall-mounting arms
- Actuator-assisted domed cover (factory-installed)
- 2 in. compression draw-off valve & ¼ in. perforated disk strainer
- Owner’s / installation manual
- 12-month parts & labor warranty (from date of installation)
For optimum ergonomics, Legion recommends mounting the kettle with the rim at approximately 35 in. (890 mm) above finished floor level. Consult the specification sheet and local codes prior to installation.
