Legion LSWT-40 Steam Kettles
Description

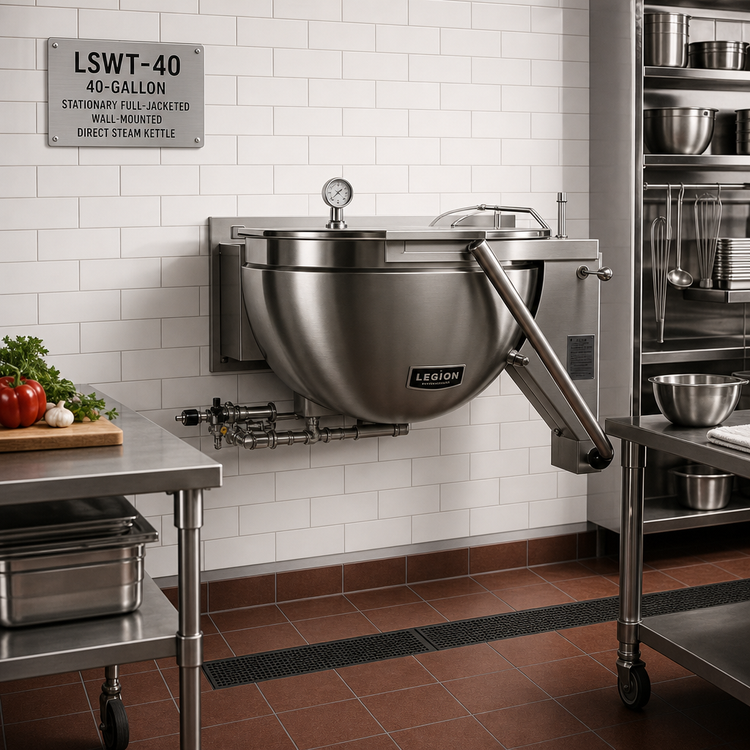

Legion LSWT-40 Stationary Direct Steam Kettle – 40 gal
Full-jacketed • Wall-bracket mounted • Made in USAEngineered for high-volume, high-efficiency kitchens, the Legion LSWT-40 combines rugged 304 stainless-steel construction with the precise performance of direct steam. Its seamless deep-drawn kettle liner, full jacket and actuator-assisted cover deliver rapid, even heating and effortless operation—so you can simmer, braise or boil up to 40 gallons with total confidence.
Key features & benefits
- 40 gal (151 L) capacity—ideal for stocks, sauces, soups and pasta

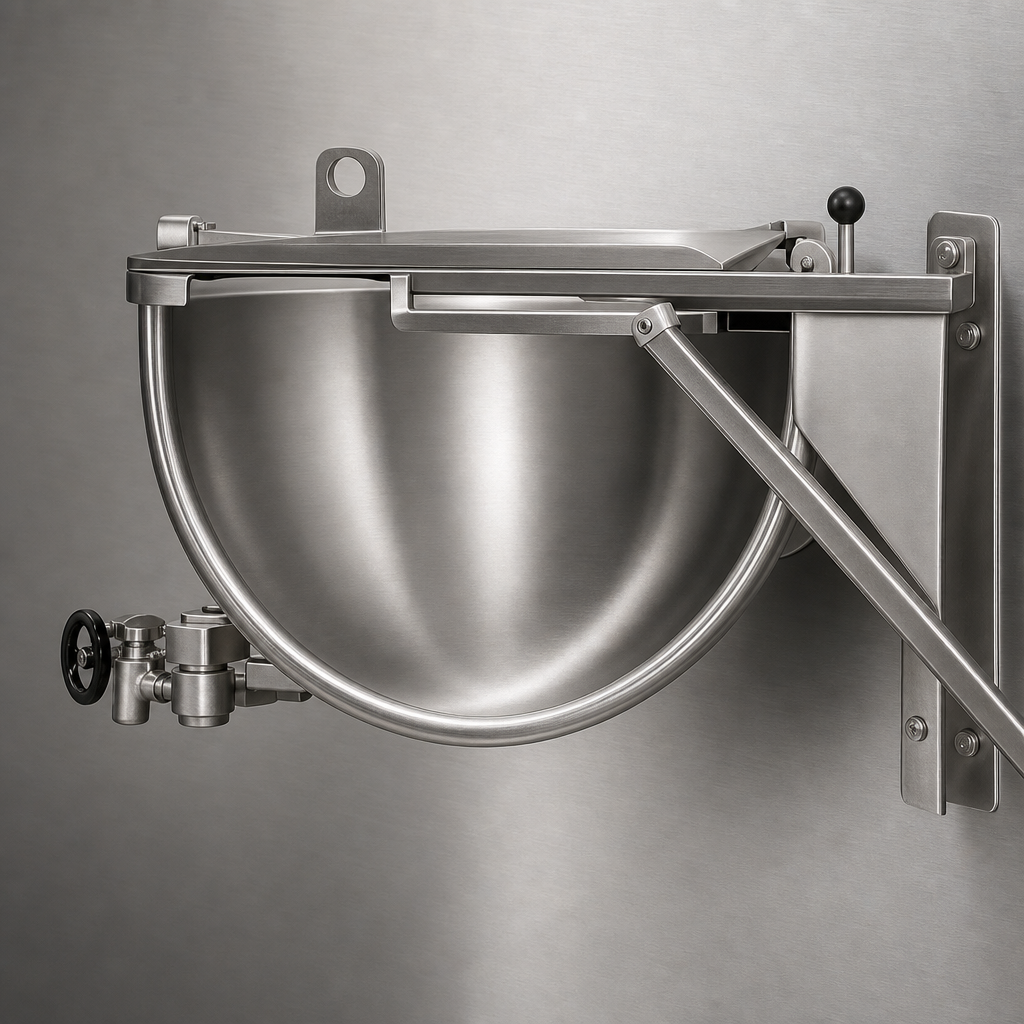

- Seamless deep-drawn 304 stainless-steel liner for exceptional sanitation and durability

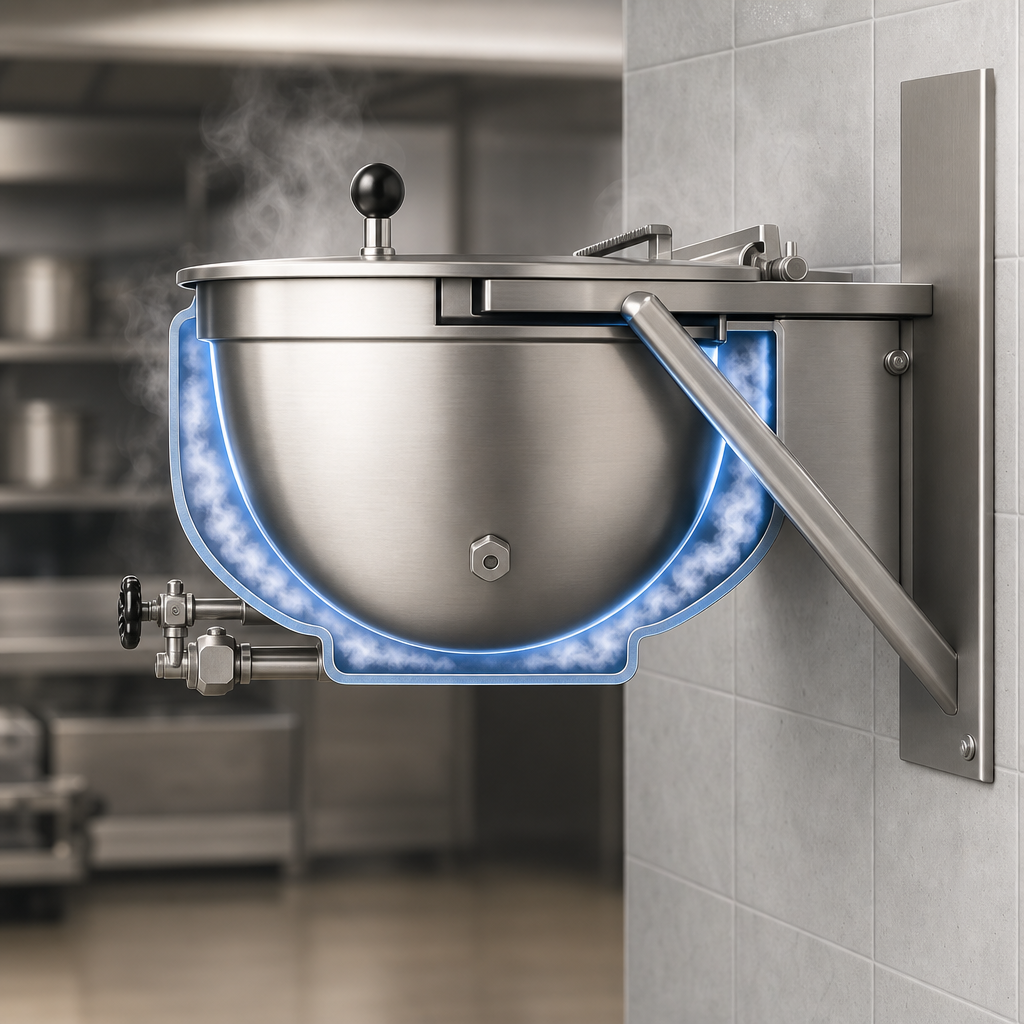

- Full 304L stainless jacket rated to 30 psi for fast, even heat transfer
- Wall-mount stainless support arms, seam-welded to jacket for a rock-solid installation
- 2" compression draw-off valve with 1/4" perforated disk strainer for smooth, clog-free dispensing
- Actuator-assisted one-piece domed cover (304 stainless) reduces operator effort and heat loss
- 304 stainless draw-off tube, welds and external surfaces—built to withstand daily commercial abuse
- Complies with applicable ASME, NSF, UL, ETL, AGA, CSA & CGA standards
Technical specifications
| Model | LSWT-40 |
|---|---|
| Capacity | 40 gal (151 L) |
| Operating pressure | 30 psi (206 kPa) max |
| Kettle liner | Seamless deep-drawn 304 stainless steel |
| Jacket | Full jacket, 304L stainless steel |
| Mounting style | Wall-bracket, stainless support arms |
| Cover | One-piece domed stainless cover, actuator-assisted |
| Draw-off valve | 2" compression type, 304 stainless |
| Strainer | Perforated disk, 1/4" holes (removable) |
| Steam inlet / return | 3/4" NPT inlet | 1/2" NPT condensate return |
| Overall dimensions* | Rim diameter 29.5" | Depth 19.0" | Height (to rim) 35.3" |
| Warranty | 12 months parts & labor (90-day coverage on consumables) |
*See installation drawing for full dimensional data and mounting hole layout.
Ideal applications
- Hospitals & long-term care facilities
- Correctional & military kitchens
- High-volume restaurants, commissaries & catering operations
- School and university foodservice
Looking for optional faucets, spray hoses or agitators? A full range of accessories is available—contact your Legion representative or visit the Legion website for details.
