25-Gallon Stationary Direct Steam Kettle with 2-Speed Mixer
Legion LSWT-25-MV • Wall-Bracket Mounted • 30 psiUnlock high-volume cooking in a compact footprint. This 25-gal. Legion kettle combines fast, even steam heating with an integrated agitator so you can cook, mix and finish everything from creamy béchamel to chunky chili without babysitting a stock pot.
Key Advantages
- Full-jacketed design delivers 360° steam heat for rapid, uniform cooking.
- Factory-matched twin-shaft, 2-speed mixer keeps even thick or particulate recipes in constant motion.
- Durable 304 stainless-steel liner & jacket resist corrosion and simplify cleanup.

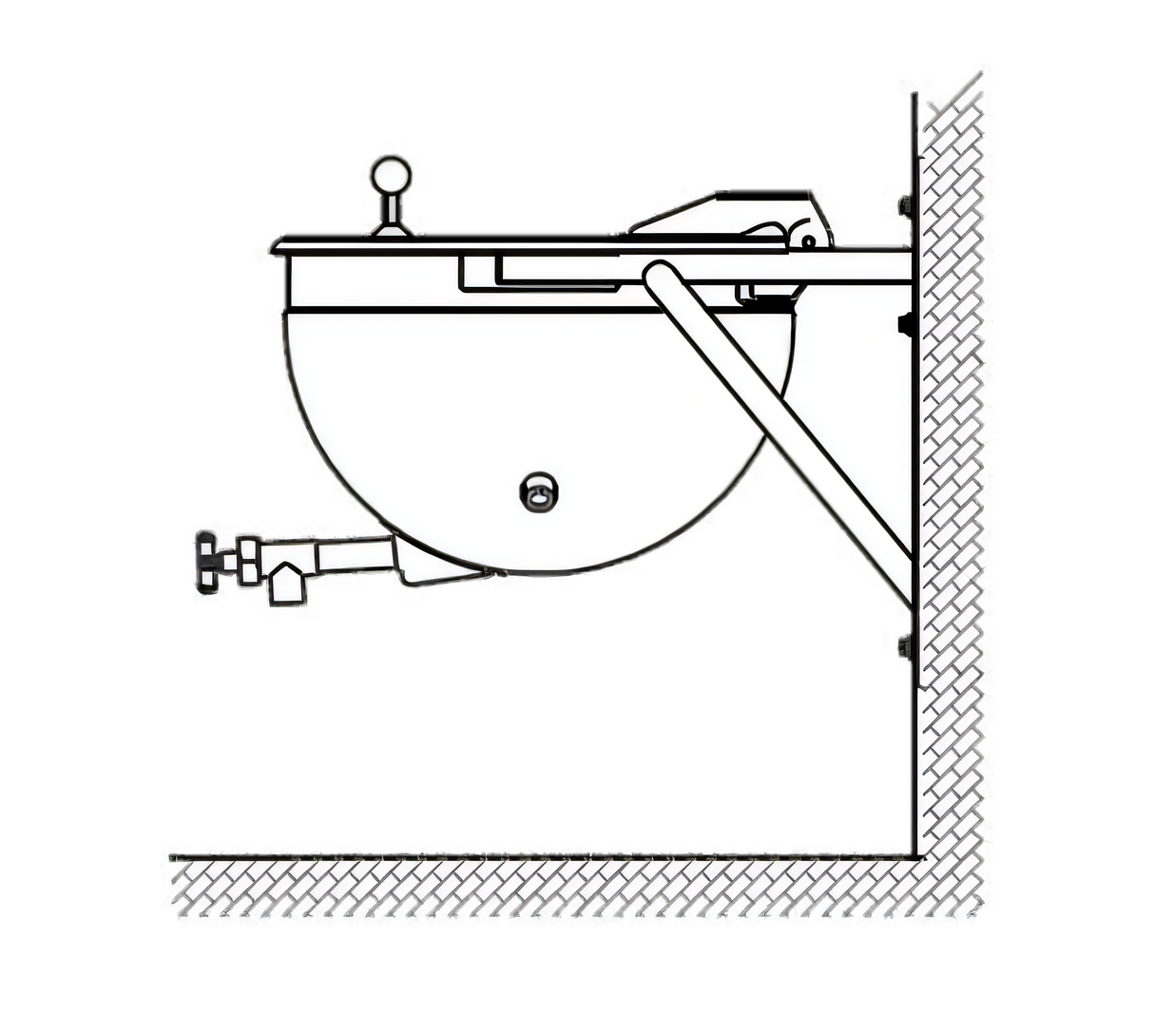

- Space-saving wall support arms (304 SS, seam-welded) free up floor area and allow custom mounting height.
- 2″ draw-off valve with ¼″ perforated strainer makes portioning or transferring product quick and clog-free.
- 30 psi working pressure for responsive temperature control and reduced batch times.
- Made in the USA and built to NSF/ASME standards for years of reliable service.
Integrated Mixing System
- Enclosed aluminum bridge with totally-enclosed gear motor for kitchen-safe operation.
- Anchor-style main agitator (304 SS) hugs the kettle wall; removable nylon scrapers prevent burn-on.
- Counter-rotating secondary beater improves product circulation and particle suspension.
- Two-speed selector (≈23 RPM low / 46 RPM high) matches delicate or high-shear tasks.
- Actuator-assisted lift raises the agitator clear for loading, tasting or manual cleaning.
- Safety interlock stops mixing when the bridge is lifted.
Technical Specifications
| Capacity | 25 gal. (95 L) |
|---|---|
| Operating Pressure | 30 psi (2.07 bar) max. |
| Liner / Interior | 304 stainless steel, deep-drawn |
| Jacket | 304 stainless steel, full coverage |
| Mounting | Wall-bracket, stainless support arms (seam-welded) |
| Draw-Off | 2″ compression valve, ¼″ perforated disk strainer included |
| Mixer Speeds | Low ≈ 23 RPM • High ≈ 46 RPM (main agitator) |
| Motor | Totally-enclosed gear motor, 2-speed, right-angle output (choose voltage/phase at order) |
| Construction | All welds polished; exterior satin finish |
| Steam Connections | ¾″ NPT inlet • ½″ NPT condensate return |
| Certifications | ASME, NSF |
| Made In | USA |
Perfect For
- Central kitchens & commissaries
- Hospitals and schools
- Sauce, jam & confectionery production
- Cook-chill or cook-serve lines
Requires direct steam supply (not included) and adequate wall reinforcement. Electrical connection needed for mixer motor only.
