Legion LSWT-25 Steam Kettles
Description

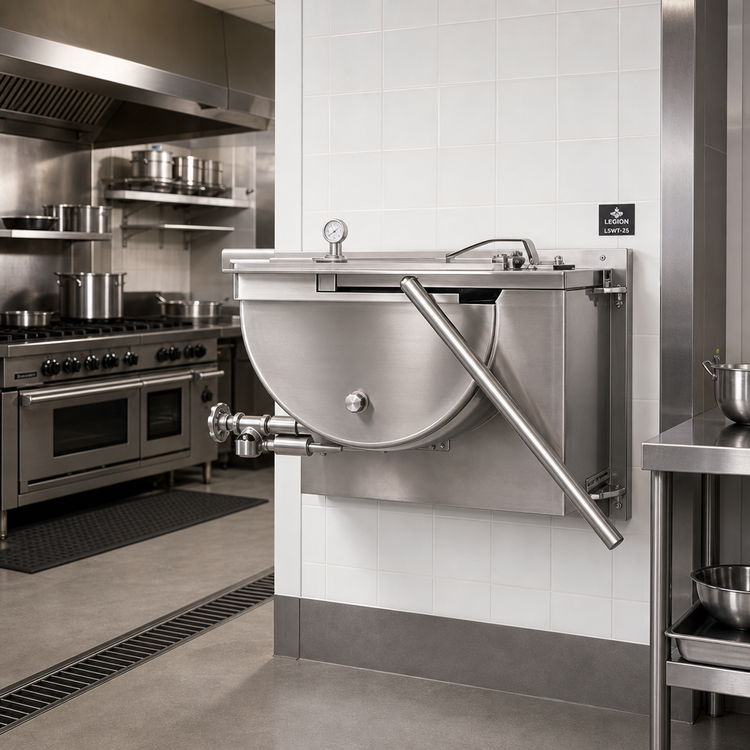

Legion LSWT-25 Direct Steam Kettle – 25 Gallon

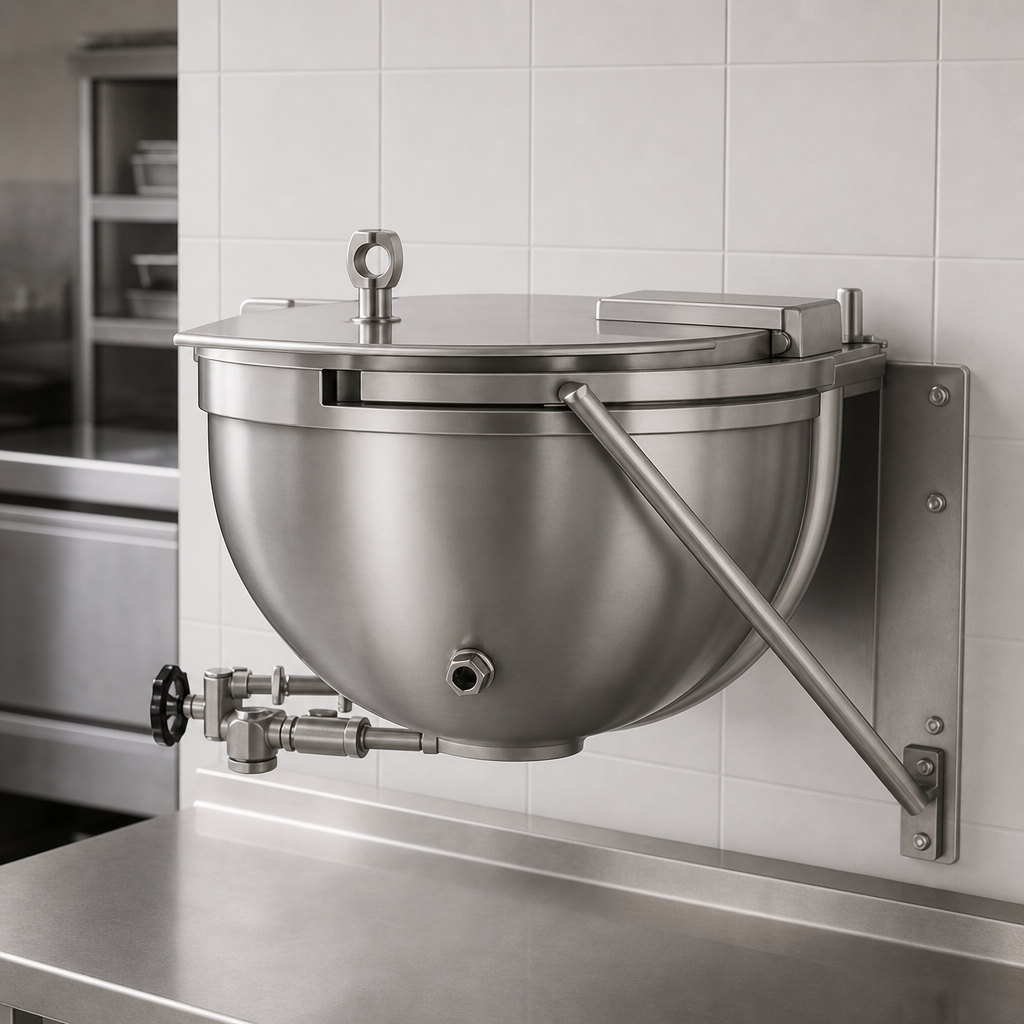

Full-jacketed • Wall-bracket mounted • Made in USAEngineered for demanding commercial kitchens, the LSWT-25 delivers 25 gallons / 95 litres of even, steam-powered cooking in a space-saving wall-mounted design. Its seamless 304 stainless steel liner, full steam jacket and 2 in. compression draw-off valve make bulk production of soups, sauces, pastas and stocks faster, safer and simpler.
Key features & benefits

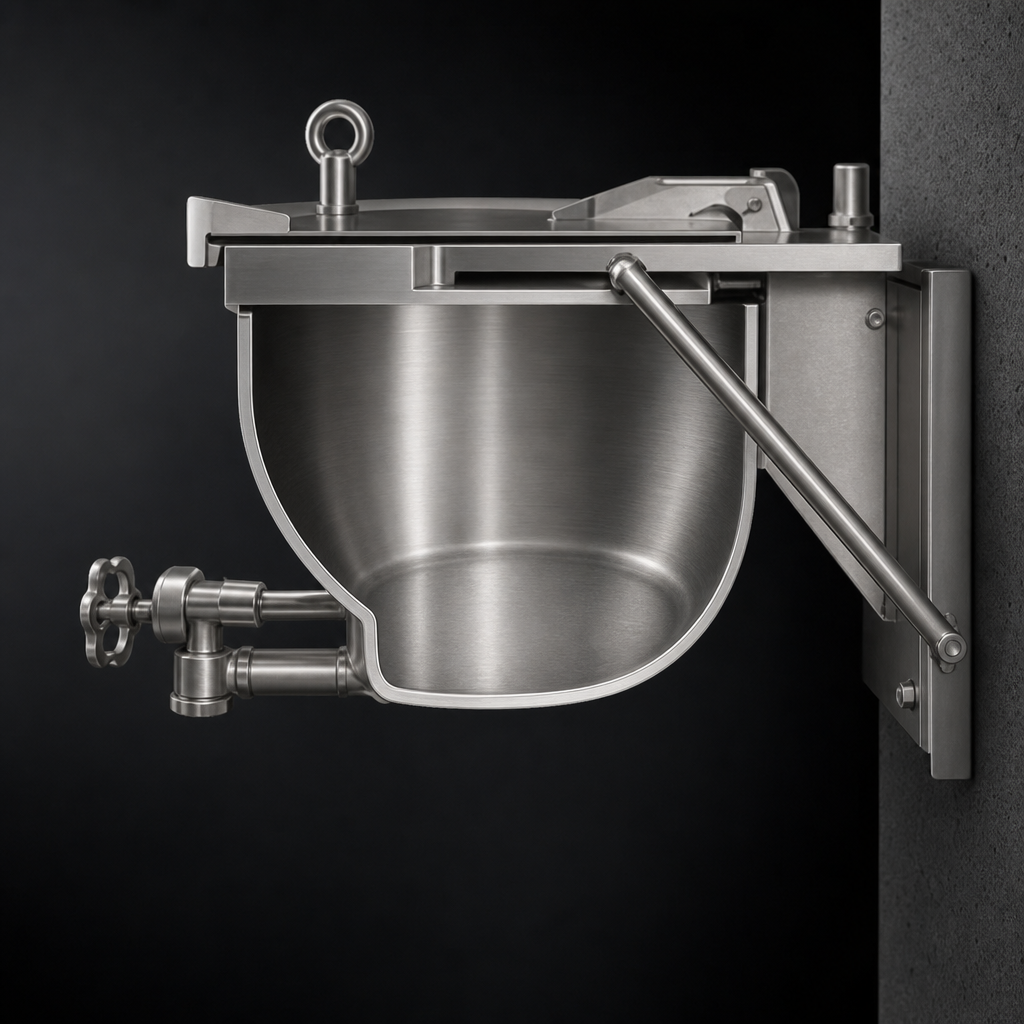

- Deep-drawn, seamless 304 stainless steel kettle liner for superior sanitation and durability.
- Full 304L stainless jacket delivers uniform heat transfer for scorch-free results.
- Wall-mount 304 stainless support arms, seam-welded to the jacket, free up valuable floor space.
- Factory-installed 2 in. compression draw-off valve with perforated ¼ in. disk strainer for effortless product transfer.
- Rated to 30 psi operating pressure for rapid heat-up and recovery.
- All-stainless construction—inside and out—for a lifetime of corrosion-resistant performance.
- Made in the USA and built to meet or exceed ASME & NSF standards.
Technical specifications
| Model | LSWT-25 (Stationary, Direct Steam) |
|---|---|
| Capacity | 25 gal | 95 L |
| Operating pressure | 30 psi (2.1 bar) |
| Liner / jacket material | Seamless 304 / 304L stainless steel |
| Jacket coverage | Full – bottom & side walls |
| Draw-off valve | 2 in. compression type, 304 SS |
| Included strainer | Perforated disk, ¼ in. (6 mm) holes |
| Mounting | Wall-bracket, 304 SS arms (factory welded) |
| Steam inlet / return | ¾ in. NPT inlet | ½ in. NPT return |
| Overall dimensions* |
Width (A): 25.5 in. Depth (B): 15.5 in. Height – vessel top (J1): 58.5 in. Height – rim (J2): 48.0 in. |
*Dimensions taken from manufacturer cut sheet; allow additional clearance for installation and service.
Popular add-ons (sold separately)
- Single or dual fill faucet kits with 12" or 18" swing nozzles
- 48" flexible spray hose assembly (vinyl or stainless)
- Basket inserts, measuring strip & kettle care kit
- Automatic water-fill meter or 2-piece hinged cover
Looking for a different capacity? The Legion LSWT series is available from 20 – 100 gallons. Contact us for lead times, accessories or factory-installed options.
