Legion LSWT-20 Steam Kettles
Description

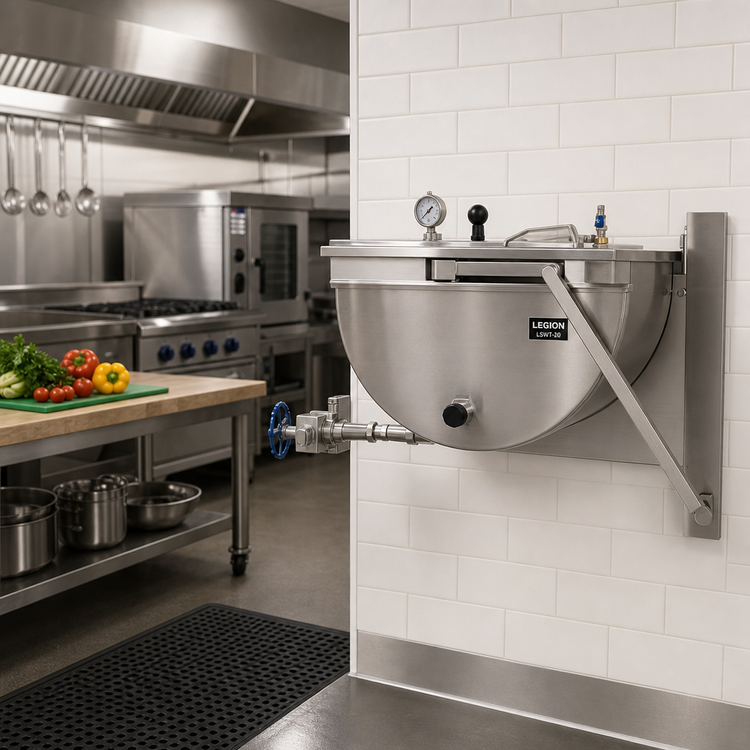

Legion LSWT-20 Stationary Direct Steam Kettle – 20 gal
Full-jacketed • Wall-mounted • 304 stainless steel • 30 psiBoost batch size, speed and food quality with the LSWT-20, Legion’s 20-gallon wall-mounted direct-steam kettle. Its seamless 304 stainless construction, full jacket and high 30 psi operating pressure work together to deliver rapid, even heating that outperforms stock pots and tilt skillets—all while freeing up valuable floor space.
Why you’ll love it

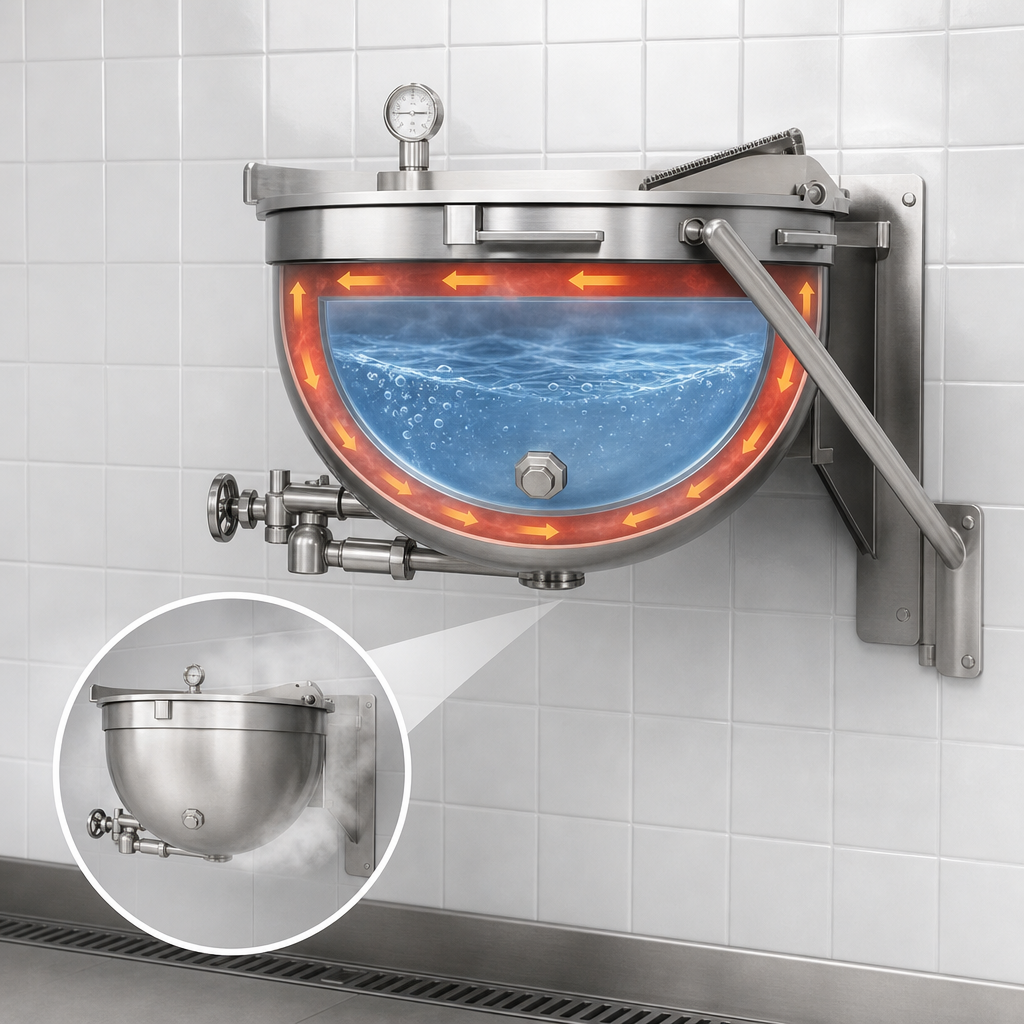

- Fast, even cooking – 30 psi full jacket surrounds product with steam for outstanding heat transfer.
- Durable deep-drawn body – one-piece 304 liner and 304L jacket mean no interior seams to trap food soil.

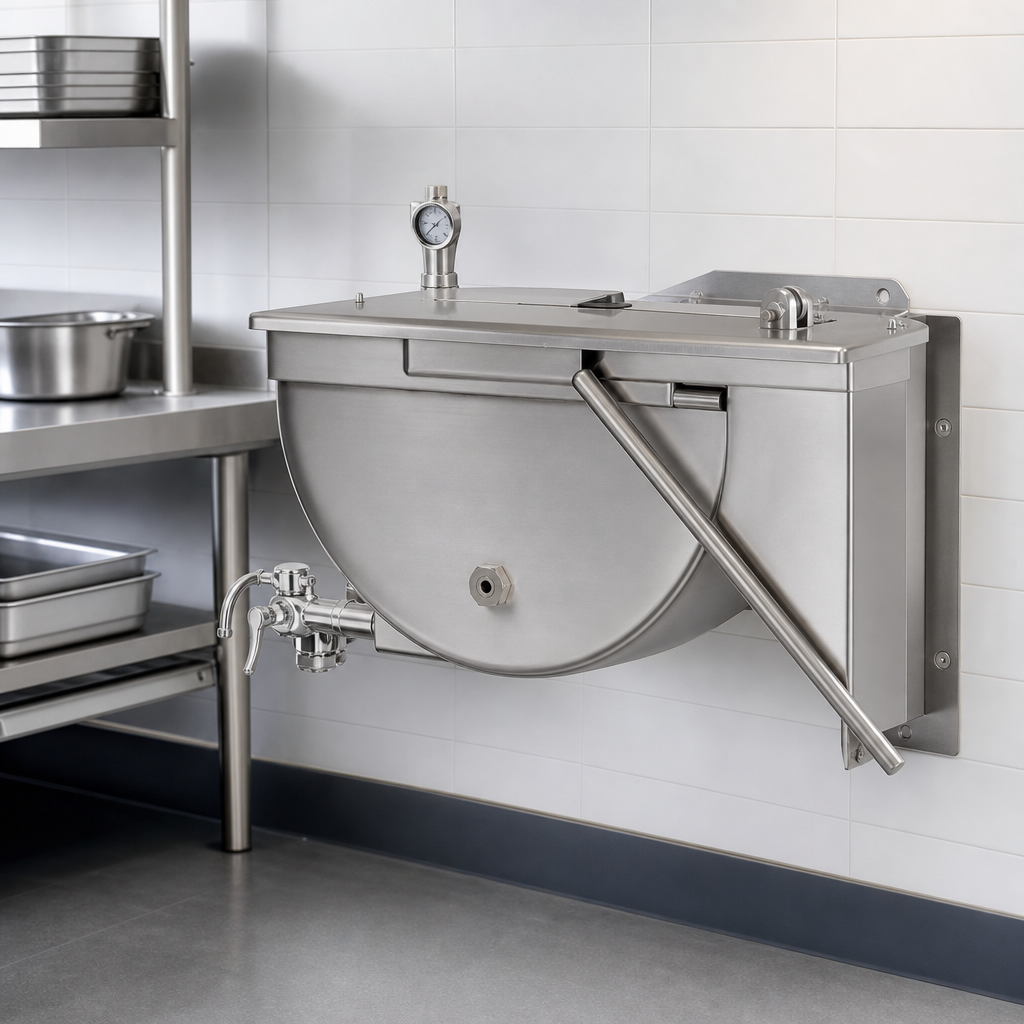

- Wall-mount design – stainless arms are seam-welded to the jacket, keeping floors clear and simplifying cleaning.
- 2 in. sanitary draw-off valve – 304 stainless compression-type valve with ¼ in. perforated strainer for hassle-free portioning and draining.
- Made in the USA – built to ASME, NSF and other applicable standards for long-term reliability.
Technical specifications
| Model | LSWT-20 |
|---|---|
| Capacity | 20 gal (76 L) |
| Operating pressure | 30 psi (206 kPa) |
| Steam source | Direct external steam (not included) |
| Jacket style | Full—covers sidewalls and bottom |
| Construction | 304 stainless liner, 304L jacket, stainless welds |
| Mounting | Stainless steel wall-bracket support arms, seam-welded |
| Draw-off valve | 2 in. compression type with ¼ in. perforated disk strainer |
| Steam connections | ¾ in. NPT inlet, ½ in. NPT condensate return |
| Body diameter (A) | 23 in. (584 mm) |
| Front-to-wall (B) | 15 in. (381 mm) |
| Overall height (C) | 31.4 in. (798 mm) to top of kettle |
| Recommended mounting height (T) | 16.5 in. (419 mm) from finished floor to bracket centerline |
| Country of origin | USA |
| Warranty | 12 months parts & labor from installation |
Factory options & accessories
- Single or dual fill faucet kits with 12 in. or 18 in. swing nozzles
- 48 in. flexible spray hose (vinyl or stainless)
- Ball-type or 3 in. draw-off valves
- 1-piece actuator-assisted cover or 2-piece hinged cover
- Perforated basket or tri-basket inserts
- Automatic water-fill meter, pressure-reducing valve & air eliminator
Contact us for the full option list or to configure the kettle for security installations.
From small batch sauces to high-volume soups, the Legion LSWT-20 gives chefs precise temperature control, exceptional durability and the workflow efficiency only a wall-mounted steam kettle can provide—making it an essential upgrade for today’s professional kitchen.
