Legion LSWT-100 Steam Kettles
Description

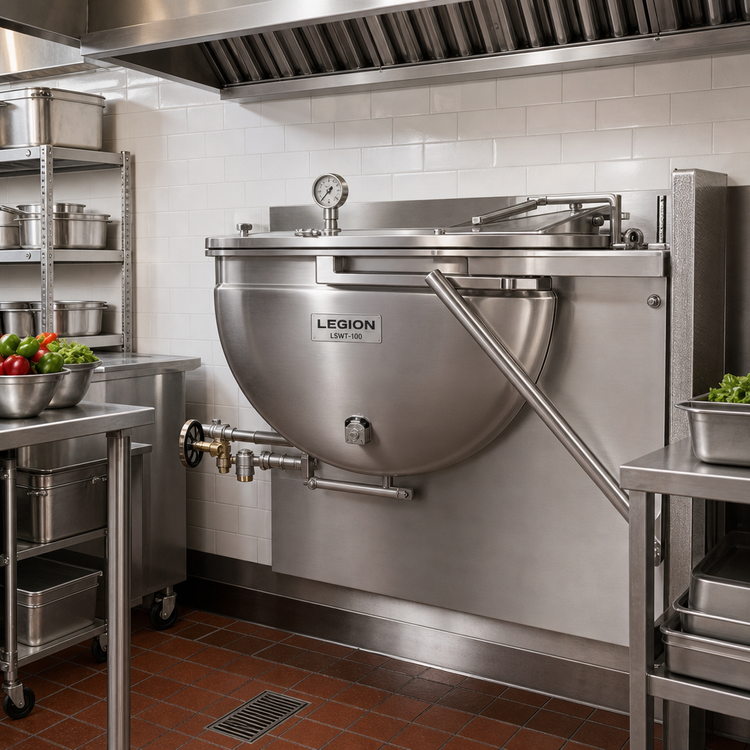

Legion LSWT-100 Direct Steam Kettle – 100 Gal.
Wall-Mounted • Full Jacket • 304 Stainless SteelEngineered for the demands of high-volume production, the LSWT-100 delivers 379 litres of even, steam-powered cooking in a compact wall-bracket design that frees up valuable floor space. From simmering soups to rapidly finishing sauces, this deep-drawn kettle gives chefs precise control, unbeatable durability and easy, mess-free dispensing.
Key Performance & Construction Features

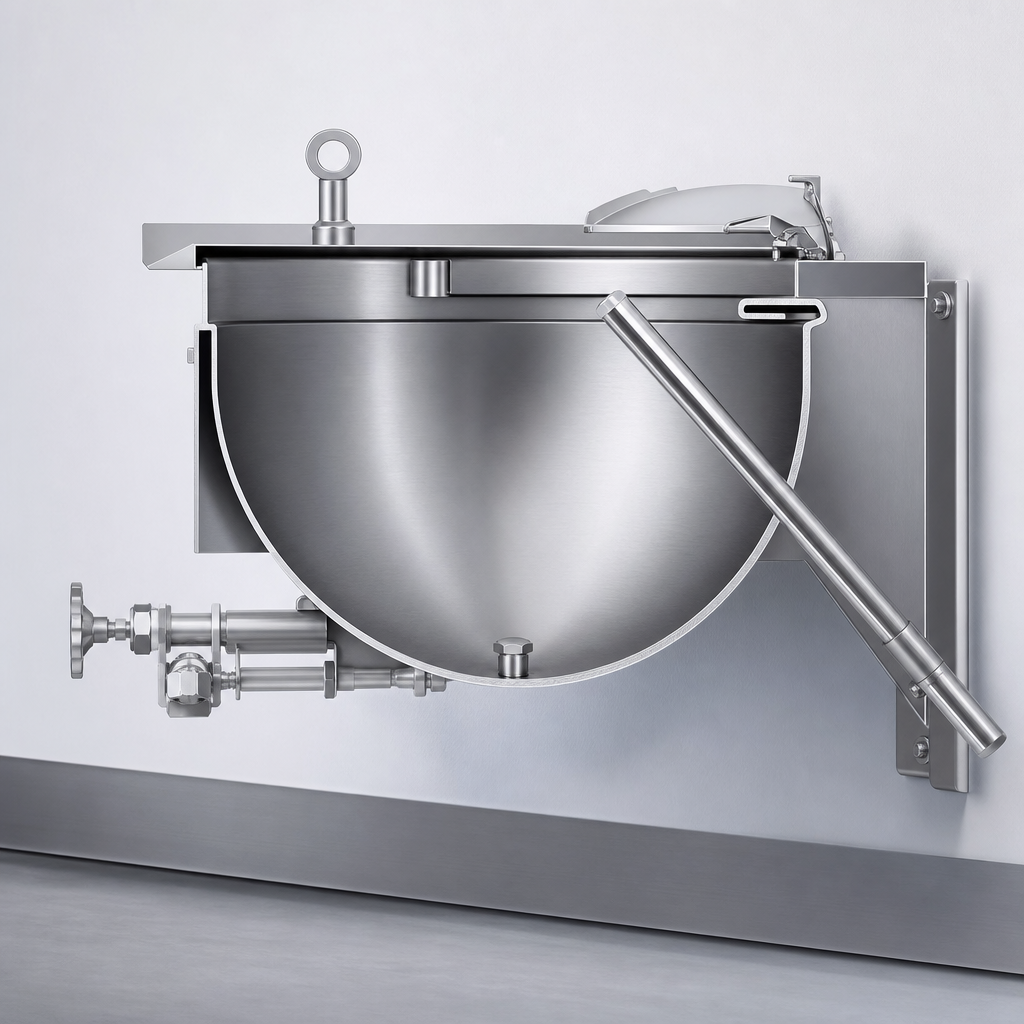

- Seamless 304 stainless steel liner – deep-drawn for exceptional hygiene and easy cleaning.

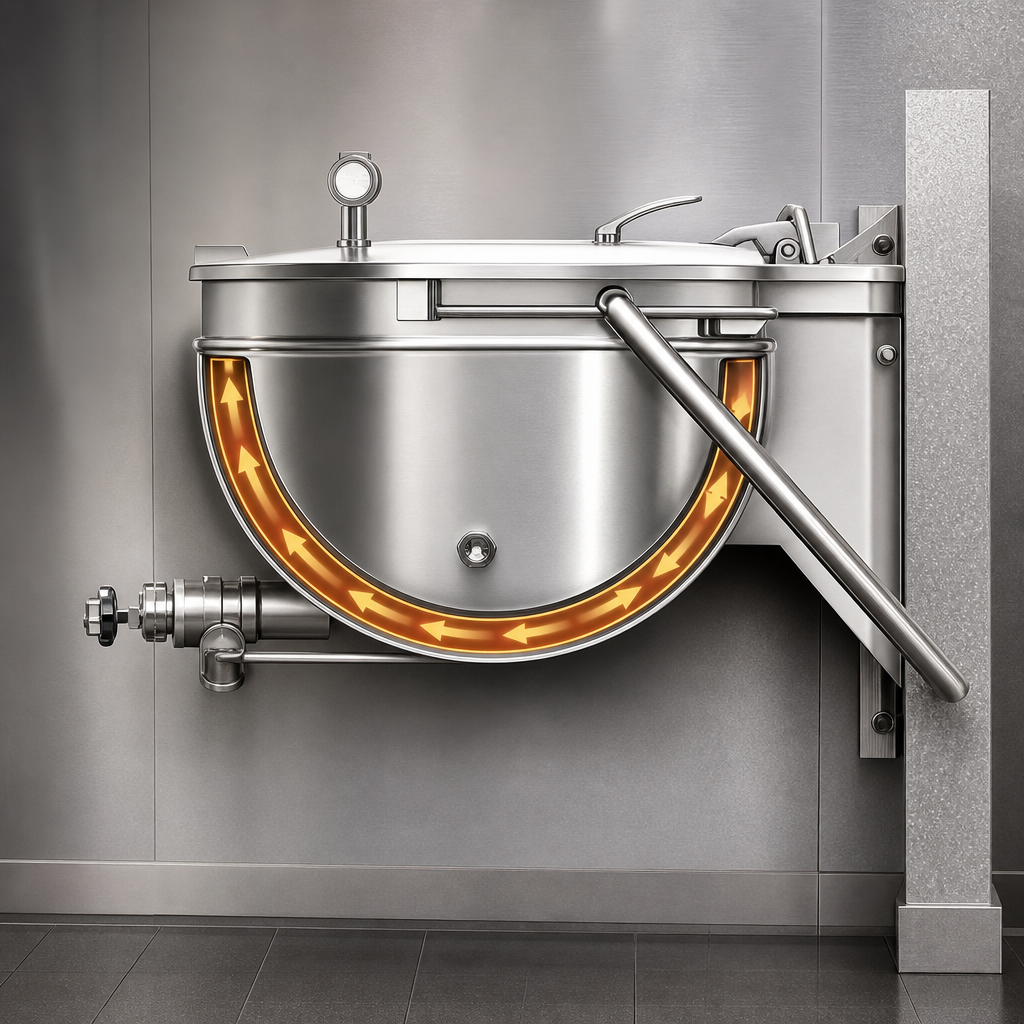

- Full 304L stainless jacket for fast, even heat transfer across the entire kettle surface.
- 25 psi direct-steam rating for rapid heat-up and reduced batch times.
- Actuator-assisted, one-piece domed cover (304 SS) – effortless, balanced lifting on a busy line.
- 2 in. 304 SS compression draw-off valve with ¼ in. perforated disk strainer for smooth, particle-free pours.
- Heavy-duty 304 SS wall-mount support arms, seam-welded directly to the jacket for rock-solid stability.
- NSF, ASME & CSA compliant; proudly Made in the USA.
Why Your Kitchen Will Love It
- Space saver: Wall-mount bracket keeps floors clear for easier cleaning and better traffic flow.
- Labor efficient: Large 100 gal. capacity equals fewer batches and lower labor costs.
- Consistent results: Full-jacket design eliminates hot spots, protecting delicate recipes.
- Quick cleanup: Satin-finish stainless interior wipes down in seconds; external fittings are all food-grade stainless to resist corrosion.
- Safe handling: Actuator-balanced lid and stay-cool draw-off handle reduce operator fatigue and splash hazards.
Technical Specifications
| Capacity | 100 gal. / 379 L |
|---|---|
| Operating Pressure | 25 psi direct steam |
| Inner Liner | Seamless 304 SS, deep-drawn |
| Jacket | Full, 304L stainless steel |
| Draw-Off Valve | 2 in. compression type, 304 SS |
| Strainer | 304 SS disk, ¼ in. perforations |
| Cover | One-piece domed 304 SS, actuator assisted |
| Steam Inlet / Return | 1.25 in. NPT in / 0.75 in. NPT out |
| Overall Width (A) | 44.0 in. (1118 mm) |
| Overall Depth (C) | 38.3 in. (973 mm) |
| Overall Height (J1) | 85.3 in. (2167 mm) to top of cover handle |
| Recommended Mount Height (T) | 10.5 in. (267 mm) from finished floor to bottom of support arm |
| Net Weight | Contact factory |
Dimensions are taken from the manufacturer’s engineering drawing. Allow additional clearance for plumbing and service access.
Popular Accessories (sold separately)
- 48 in. flexible spray hose assembly (vinyl or stainless)
- Single- or double-fill faucet with 12 in. / 18 in. swing nozzle
- Tri-basket or nylon bag inserts for bulk cooking
- Lockable lid and draw-off protection kits for correctional facilities
- Kettle care cleaning & maintenance kit
Certifications & Warranty
- ASME-coded pressure vessel
- NSF & CSA sanitation compliant
- UL electrical (where applicable)
- 12-month parts & labor warranty from date of installation
- Extended warranty packages available
Legion Industries continually improves products; specifications are subject to change without notice.
