Legion LSWC-80MV Steam Kettles

Legion LSWC-80 Direct Steam Wall-Mount Kettle with 2-Speed Mixer – 80 gal

Engineered for relentless, high-volume production, the Legion LSWC-80 combines an 80-gallon, full-jacketed steam kettle with a factory-mounted 2-speed agitator system. Its wall-console design frees up floor space while delivering fast, even cooking and hands-free mixing—perfect for soups, sauces, chili, custards, oatmeal and more.

Key performance advantages

• Full 304 stainless steel liner and jacket for superior corrosion resistance and easy sanitation.
• 30 psi operating pressure (up to 80 gal) delivers rapid heat transfer and shorter batch times.

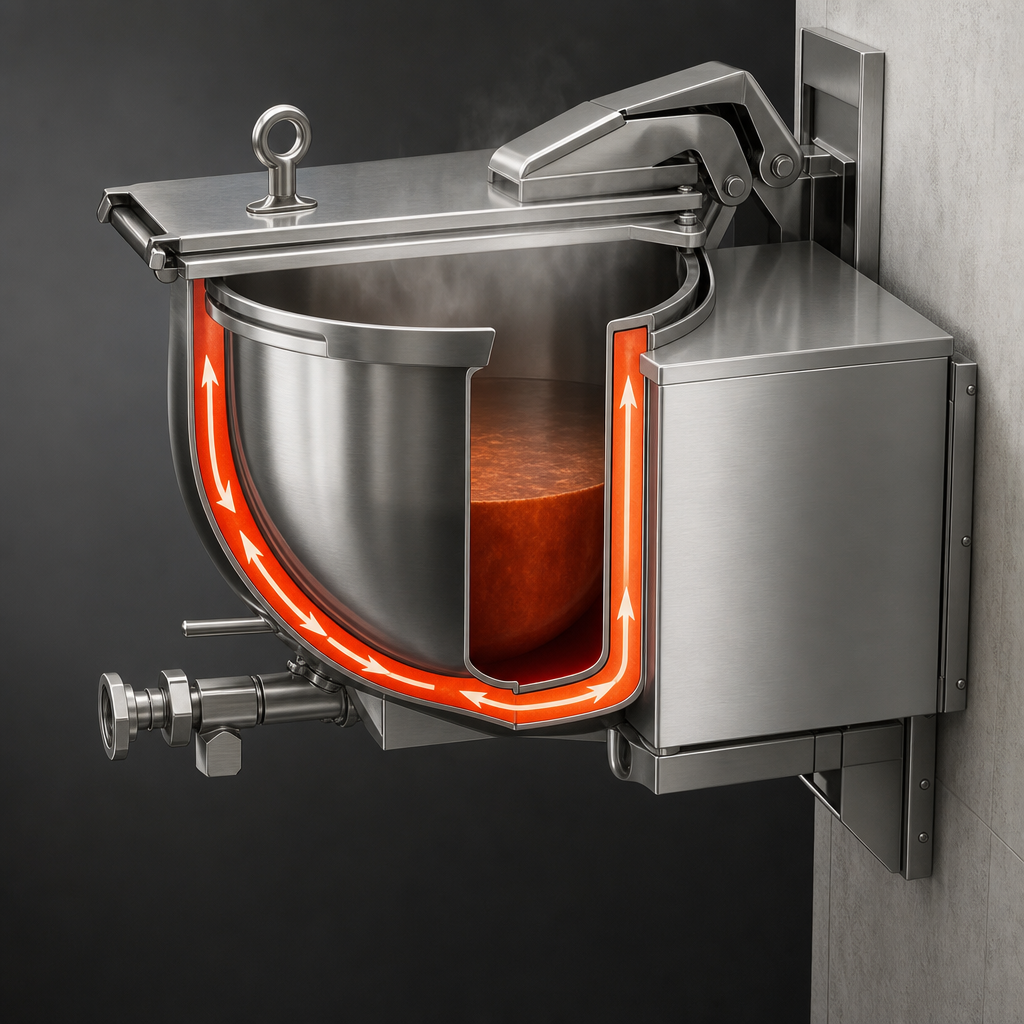

• 100 % steam jacket – no cold spots, no scorching.

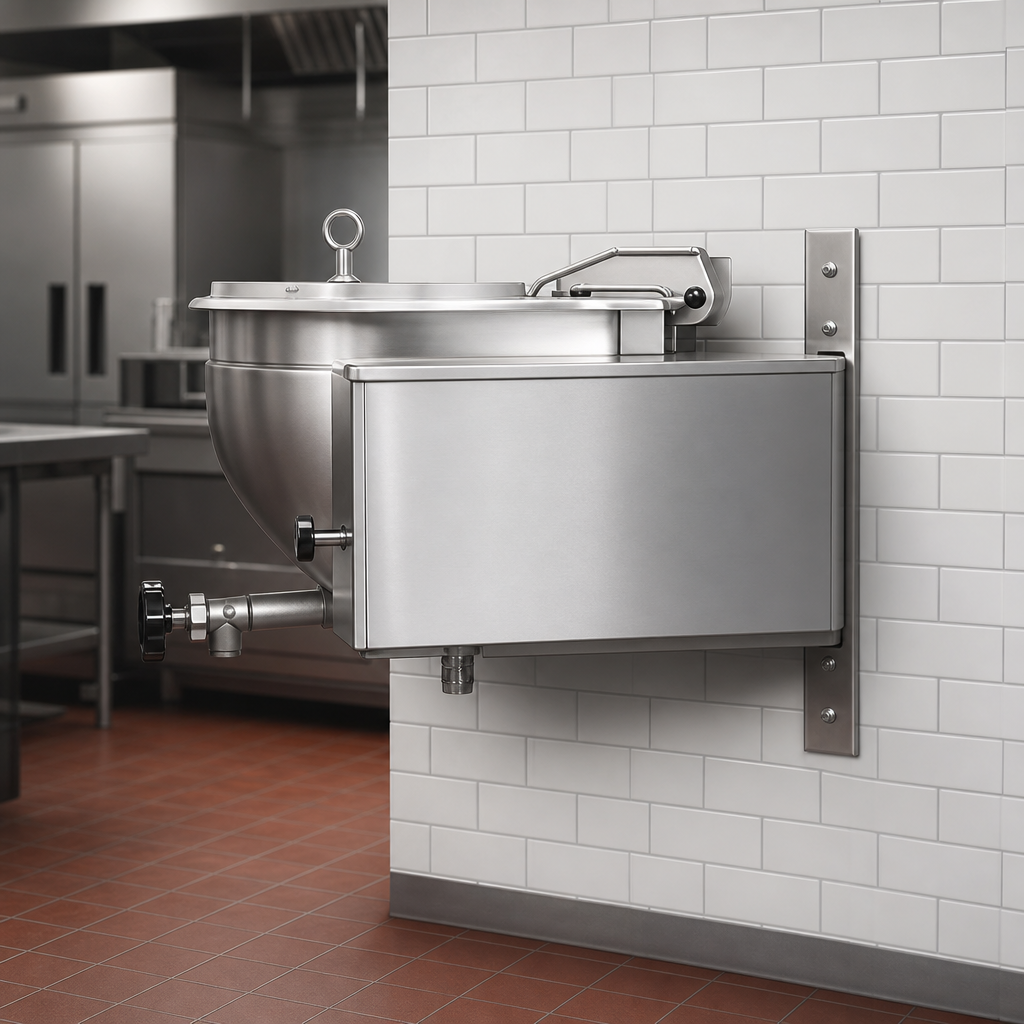

• Factory-installed wall console keeps all plumbing in the rear and off the floor for a cleaner, safer kitchen.
• Large 2 in. sanitary ball draw-off valve with ¼ in. perforated disk strainer lets you portion chunky products without clogging.
• Dished, deep-drawn kettle body provides excellent product visibility and complete draining.
• Made in the USA and built to ASME & NSF standards.

Integrated 2-speed agitator system

• Twin-shaft design with 304 SS anchor-style main agitator plus counter-rotating secondary beater.
• Removable, nylon scraper blades continuously sweep the kettle wall to prevent sticking and improve heat exchange.
• Totally enclosed gear motor: 1 HP (low 23 RPM) / 2 HP (high 46 RPM) for precise mixing of light or heavy batches.
• Actuator-assisted bridge lift for quick access and simplified clean-in-place.
• Bayonet-mount agitators pull off in seconds—no tools required.
• Safety interlock prevents high-speed start-ups when the bridge is raised.

Built to last

• Heavy-gauge 304 SS reinforced console boxes with rear steam inlet/outlet connections.
• One-piece, domed stainless cover with actuator assist (included).
• Perforated ¼ in. disk strainer protects the draw-off valve and keeps food particles out of the plumbing.
• All welds ground and polished for easy cleaning and long service life.

Technical specifications

Dimensions may vary slightly when ordered with the 2 in. draw-off valve shown above. Consult the factory drawing for exact rough-in data before fabrication or wall prep.
