Legion LSWC-80 Steam Kettles
Description

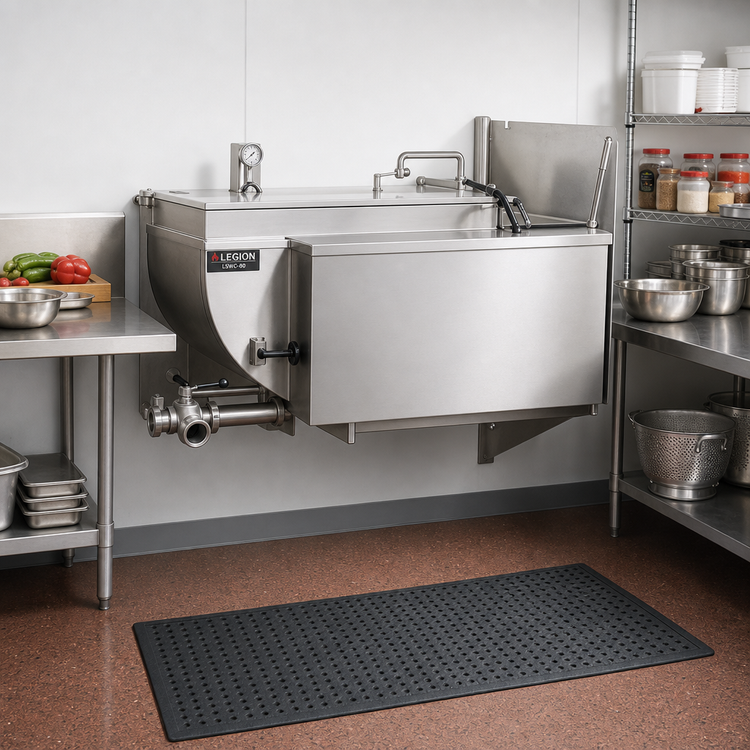

Legion LSWC-80 Stationary Direct Steam Kettle – 80 Gallons
Wall-Console Mounted • Full Jacket • 304 Stainless SteelEngineered for high-volume kitchens that refuse to compromise on quality or floor space, the Legion LSWC-80 delivers 80 gallons of perfectly even, direct-steam cooking power. A full 30 psi stainless jacket, actuator-assisted cover and 2" sanitary draw-off valve make this American-made kettle a workhorse you can trust shift after shift.
Stand-Out Features

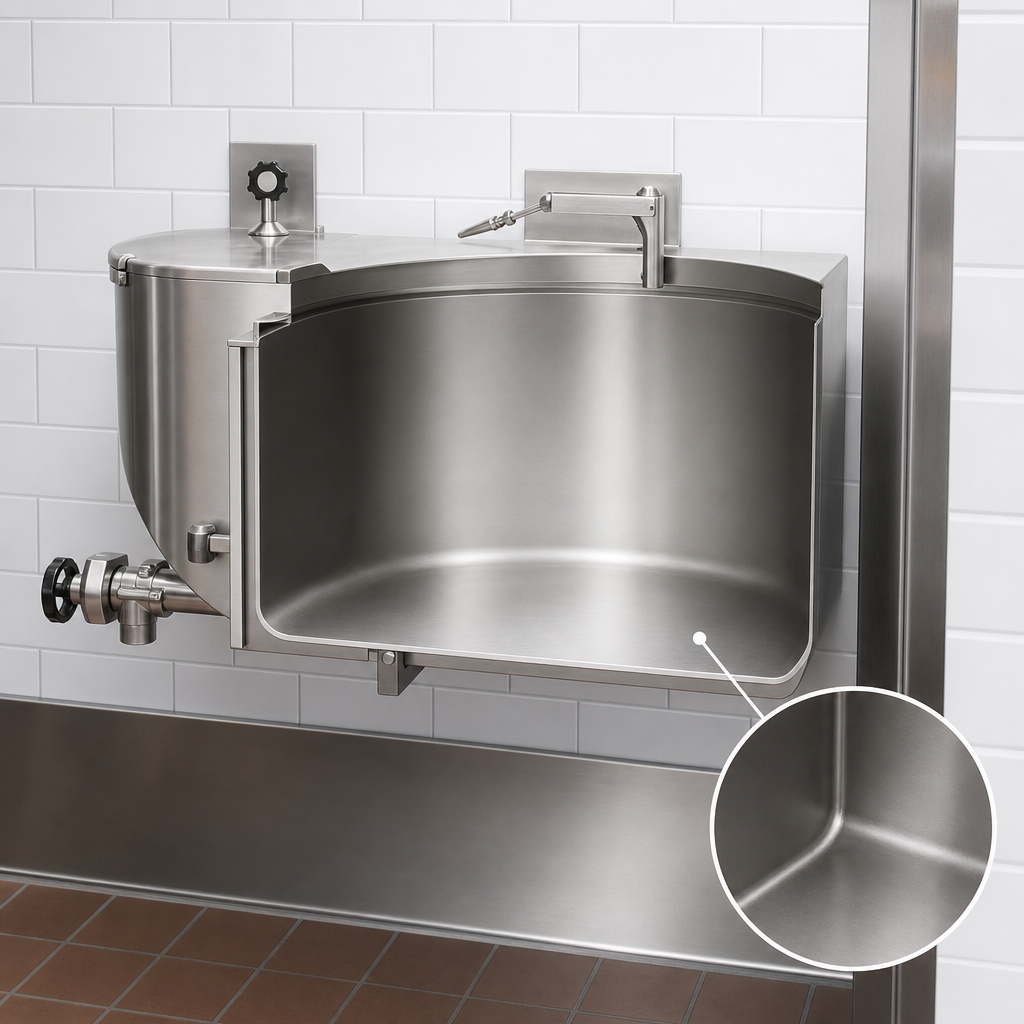

- Seamless 304 stainless steel liner—no interior weld seams to trap food or bacteria.

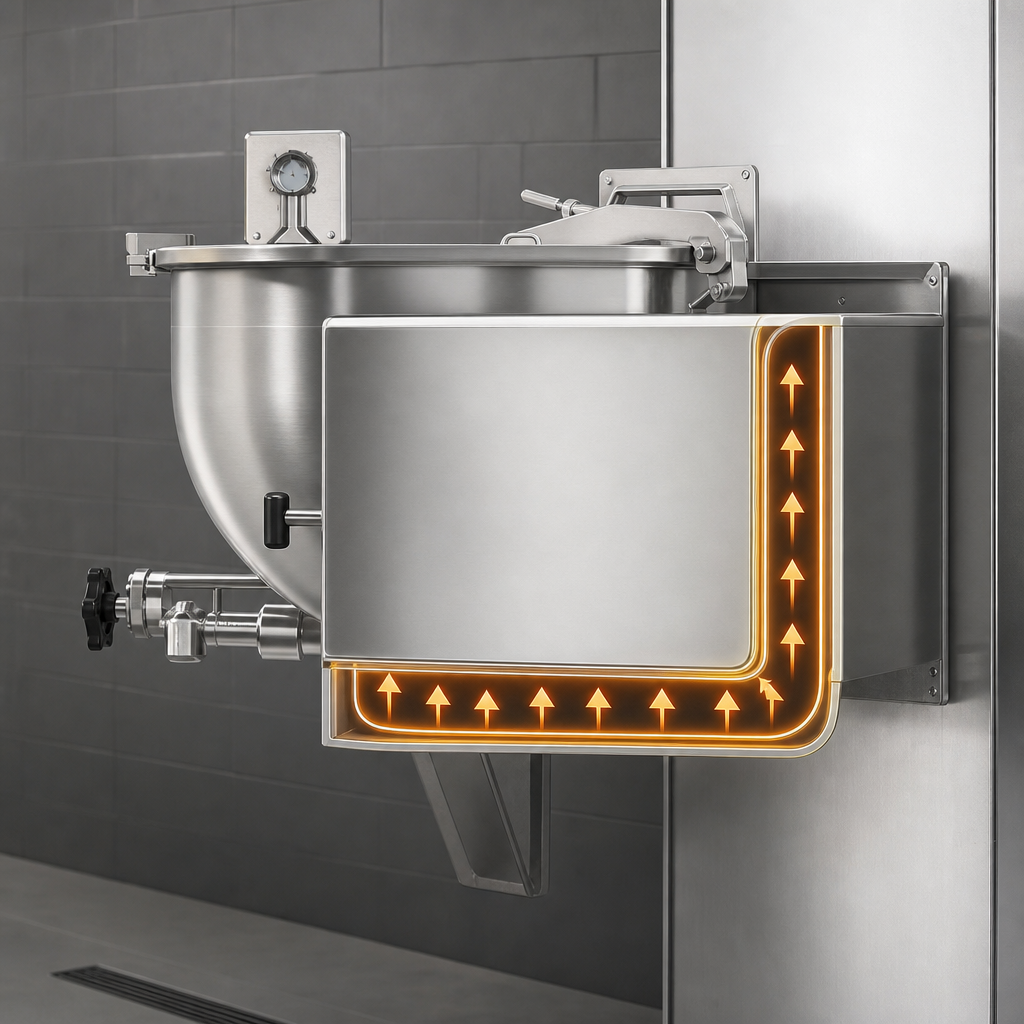

- Full 304L stainless jacket rated 30 psi for rapid heat-up and outstanding thermal recovery.
- One-piece, domed actuator-assisted cover (included on 40–100 gal models) opens smoothly and stays put.
- 2" compression draw-off valve with ¼" perforated stainless strainer—ideal for clear stocks & sauces.

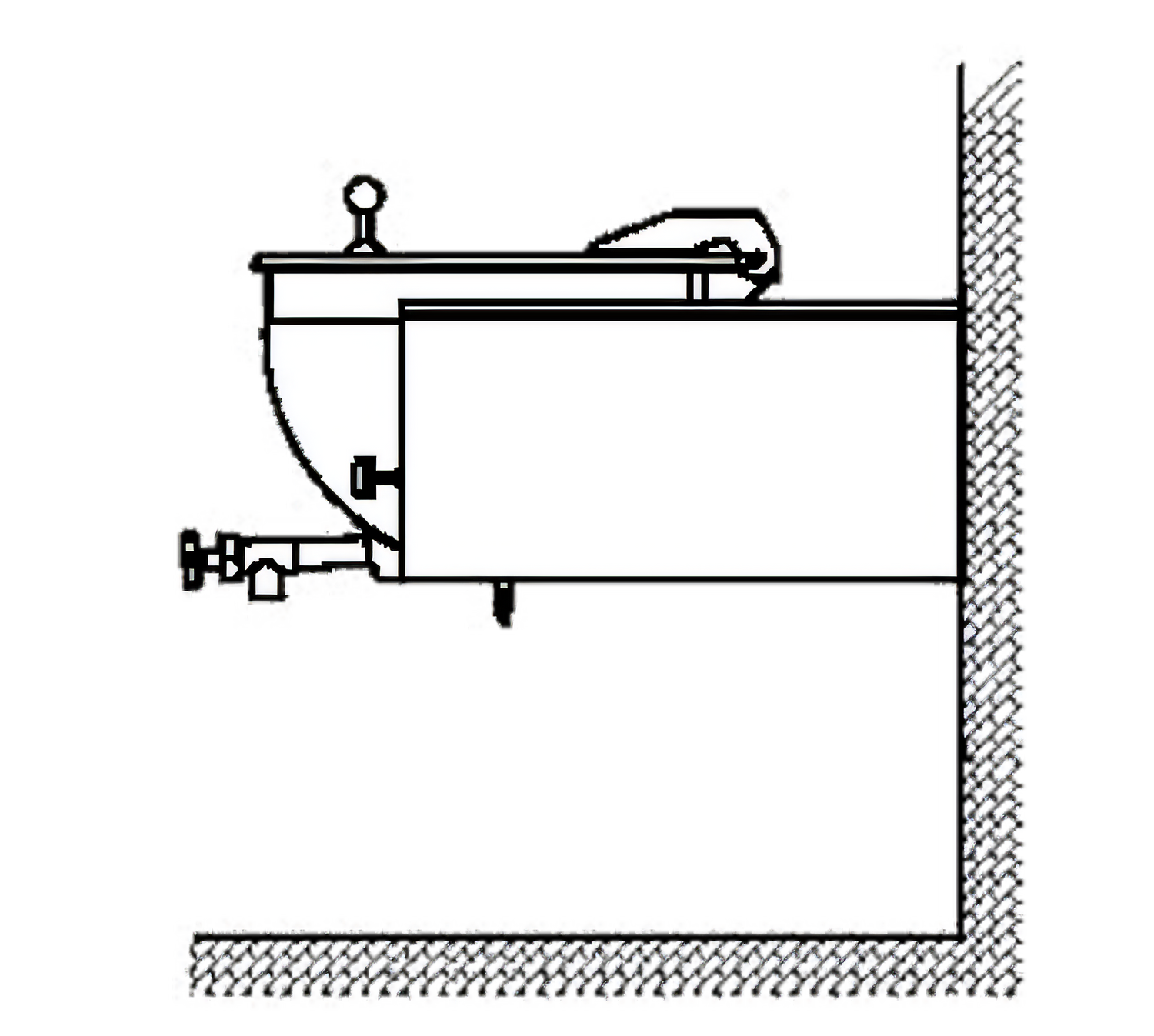

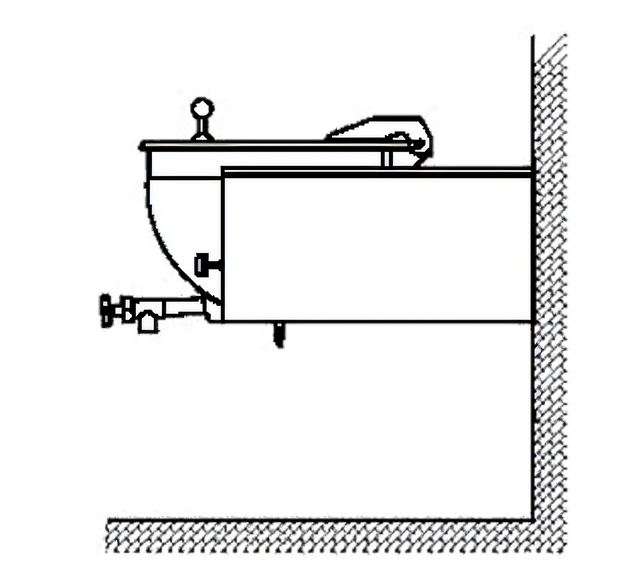

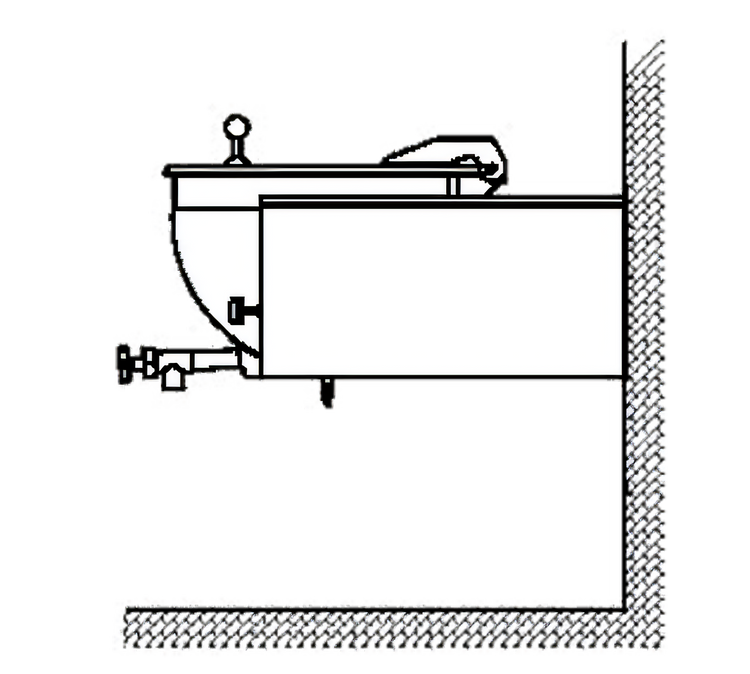

- Wall-console mounting clears the floor, protects plumbing inside stainless reinforced boxes and keeps the workspace easy to clean.
- Heavy-duty 304 stainless support arms seam-welded to the jacket for unmatched stability.
- Deep-drawn construction adds strength, eliminates stress-points and simplifies sanitizing.
- Built to applicable ASME & NSF standards—Made in the USA.
Technical Specifications
| Model | LSWC-80 |
|---|---|
| Capacity | 80 US gal / 303 L |
| Mounting Style | Stationary wall-console |
| Steam Source | Direct external steam (customer supplied) |
| Operating Pressure | 30 psi (2 bar max) |
| Jacket Type | Full, 304L stainless steel |
| Liner Material | Seamless 304 stainless steel |
| Cover | Actuator-assisted, one-piece domed, 304 stainless |
| Draw-Off Valve | 2" 304 SS compression type + ¼" perforated strainer |
| Steam Inlet / Outlet | ¾" NPT (inlet) / ¾" NPT (condensate) |
| Overall Width (A) | 39.0" (991 mm) |
| Overall Depth (B) | 22.0" (559 mm) |
| Overall Height (J₁) | 80.0" (2032 mm) |
| Bowl Diameter (C) | 38.0" (965 mm) |
| Front-to-Wall (D) | 28.9" (734 mm) |
Popular Options & Accessories (sold separately)
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Automatic water fill meter
- Tri-basket or single basket inserts, nylon bag insert & measuring strip
- Lift-off or 2-piece hinged cover
- Higher-pressure jacket rating, air eliminator or pressure reducing valve
- In-wall carrier for flush wall installation
Warranty
Includes Legion’s standard 12-month parts & labor warranty from date of installation (15 months from shipment when installed promptly). Register within 10 days to activate coverage.
Specifications are subject to change without notice. Contact us for detailed drawings or factory-approved accessories.
