Legion LSWC-60 Steam Kettles
Description

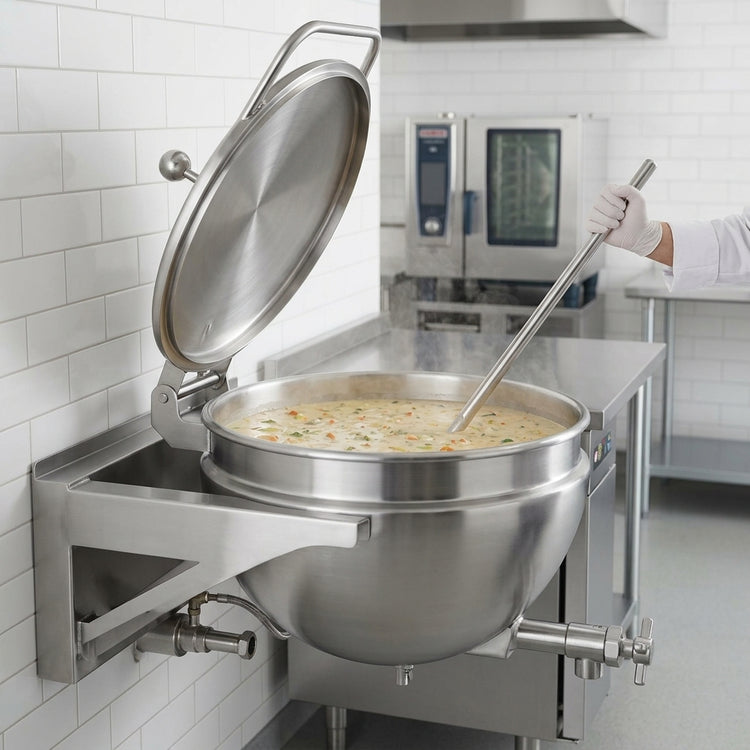

Legion LSWC-60 Stationary Direct Steam Kettle – 60 Gal
Full-jacket, wall-console mount • 304 stainless steel • 30 psiEngineered for high-volume kitchens that demand uncompromising durability, the Legion LSWC-60 delivers 60 gallons (227 L) of even, direct-steam cooking power in a sleek wall-mounted footprint. From scratch-made stocks to small-batch sauces, its seamless deep-drawn liner and full 30 psi jacket guarantee rapid heat-up, precise simmers, and effortless clean-down.
Why chefs choose the LSWC-60

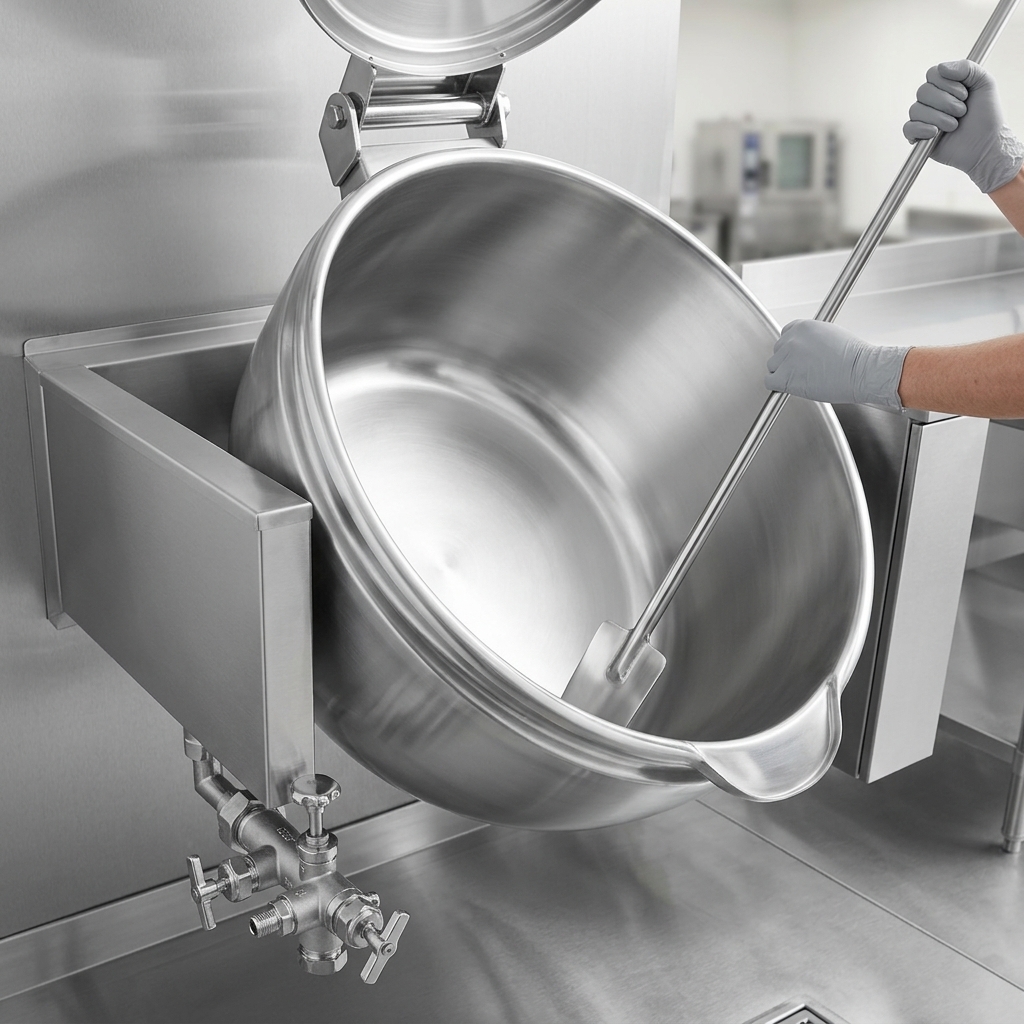

- Seamless 304 stainless steel liner resists pitting, scorches, and flavor transfer.

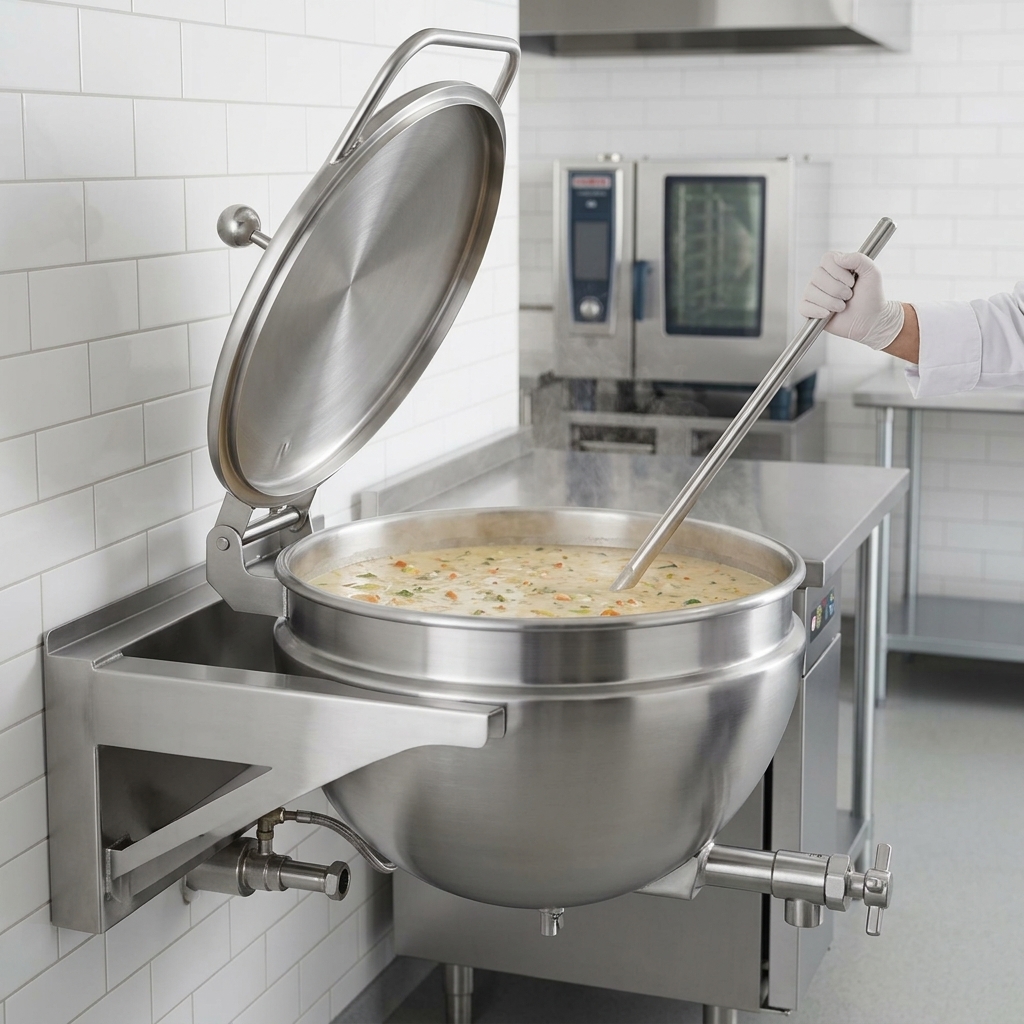

- Full 304L stainless jacket surrounds kettle for uniform heating and faster recovery.
- 2″ compression draw-off valve with ¼″ perforated disk strainer speeds portioning while capturing solids.

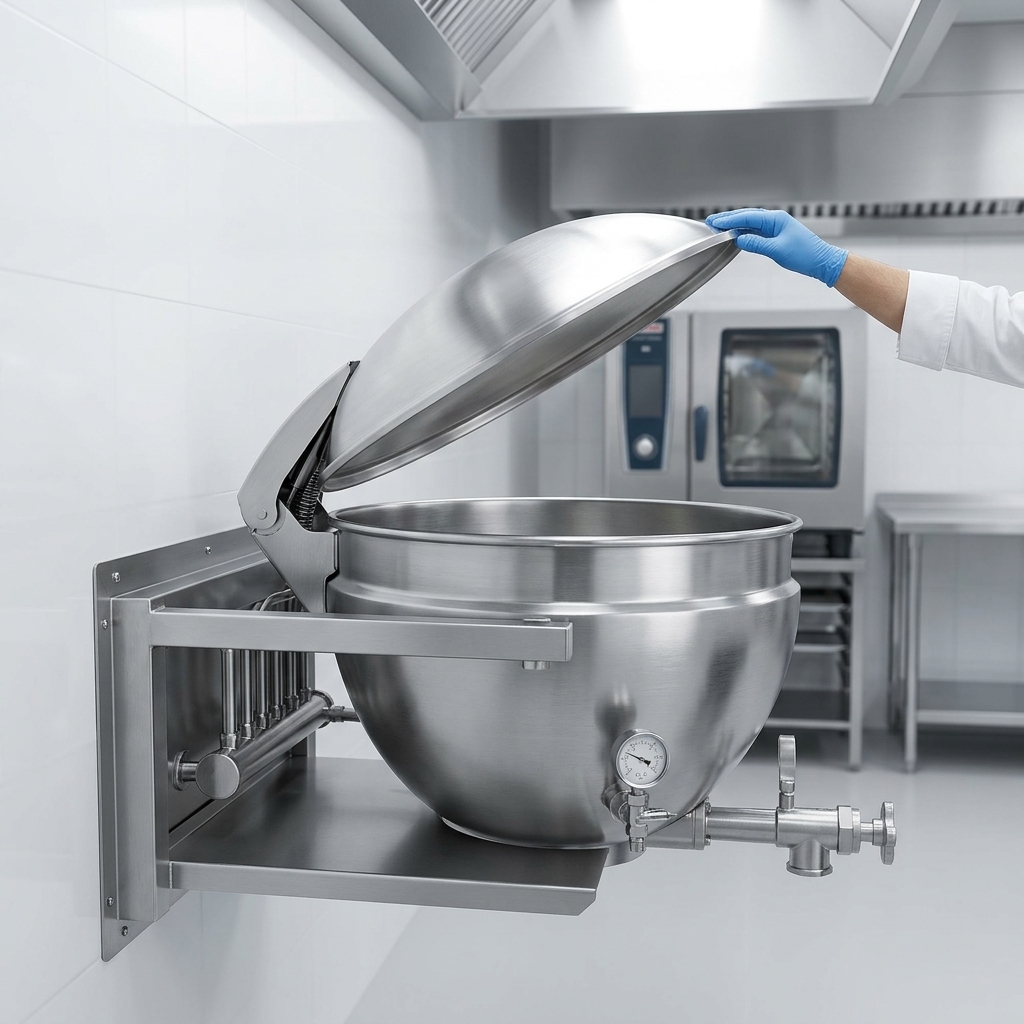

- Actuator-assisted, one-piece domed cover—opens effortlessly, stays put, and keeps steam where it belongs.
- Reinforced stainless console boxes hide plumbing connections for a clean backsplash installation.
- Heavy-duty support arms are seam-welded to the jacket for rock-solid wall mounting.
- 30 psi operating pressure handles demanding production cycles without breaking a sweat.
- Made in the USA and built to meet or exceed ASME, NSF, UL, and other applicable standards.
Technical Specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Operating Pressure | 30 psi (2.07 bar) |
| Kettle Interior | Seamless deep-drawn 304 stainless steel |
| Jacket Material | 304L stainless steel, full-coverage |
| Draw-off Valve | 2″ compression type, 304 stainless |
| Strainer | Removable perforated disk, ¼″ holes |
| Cover | One-piece domed stainless, actuator-assisted |
| Mounting | Wall-console, rear steam & condensate connections |
| Steam Inlet / Outlet | ¾″ NPT |
| Overall Width (A) | 32.5″ / 826 mm |
| Overall Height (J1) | 74.0″ / 1 880 mm |
| Overall Depth (D) | 26.5″ / 673 mm |
| Wall Projection (Y / Z) | 24.0″ / 610 mm |
Popular Options & Accessories
- Single or double fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Tri-basket or single-basket inserts
- Nylon bag insert with spreader ring for stocks & broths
- Automatic water-fill meter
- Kettle care kit & measuring strip
- Air eliminator or pressure-reducing valves
- In-wall carrier for additional mounting support
Covered by Legion’s limited 12-month parts & labor warranty from date of installation (15 months from shipment). Extended coverage available—see the Warranty tab or contact us for details.
