Legion LSWC-50 Steam Kettles
Description

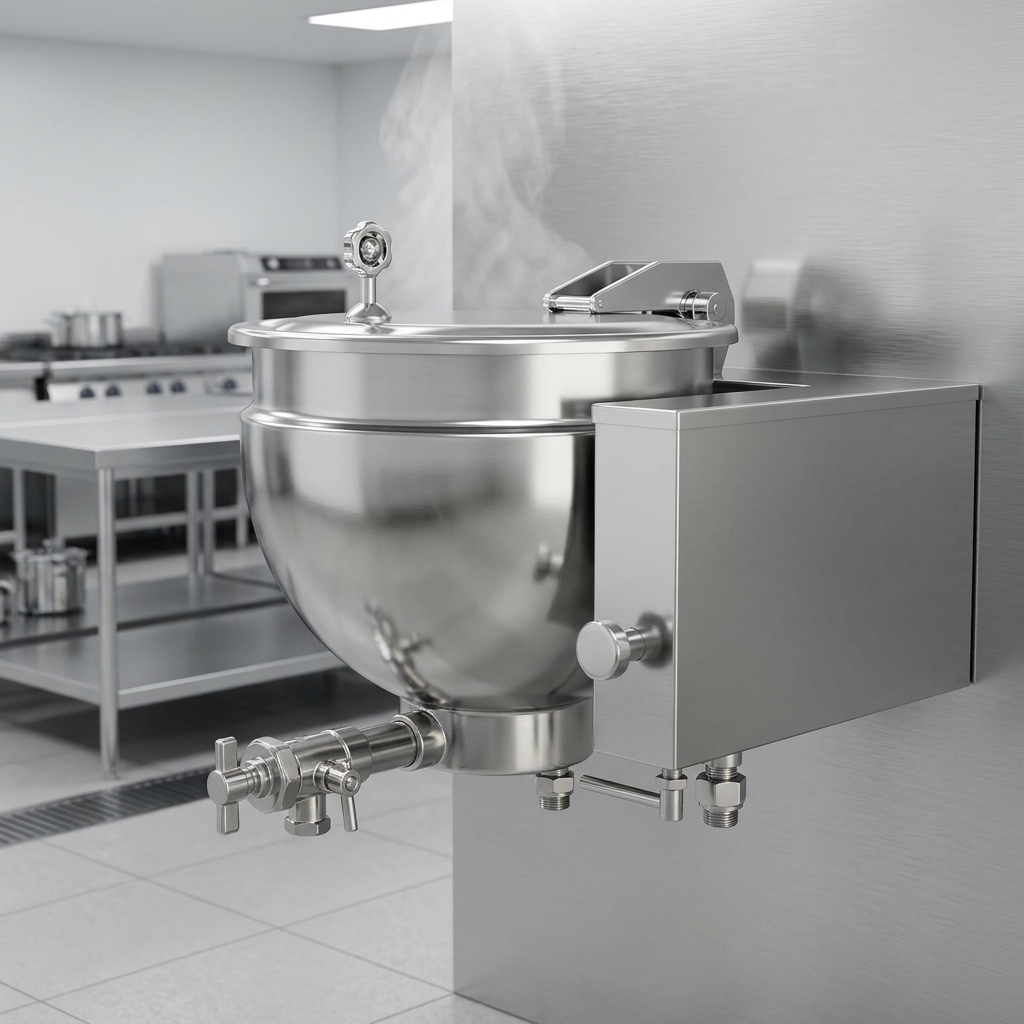

Legion LSWC-50 Direct Steam Wall-Mount Kettle – 50 Gal.
Full-jacketed · Deep-drawn 304 stainless steel · Made in USAAdd high-volume production capacity without giving up floor space. The Legion LSWC-50 mounts securely to a wall-console and delivers a generous 50 gallons (189 L) of perfectly uniform steam heating for soups, sauces, stocks, stews and more—making it the go-to workhorse for institutional kitchens, hotels, commissaries and correctional facilities.
Key Features

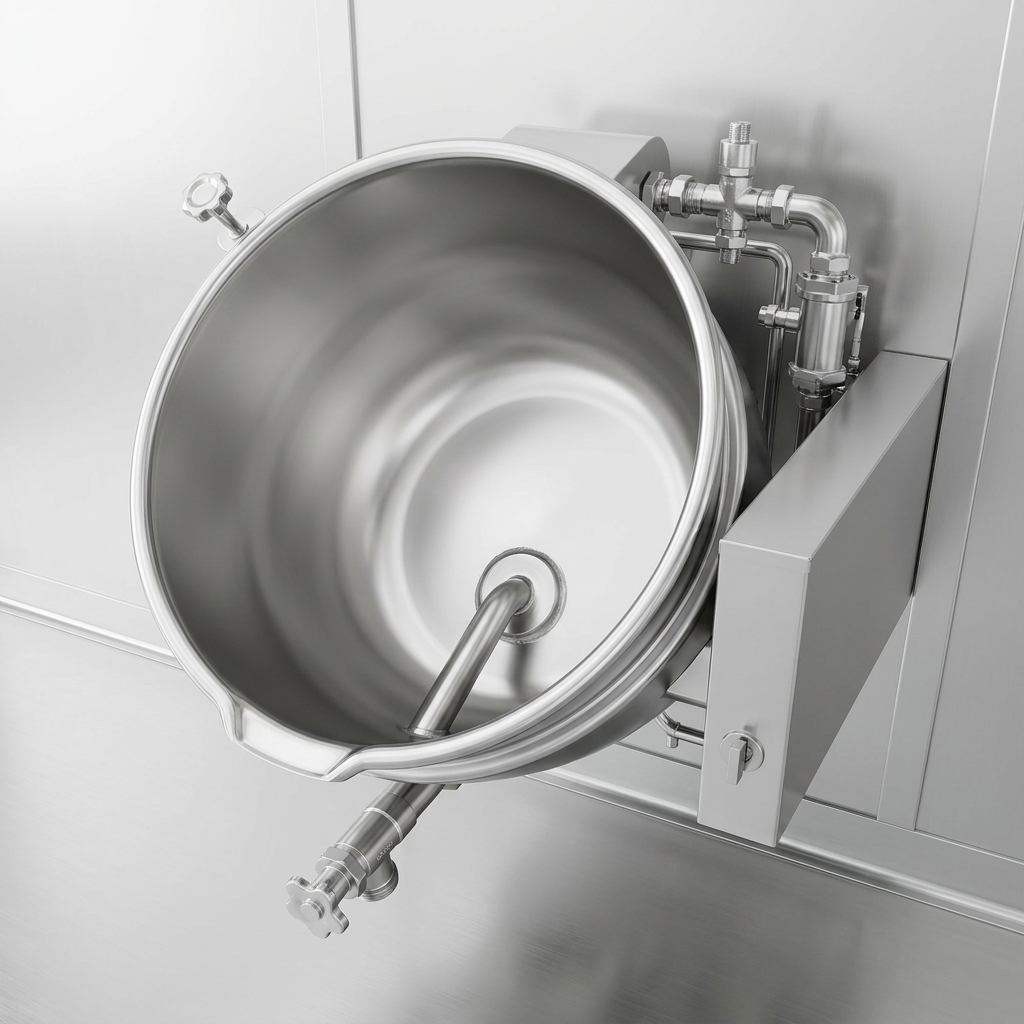

- Seamless deep-drawn 304 stainless steel kettle liner resists pitting and corrosion.
- Full 304L stainless steel jacket rated 30 psi for rapid, even heat transfer.
- 2" 304 stainless compression draw-off valve with ¼" perforated disk strainer for quick, clog-free dispensing.
- One-piece domed stainless steel cover with actuator assist—opens smoothly, no heavy lifting.
- Stainless steel support arms and reinforced console boxes with rear plumbing connections keep utilities out of sight.

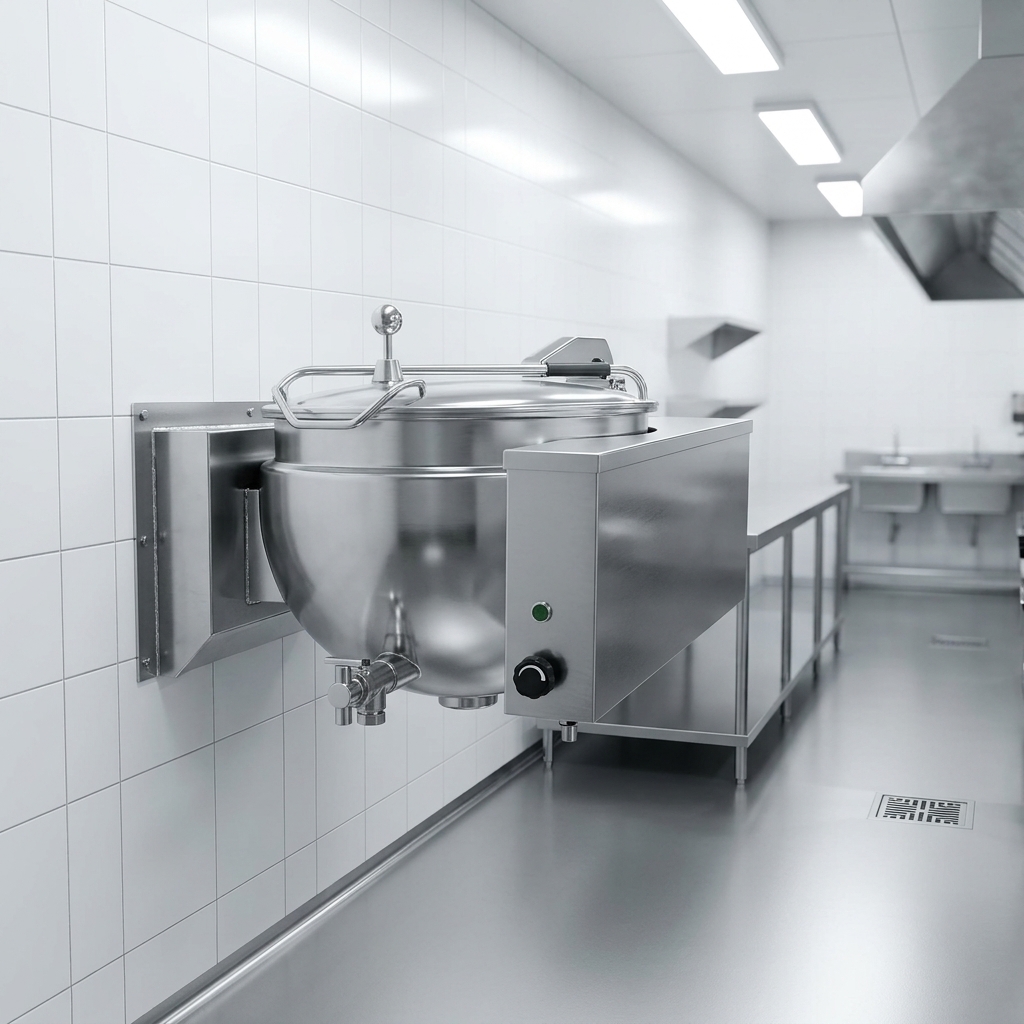

- Stationary wall-console mount maximizes clear floor area and simplifies cleaning.
- Deep-drawn construction eliminates interior weld seams for easier sanitation.
- Built to ASME & NSF standards; manufactured in Waynesboro, GA.
Why Chefs Choose Legion
- Even, all-around heating reduces scorching and hot spots—ideal for delicate dairy-based sauces.
- Direct steam operation offers faster heat-up and superior energy efficiency compared with stock pots.
- 50-gallon capacity lets you batch-cook up to 800 (8 oz) servings in a single cycle.
- Hands-free draw-off cuts portioning and transfer times dramatically.
Specifications – Model LSWC-50
| Capacity | 50 gal. / 189 L |
|---|---|
| Operating Pressure | 30 psi (207 kPa) |
| Mounting Style | Stationary wall-console |
| Construction | 304 & 304L stainless steel, deep-drawn |
| Jacket Type | Full jacket (direct steam) |
| Cover | Actuator-assisted, one-piece domed stainless |
| Draw-off Valve | 2" compression type, includes ¼" perforated strainer |
| Steam Connections (NPT) | ¾" inlet / ¾" outlet (rear console) |
| Approx. Dimensions | 29.5" W × 25.1" D × 38.0" H |
| Shipping Weight | Consult factory |
| Origin | USA |
Popular Options & Accessories (sold separately)
- Single or double fill faucet with 12" / 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Automatic water fill meter
- 2-speed mixer / agitator assembly
- Lift-off or 2-piece hinged cover
- Basket inserts, nylon bag insert, measuring strip & kettle care kit
Covered by Legion’s 12-month parts & labor warranty from installation (15 months from ship date). Registration required within 10 days of install.
