Legion LSWC-40 Steam Kettles
Description
Legion LSWC-40 Stationary Direct-Steam Kettle – 40 gal
Wall-Mounted • Full Jacket • 304 Stainless SteelFree up floor space and speed up production. The 40-gallon Legion LSWC wall-console kettle delivers even, high-output cooking through a seamless 304 stainless liner and a full 30 psi jacket—ideal for soups, sauces, stocks and more in high-volume kitchens.
Key Features

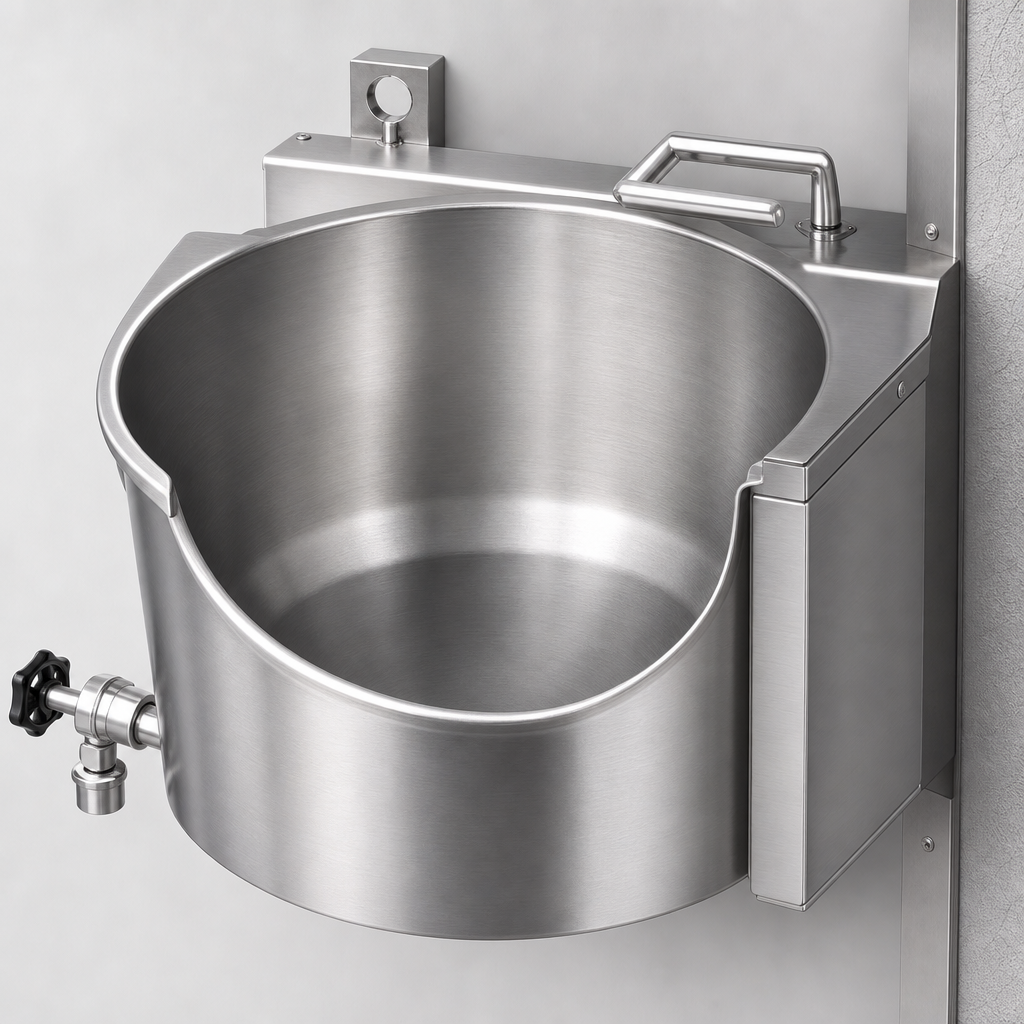

- Seamless deep-drawn 304 stainless kettle liner for maximum sanitation and durability.

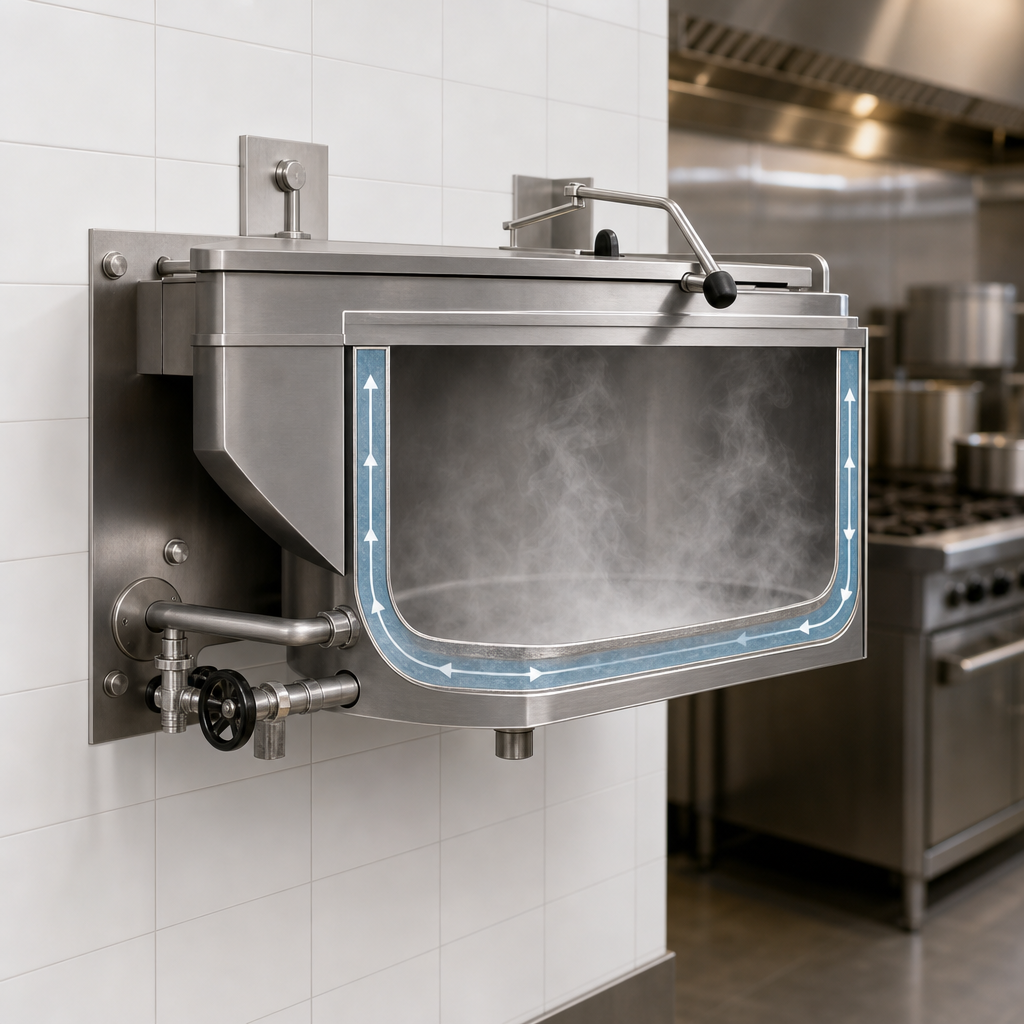

- Full 304L stainless jacket rated to 30 psi for rapid, uniform heat transfer.
- 2" 304 stainless compression draw-off valve with quick-turn handle.
- Removable ¼" perforated stainless strainer disc keeps solids out of the valve.
- Actuator-assisted one-piece domed cover—lift with one hand; stays open at any angle.
- Reinforced stainless console boxes with rear steam & condensate connections keep the work zone clear.
- Heavy-duty stainless support arms seam-welded to the jacket for rock-solid mounting.
- Made in the USA; built to ASME & NSF standards.
At-a-Glance Specs
| Model | LSWC-40 |
|---|---|
| Capacity | 40 gal (151 L) |
| Mounting | Stationary wall-console |
| Steam Source | Direct steam (external) |
| Operating Pressure | 30 psi (2.07 bar) |
| Jacket Type | Full, 304L stainless, deep-drawn |
| Interior Liner | Seamless 304 stainless |
| Draw-off Valve | 2" compression, 304 stainless |
| Strainer | ¼" perforated stainless disk (removable) |
| Cover | Actuator-assisted, domed stainless |
| Steam Inlet / Outlet | ¾" NPT / ½" NPT (rear) |
| Overall Height | ≈69.5" to top of cover* |
| Overall Width | ≈36.9" |
| Construction | All-welded 304 stainless steel |
| Compliance | ASME, NSF |
| Country of Origin | USA |
Why Choose a Wall-Console Kettle?
- Saves valuable floor space and simplifies cleaning underneath.
- Rear-mounted plumbing keeps hoses and fittings out of traffic lanes.
- Stationary design eliminates tipping mechanisms for safer, simpler operation.
*Dimensions shown are approximate and may vary slightly with installation and accessory choices.
Need optional fill faucets, spray hoses, basket inserts or other accessories? Contact us and we’ll configure the perfect Legion kettle station for your kitchen.
