Legion LSWC-25MV Steam Kettles
Description
Legion 25-Gallon Direct-Steam Wall-Mount Kettle with Mixer
Model LSWC-25 + MV Twin-Shaft Agitator — Full Jacket • 30 psi • Made in USAEngineered for busy production kitchens that need consistent results in a compact footprint, this 25-gallon Legion stationary kettle couples rapid, even direct-steam heating with a powerful two-speed mixer. From small-batch sauces to hearty soups and delicate custards, you’ll enjoy faster cook-times, reduced labor, and reliably uniform product every single run.
Why you’ll love it
- 25 gal / 95 L capacity—perfect for medium-volume cooking and rapid batch turnover.
- 304 stainless deep-drawn liner & full jacket deliver exceptional durability and effortless clean-up.
- 2 in. sanitary compression draw-off valve with removable ¼ in. perforated disk strainer speeds product transfer while holding back solids.
- Mixer included: MV twin-shaft agitator with anchor-style scraper plus counter-rotating beater ensures thorough mixing from rim to center.
- Two-speed agitation (23 / 46 rpm main; 60 / 120 rpm secondary) adapts to light or heavy products.
- Actuator-assisted bridge lift & rim lock provide safe, one-handed access for loading, tasting, and cleaning.
- 30 psi operating pressure delivers fast heat-up and tight temperature control.

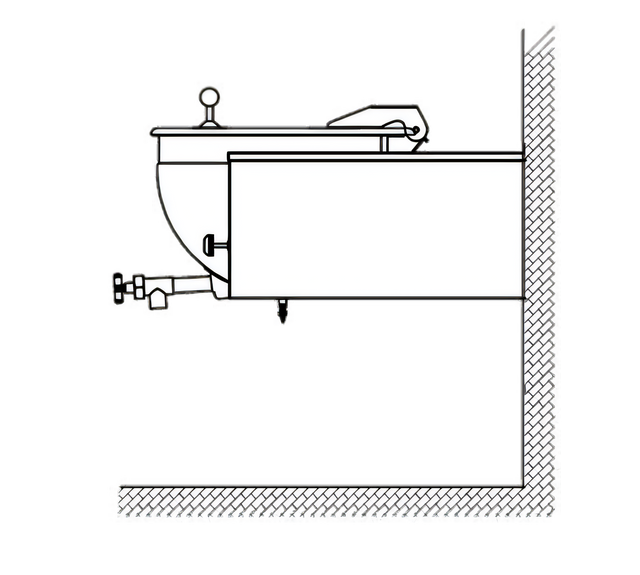

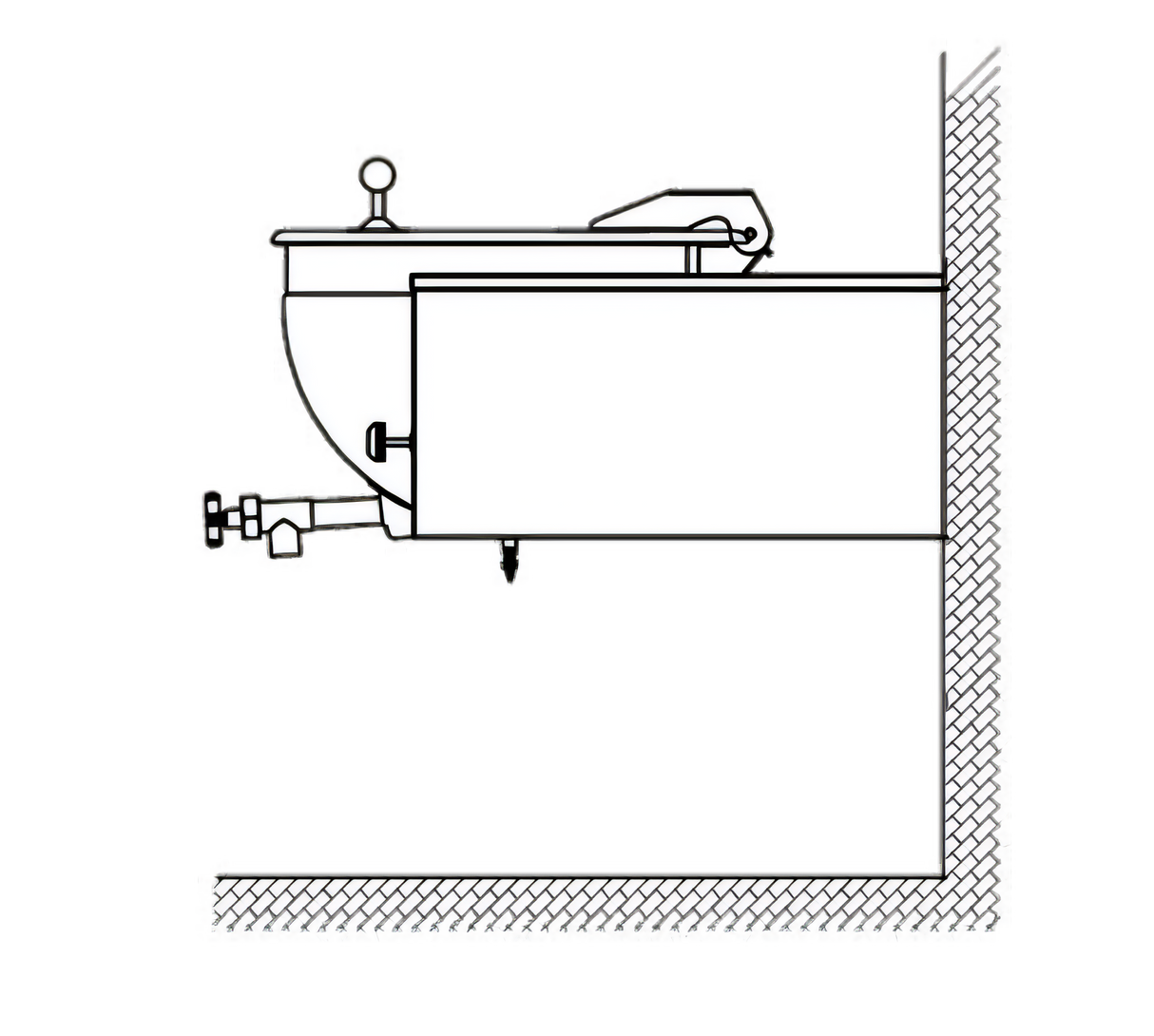

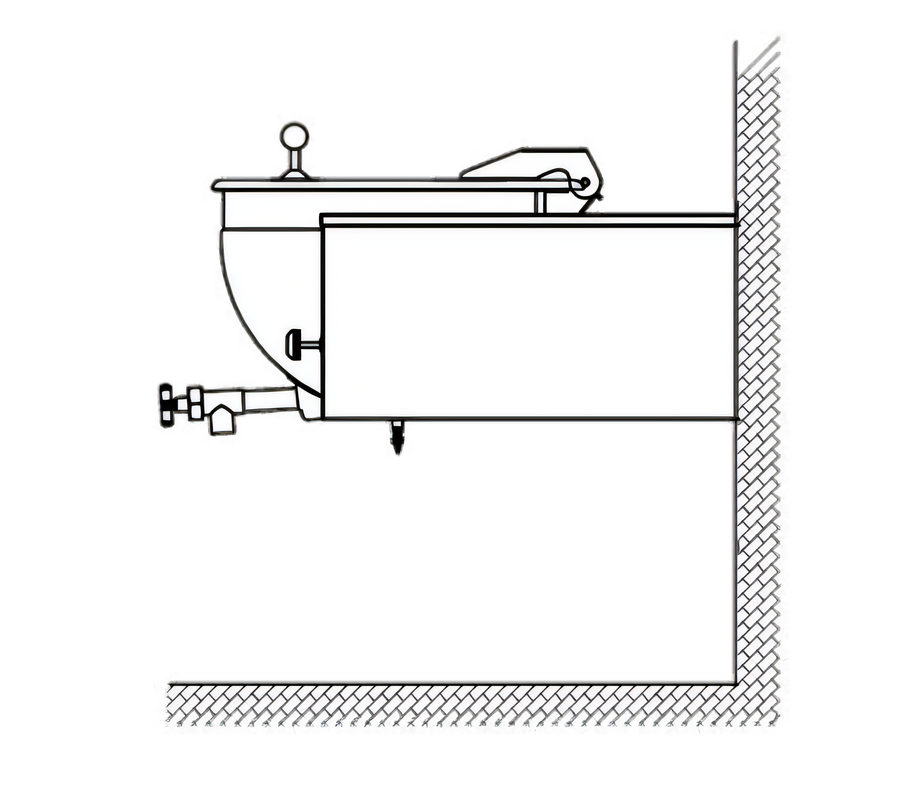

- Space-saving wall console mount keeps the floor clear and conceals rear steam/condensate plumbing inside reinforced stainless boxes.
- NSF & ASME compliant, proudly built in the USA.
Technical specifications
| Capacity | 25 gal / 95 L |
|---|---|
| Construction | 304 SS liner (seamless), 304 SS full jacket, stainless console & bridge |
| Operating pressure | 30 psi max (2.1 bar) |
| Heating source | Direct external steam, ¾ in. NPT inlet / ½ in. NPT outlet |
| Agitator motor | Two-speed gear motor, 1 HP (high) / ½ HP (low) |
| Agitator speeds | Main 46 / 23 rpm • Secondary 120 / 60 rpm |
| Draw-off valve | 2 in. compression, 304 SS tube & welds, ¼ in. perforated strainer |
| Overall width (A) | 25.5 in. (648 mm) |
| Overall depth (D) | 22.9 in. (582 mm) |
| Height to rim (H) | 20.0 in. (508 mm) |
| Overall height (J1) | 65.5 in. (1664 mm) |
Dimensions are nominal and subject to change. Verify all clearances with current factory drawings before rough-in.
Popular add-ons (sold separately)
- Single or dual fill faucet kits with 12 in. or 18 in. swing nozzles
- 48 in. flexible rinse hose assembly (vinyl or stainless)
- Measuring strip, basket inserts, or nylon bag kit
- Automatic water-fill meter for hands-free jacket maintenance
- Full-body insulation jacket for energy savings
