Legion LSWC-25 Steam Kettles
Description

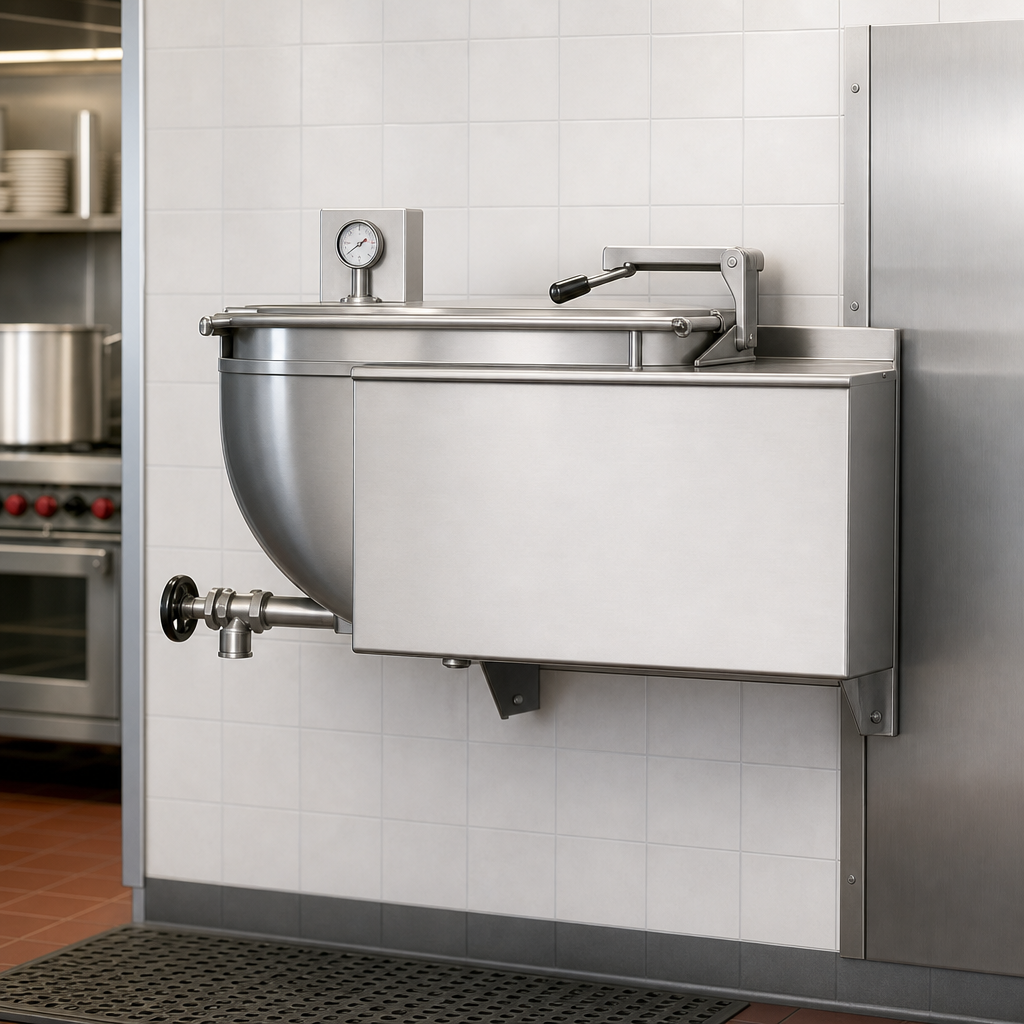

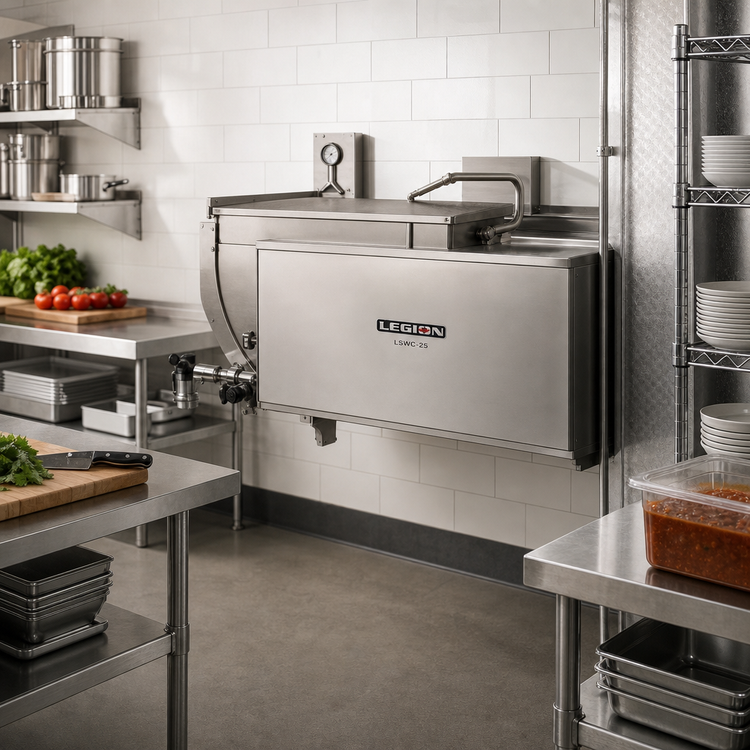

Legion LSWC-25 Stationary Direct-Steam Kettle – 25 Gallon
Wall-Console Mounted | Full Jacket | 30 psi | Made in USAEngineered for kitchens that rely on speed, consistency and durability, the 25-gallon Legion LSWC-25 delivers rapid, even heating in a sanitary wall-mounted design that clears valuable floor space.
Key Features
- 25 gal (95 L) working capacity—perfect for soups, sauces, stocks and bulk sides.

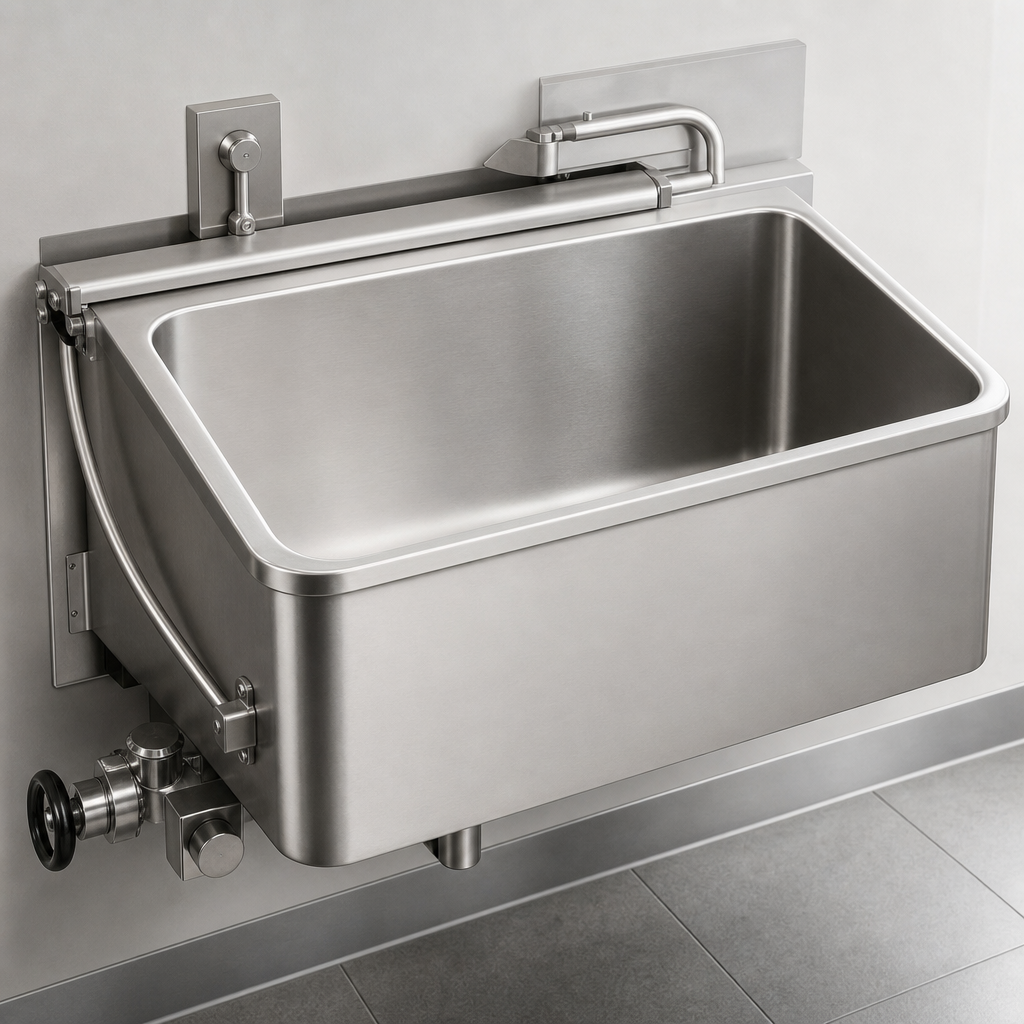

- Seamless deep-drawn 304 stainless steel kettle liner resists pitting and is effortless to clean.
- Full 304L stainless steel jacket rated at 30 psi for fast, uniform heat transfer with direct steam.
- 2″ compression-style draw-off valve with removable ¼″ perforated disk strainer for hassle-free draining.
- Stainless support arms seam-welded to the jacket for uncompromising stability.
- Reinforced stainless console boxes keep all plumbing connections at the rear, leaving the front workspace clear.
- High-polish exterior simplifies wipe-downs and maintains a professional appearance.
- NSF listed and ASME code-stamped construction ensures compliance with commercial standards.
Advantages of Wall-Mount Installation
- Frees up floor area for carts and prep tables.
- Improves sanitation by eliminating hard-to-clean floor legs.
- Rear utility routing keeps hoses and fittings out of traffic lanes.
- Adjustable height lets you tailor the rim position to your operation.
Technical Specifications
| Model | LSWC-25 |
|---|---|
| Capacity | 25 gal / 95 L |
| Operating Pressure | 30 psi (207 kPa) |
| Heat Source | Direct external steam (customer supplied) |
| Construction | 304 stainless liner & draw-off tube; 304L full jacket; stainless support arms & consoles |
| Draw-Off Valve | 2″ compression with ¼″ perforated strainer |
| Steam Inlet / Outlet | ¾″ NPT inlet / ½″ NPT condensate outlet |
| Overall Width (A) | 25.5″ (648 mm) |
| Overall Depth (D) | 22.9″ (582 mm) |
| Height to Rim (J1) | 65.5″ (1664 mm) |
| Front Rim Height (J2) | 55.0″ (1397 mm) |
| Origin | Waynesboro, GA – USA |
Looking for accessories such as fill faucets, basket inserts or lift-off covers? We stock the full Legion lineup and factory options—just ask!
Warranty
Legion backs your investment with a 12-month parts & labor warranty from installation (15 months from shipment). Extended coverage is available.
