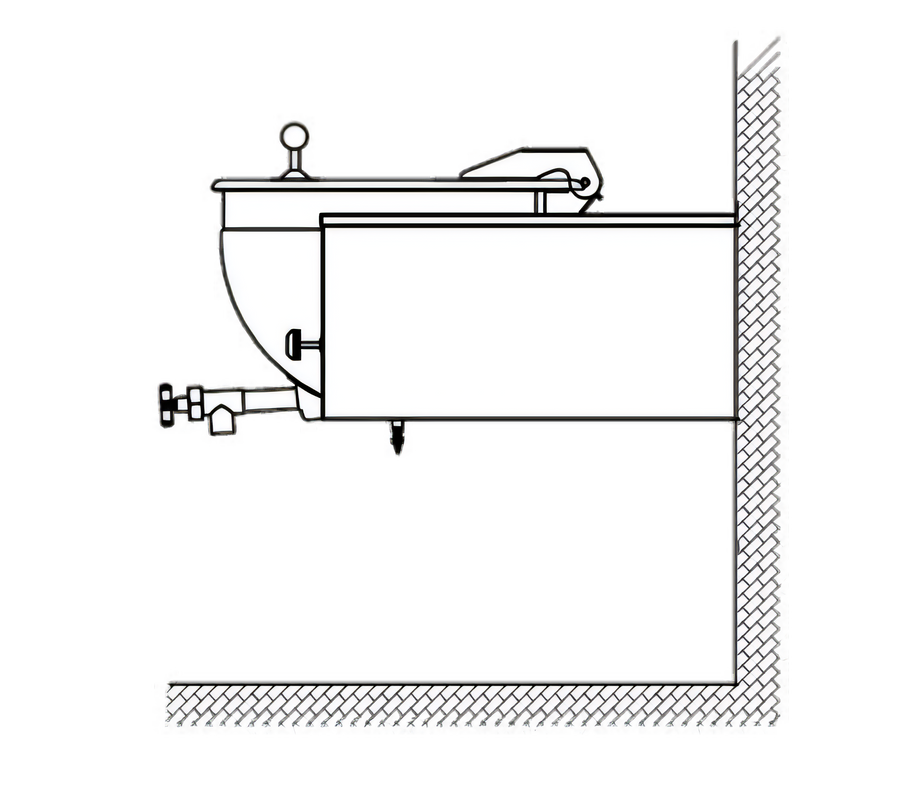

20-Gallon Stationary Wall-Mount Direct-Steam Kettle with 2-Speed Mixer
Legion Model LSWC-20MV | Full-Jacketed · 30 psi · Made in USABuilt for compact kitchens that refuse to compromise on volume or versatility, this 20-gallon Legion kettle pairs rapid, even direct-steam heating with a rugged twin-shaft agitator. From delicate sauces to high-viscosity chowders, you’ll turn out batch after batch with consistent texture, faster cook times, and easier clean-up.
Why You’ll Love It
- Full 304 stainless liner & jacket resist corrosion and chemical attack.
- Heavy-duty wall-console mount frees up valuable floor space.
- 30 psi operating pressure delivers lightning-fast heat-up and recovery.
- Integrated 2-speed mixer eliminates scorching and manual stirring.
- 2" compression draw-off valve with ¼" perforated stainless strainer makes portioning chunky foods simple and clog-free.
- Reinforced stainless console boxes keep all plumbing connections hidden at the rear for a clean, professional install.
- Deep-drawn kettle body with domed rim stands up to years of high-volume production.
Integrated 2-Speed Agitator System
- Twin-shaft design with anchor-style main agitator and counter-rotating secondary beater keeps even thick products moving.
- Removable nylon scraper blades continually sweep the sidewall and floor to prevent burn-on.
- High/low selector (46 / 23 rpm main shaft) matches speed to product viscosity.
- Actuator-assisted bridge lift swings clear for effortless kettle loading, unloading, and sanitation.
- Positive rim lock, safety interlock, and no-high-speed-start feature protect staff and equipment.
Technical Specifications
| Capacity | 20 gal (76 L) |
|---|---|
| Heat Source | Direct steam, full jacket |
| Operating Pressure | 30 psi max |
| Mounting Style | Wall-console, stationary |
| Liner Material | 304 stainless steel, deep-drawn |
| Jacket Material | 304 stainless steel |
| Draw-Off Valve | 2" compression, 304 SS with ¼" perforated disk strainer |
| Steam Connections | ¾" NPT inlet / ½" NPT condensate outlet (rear) |
| Mixer Horsepower | High 1 HP / Low ½ HP |
| Mixer Speeds | Main 46 / 23 rpm · Secondary 120 / 60 rpm |
| Overall Height to Rim | 63 in (160 cm) |
| Certifications | ASME, NSF, UL listed; built in the USA |
Popular Accessories
- Fill faucet & swing nozzle kit
- 48" flexible spray hose (vinyl or stainless)
- Draw-off drain hose
- Measuring strip & kettle care kit
Legion backs this kettle with a 12-month parts & labor warranty (extended coverage available). See full warranty terms for details.
Product Weight:
632.0 lbFrequently Asked Questions
