Legion LSWC-20 Steam Kettles
Description
Legion LSWC-20 Stationary Direct-Steam Wall-Mount Kettle – 20 gal
Full-jacketed • 304 stainless steel • 30 psiFree up valuable floor space without sacrificing production capacity. The Legion LSWC-20 is a 20-gallon (76 L), wall-console mounted kettle that harnesses direct steam at 30 psi to cook large batches faster and more evenly than stock pots. Built entirely from heavy-gauge 304/304L stainless steel, it delivers the durability, sanitation, and performance demanded by high-volume commercial kitchens.
Key Performance Features

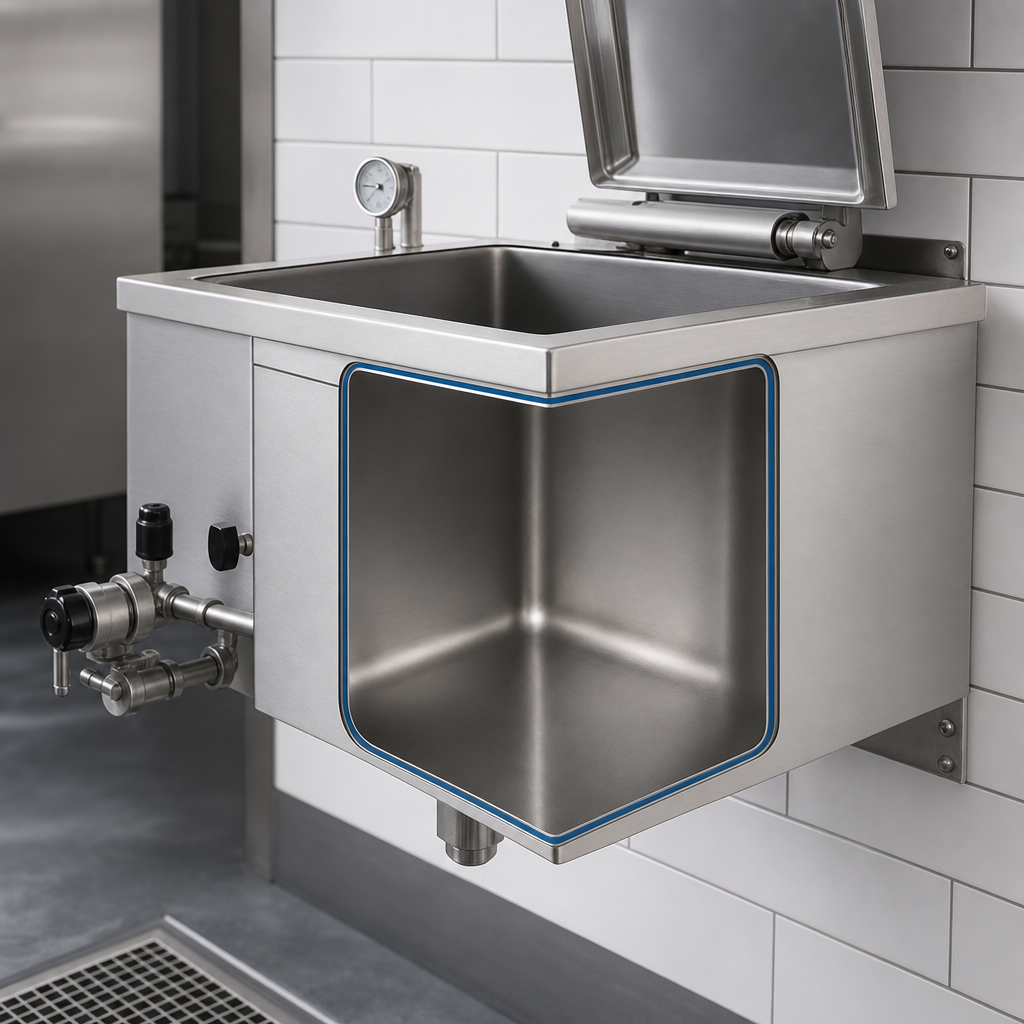

- Seamless, deep-drawn 304 stainless steel liner for superior heat transfer and easy cleaning.

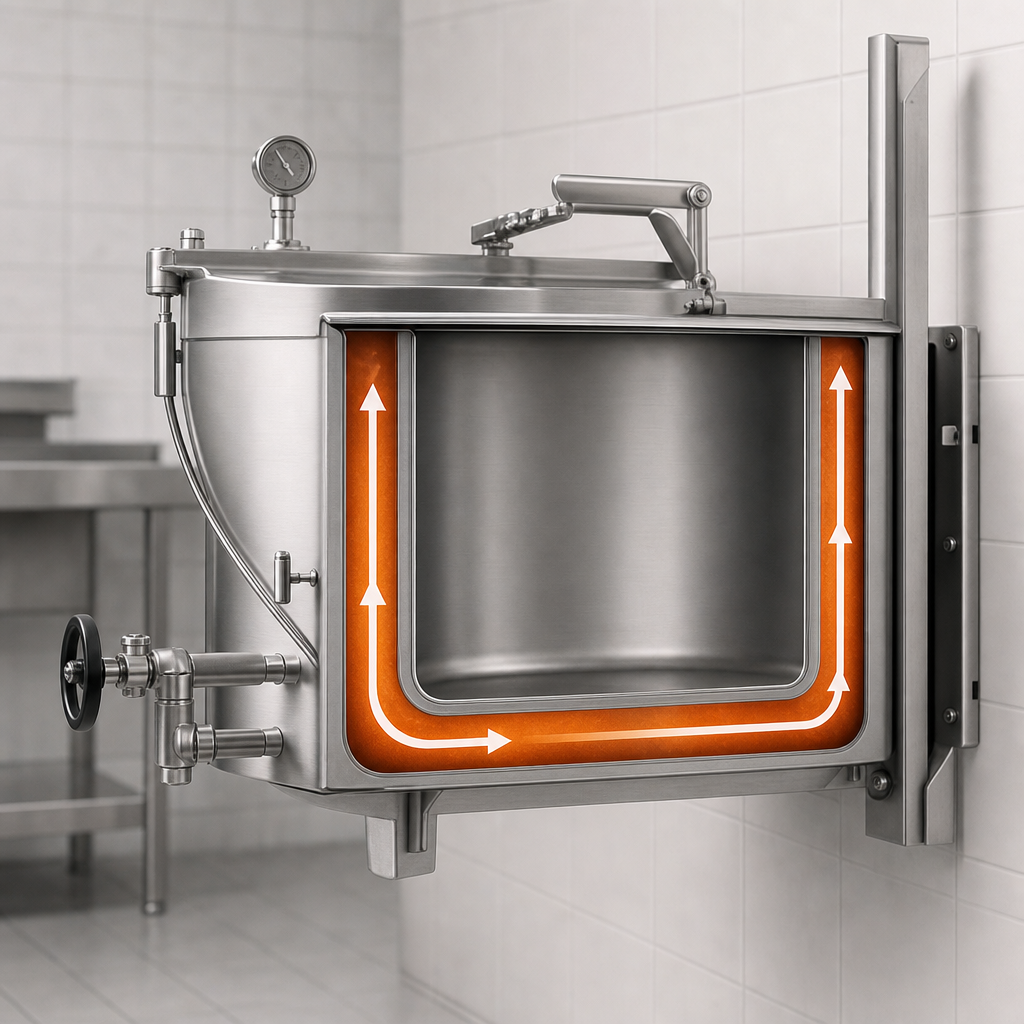

- Full 304L stainless steel jacket rated for 30 psi direct steam.
- 2″ sanitary compression draw-off valve with 1/4″-hole perforated disk strainer—ideal for stocks, sauces, and stews.
- Reinforced stainless steel console boxes keep all plumbing connections out of the work zone and route them through the rear wall.
- Rugged stainless support arms seam-welded to the jacket for a secure, stationary installation.
- Made in the USA and built to meet or exceed ASME & NSF standards.
At-a-Glance Specifications
| Capacity | 20 gal / 76 L |
|---|---|
| Mounting style | Wall-console, stationary |
| Operating pressure | 30 psi (direct steam) |
| Jacket type | Full, double-wall 304L stainless |
| Draw-off | 2″ compression valve, 304 stainless Includes 1/4″ perforated disk strainer |
| Interior finish | Seamless 304 stainless steel liner, #4 sanitary polish |
| Exterior finish | Brushed 304 stainless |
| Steam inlet / outlet | ¾″ NPT inlet • ½″ NPT outlet (rear) |
| Overall width (A) | 23 in / 584 mm |
| Overall depth (B) | 15 in / 381 mm |
| Overall height (C) | 37 in / 940 mm |
Included With Your Kettle
- Perforated ¼″ stainless steel disk strainer.
- Factory-installed rear plumbing connections for steam inlet, condensate return, and jacket drain.
- Legion one-year parts & labour warranty (15 months from ship date).
- Comprehensive installation & operation manual.
Popular Factory Options (sold separately)
- Single- or double-pan fill faucet with 12″ or 18″ swing nozzle.
- 48″ flexible spray hose (vinyl or stainless).
- Lift-off stainless cover or actuator-assisted domed cover.
- Automatic water-fill meter.
- Basket inserts, measuring strips, kettle care kit, and more.
Need a different capacity or accessories? Explore the full Legion LSWC series or contact us for a custom-configured unit.
