Legion LSP-50 Steam Kettles
Description

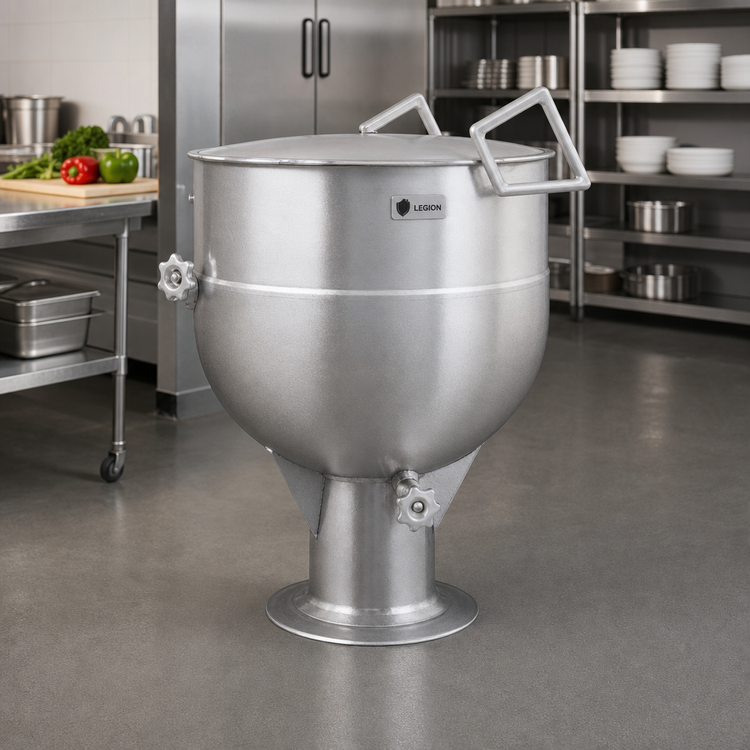

Legion LOW-RIM™ LSP-50 Stationary Direct Steam Kettle – 50 Gal.
Full-Jacketed • Pedestal Mounted • Made in USABuilt for demanding commercial kitchens, the Legion LSP-50 delivers a generous 50 gallons (189 L) of fast, uniform steam cooking in a rugged, all-stainless package that’s easy to clean, easy to operate and engineered to last.
Key Advantages
- Seamless deep-drawn 304 stainless steel liner—no interior welds or crevices to trap food.
- Full 304L stainless steel jacket distributes heat evenly at up to 30 psi operating pressure.
- One-piece domed cover with actuator assist opens effortlessly and stays put for safe loading and stirring.
- 2 in. 304 stainless compression draw-off valve for rapid, clog-free portioning.
- Removable ¼ in. perforated disk strainer keeps solids out of the valve and plumbing.
- LOW-RIM™ profile and pedestal base position the rim at a comfortable working height while keeping the floor clear for cleaning.
- ASME-stamped, NSF-listed and proudly manufactured in the USA.

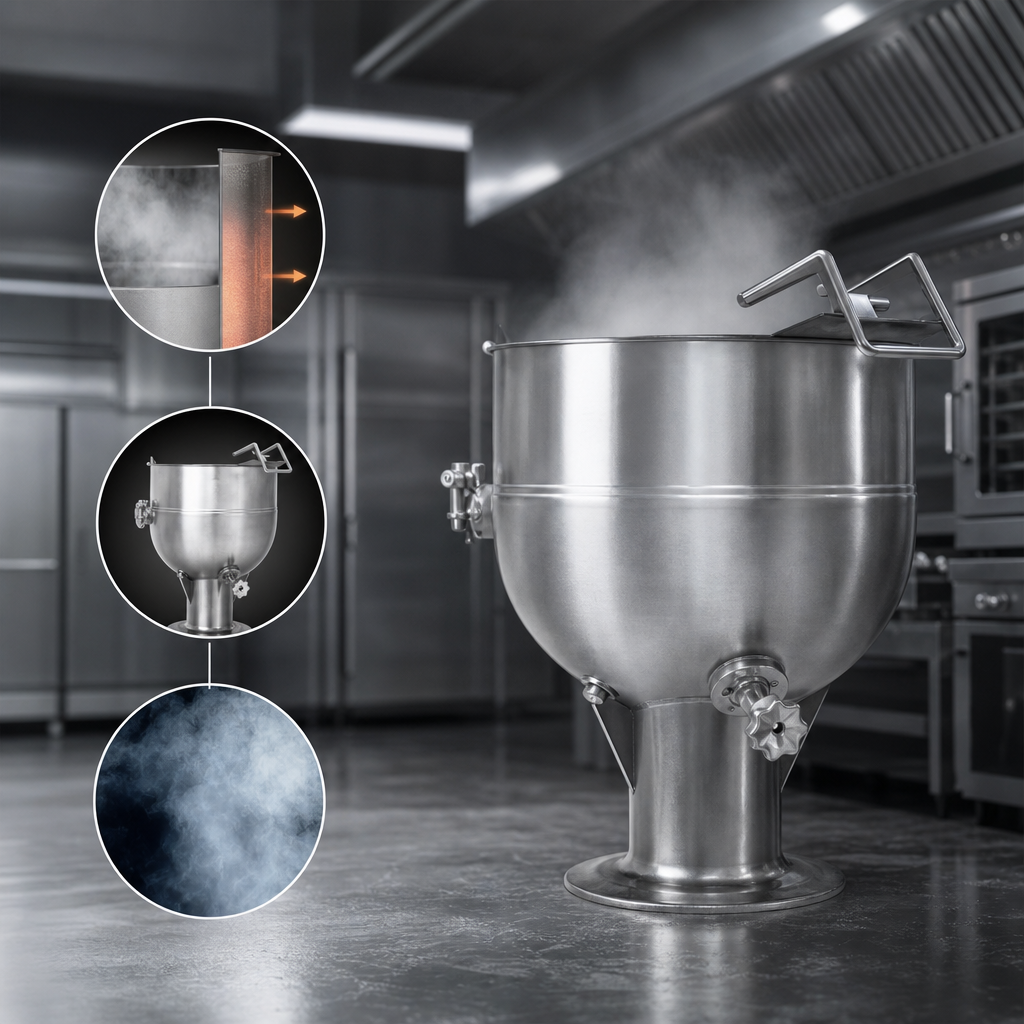

Why Direct Steam?
Connected to an external boiler, direct steam kettles heat almost instantly and recover faster than self-contained electric or gas units—ideal for high-volume production of soups, sauces, stews, pasta, custards and more.
Technical Specifications
| Model | LSP-50 |
|---|---|

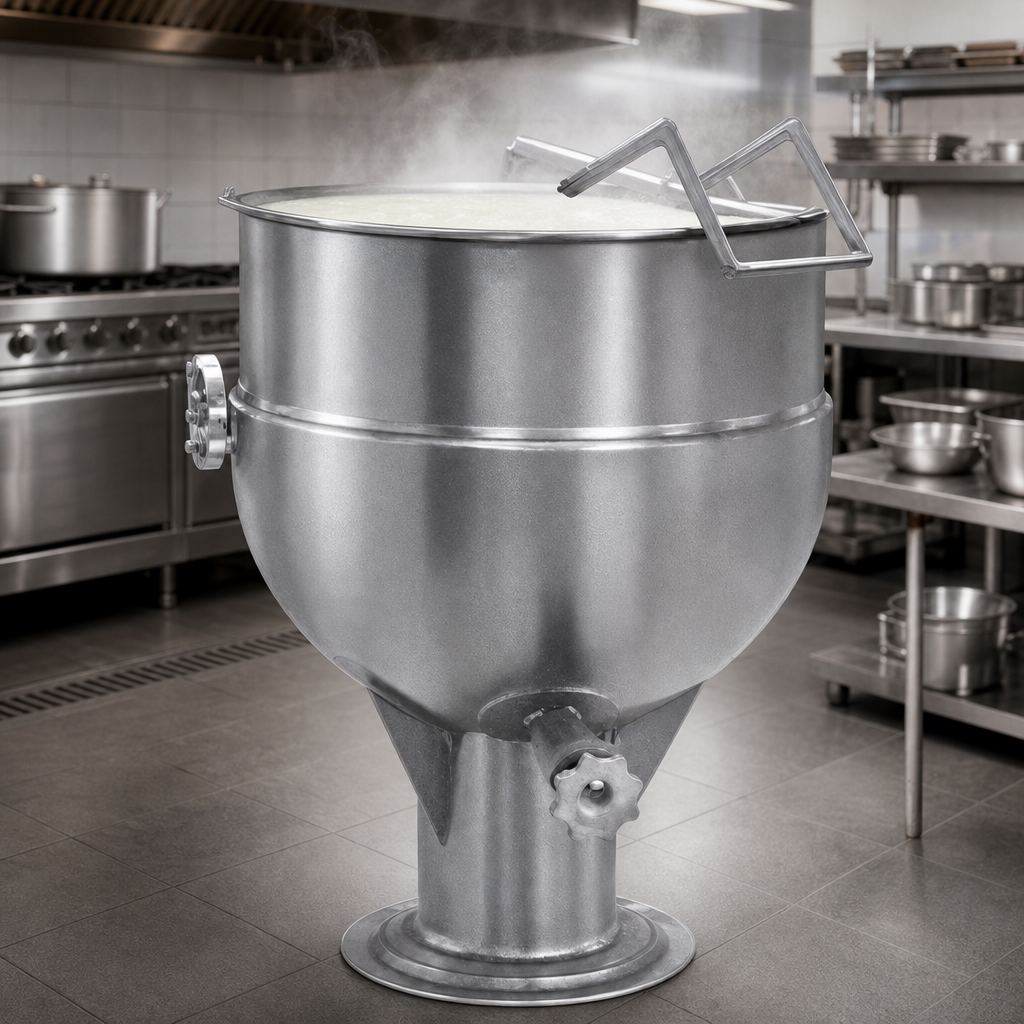

| Capacity | 50 gal / 189 L |
| Operating Pressure | 30 psi (2.1 bar) |
| Heating Source | Direct external steam (1 in. NPT inlet, ½ in. NPT condensate return) |
| Construction | 304/304L stainless liner, jacket, pedestal tube & base |
| Cover | One-piece actuator-assisted domed cover, 304 stainless |
| Draw-Off Valve | 2 in. 304 stainless compression type with ¼ in. perforated strainer |
| Inside Diameter (A) | 29.5 in / 749 mm |
| Inside Depth (B) | 21.8 in / 554 mm |
| Overall Height to Rim | ≈ 68.8 in / 1 747 mm (cover closed) |
| Steam Inlet Height (Q) | 14 in / 356 mm |
| Certifications | ASME, NSF |
| Country of Origin | USA |
Popular Accessories (sold separately)
- Single or dual fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray hose assembly (vinyl or stainless)
- 2-speed mixer/agitator
- Tri-basket or nylon bag inserts for bulk cooking
- Draw-off drain hose & nut driver tool
- Pressure reducing valve for higher-pressure steam sources
Need a different size? LOW-RIM™ kettles are available from 20 gal (76 L) to 150 gal (568 L). Contact us for details.
