Legion LSP-40 Steam Kettles
Description

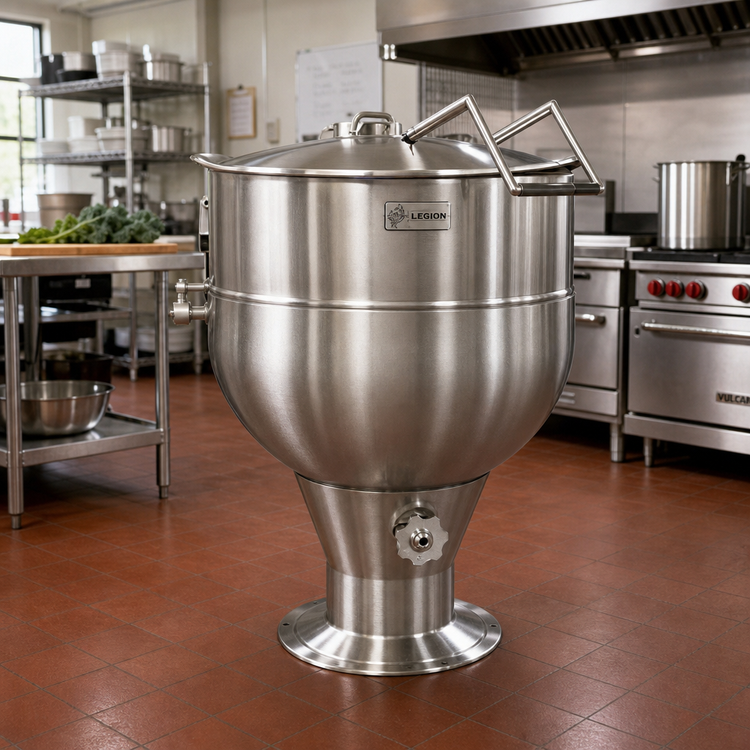

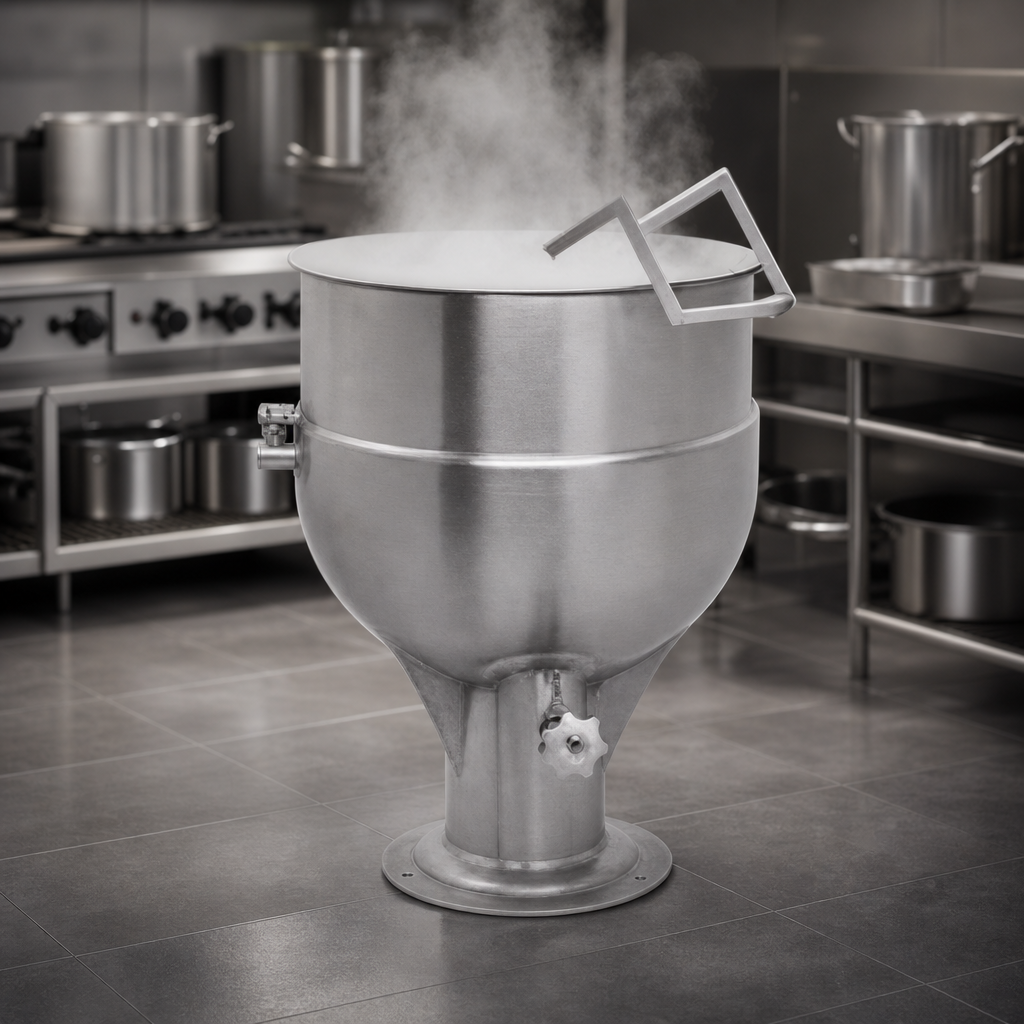

Legion LSP-40 Stationary Direct Steam Kettle — 40 Gallon
Full-Jacketed • Low-Rim™ Deep-Drawn Construction • Made in USABuilt for high-volume commercial kitchens, the Legion LSP-40 pairs rapid, even steam heating with the legendary durability of seamless 304 stainless steel. Its full-jacket design surrounds product with gentle steam from rim to rim, while the Low-Rim™ pedestal keeps the cooking surface comfortably within reach of the operator.
Key Features

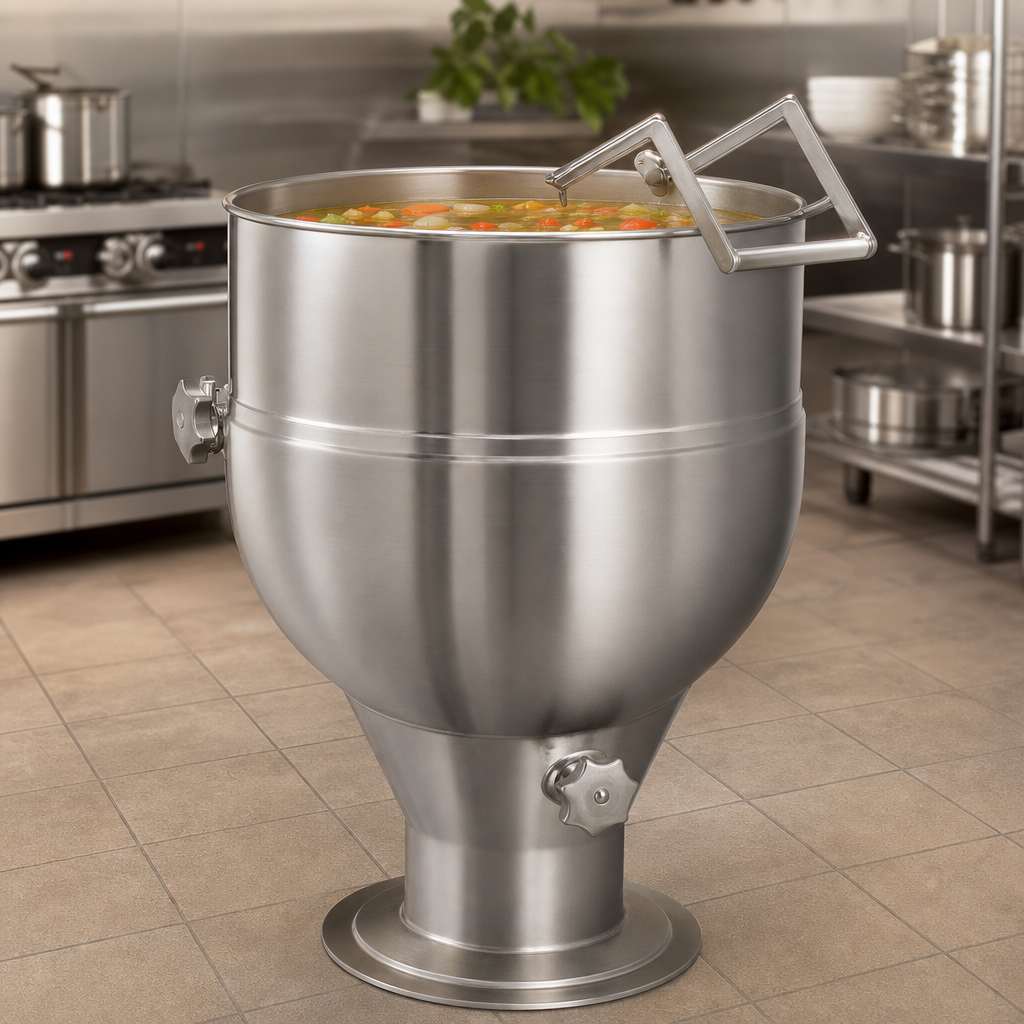

- 40 gal / 151 L working capacity — perfect for soups, sauces, stocks & bulk production
- Seamless deep-drawn 304 SS liner for superior sanitation and quick clean-up
- 304L full jacket delivers uniform heat transfer and faster boil times
- 30 psi operating pressure for high-performance output
- 2" 304 SS compression draw-off valve with ¼" perforated disk strainer for smooth portioning
- One-piece domed cover with spring-assist actuator reduces heat loss & operator fatigue
- Low-Rim™ pedestal base lowers kettle height for safer, easier access
- All-welded 304 SS pedestal tube & base provide rock-solid stability
- ASME-coded pressure vessel • NSF listed • Built in Waynesboro, GA
Technical Specifications
| Model | LSP-40 |
|---|---|
| Capacity | 40 gal / 151 L |
| Operating Pressure | 30 psi (2.1 bar) |
| Construction | Seamless 304 SS liner & 304L full jacket |
| Inside Diameter (A) | 29.5 in / 749 mm |
| Inside Depth (B) | 19.0 in / 483 mm |
| Overall Height — cover open (J1) | 67.8 in / 1,724 mm |
| Overall Height — cover closed (J2) | 58.0 in / 1,473 mm |
| Steam Inlet (Q) | ¾" NPT |
| Steam Return (R) | ½" NPT |
| Draw-Off Valve | 2" compression, 304 SS |
| Strainer | ¼" perforated disk, 304 SS |
| Cover | 1-piece, actuator-assisted, domed, 304 SS |
| Mounting | Stationary pedestal |
Common Applications
- High-volume restaurants & commissaries
- Institutional kitchens — schools, hospitals, correctional facilities
- Catering & banquet production
- Central production kitchens & food processors
Options & Accessories (sold separately)
- Single or double pantry faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- 2-speed mixer/agitator
- Automatic water-fill meter
- Basket & bag inserts: single, tri-basket, nylon bag
- Perforated disk strainer — ⅛" holes
- Higher operating-pressure rating
- Kettle care & cleaning kit
Warranty
Legion provides a 12-month parts & labor warranty from installation (15 months from ship date). Extended coverage is available — please contact us for details.
