Legion LSP-25 Steam Kettles
Description

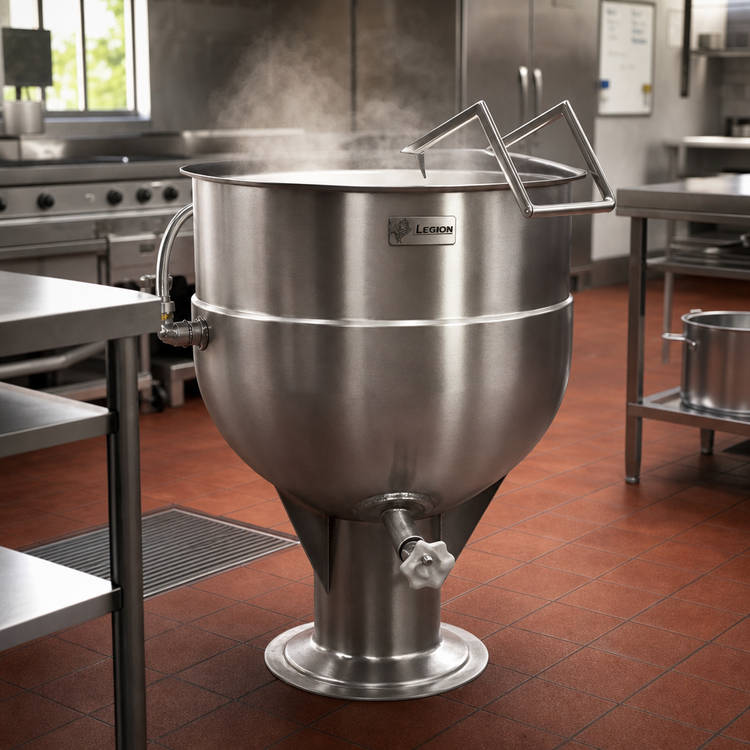

Legion LSP-25 Direct Steam Kettle – 25 Gal / 95 L
LOW-RIM™ full-jacketed kettle | 304 stainless steel | 30 psi operating pressureBuilt in the USA for high-volume commercial kitchens, the Legion LSP-25 stationary kettle delivers fast, even cooking with rugged all-stainless construction and a space-saving pedestal base. A seamless 304 liner and full 304L steam jacket provide maximum thermal efficiency, while the factory-installed 2 inch draw-off valve makes portioning stews, soups, sauces, and stocks effortless.
Why you’ll love it
- Deep-drawn 304 stainless kettle liner – no interior seams to trap food soil.
- Full 304L stainless steam jacket distributes heat evenly across 100 % of the sidewall & bottom.
- 30 psi design pressure for faster pre-heat, quicker batch turnover, and lower energy cost.
- Factory-mounted 2 in. compression draw-off valve with ¼ in. perforated disk strainer handles large particulates while preventing clogging.

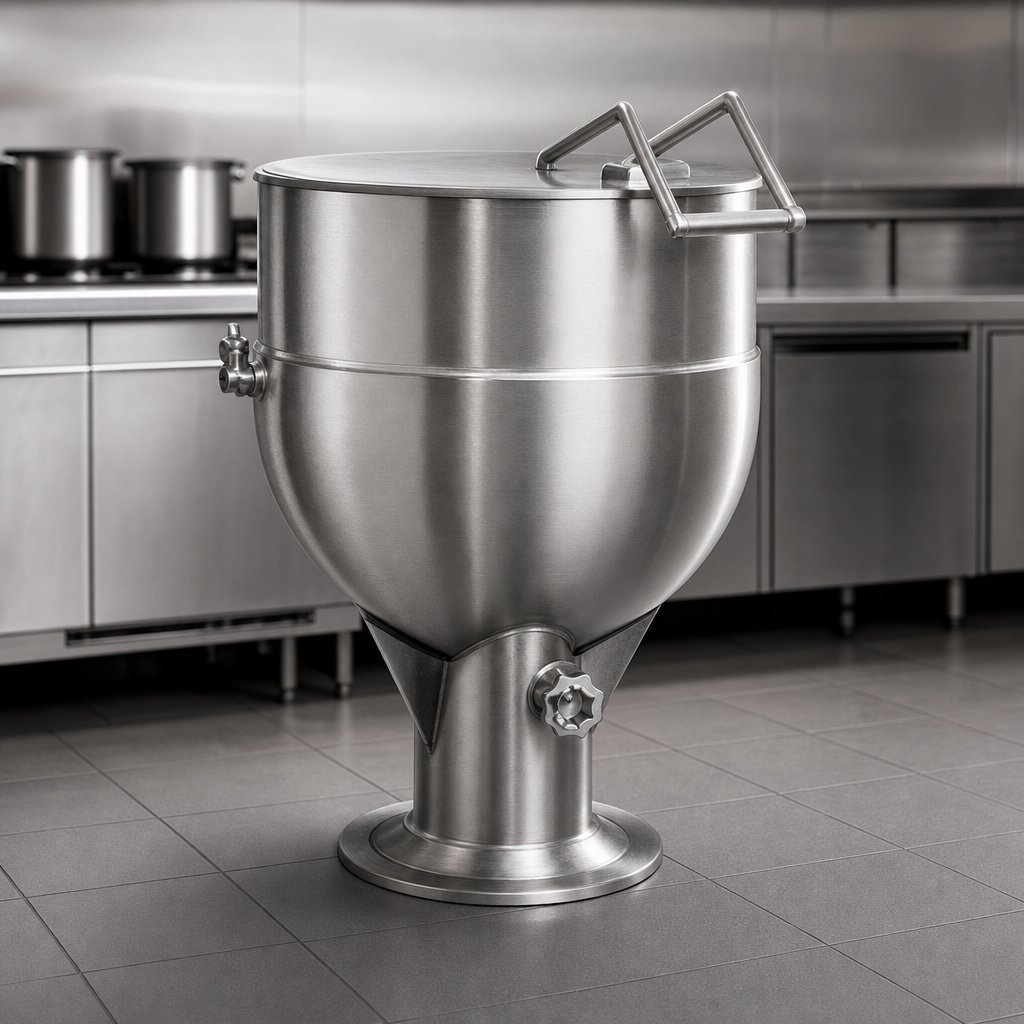

- Heavy-duty stainless pedestal base keeps the kettle rock solid yet simplifies floor cleaning.
- LOW-RIM™ profile reduces operator reach and lowers the kettle’s center of gravity for safer handling of hot product.
- NSF, ASME and other agency compliant construction backed by Legion’s 12-month warranty.
- Made in Waynesboro, Georgia – quick parts availability & responsive factory support.
Technical specifications
| Model | LSP-25 (stationary, pedestal mounted) |
|---|---|

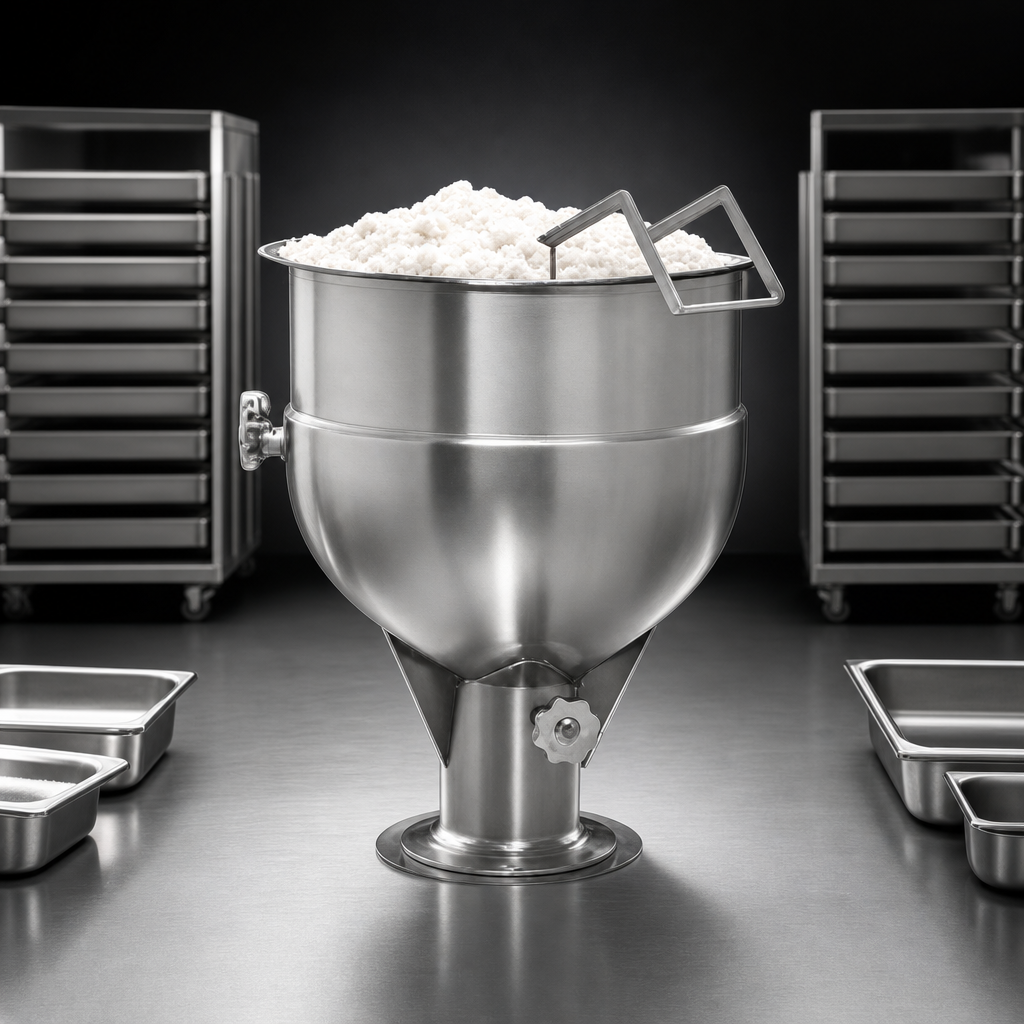

| Capacity | 25 gal / 95 L – net |
| Construction material | 304 stainless liner & draw-off tube | 304L stainless full jacket & pedestal |
| Operating pressure | 30 psi (2.1 bar) |
| Draw-off valve | 2 in. 304 stainless compression type, removable ¼ in. perforated disk strainer |
| Steam inlet / return | ¾ in. NPT inlet | ½ in. NPT condensate return |
| Inside diameter | 25.5 in. (648 mm) |
| Inside depth | 15.5 in. (394 mm) |
| Overall height (to rim) | 48.0 in. (1 219 mm) |
| Agency compliance | Built to applicable NSF, UL, ETL, CSA & ASME codes |
| Warranty | 12 months from installation / 15 months from ship date (parts & labor) |
Popular factory options
- Single or double fill faucet with 12 in. or 18 in. swing nozzle
- 48 in. flexible spray-rinse hose (vinyl or stainless)
- 1-piece actuator-assisted domed cover (recommended for 20–25 gal models)
- Pressure-reducing valve for high-pressure steam supplies
- Two-speed mixer/agitator assembly
- Perforated disk strainer – ⅛ in. hole option
- Kettle care & cleaning kit
This kettle requires a clean, regulated 30 psi direct steam supply and a ½ in. condensate return line (not included). Installation must comply with all local mechanical and plumbing codes.
