Legion  |  SKU: LSP-20

Legion LSP-20 Steam Kettles

$6,682.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

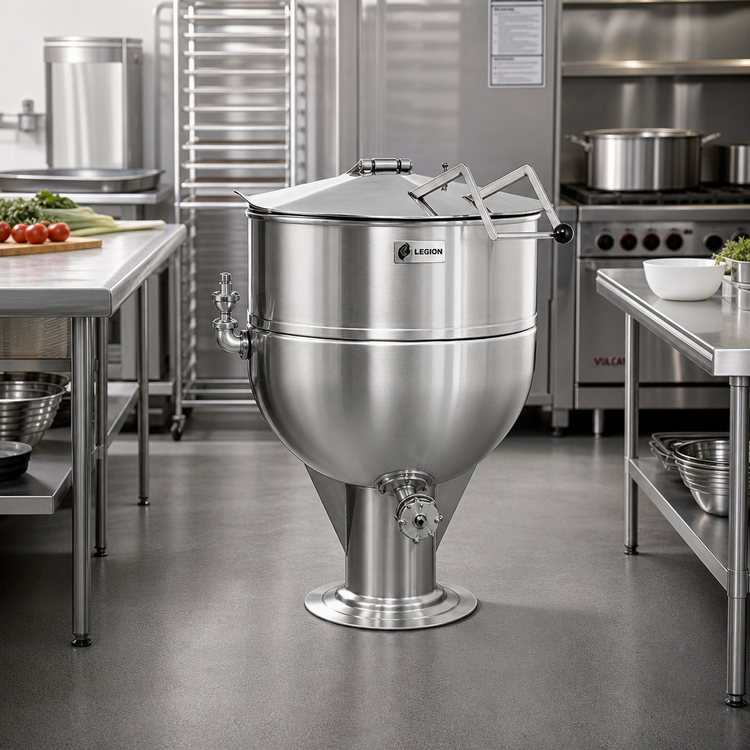

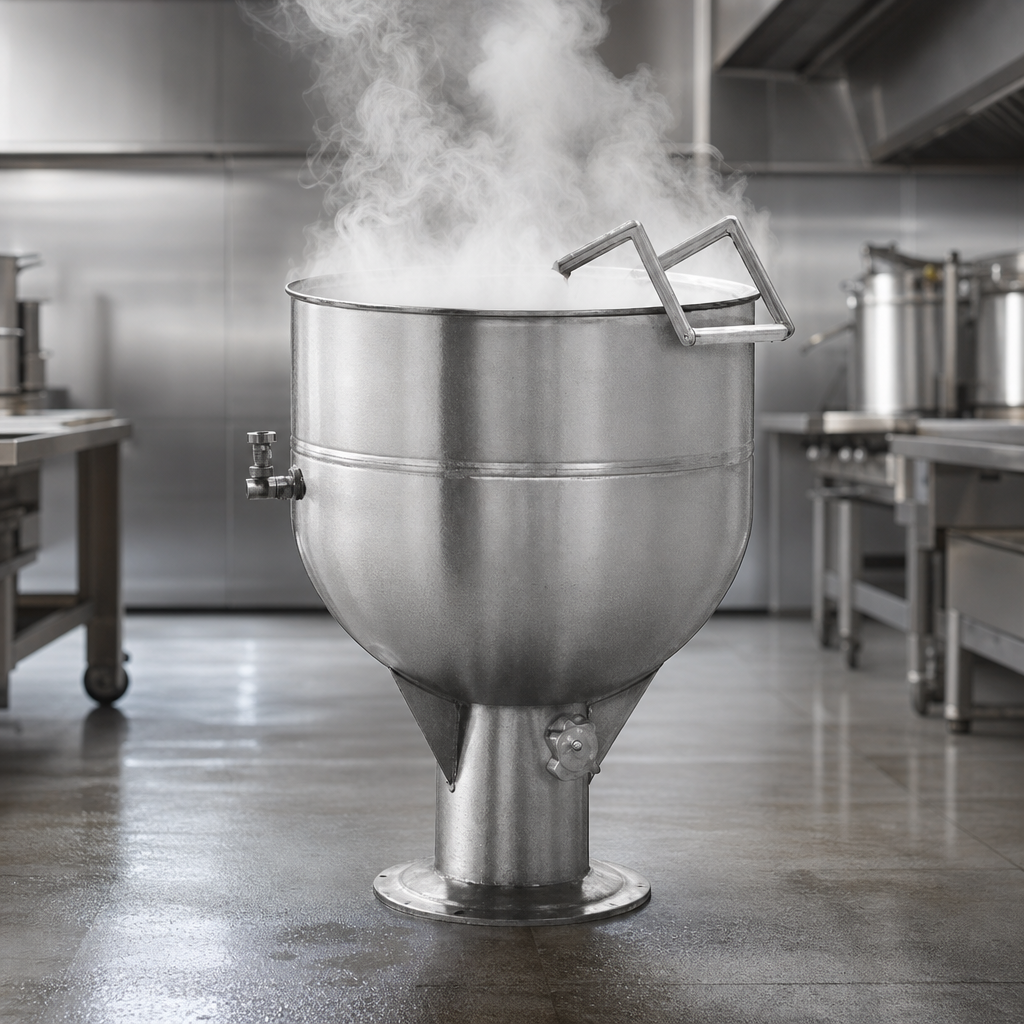

Legion LSP-20 Stationary Direct Steam Kettle – 20 Gallon

Full-jacketed • 304 Stainless Steel • 30 psi Operating Pressure

Engineered for institutional and commercial kitchens, the made-in-USA Legion LSP-20 delivers fast, even steam cooking in a compact, low-rim profile that’s easy on operators and heavy-duty on performance.

Standard Features

  • Seamless deep-drawn 304 SS kettle liner – resists pitting, easy to clean
  • 304L full jacket rated to 30 psi for rapid, uniform heating
  • 2″ 304 SS compression draw-off valve with matching tube & welds
  • ¼″ perforated stainless disk strainer keeps foods out of the valve
  • Rugged 304 SS pedestal base – stationary, space-saving design
  • LOW-RIM™ construction for safe, ergonomic access to product
  • One-piece domed stainless cover (removable)
  • ASME code stamped & NSF listed

Performance Benefits

  • Up to 50 % faster heat-up versus stock pots on an open range
  • Gentle steam jacket eliminates scorching and hot spots
  • Draw-off valve simplifies portioning, straining & cleanup
  • Cooler kitchen and lower energy costs compared with gas ranges

Key Specifications

Model LSP-20

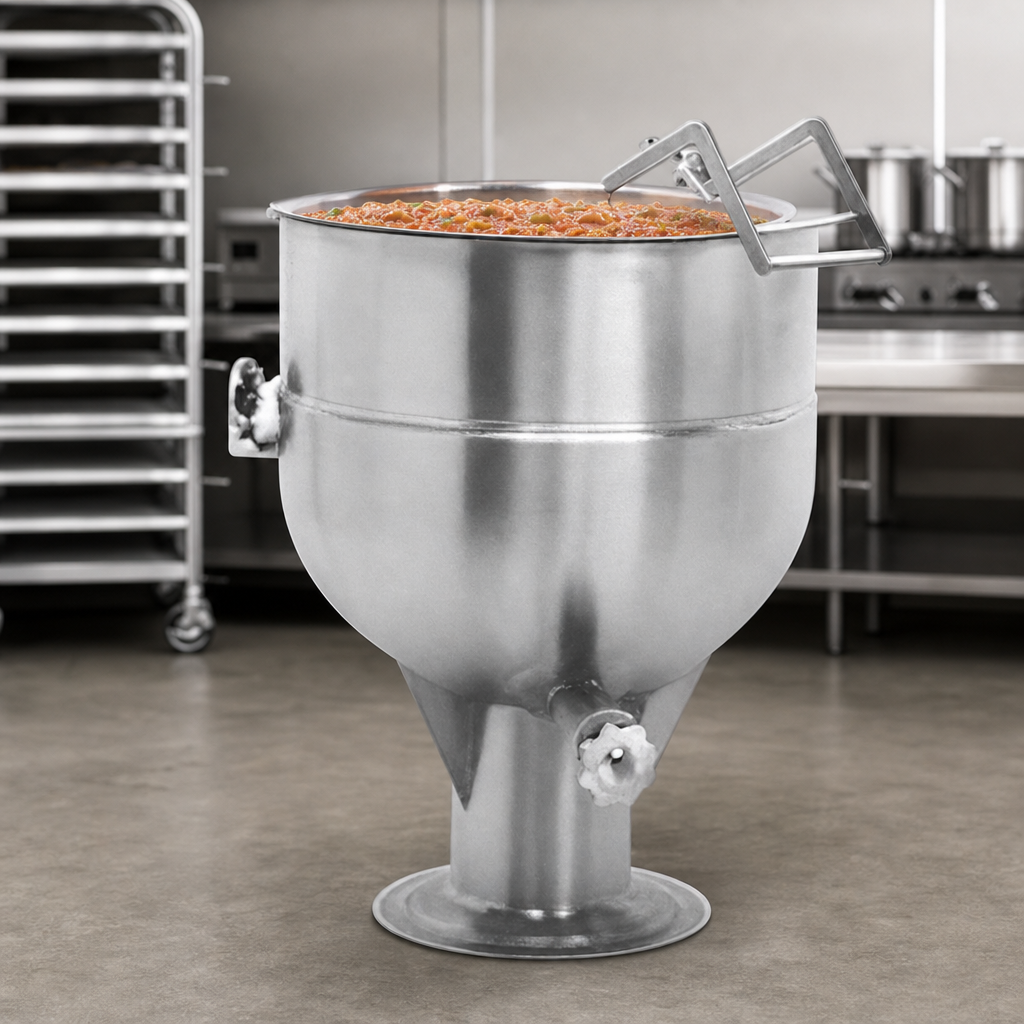

Capacity 20 gal / 76 L
Operating Pressure 30 psi (2.07 bar)
Interior Diameter (A) 23.0″ / 584 mm
Interior Depth (B) 15.0″ / 381 mm
Overall Height to Rim (J1) 57.4″ / 1,458 mm
Overall Height to Cover (J2) 47.5″ / 1,207 mm
Centerline of Draw-off (H*) 13.9″ / 353 mm*
Steam Inlet ¾″ NPT
Steam Return ½″ NPT
Minimum Floor Space (D × E) 20.5″ × 7.8″ / 521 × 198 mm

*Dimension may vary slightly with chosen valve option.

Popular Optional Accessories

  • Single or double fill faucet with 12″ or 18″ swing nozzle
  • 48″ flexible spray hose (vinyl or stainless)
  • Perforated disk strainer – ⅛″ holes
  • Lockable lid & reinforced bar rim for high-security installations
  • Kettle care & cleaning kit
Important: This is a direct-steam kettle and requires a dedicated steam supply (boiler) that meets the stated pressure and connection sizes. Consult your mechanical contractor prior to purchase.

Includes a 12-month parts & labor warranty from date of installation. Extended coverage available.

Features & Specs

Manufacturer

Legion

Shipping Weight

190.0lbs

Capacity

18 - 26 gallon

Base

pedestal base

Kettle Jacket

full jacket

Kettle Liner

304 stainless steel

Specifications

Stationary Direct Steam Kettle, 20-gallon, 304 stainless steel liner, full jacket, 2" draw-off valve with perforated 1/4" hole strainer, stainless steel construction, pedestal base, 30 psi
