Legion LSP-100 Steam Kettles
Description

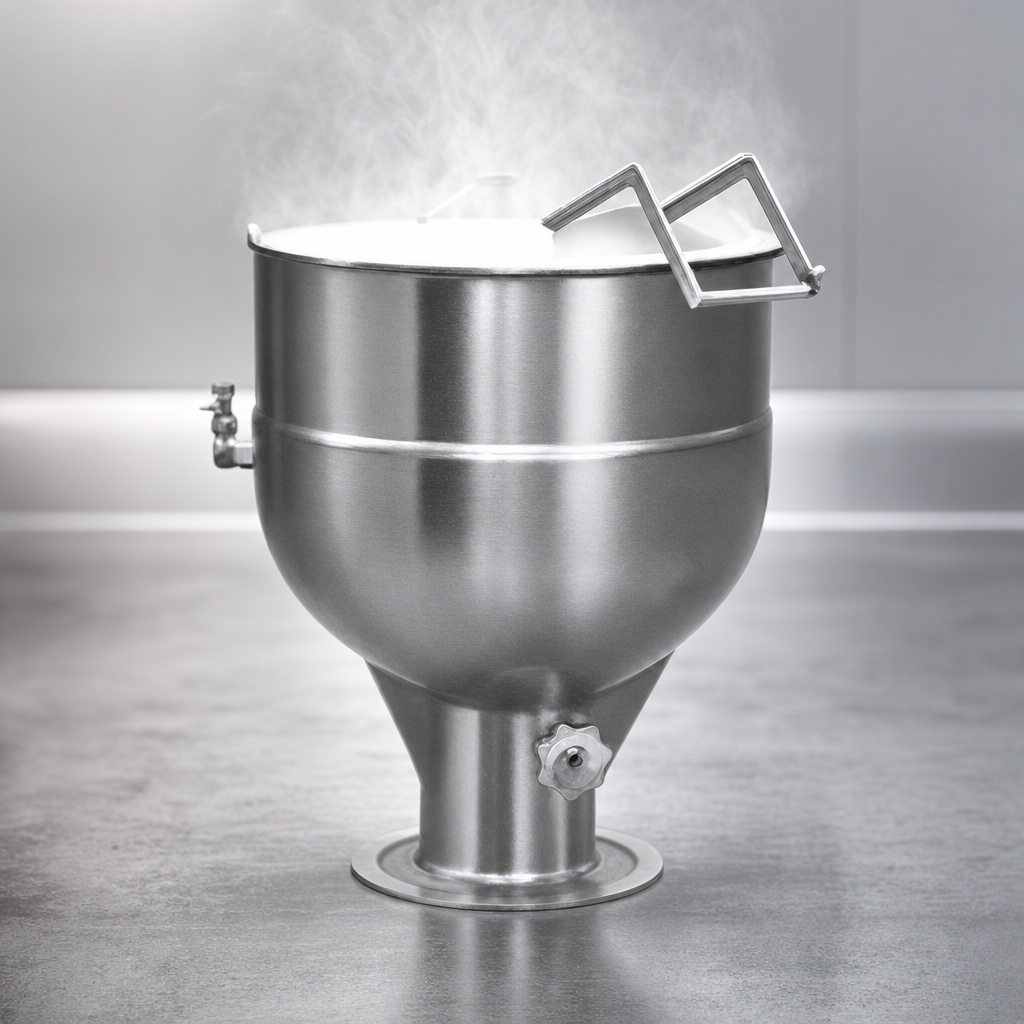

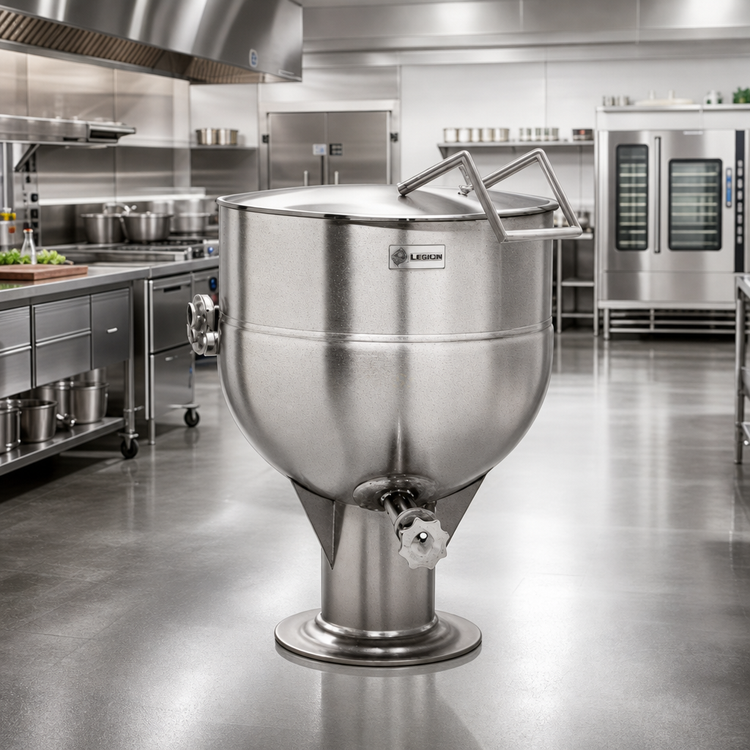

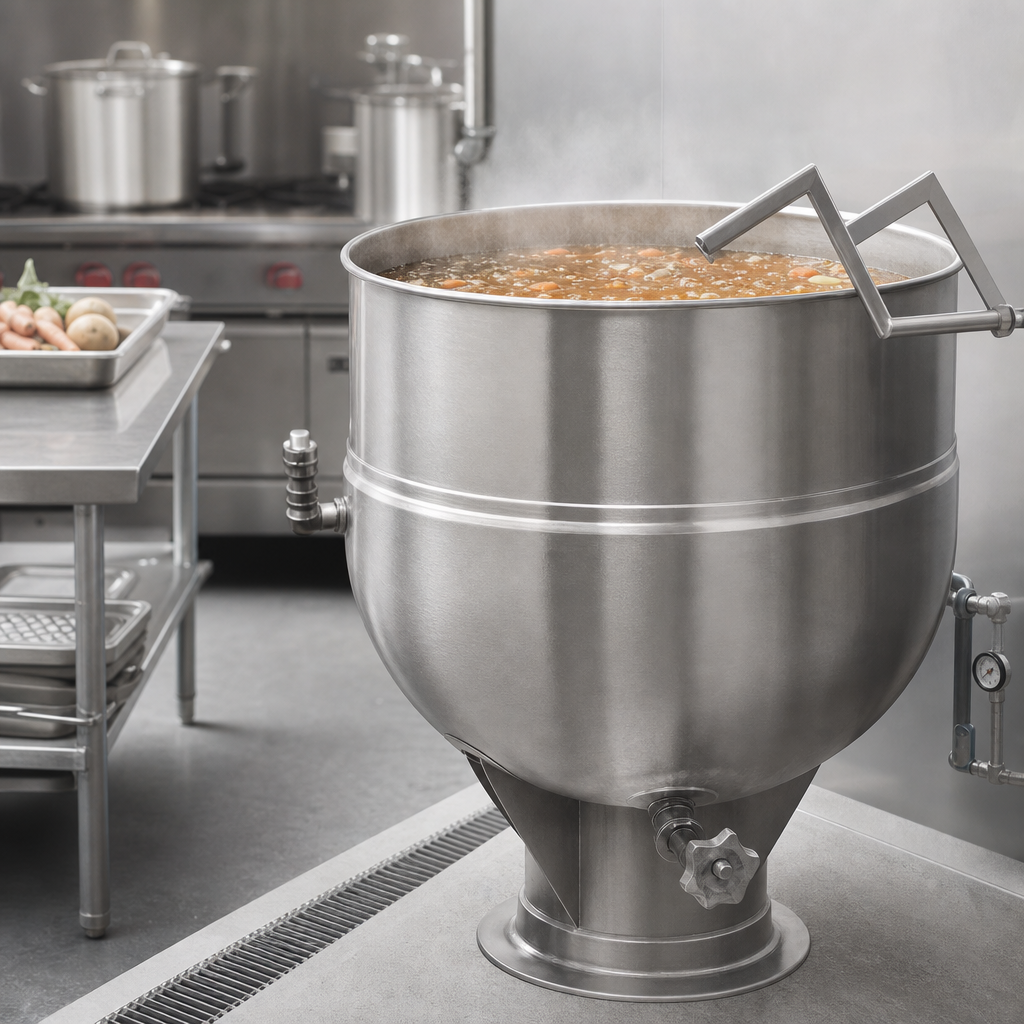

Legion LSP-100 Stationary Direct Steam Kettle – 100 Gallons
Full-jacketed • 304 Stainless Steel • Pedestal MountedEngineered for the toughest production kitchens, the U.S-built Legion LSP-100 delivers 100 gallons of consistent, steam-powered cooking. Its seamless deep-drawn bowl, rock-solid pedestal base, and effortless actuator-assisted cover let your team batch-cook soups, sauces, stocks, and pastas with confidence and comfort.
Key Features
- Massive 100 gal / 379 L capacity for high-volume production.
- Seamless 304 stainless steel liner with full 304L stainless jacket for superior heat transfer and sanitation.
- Direct-steam design rated at up to 25 psi operating pressure.
- 2″ 304 stainless compression draw-off valve with removable ¼″ perforated disk strainer—fast, clog-free drainage.
- One-piece domed stainless steel cover with gas-assist actuator for smooth, low-effort lifting.
- LOW-RIM™ pedestal mounting keeps the kettle rim comfortably accessible for stirring and cleaning.
- Deep-drawn bowl geometry promotes complete mixing and easy product evacuation.
- Made in the USA and built to applicable ASME & NSF standards.
At-a-Glance Specifications
| Model | LSP-100 |
|---|---|
| Capacity | 100 gal / 379 L |
| Construction | Seamless 304 stainless liner & 304L full jacket |
| Operating Pressure | 25 psi max (direct steam) |
| Draw-off Valve | 2″ compression type, 304 stainless |
| Strainer | ¼″ perforated disk, removable |
| Cover | Stainless, one-piece domed, actuator-assisted |
| Base | Pedestal mounted, 304 stainless |
| Interior Diameter × Depth | 44″ × 22.5″ (1,118 mm × 572 mm) |
| Overall Height | Approx. 65.6″ (1,666 mm) with cover closed |
| Steam Connections | Inlet 1¼″ NPT • Return ¾″ NPT |
| Certifications | ASME stamped, NSF compliant |
Why Choose a Direct Steam Kettle?
- Heats up to 30% faster than stock pots and ranges.
- Uniform, gentle cooking eliminates scorching and hot spots.
- Lower energy costs when paired with an efficient central boiler.
- Hands-free portioning—open the draw-off valve to transfer product safely.
Need faucets, basket inserts, or other accessories? Ask us—most Legion options can be factory-installed to tailor the kettle to your workflow.
