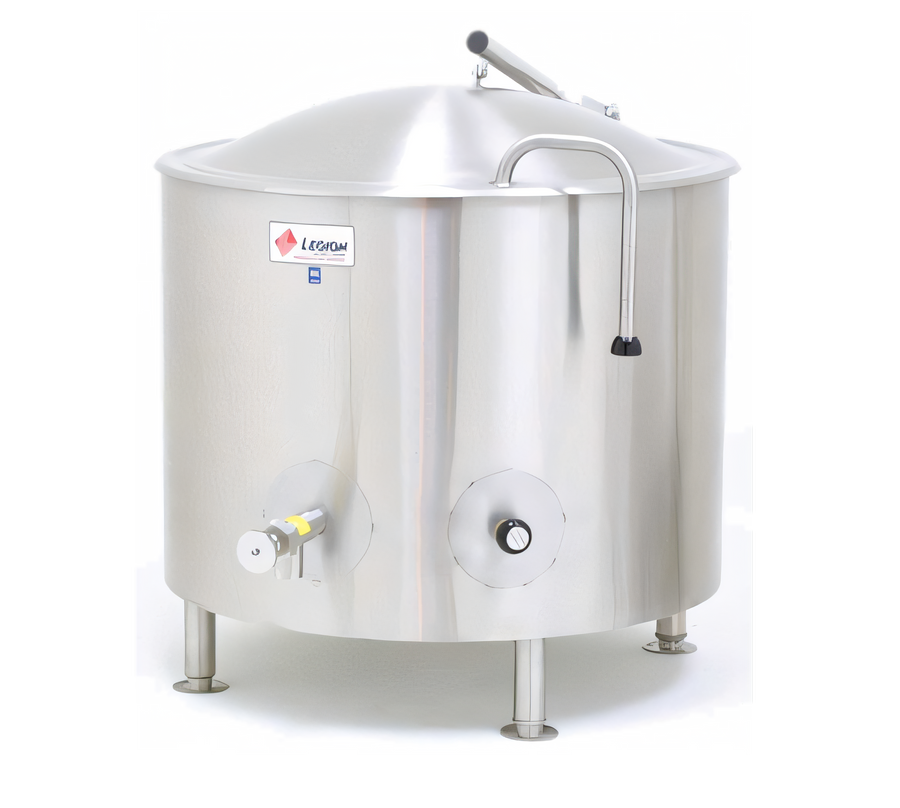

Legion Low-Rim™ 80-Gallon Stationary Direct Steam Kettle with Mixer
Model LSI-80 • Full-Jacketed • 30 psi Operating PressureBuilt for high-volume kitchens that refuse to compromise, the Low-Rim™ LSI-80 combines the legendary Legion kettle body with a heavy-duty, two-speed agitator. From scratch soups and sauces to delicate custards, this 80-gallon workhorse delivers unbeatable heat transfer, consistent mixing and operator-first safety features – all proudly made in the USA.
Why You’ll Love It
- Full-jacketed design ensures lightning-fast, even heating across the entire sidewall and bottom.
- Factory-insulated outer casing keeps surfaces cool to the touch – no burn shields required.
- Integrated two-speed mixer (23/46 rpm main; 60/120 rpm secondary) prevents scorching and eliminates hand stirring.
- Food-grade 304 stainless steel liner stands up to acidic ingredients and aggressive cleaning.
- 2 inch compression draw-off valve with ¼ inch perforated strainer makes portioning and stock recovery effortless.
- Actuator-assisted domed cover and bridge lift – open and lock with one hand, even when the kettle is full.
- Four 2 inch diameter legs with reinforcing braces and adjustable flanged feet for rock-solid stability.
- Front-mounted steam control valve and rear steam/condensate hookups streamline installation.
Built-In Twin-Shaft Agitator
- Anchor-style main agitator hugs the kettle wall for thorough product turnover.
- Counter-rotating beater breaks up clumps and accelerates blend times.
- Removable nylon scraper blades wipe every inch of the cooking surface, reducing waste and cleanup.
- Bayonet-mount shafts come off in seconds for warewashing or when batch does not require agitation.
- Safety interlock prevents high-speed starts unless the bridge is fully engaged.
- Totally-enclosed gear motor: Low 1 hp / High 2 hp.
Technical Specifications
| Capacity | 80 gal | 303 L |
|---|---|
| Operating Pressure | 30 psi (2.07 bar) max |
| Liner / Jacket / Exterior | 304 stainless steel, deep-drawn |
| Insulation | Full body (3 – 14 in) fiberglass |
| Draw-Off Valve | 2 in compression type, ¼ in perforated disk strainer included |
| Agitator Speeds | Low 23/60 rpm • High 46/120 rpm (main/secondary) |
| Motor Power | Low 1 hp • High 2 hp |
| Overall Dimensions* | Diameter 39 in • Rim Height 36.8 in • Overall Height (bridge up) 85.5 in |
| Certifications | ASME, NSF |
*Dimensions taken from factory drawings; verify clearances before installation.
Applications
- High-volume soups, chowders and sauces
- Sweet fillings, puddings and custards
- Chili, stew and braised meats
- Pasta, rice and grain cook-ups
- Central commissary & institutional batch cooking
Warranty
Legion backs every Low-Rim™ kettle with a 12-month parts & labor warranty. Extended coverage is available – ask your sales representative for details.
Product Weight:
1100.0 lbFrequently Asked Questions
