Legion LSI-80 Low-Rim Steam Kettles
Description

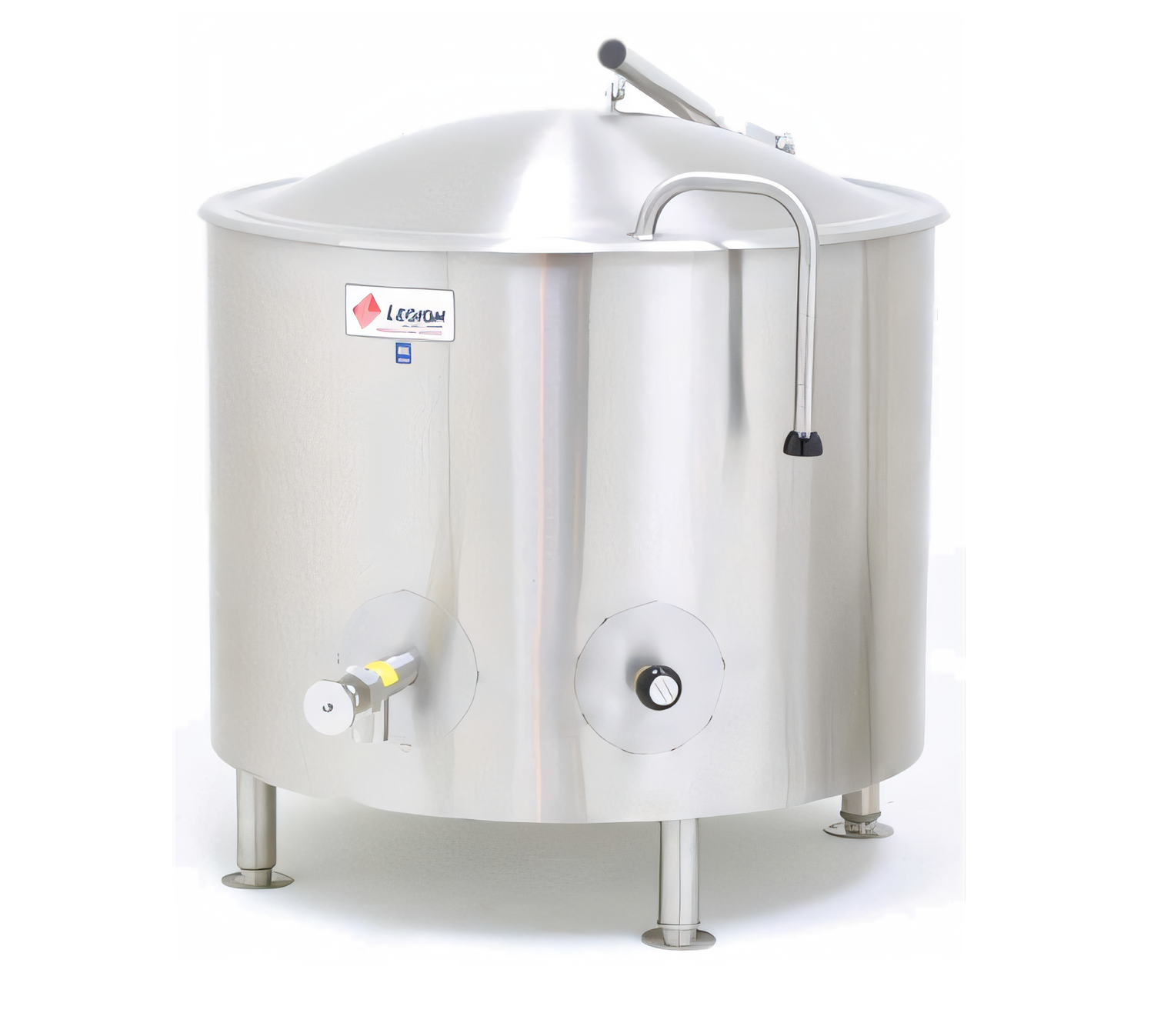

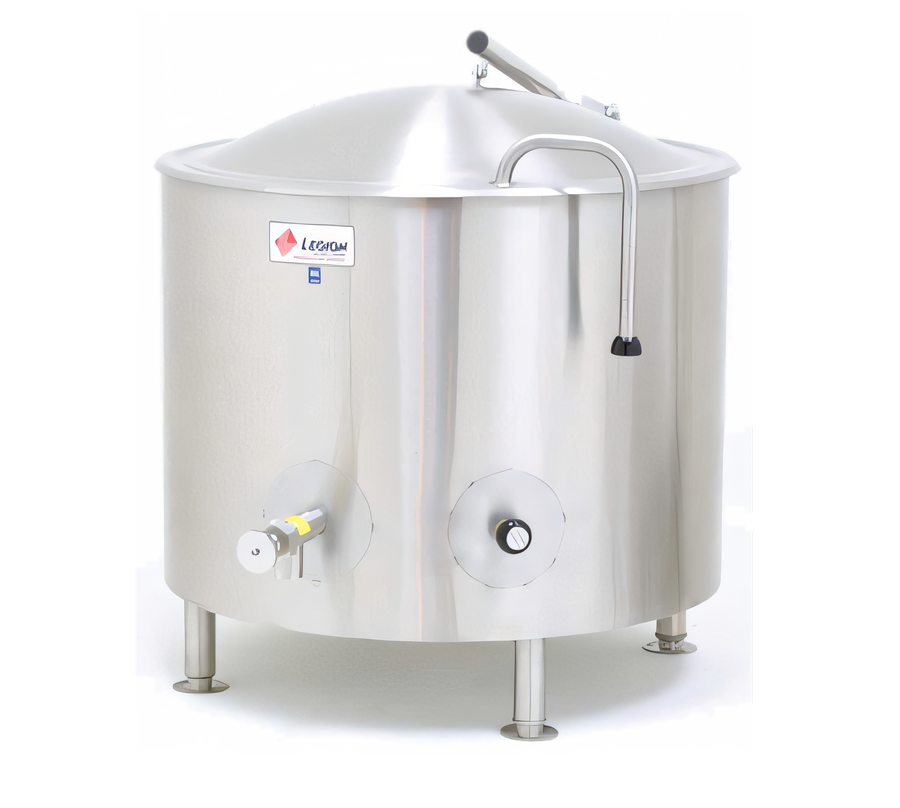

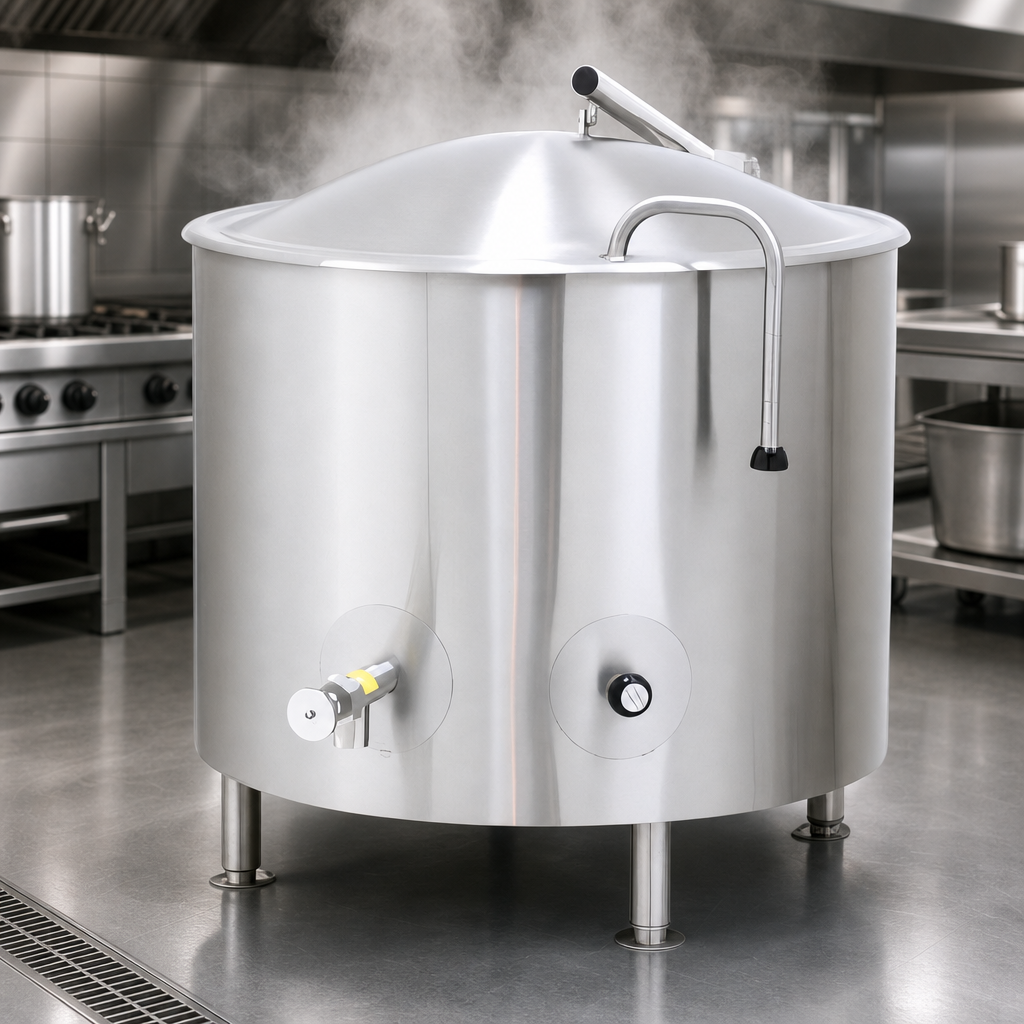

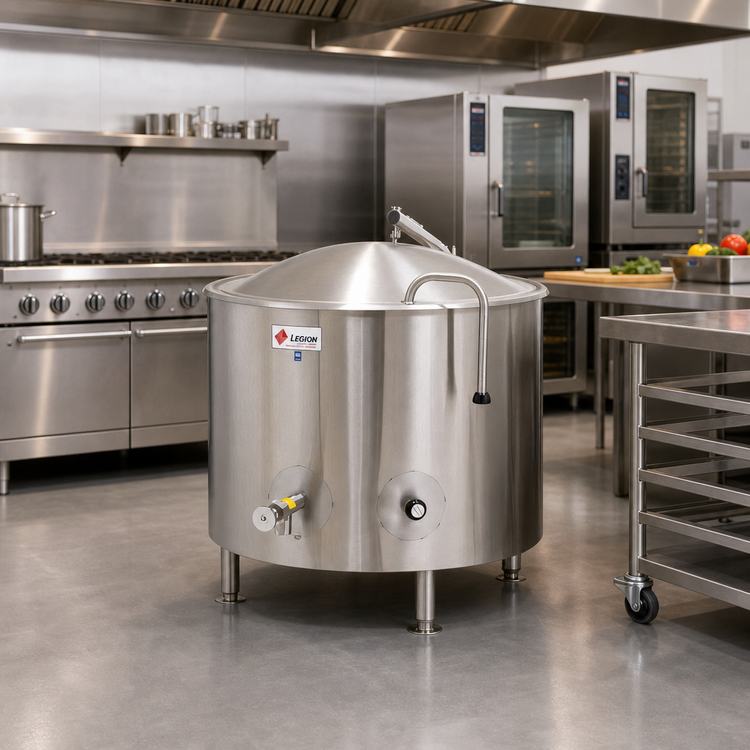

Legion Low-Rim™ 80-Gallon Stationary Direct Steam Kettle

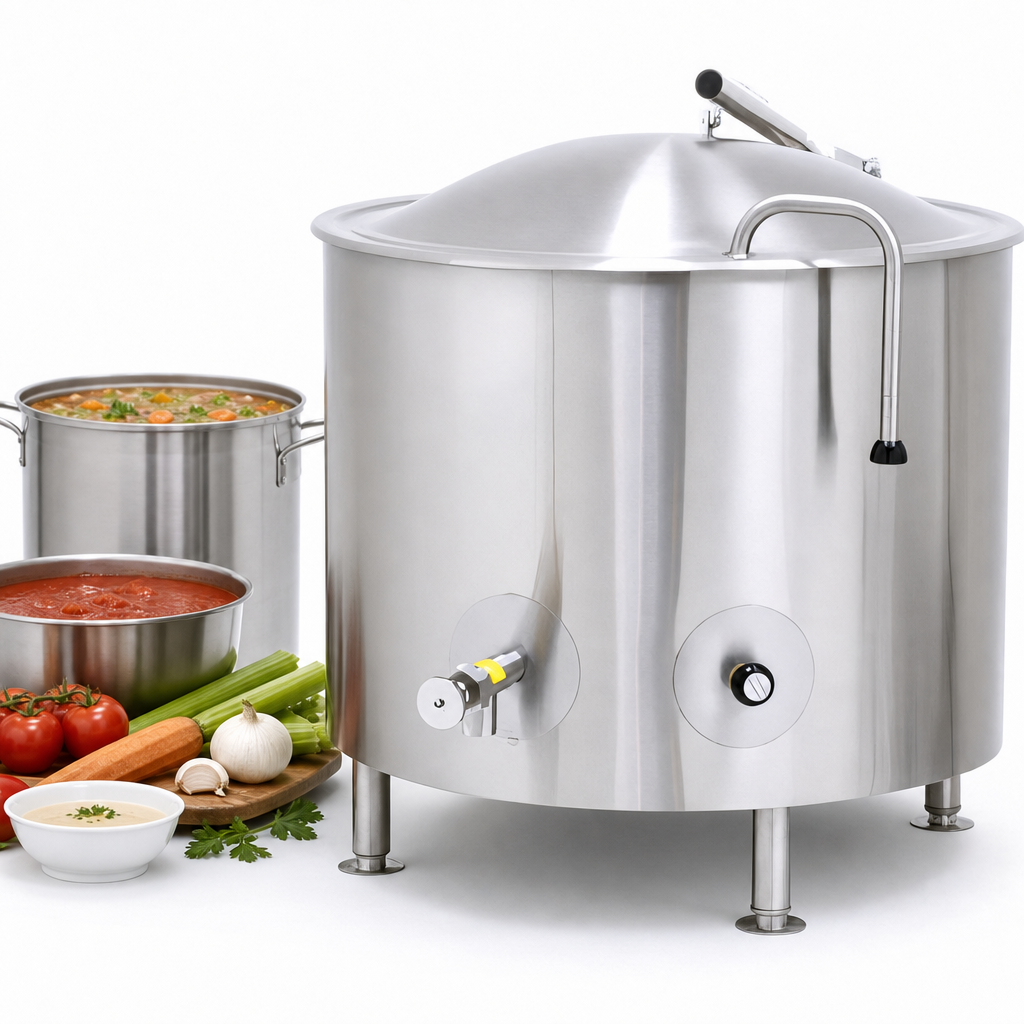

Model LSI-80 • Full-Jacketed • Insulated for Safety™Engineered for high-volume kitchens that refuse to compromise on speed, safety, or durability, the Legion Low-Rim™ LSI-80 delivers 80 gallons (303 L) of perfectly even steam-powered cooking—ideal for stocks, sauces, soups, and sous-vide production.
Key Performance Advantages
- Seamless deep-drawn 304 stainless steel liner eliminates pitting and simplifies clean-up.
- Full-body insulation (Insulated for Safety™) keeps exterior surfaces cooler and slashes energy loss.
- 30 psi operating pressure drives rapid heat-up and precise temperature control.
- Actuator-assisted, one-piece domed cover lifts effortlessly—even with a full kettle.
- 2 inch compression draw-off valve with ¼ inch perforated strainer disk for fast, clog-free transfers.
- Four 2 inch-diameter stainless legs with cross-bracing and adjustable flanged feet for rock-solid stability.
- Front-mounted steam control valve plus rear steam/condensate connections keep the cookline clear.
- Made in the USA and built to conform to ASME & NSF standards.
Standard Specifications
| Capacity | 80 gal / 303 L working volume |
|---|---|
| Operating Pressure | 30 psi (2.07 bar) max |
| Construction | 304 SS liner & draw-off tube; 304L full jacket; 304 SS outer casing |
| Insulation | Full mineral fiber between jacket & casing |
| Cover | Actuator-assisted, one-piece domed 304 SS (standard on 40-100 gal models) |
| Draw-off Valve | 2 in. compression style with ¼ in. perforated disk strainer |
| Mounting | (4) 2 in. Ø legs, cross-braced, adjustable flanged feet |
| Steam Connections | Rear inlet & condensate return |
| Origin | Waynesboro, Georgia, USA |
Dimensional Data
| Inside Diameter (A) | 39.0 in • 991 mm |
|---|---|
| Inside Depth (B) | 21.9 in • 556 mm |
| Overall Height (C) | 36.8 in • 935 mm |
| Wall Clearance (D) | 31.6 in • 803 mm minimum |
| Overall Width (F) | 45.7 in • 1 161 mm |
| Leg-to-Leg Spread (G) | 15.2 in • 386 mm |
Dimensions per Legion drawing revision 113. Allow additional clearance for service access and optional accessories.
Optional Accessories
- Single or double fill faucet (12" or 18" swing nozzle)
- 48" flexible rinse hose (vinyl or stainless)
- 2-speed mixer / agitator
- Lift-off or 2-piece hinged cover
- Automatic water-fill meter
- Basket, tri-basket, or nylon bag inserts
Warranty: Twelve (12) months from installation on all components; 90 days on wear parts such as draw-off valves and sight glasses. Refer to current Legion warranty statement for full terms.
