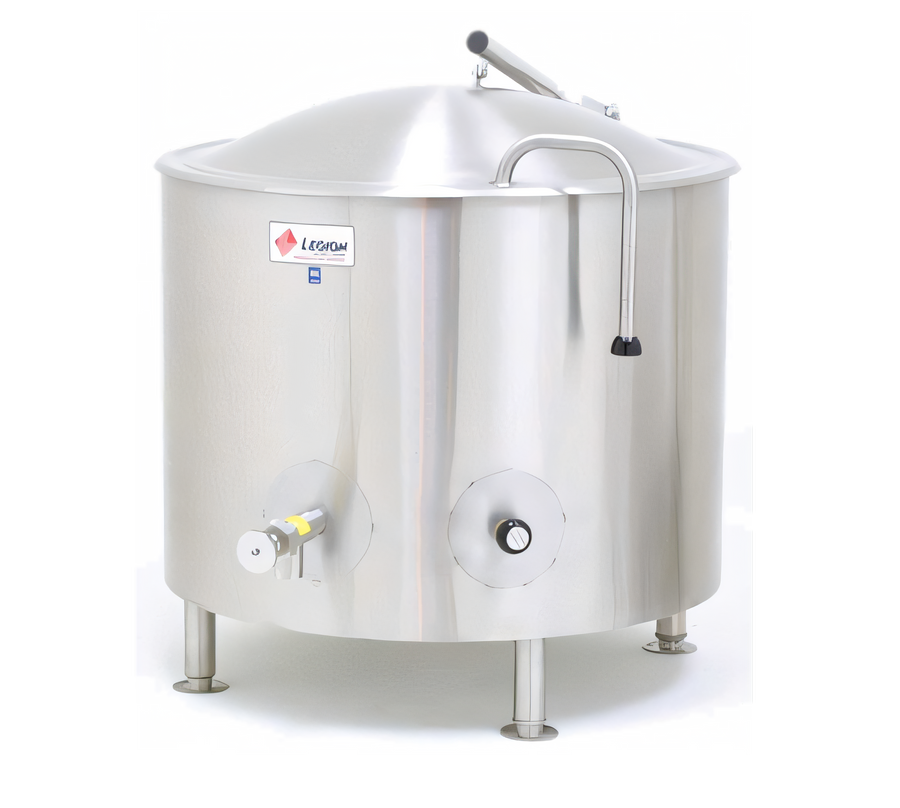

Low-Rim™ 60 Gallon Insulated Direct Steam Kettle with 2-Speed Mixer
Model LSI-60-MV | Legion Industries • Made in USAEngineered for high-volume production kitchens, the Legion Low-Rim™ LSI-60 delivers 60 gallons (227 L) of uniform, steam-powered cooking capacity with the built-in convenience of a two-speed twin-shaft agitator. Its fully insulated jacket keeps energy where it counts—inside the kettle—while the low rim height makes loading, sampling and cleaning safe and strain-free for operators of every stature.
Why You’ll Love It- 60 gal / 227 L working capacity in a deep-drawn, one-piece kettle body.
- Full 304 stainless steel construction inside and out for long-term corrosion resistance and effortless sanitation.
- Energy-saving 3"–14" fiberglass insulation between the jacket and outer casing—part of Legion’s Insulated for Safety™ program.
- Factory-installed MV twin-shaft mixer:
- Anchor-style main agitator with removable nylon scraper blades—sweeps every inch of the kettle wall and bottom.
- Counter-rotating secondary beater for complete product agitation.
- Two-speed gear-motor (23 RPM low / 46 RPM high main shaft) sized specifically for 40–60 gallon kettles.
- Actuator-assisted bridge lift with positive rim-lock and safety interlock that prevents high-speed starts when the bridge is raised.
- 2" compression draw-off valve with removable ¼" perforated stainless strainer—ideal for soups, stocks, and sauces with particulates.
- One-piece 304 stainless domed cover, actuator-assisted for effortless opening on this 60 gallon size.
- Four 2" diameter legs with welded braces and adjustable flanged feet for secure bolting to the floor.
- Front-mounted manual steam control; rear steam/condensate connections keep the front workspace clear.
- ASME stamped 30 psi jacket rating for rapid heat-up and consistent simmering.
| Capacity | 60 gal | 227 L |
|---|---|
| Interior Liner | 304 stainless steel, #4 sanitary finish |
| Jacket Style | Full, 100 % jacketed & insulated |
| Operating Pressure | 30 psi (2.07 bar) steam |
| Draw-Off Valve | 2" compression, w/ ¼" perforated disk strainer |
| Agitator Drive | 2-speed gear motor • 23 / 46 RPM main shaft |
| Construction | 304 SS kettle, jacket, legs & outer casing; fully TIG-welded |
| Cover | 1-piece domed, actuator-assisted (removable) |
| Overall Dimensions (reference) |
39.6" W × 37.6" H to rim × 32.5" Dia Rim height: 37.6" • Clearance to floor (see drawing for details) |
| Utilities | Steam inlet ¾" NPT • Condensate ½" NPT (rear) |
| Agency Approvals | ASME, NSF listed; built to UL/ETL guidelines |
| Warranty | 12-month parts & labor (options for extended coverage) |
- Low-rim design reduces lifting strain and speeds ingredient loading.
- Full-contact agitator prevents product scorching and eliminates manual stirring.
- Insulated jacket keeps the kitchen cooler and protects staff from accidental burns.
- Quick-acting draw-off cuts labor during portioning or transfer to pans and pumps.
- LSI-60 kettle body with insulated jacket
- MV twin-shaft mixer assembly (pre-installed)
- 2" compression draw-off & ¼" perforated strainer
- Domed cover with lift assist
- Adjustable flanged feet & mounting hardware
- Owner’s/installation manual & warranty registration card
Product Weight:
895.0 lbFrequently Asked Questions
