Legion LSI-60 Low-Rim Steam Kettles
Description

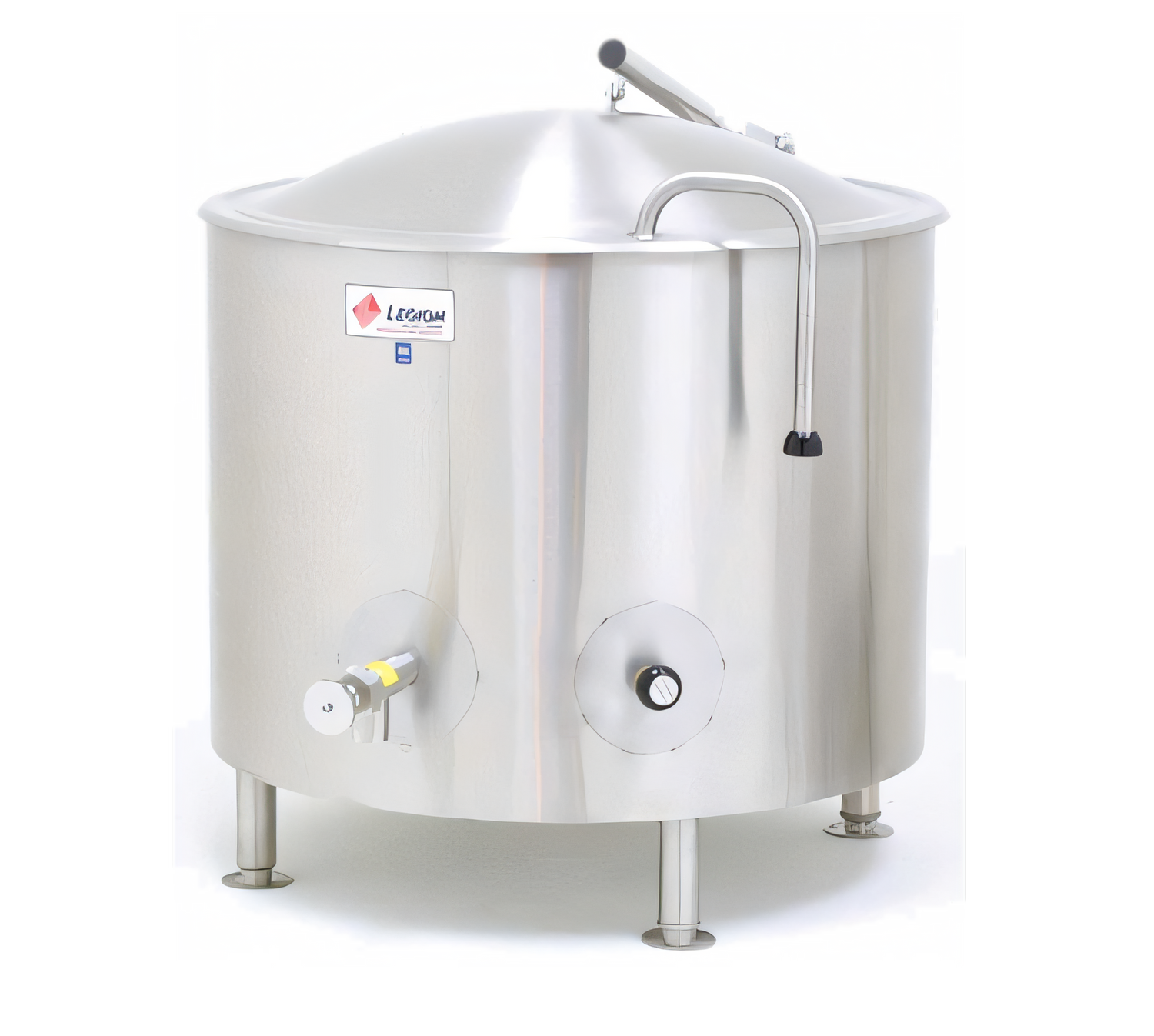

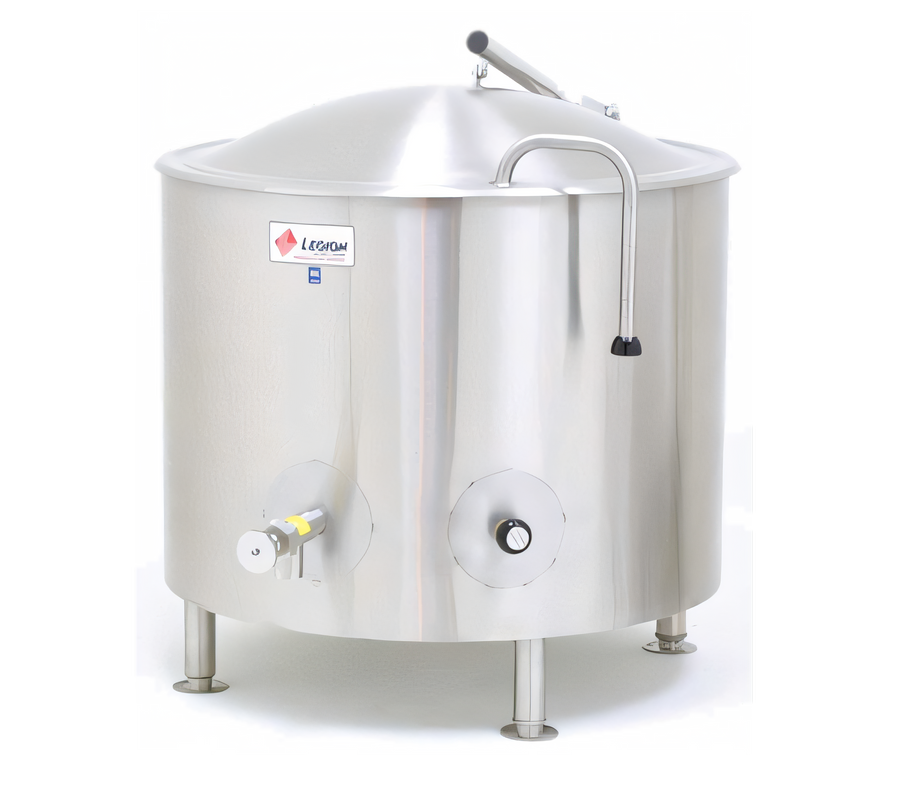

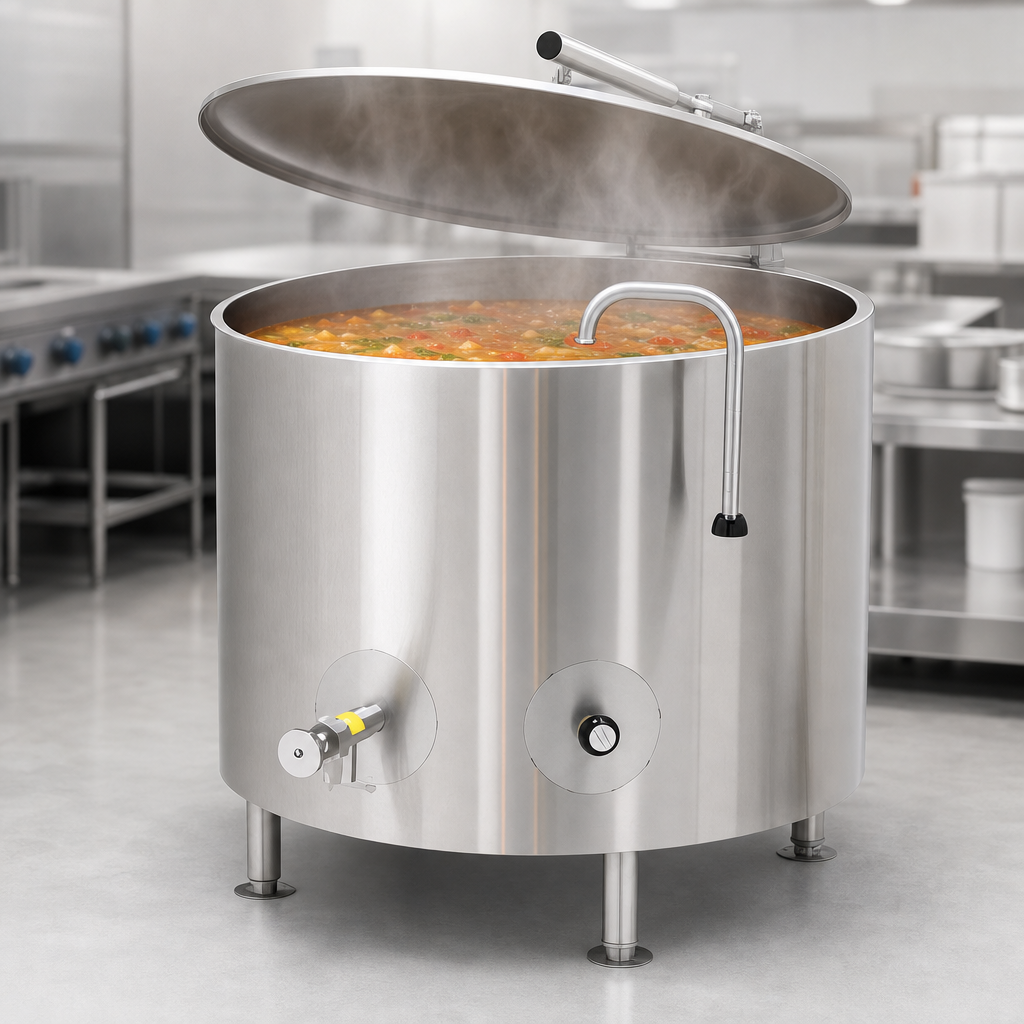

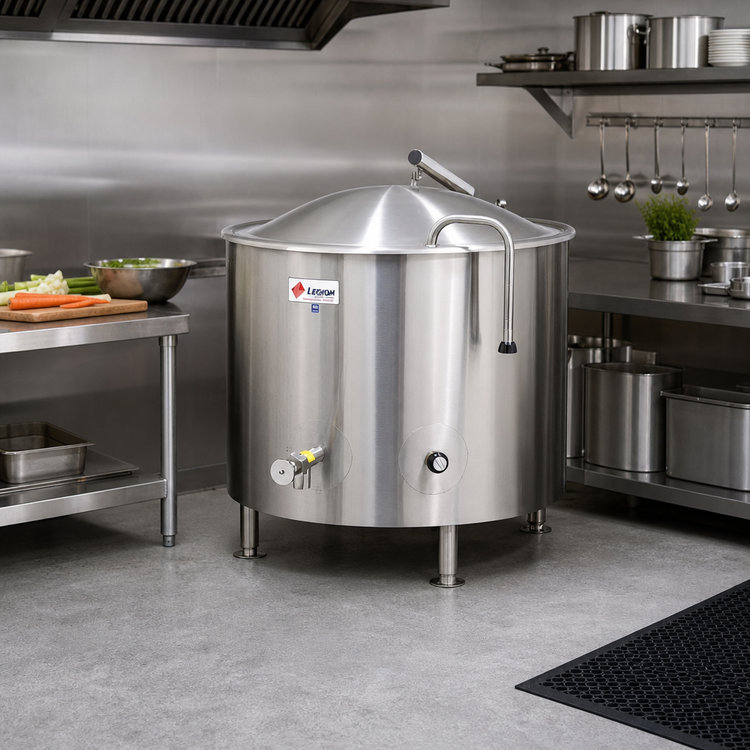

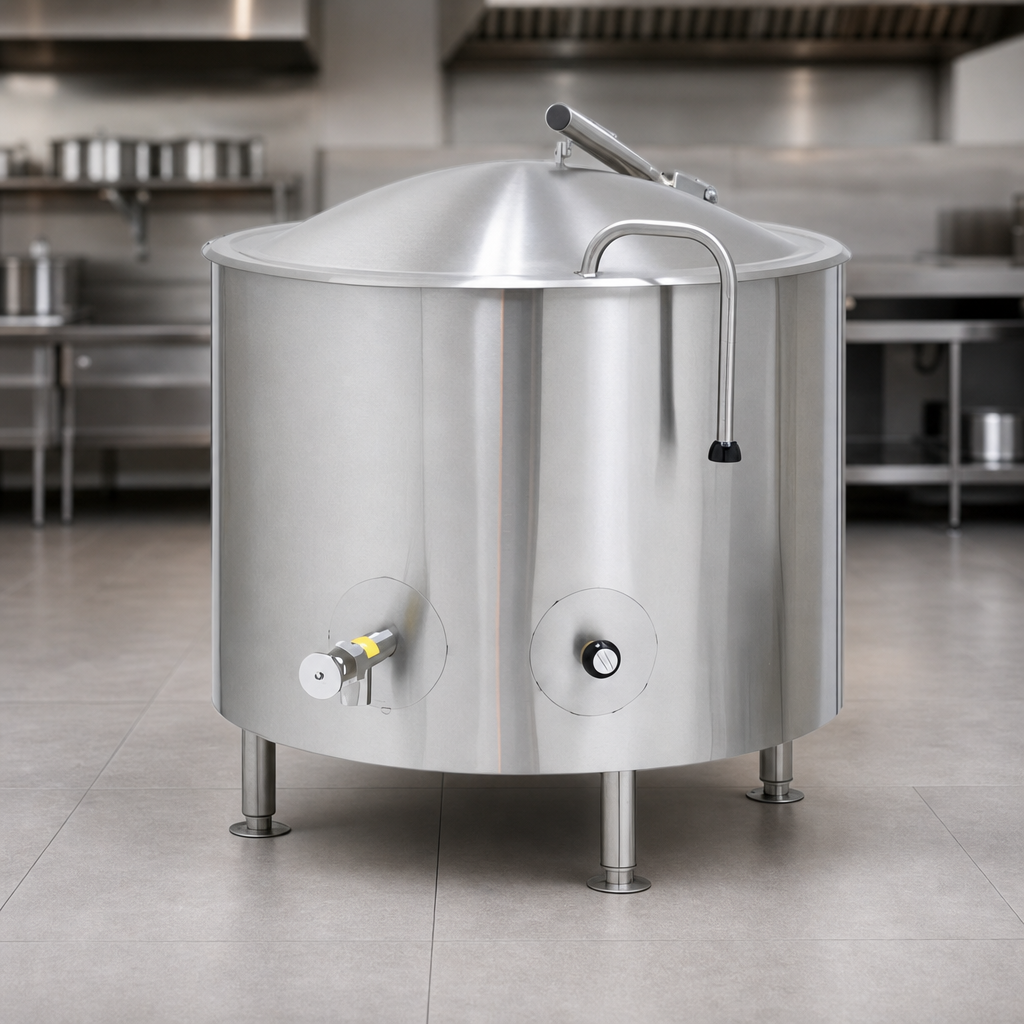

Legion Low-Rim™ 60-Gallon Stationary Direct Steam Kettle
Model LSI-60 | Made in USABuilt for relentless commercial service, the Low-Rim™ LSI-60 combines Legion’s Insulated for Safety™ jacket with a seamless deep-drawn 304 stainless liner to deliver rapid, even heating and industry-leading durability—all while keeping the exterior cool to the touch. From soups and sauces to sous-vide prep, this 60-gallon workhorse streamlines high-volume production with ergonomic loading height and easy one-handed lid operation.
Standard Features
- Full-jacketed & factory-insulated body for maximum thermal efficiency and operator safety
- Seamless deep-drawn 304 stainless steel kettle liner—no internal welds to pit or harbor residue
- 2 in. compression draw-off valve with ¼ in. perforated disk strainer for fast, clog-free portioning
- One-piece domed cover with actuator assist: lifts smoothly, stays put, drops condensation back into the kettle
- Four 2 in. Ø stainless steel legs with reinforcing bracing & adjustable flanged feet
- Front-mounted steam control valve for precise, fingertip adjustments
- 30 psi operating pressure rated to ASME standards
- Rear steam supply & condensate connections keep the front workspace clear
What’s in the Box
- Legion Low-Rim™ LSI-60 kettle (pre-insulated, fully jacketed)
- 2 in. compression draw-off valve • ¼ in. perforated disk strainer
- Factory-installed actuator-assisted cover
- Adjustable stainless leg set with flanged feet
- Owner’s/installation manual & warranty registration
Technical Specifications
| Capacity | 60 gal / 227 L |
|---|---|
| Operating Pressure | 30 psi (2 bar) direct steam |
| Interior Material | 304 stainless, seamless deep-drawn |
| Jacket Material | 304L stainless with full-body insulation |
| Exterior Casing | 304 stainless, seam-welded to radius lip |
| Draw-off Valve | 2 in. compression style, ¼ in. perforated strainer |
| Cover | One-piece domed, actuator-assisted |
| Mounting | 4 × 2 in. Ø legs, reinforcing bracing, flanged & adjustable |
| Steam Control | Front-mounted manual valve |
| Certifications | ASME, NSF, and other regional approvals as applicable |
| Warranty | 12-month parts & labor (extended coverage available) |
Benefits at a Glance
- Lower rim height simplifies loading, stirring & product draw-off, reducing strain and spill risk
- Deep-drawn construction eliminates hard-to-clean crevices for superior food safety
- Insulation slashes ambient heat output—cooler kitchens and lower HVAC costs
- American-made craftsmanship backed by responsive phone support
Looking to customize? Compatible Legion accessories include fill faucets, spray hoses, basket inserts, and automatic water meters. Shop accessories ›
