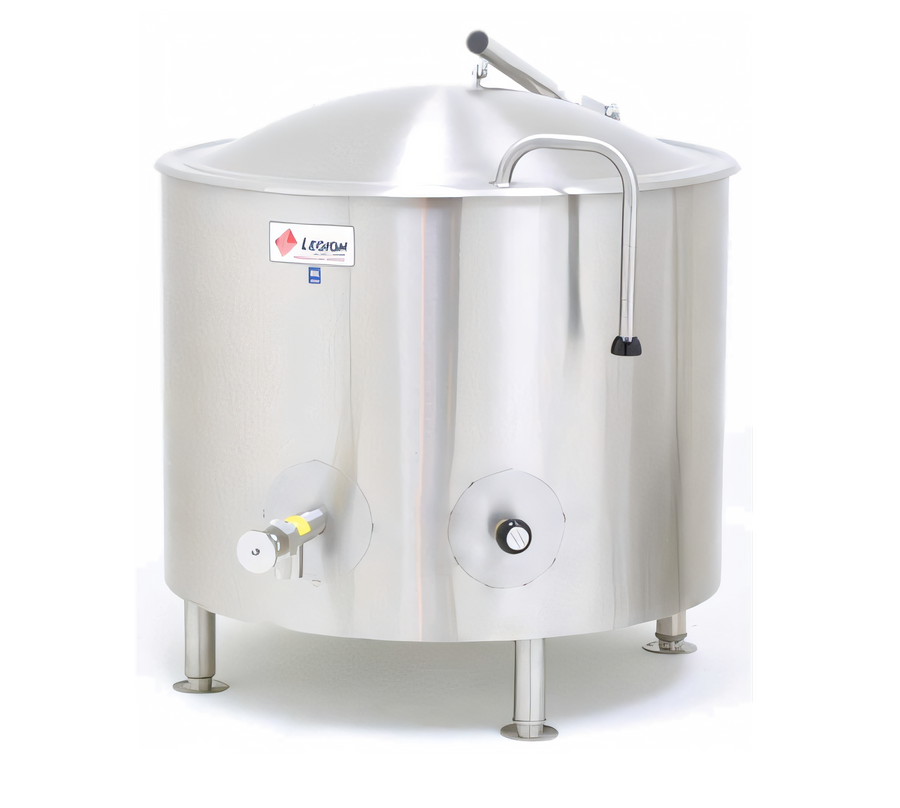

Low-Rim™ 40-Gallon Direct Steam Kettle with Mixer
Legion Model LSI-40-MV · Stationary · Full Jacket · 30 psiPurpose-built for high-volume kitchens, the Low-Rim™ LSI-40 delivers the robust cooking power of direct steam, the operator comfort of a low working height, and the labor-saving performance of an integrated two-speed agitator—all in a fully insulated stainless steel package that is proudly made in the USA.
Why You’ll Love It
- 40 gal / 151 L capacity—ideal for soups, sauces, chili, pasta, custards and more.
- Full-jacket, insulated for safety to keep the exterior cool and lower energy costs.
- 304 stainless steel liner & jacket with deep-drawn construction for a seamless, easy-clean interior.
- Low-rim profile reduces lifting distance and improves access for shorter operators.
- Front-mounted steam control valve for quick, precise heat adjustment.
- 2 in. compression draw-off valve with ¼ in. perforated disk strainer for clog-free portioning.
- Four 2 in. diameter legs with adjustable flanged feet and welded bracing for rock-solid stability.
- ASME & NSF certified and shipped ready to connect to a 30 psi steam supply.
Integrated MV Twin-Shaft Agitator
- Two-speed gear motor (23 rpm low / 60 rpm high) matched to 40-gal volumes.
- 304 stainless anchor-style main agitator hugs the kettle wall for consistent product movement.
- Counter-rotating secondary beater breaks up particulates and prevents hotspots.
- Removable nylon scraper blades continuously wipe the entire cooking surface—no scorched film.
- Actuator-assisted bridge lift and positive rim-lock keep the mixer secure yet easy to swing out for cleaning.
- Safety interlock stops the agitator whenever the bridge is tilted out of position.
- Bayonet-mount shafts detach in seconds, allowing the kettle to be used without the mixer when needed.
Technical Specifications
| Capacity (working / total) | ~37 gal · 40 gal max (151 L) |
|---|---|
| Kettle Interior | 304 stainless steel, seamless deep-drawn bowl |
| Jacket & Exterior | 304 stainless, fully welded and insulated (3 – 14 in. thickness) |
| Operating Pressure | 30 psi (ASME stamped) |
| Draw-Off Valve | 2 in. compression type, 304 SS tube & welds, ¼ in. perforated strainer |
| Cover | One-piece domed stainless lid, actuator assisted |
| Dimensions (W × D × H) | 36.4 in. × 26.8 in. × 58.5 in. (924 mm × 681 mm × 1486 mm) |
| Steam Connections | Rear— ¾ in. inlet (Q) & ½ in. condensate return (R) |
| Legs | (4) 2 in. Ø stainless, flanged & height-adjustable |
| Certifications | NSF, ASME, ETL Sanitation |
| Country of Origin | USA |
Need faucets, flexible spray hoses or basket inserts? Ask us about the full range of factory-approved accessories to tailor the LSI-40 to your exact production menu.
Product Weight:
754.0 lbFrequently Asked Questions
