Legion LSI-40 Low-Rim Steam Kettles
Description

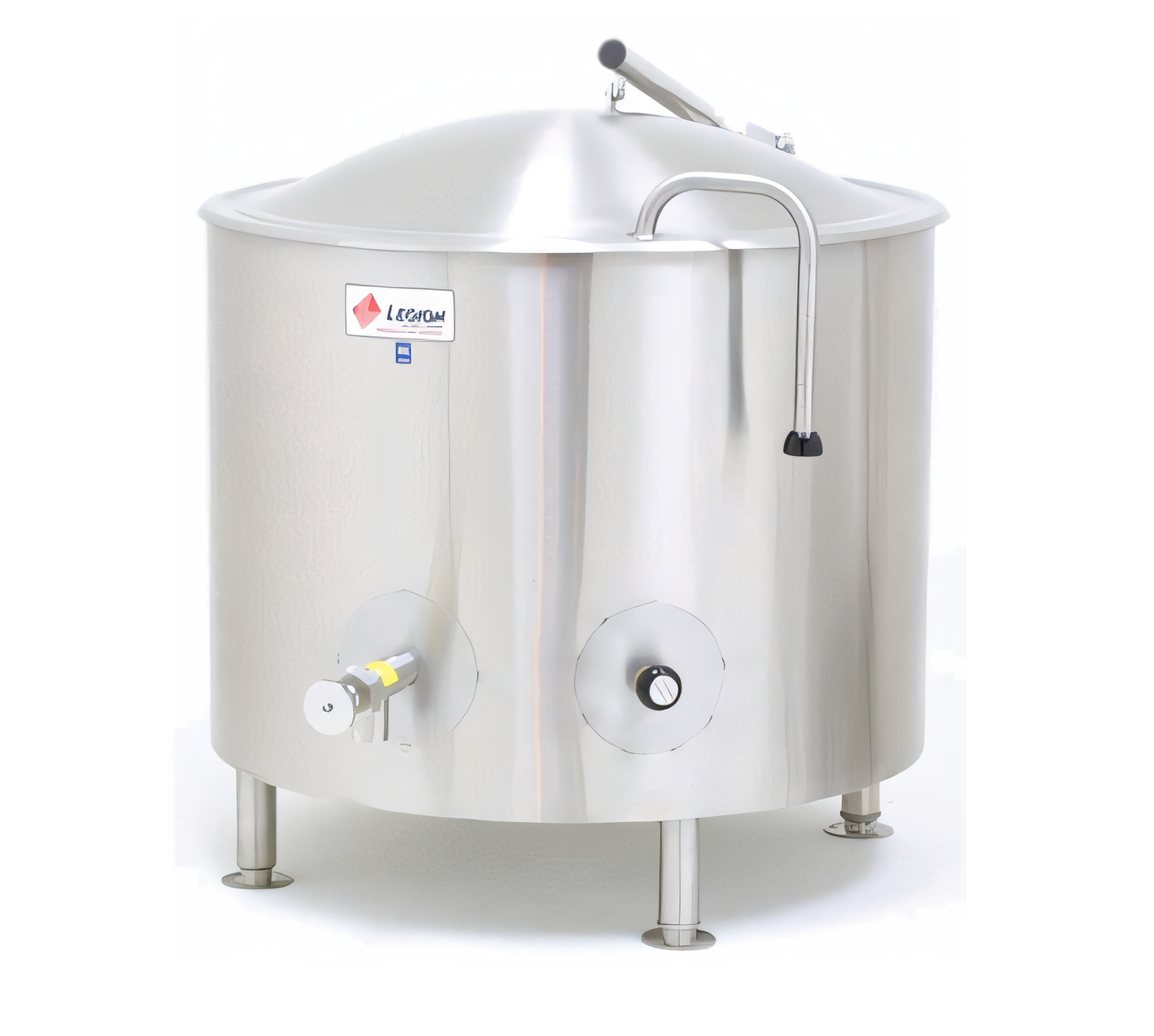

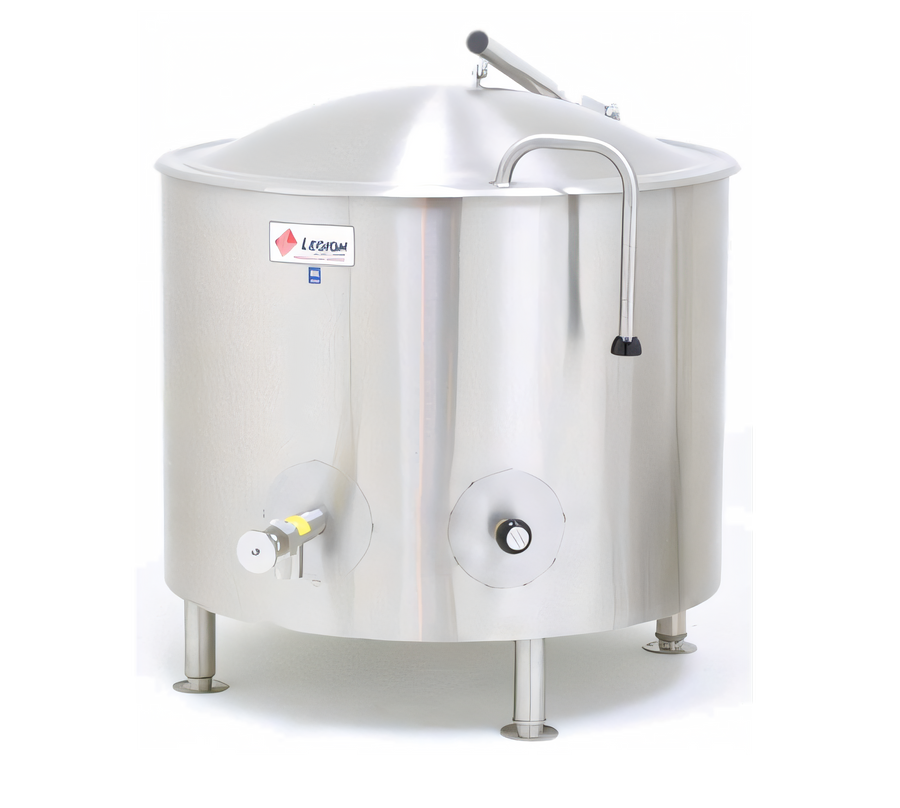

Low-Rim™ 40-Gallon Stationary Direct Steam Kettle

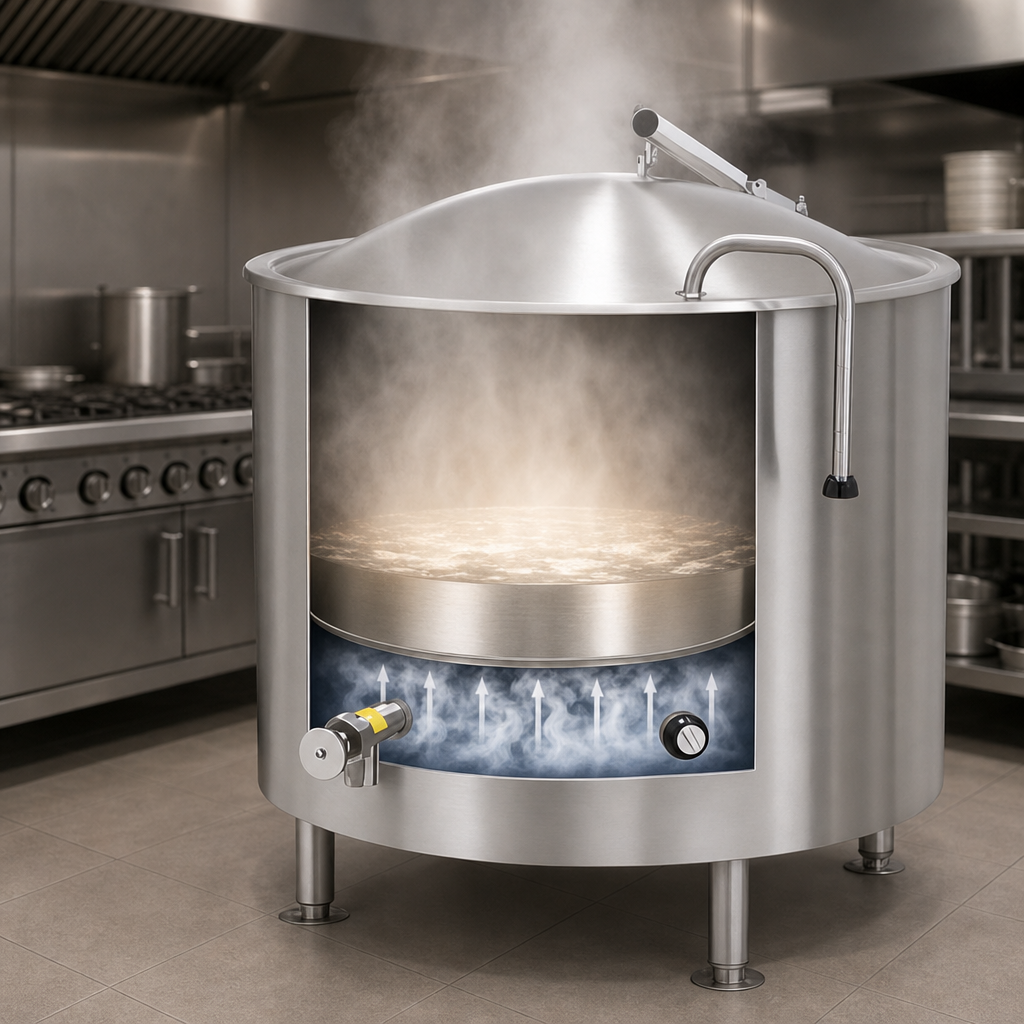

Legion Model LSI-40 | Made in the USABuilt for high-volume kitchens that demand speed, safety and rock-solid durability, the Low-Rim™ LSI-40 delivers 40 gallons (151 L) of evenly heated capacity in a compact, easy-to-service footprint. A fully jacketed, insulated “kettle-within-a-kettle” design maximises energy transfer while keeping exterior surfaces cool to the touch—so your crew stays productive and protected shift after shift.
Key performance advantages
- Seamless 304 SS liner—deep-drawn in one piece for a crevice-free cooking surface that cleans in seconds.
- Full-body insulation between jacket and casing dramatically reduces heat loss and lowers utility costs.
- 2" compression draw-off valve with ¼" perforated stainless-steel strainer for fast, clog-free portioning of stocks, soups and sauces.
- Actuator-assisted domed cover (304 SS) lifts effortlessly and stays put at any angle—no counterweight springs to adjust.
- Four reinforced 304 SS legs (2" Ø) with adjustable flanged feet anchor the kettle securely and simplify floor sanitation.
- Front-mounted steam control plus rear supply/condensate connections keep the operator zone clear.
- Rated 30 psi operating pressure and built to ASME & NSF standards.
Technical specifications
| Model | LSI-40 (Low-Rim™ Series) |
|---|---|

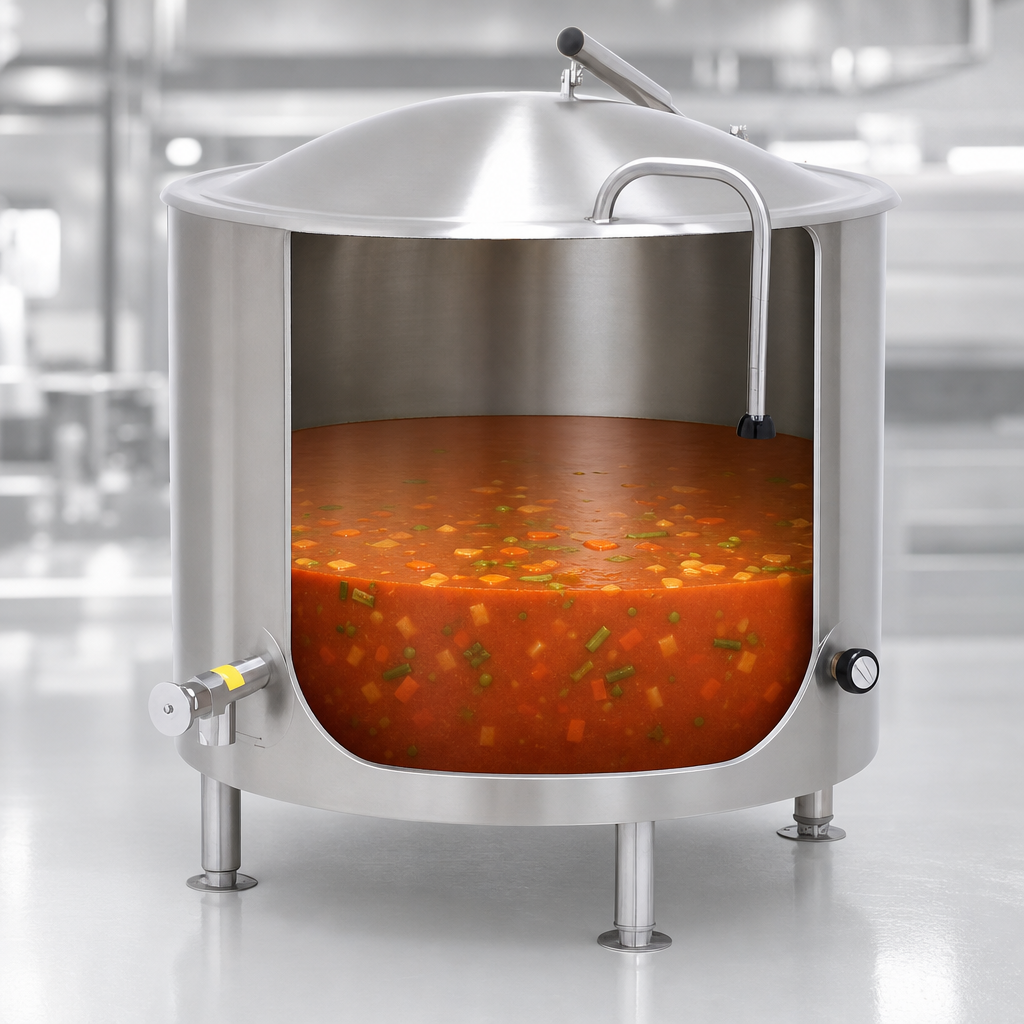

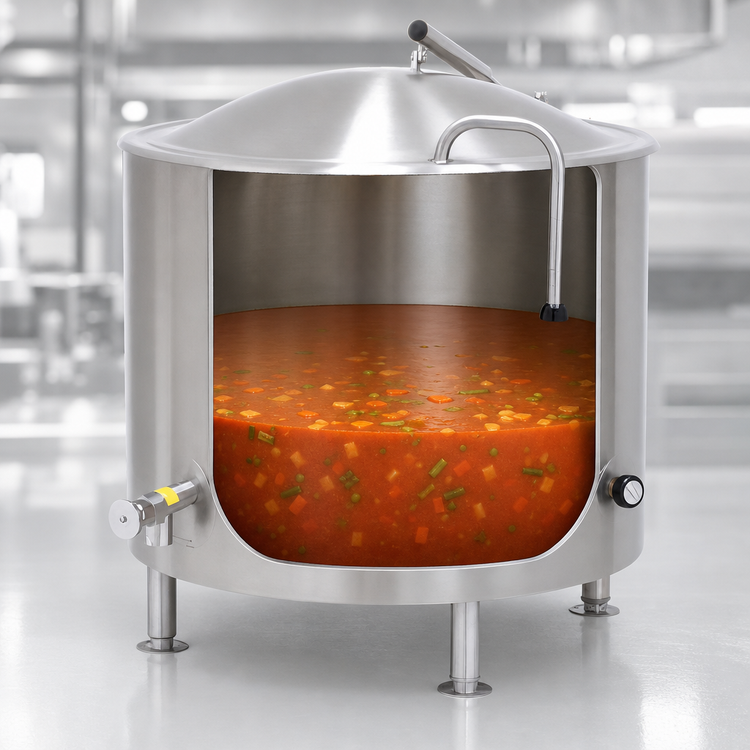

| Capacity | 40 gal | 151 L |
| Operating pressure | 30 psi (2.07 bar) |
| Liner material | Seamless 304 stainless steel |
| Jacket type | Full jacket, 304L stainless steel, fully insulated |
| Draw-off valve | 2" compression style w/ ¼" perforated strainer disk |
| Cover | One-piece, actuator-assisted domed 304 SS |
| Legs / feet | (4) 304 SS legs, 2" Ø, with adjustable flanged feet & cross-bracing |
| Steam connections | Rear—supply (¾") & condensate return (½") |
| Overall height (J1) | 72.6" (184 cm) — cover open |
| Rim height (J2) | 58.5" (149 cm) — cover closed |
| Interior diameter (A) | 29.5" (75 cm) |
| Interior depth (C) | 33.3" (85 cm) |
| Minimum wall clearance (D) | 26.8" (68 cm) |
Popular factory options (sold separately)
- Single or double-fill faucet with 12" or 18" swing nozzle
- 48" flexible spray-rinse hose (vinyl or stainless)
- 2-speed mixer/agitator package
- Automatic water-fill meter
- Ball-type or 3" draw-off valve upgrade
- Lift-off or two-piece hinged cover
- Prison/security trim: lockable lid, valve guards, tamper-proof hardware
Standard warranty: 12 months from installation (15 months from ship date). Extended coverage available. See full warranty terms.
