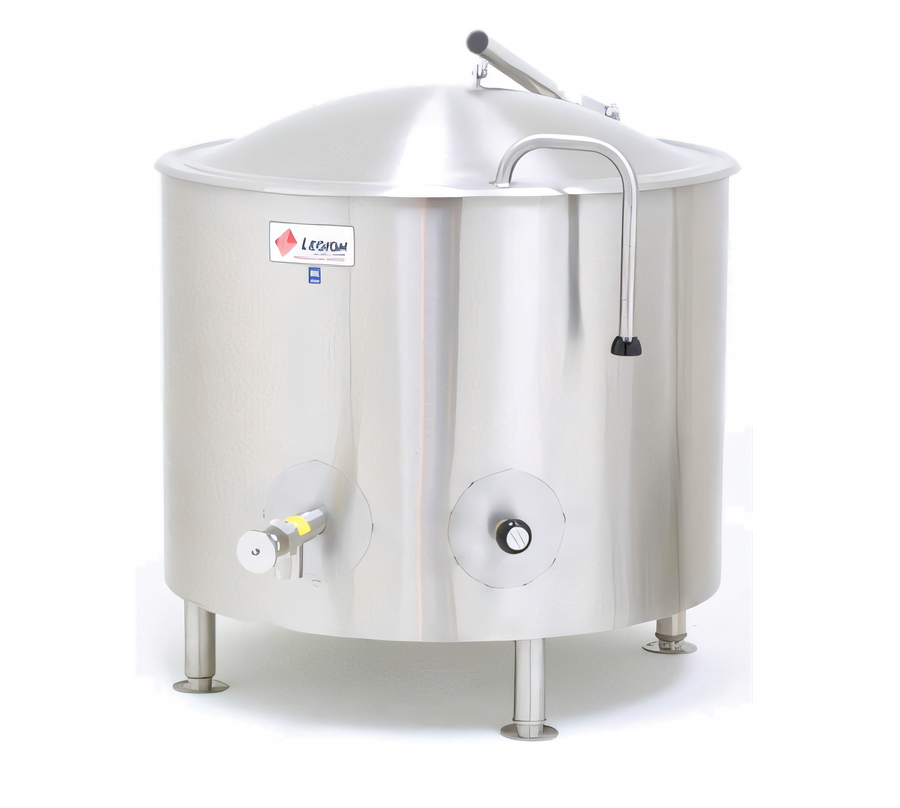

Legion Low-Rim™ 30-Gallon Direct Steam Kettle with Integrated Mixer
Model LSI-30-MV • Stationary, Leg-Mounted • Made in USABuilt for high-volume kitchens that refuse to compromise on safety, performance, or sanitation, the Low-Rim™ 30-gallon steam kettle pairs Legion’s legendary full-jacket construction with a powerful twin-shaft agitator. The result is faster cook times, consistent product texture, and effortless batch handling—all from an easy-to-reach rim height.
Key Benefits
- Full, insulated jacket (30 psi) maximizes thermal efficiency while keeping the exterior cool to the touch.
- 304 stainless-steel liner, jacket, legs, and outer casing—built for a lifetime of corrosion-free service.
- Low-profile rim makes loading, stirring, and cleaning safe & ergonomic—no step stool required.
- Factory-installed 2 inch draw-off valve with ¼ inch perforated disk strainer for quick, clog-free draining.
- Four stainless legs with welded bracing & adjustable flanged feet bolt directly to the floor for rock-solid stability.
- Front-mounted steam control valve and rear supply/condensate connections keep the aisle clear.
Integrated MV Twin-Shaft Agitator
- Two-speed gear motor (Low 23 RPM / High 46 RPM main agitator).
- 304 SS anchor-type main agitator hugs the kettle wall; removable nylon blades continuously scrape for zero “hot spots.”
- Counter-rotating secondary beater (Low 60 RPM / High 120 RPM) uniformly blends particulates and high-viscosity foods.
- Actuator-assisted bridge lift with positive rim lock—mixer stops whenever the bridge rises for operator safety.
- Quick-release bayonet mounts let you lift out both agitators without tools for rapid cleaning or kettle-only use.
Technical Specifications
| Capacity | 30 gal | 114 L |
|---|---|
| Operating Pressure | 30 psi (2 bar) max jacket pressure |
| Construction | 304 SS liner & jacket, fully welded; 3 in. insulation between jacket & outer casing |
| Draw-Off Valve | 2 in. compression type with ¼ in. perforated strainer disk |
| Cover | One-piece domed stainless cover (removable) |
| Mixer Drive | Twin-shaft, two-speed gear motor; enclosed aluminum bridge |
| Agitator Speeds | Low 23 / 60 RPM • High 46 / 120 RPM (main / secondary) |
| Steam Connection | ¾ in. NPT (inlet) at rear |
| Condensate Return | ½ in. NPT at rear |
| Overall Dimensions (W×D×H) | ≈ 25.5 in. × 24.8 in. × 67.7 in. Rim height ≈ 32.4 in. |
| Warranty | 12 months parts & labor (extended plans available) |
Requires an external low-pressure (≤ 30 psi) steam supply. Consult local codes for installation clearance and boiler specifications.
