Legion LSI-30 Low-Rim Steam Kettles
Description

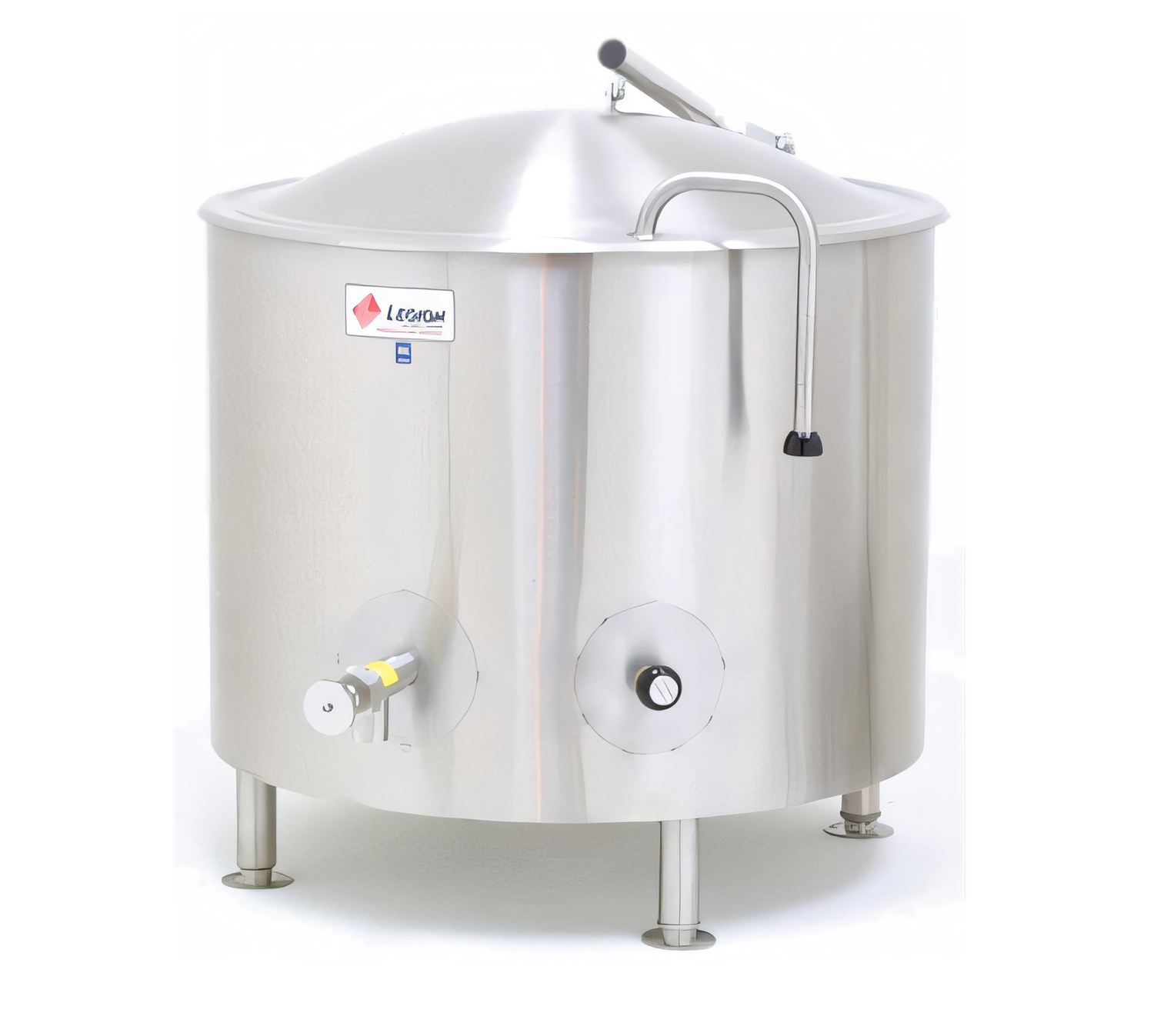

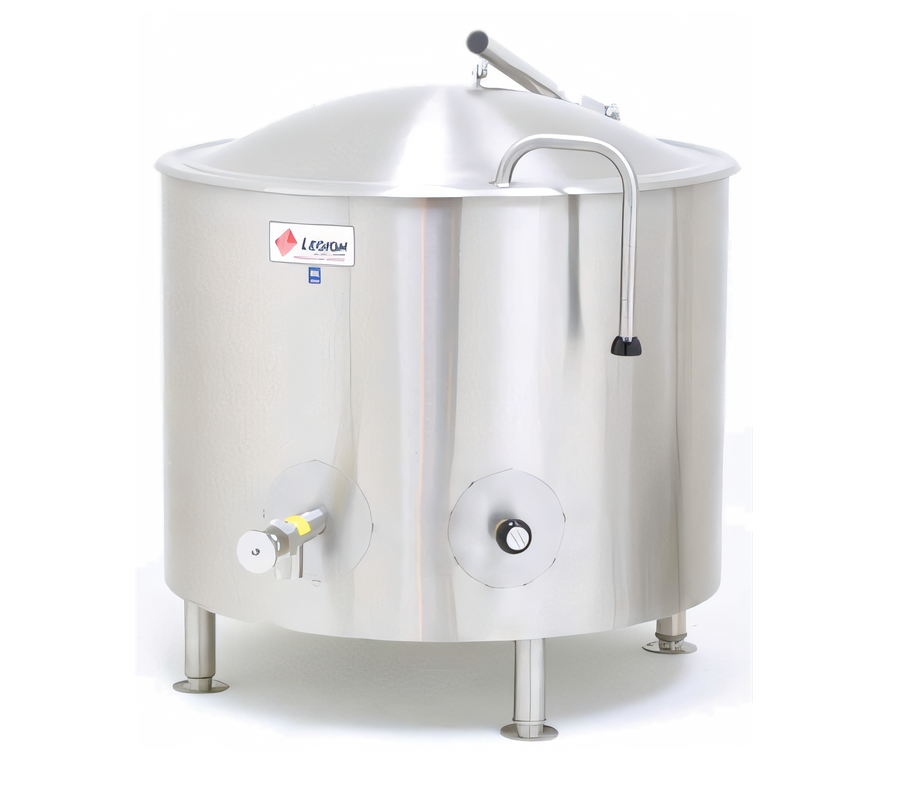

Low-Rim™ 30-Gallon Stationary Direct Steam Kettle
Model LSI-30 • Made in the USA by LegionBuilt “Insulated for Safety™,” the Low-Rim™ LSI-30 delivers rock-solid performance and operator comfort for high-volume kitchens that demand speed, consistency, and long-term durability. A seamless 304 stainless kettle liner, full insulated jacket, and front-mounted steam controls give you everything you need to braise, simmer, soup-craft, and sauce-finish with absolute confidence.
Why You’ll Love It
- 30 gal (114 L) capacity—ideal for midsize production without sacrificing floor space

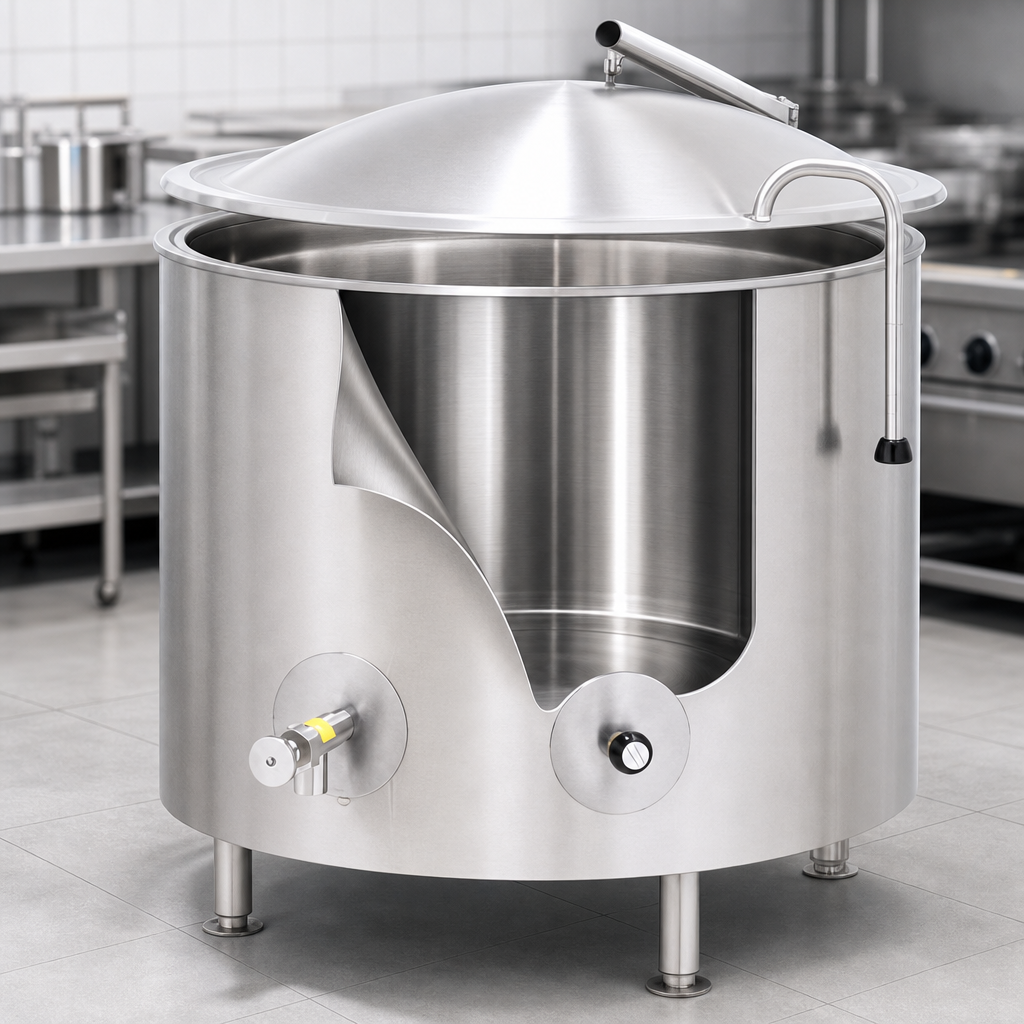

- Seamless deep-drawn 304 stainless steel liner for easy sanitation and zero pitting or crevice build-up

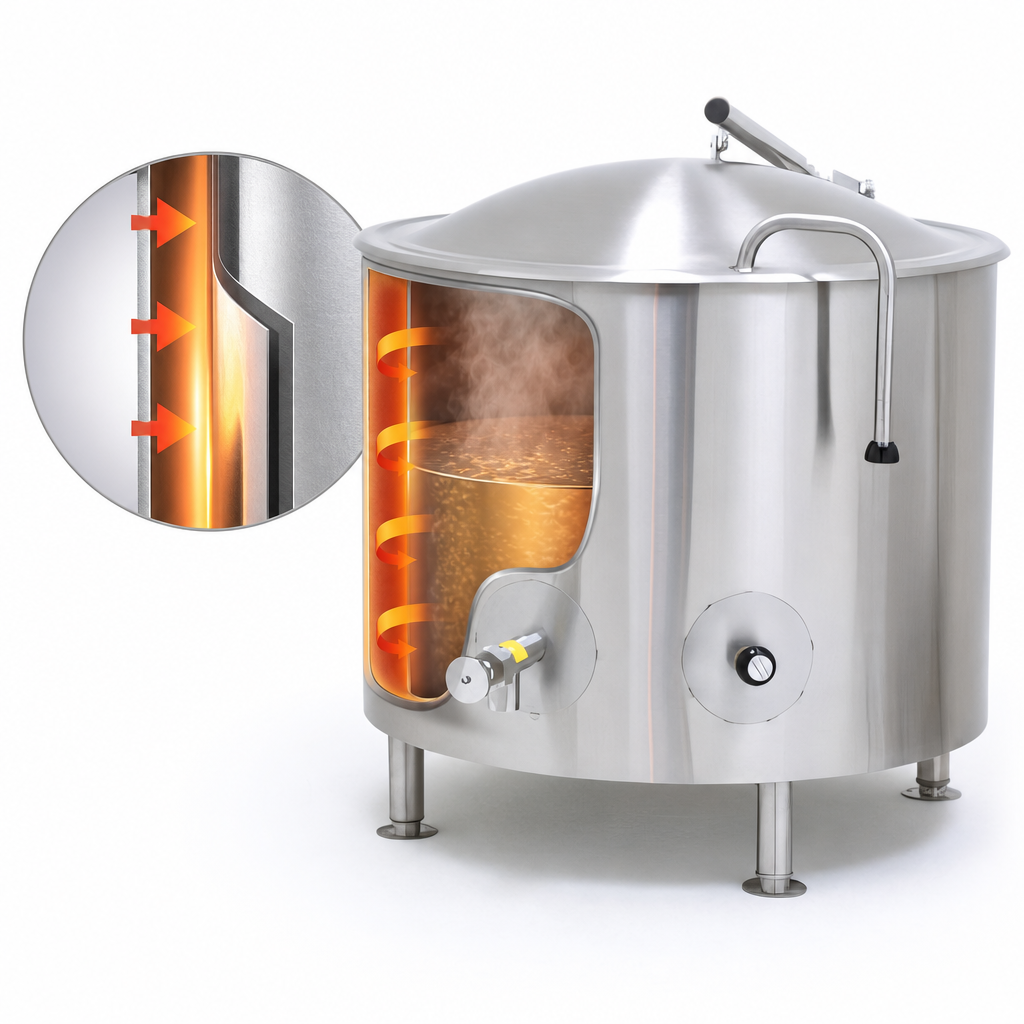

- Full jacketed & factory-insulated body reduces ambient heat by up to 35 %, boosting safety and energy efficiency
- 2″ 304 stainless compression draw-off valve with ¼″ perforated disk strainer for fast, clog-free portioning
- Four 2″ diameter stainless legs with reinforcing cross-bracing & adjustable flanged feet—bolt it down and forget about it
- Front-mounted steam control valve and rear supply/condensate connections keep your work zone clear
- 30 psi operating pressure handles demanding batch cycles with ease
- NSF, ASME, UL, ETL, CSA and other agency-ready construction
Technical Specifications
| Capacity | 30 gallons / 114 liters |
|---|---|
| Operating Pressure | 30 psi (207 kPa) |
| Liner Material | Seamless 304 stainless steel |
| Jacket | Full, 304L stainless, insulated |
| Draw-Off Valve | 2″ 304 stainless compression-type w/ ¼″ perforated strainer |
| Overall Dimensions (in.) | A 25.5 | B 17.8 | C 32.4 | D 24.8 | E 15.0 | F 32.4 |
| Floor Mount Footprint (G) | 10.6 in. leg spread (center-to-center) |
| Rim Height | 38.1 in. (J1 67.7 – J2 55.6 overall) |
| Steam Inlet / Return | ¾″ NPT (inlet) / ½″ NPT (return) |
| Shipping Weight | Approx. 425 lb (193 kg) |
Popular Factory Options
- Single or dual water-fill faucet with 12″ or 18″ swing nozzle
- 48″ flexible spray hose (vinyl or stainless)
- Mixer/agitator – 2-speed
- Automatic water-meter fill system
- 1-piece actuator-assisted domed cover
- Lift-off or 2-piece hinged covers
- Air eliminator or pressure-reducing valve
- Security options: lockable lid, draw-off protection, tamper-proof fasteners
Warranty
Every Legion kettle is backed by a 12-month parts & labor warranty from date of installation (15 months from shipment) when registered within 10 days. Extended coverage is available—ask our team for details.
Ready to streamline production? Add the Low-Rim™ LSI-30 to your cart or chat with us for factory-installed options built around your kitchen’s workflow.
