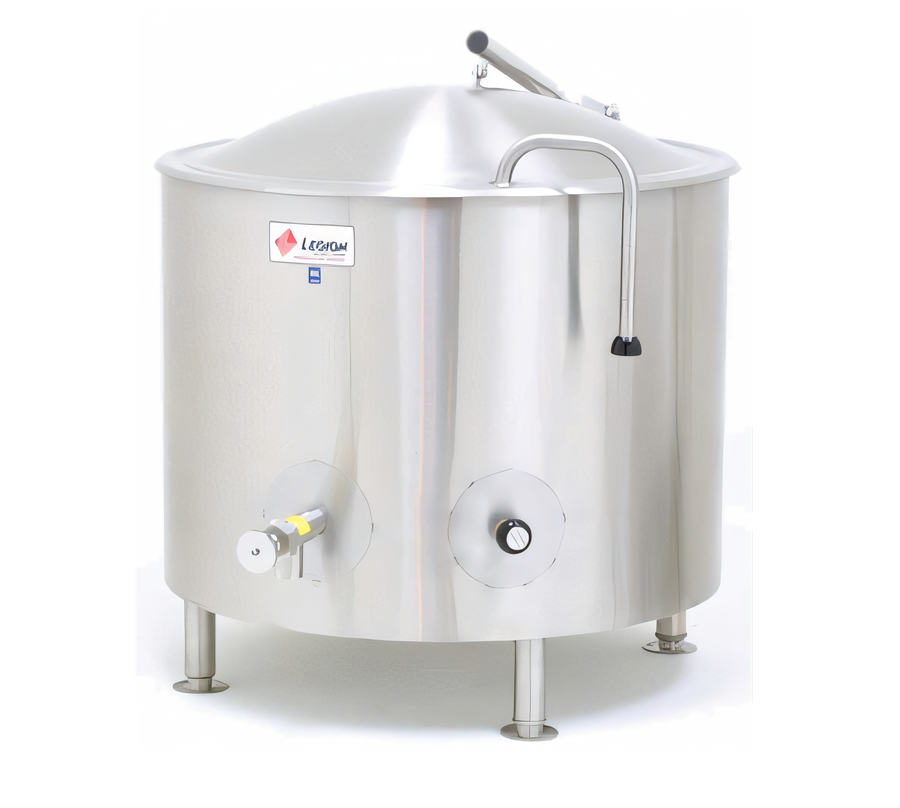

Legion Low-Rim™ 25-Gallon Stationary Direct Steam Kettle with MV Mixer
Model LSI-25-MV | 30 psi operating pressureBuilt for demanding production kitchens that refuse to compromise on speed, safety, or consistency, the Low-Rim™ LSI-25-MV pairs Legion’s fully-insulated steam jacket with a rugged twin-shaft agitator. The result: faster heat-up, even product movement, and a rim height that is easy on the back.
Why You’ll Love It
- True 25-gallon (95 L) capacity deep-drawn kettle handles large batches without hot-spots.
- Full 304 stainless construction – liner, jacket, legs and outer casing – for unmatched hygiene and durability.
- Insulated for Safety™ jacket retains heat while keeping the exterior cool to the touch and cutting energy loss.
- Low-Rim design reduces the reach required for stirring, cleaning and portioning.
- MV twin-shaft agitator (two-speed) maintains perfect product movement; nylon scraper blades wipe the entire kettle wall clean.
- 2″ sanitary draw-off valve with ¼″ perforated strainer lets you portion soups or drain stocks without clogging.
- Four adjustable flanged legs (1 ⅝″ Ø) bolt to the floor for rock-solid stability.
- Front-mounted steam control plus rear ¾″ steam inlet & ½″ condensate return simplify hook-up.
- Made in the USA and built to ASME & NSF standards for long, dependable service life.
Integrated MV Mixer Highlights
- Anchor-style main agitator follows the kettle contour; counter-rotating beater breaks up particulates for uniform blending.
- High (1 HP) & low (½ HP) speeds – 46 / 23 RPM main agitator | 120 / 60 RPM secondary beater.
- Tilt-out, actuator-assisted mixer bridge for effortless product access and cleaning.
- Quick-release bayonet mounts allow the agitator and beater to be removed in seconds.
- Safety interlock prevents high-speed start-ups when the bridge is raised.
Technical Specifications
| Capacity | 25 gal | 95 L |
|---|---|
| Operating Pressure | 30 psi (direct steam, external generator required) |
| Liner Material | 304 stainless steel, deep-drawn & seamless |
| Jacket / Casing | 304L stainless full jacket with 3″–14″ insulation |
| Mixer Type | MV twin-shaft, tilt-out, two-speed |
| Mixer Motor | High 1 HP | Low ½ HP |
| Agitator / Beater RPM | 46 / 23 RPM main | 120 / 60 RPM secondary |
| Draw-off Valve | 2″ sanitary compression valve with ¼″ perforated strainer disk |
| Legs | 4 × 1 ⅝″ Ø 304 stainless, adjustable flanged feet |
| Steam Inlet | ¾″ NPT (rear) |
| Condensate Return | ½″ NPT (rear) |
| Overall Height * | Approx. 65.4″ / 166 cm (to top of mixer) |
*Dimensions are nominal. Consult engineering drawings for critical clearances.
Included in the Box
- Legion Low-Rim™ LSI-25 kettle with insulated jacket
- Factory-installed MV mixer assembly
- 2″ perforated strainer disk
- Adjustable flanged mounting feet
- Operator’s manual & warranty registration
Popular Factory Options (sold separately)
- Single or dual swing-nozzle fill faucets with wall bracket (12″ / 18″ reach)
- 48″ flexible spray-rinse hose – vinyl or stainless
- Automatic water fill meter
- Higher-pressure jacket rating
- 1-piece actuator-assisted domed cover
Extended coverage is available at the time of purchase.
Need a different capacity or electrical configuration? Contact us – Legion builds Low-Rim™ kettles from 20 gal up to 100 gal with a full catalog of mixer and faucet options.
