Legion LSI-25 Low-Rim Steam Kettles
Description

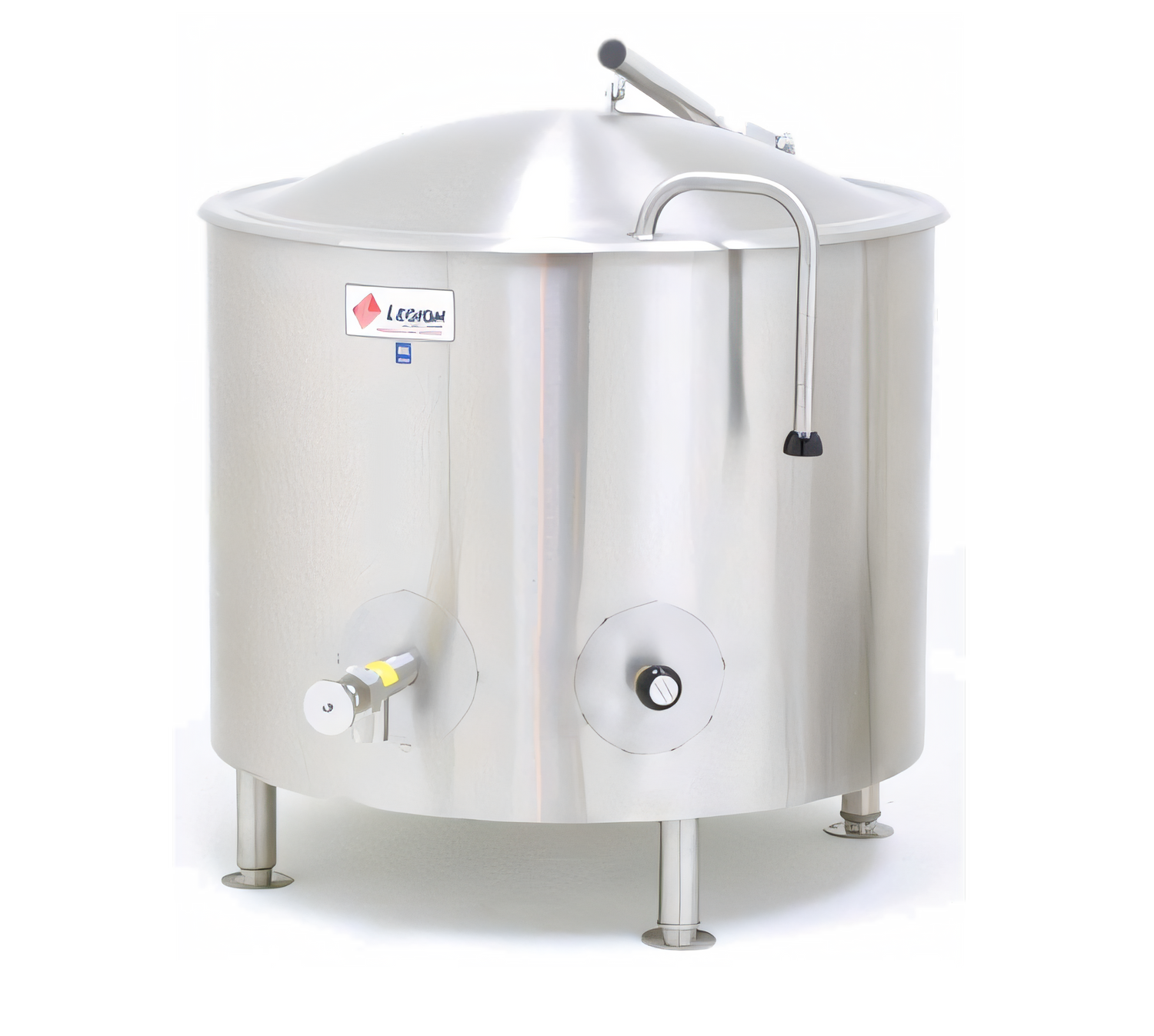

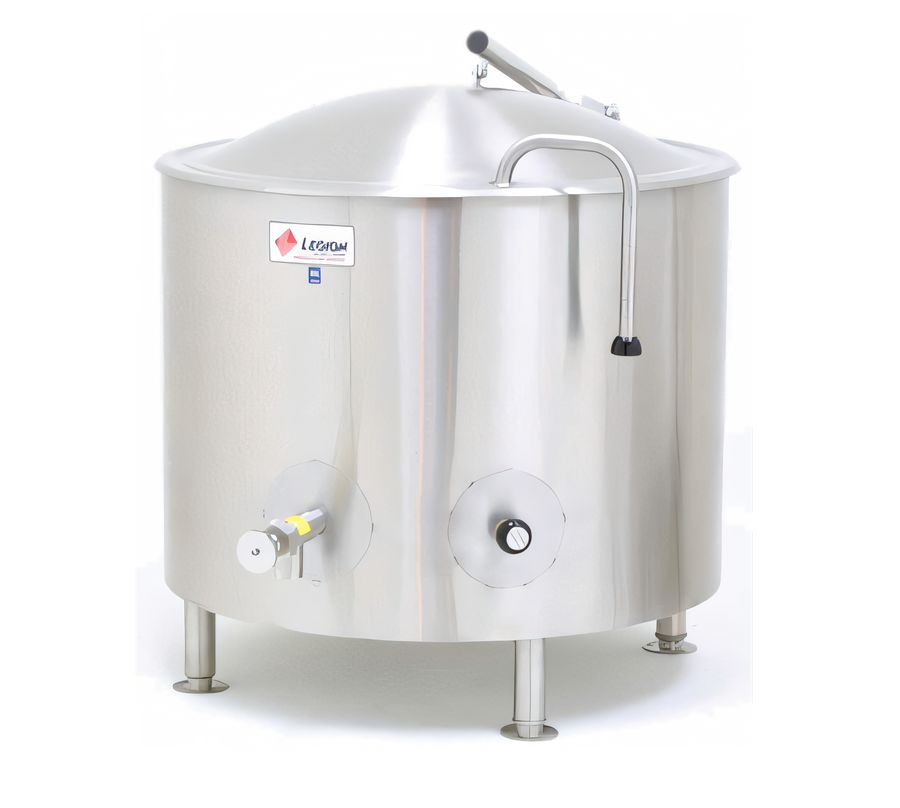

Legion Low-Rim™ 25-Gallon Direct Steam Kettle
Model LSI-25 | Stationary, Leg-Mounted | Made in USABuilt for kitchens that won’t compromise on speed, safety or sanitation, the Low-Rim™ LSI-25 serves up 25 gallons (95 L) of perfectly even, direct-steam cooking power—while keeping the pouring edge low for effortless, ergonomic access.
Key Benefits
- Seamless, deep-drawn 304 stainless kettle liner—no interior weld seams to trap food soils.

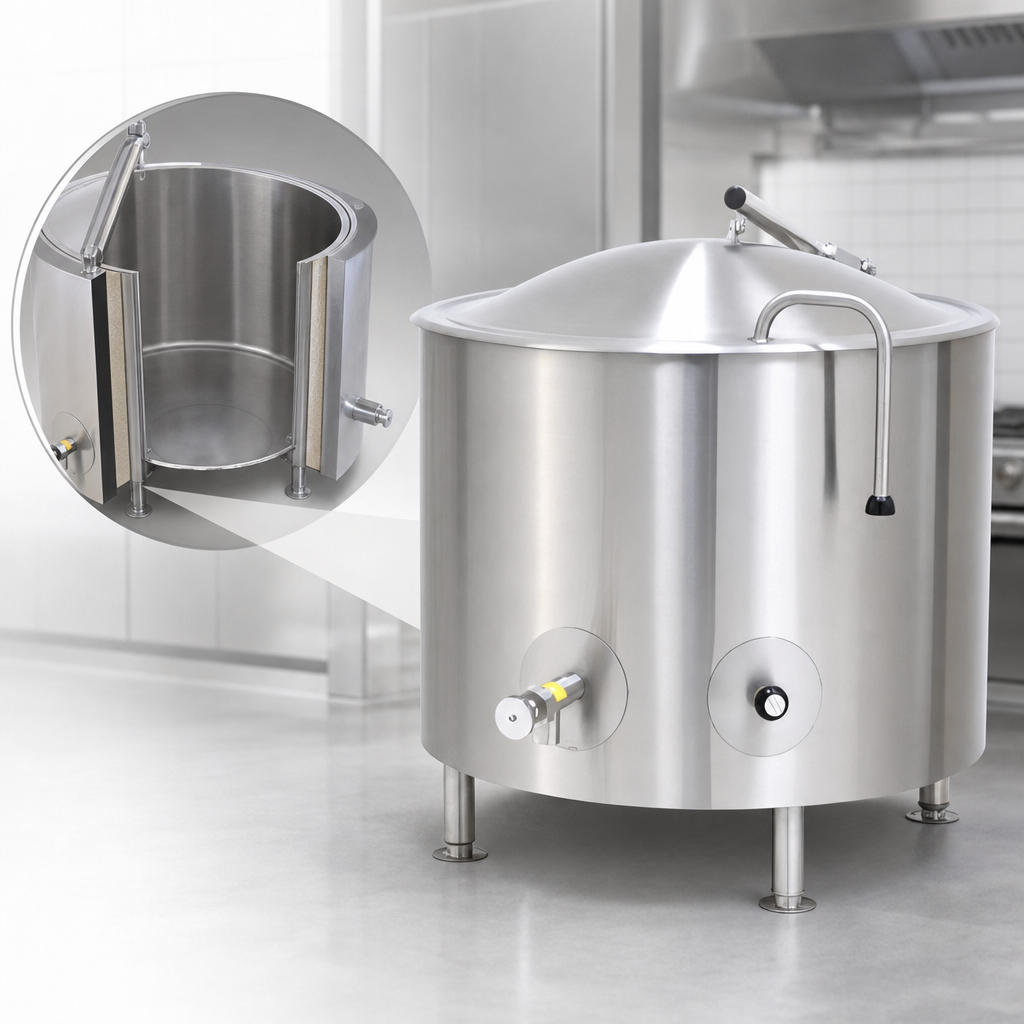

- Full-body mineral insulation between jacket & outer casing (Insulated for Safety™) reduces radiant heat and energy use.
- 30 psi operating pressure for rapid heat-up and precise simmer control.
- 2" 304 SS compression draw-off valve with ¼" perforated strainer for fast, clog-free draining.
- Four 2" diameter stainless legs with adjustable flanged feet and cross-bracing for rock-solid stability.
- Front-mounted steam control valve—instant adjustment, no reaching behind the kettle.
- Rear steam inlet & condensate return keep hoses clear of the work zone.
- Optional one-piece domed stainless cover hinges smoothly to trap heat and moisture.
Why “Low-Rim”?
Traditional kettles can force operators to reach dangerously high during stirring or product transfer. Legion’s Low-Rim™ geometry lowers the kettle’s working height without sacrificing capacity, improving accessibility and reducing spill risk.
Specifications – Model LSI-25
| Capacity | 25 gal | 95 L |
|---|---|
| Operating Pressure | 30 psi | 207 kPa |
| Liner Material | 304 stainless steel, seamless & deep-drawn |
| Jacket | Full, insulated 304L stainless steel jacket |
| Outer Casing | 304 stainless steel, seam-welded to radius lip |
| Draw-off Valve | 2" 304 SS compression type with ¼" perforated strainer |
| Rim Diameter (A) | 25.5" | 648 mm |
| Vessel Depth (B) | 15.5" | 394 mm |
| Rim Height (C) | 30.1" | 765 mm |
| Overall Height – lid closed (F) | 32.4" | 823 mm |
| Overall Height – lid open (J1) | 65.4" | 1 661 mm |
| Steam Inlet (Q) | ¾" NPT |
| Condensate Return (R) | ½" NPT |
| Agency Approvals | ASME, NSF |
Dimensions in inches unless noted. Specifications subject to change without notice.
Popular Options & Accessories
- Single or double fill faucet (12" or 18" swing nozzle)
- 48" flexible spray hose (vinyl or stainless)
- Automatic water-fill meter
- Two-speed mixer/agitator
- Lift-off or actuator-assisted cover
- Single basket, tri-basket or nylon bag inserts
- Air eliminator or pressure-reducing valve
Warranty
Standard warranty: 12 months parts & labor from installation (15 months from shipment). Extended coverage available—contact us for details.
