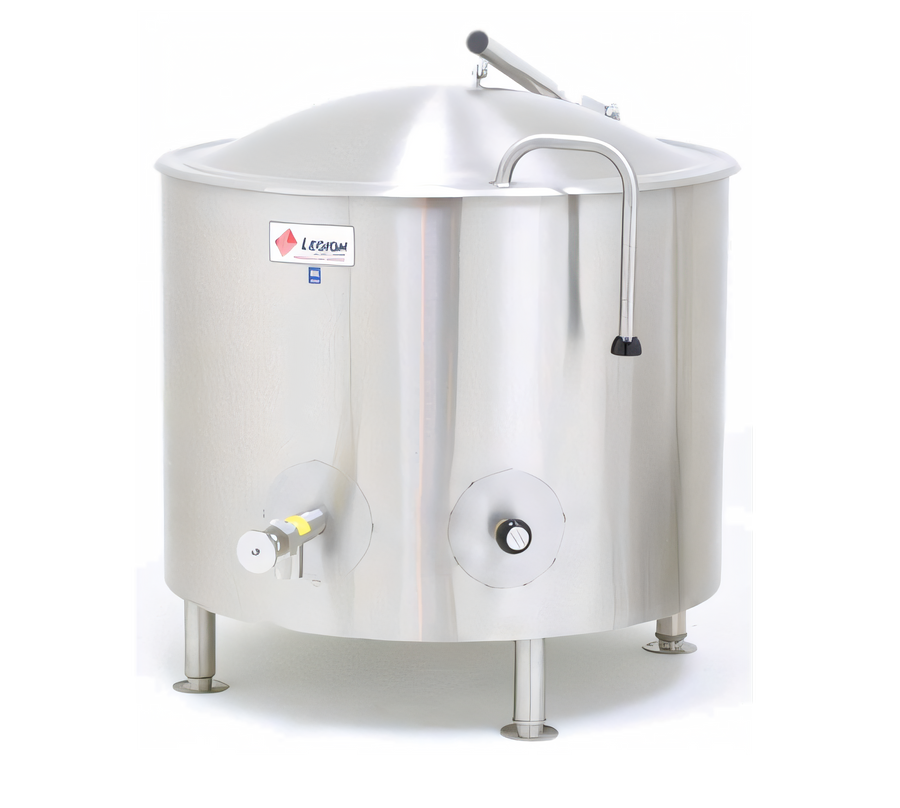

Legion Low-Rim™ 20 Gal Stationary Direct Steam Kettle with Mixer
Model LSI-20MV | 30 PSI | Made in USABuilt for high-volume, scratch-cooking operations that demand uncompromising performance, the 20-gallon Low-Rim™ direct-steam kettle pairs Legion’s famous deep-drawn construction with a powerful twin-shaft agitator. The result is faster batch turnover, superior heat transfer and effortless product movement—from small-particle soups to thick starches and sauces.
Key Advantages
- 20 gal (76 L) capacity—ideal for schools, commissaries and production kitchens.
- Full, insulated steam jacket (3″-14″ thick) boosts thermal efficiency while keeping the exterior cool to the touch.
- 304 SS kettle liner & jacket; all food-contact welds are ground & polished for a sanitary finish.
- Twin-shaft, two-speed agitator (23/46 RPM) with counter-rotating beater prevents burn-on and maintains even product consistency.
- Removable nylon scraper blades sweep 100 % of the kettle surface for reduced manual cleaning.
- Heavy-duty 2″ compression draw-off valve with ¼″ perforated SS strainer allows rapid, clog-free transfer.
- Four 1⅝″ Ø stainless legs with gusseted bracing & adjustable flanged feet—ready for floor anchoring.
- Front-mounted steam control valve plus rear steam/condensate connections streamline installation.
- Actuator-assisted bridge lift & positive rim-lock stop the agitator automatically when raised for operator safety.
At-a-Glance Specs
| Capacity | 20 gal / 76 L |
|---|---|
| Operating pressure | 30 PSI max. |
| Liner material | 304 stainless steel, deep-drawn |
| Jacket type | Full, insulated (direct steam) |
| Draw-off valve | 2″ compression, 304 SS, ¼″-hole strainer included |
| Agitator style | Twin-shaft, anchor + counter-rotating beater |
| Agitator speeds | Low 23 RPM / High 46 RPM (main shaft) |
| Motor | Totally-enclosed gear motor, 1 HP high / ½ HP low |
| Overall height | ≈ 63″ (with bridge down) |
| Certifications | ASME, NSF (pending site steam source suitability) |
Included With Your Kettle
- One-piece stainless domed cover
- Perforated disc strainer (¼″ holes)
- Factory-mounted steam control valve (front)
- Operator & maintenance manual
Popular Factory Options (call to quote)
- Single or dual potable-water fill faucet with swing nozzle
- 48″ flexible spray-rinse hose assembly
- Automatic water-metering system
- 1-piece or hinged actuator-assist cover
- Higher-pressure jacket (specify at order)
Need a larger capacity or alternative mounting style? Legion manufactures Low-Rim™ kettles up to 100 gallons as well as tilt models—ask our team for details.
