Legion LSI-20 Low-Rim Steam Kettles
Description

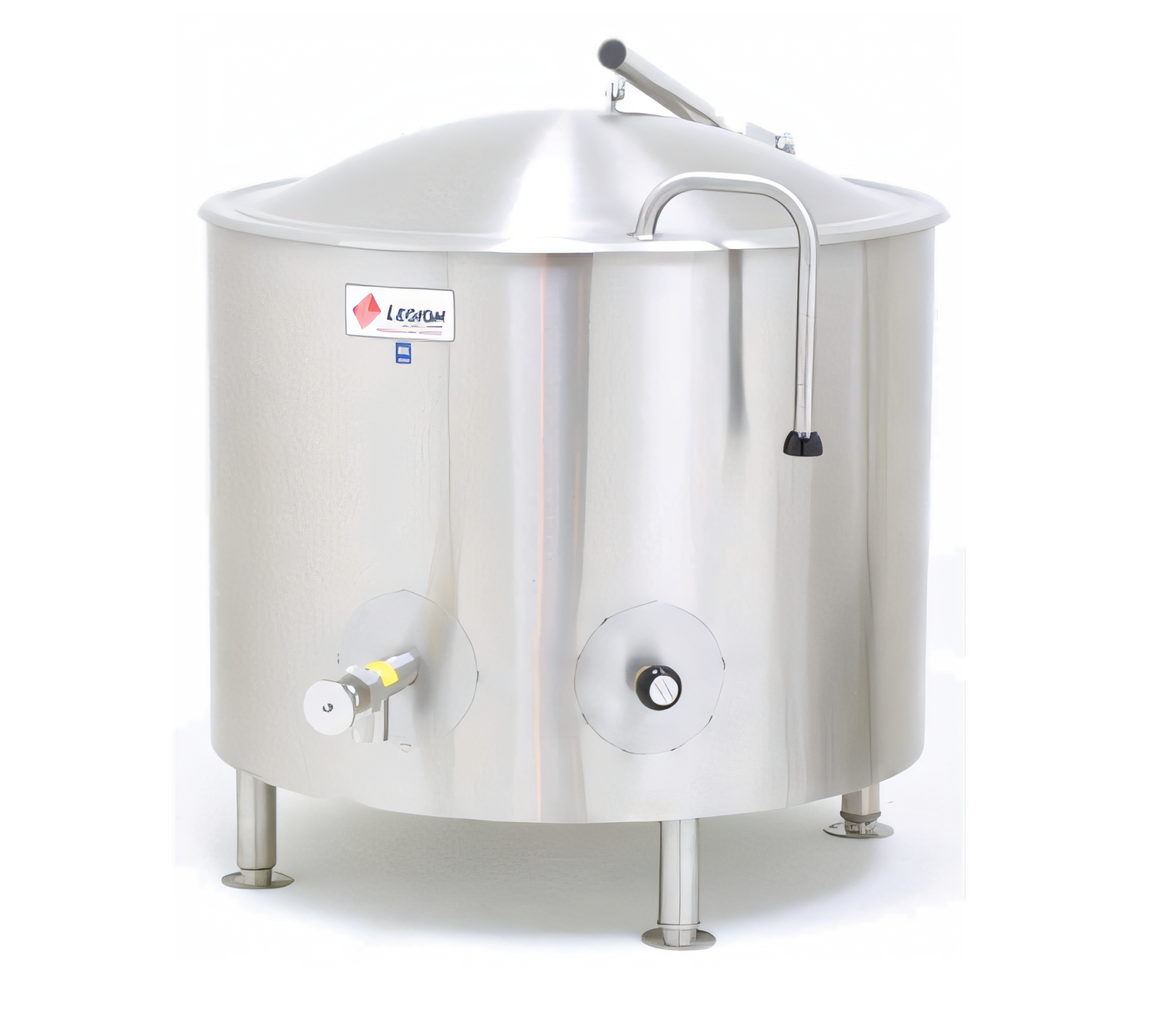

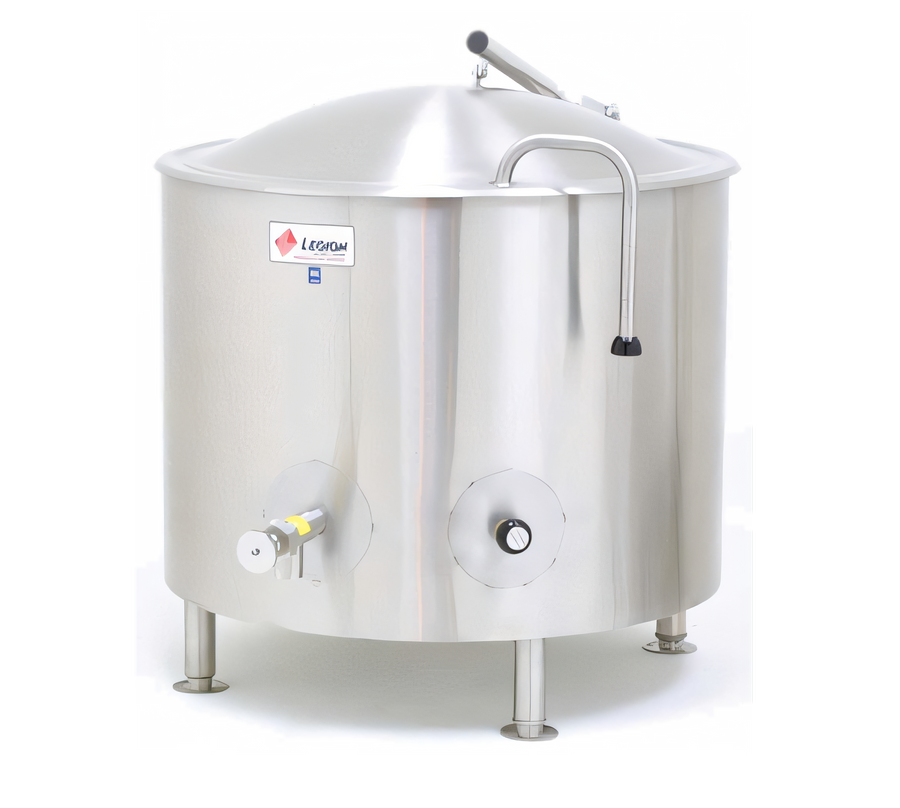

Low-Rim™ 20-Gallon Stationary Direct Steam Kettle
Legion Model LSI-20 | Made in USABuilt “Insulated for Safety™” and engineered for years of trouble-free service, the Legion Low-Rim™ LSI-20 combines ergonomic access, rapid heat-up and rugged 304 stainless-steel construction in a compact, 20-gallon direct-steam kettle. If you need consistent batch cooking with lower rim height and maximum operator comfort, this is the kettle.
Key performance & safety benefits
- Low-Rim design keeps the kettle rim within easy reach for safer stirring, loading and unloading.
- Seamless deep-drawn 304 stainless-steel liner eliminates crevices that can harbor food soil.
- Full-body insulation between jacket and outer shell reduces surface temperature and energy loss.
- 2" compression draw-off valve with included ¼" perforated strainer speeds portioning and protects plumbing.
- Front-mounted steam control valve offers precise, instant heat adjustment.
- Factory-set 30 psi operating pressure delivers rapid, even heat distribution for consistent results.
- Four 2" Ø stainless legs with reinforcing bracing and adjustable flanged feet ensure rock-solid stability.
- All-welded 304L kettle jacket and outer shell resist dents, corrosion and daily cleaning chemicals.
Deep-drawn, fully jacketed construction
- 304L seamless jacket and outer casing seam-welded to the radius lip—no bolts or gaskets to leak.
- Insulated outer wall keeps exterior “touch-safe,” cutting the risk of burns for kitchen staff.
- Rear steam inlet & condensate return connections keep hoses clear of the work zone.
What’s in the box
- Legion Low-Rim™ LSI-20 kettle, fully assembled
- 2" draw-off valve with ¼" perforated disk strainer
- Adjustable flanged feet (factory installed)
- Owner’s manual & installation instructions
Technical specifications
| Capacity | 20 gal / 76 L |
|---|---|
| Operating pressure | 30 psi (2.07 bar) |
| Kettle liner | Seamless 304 stainless steel, deep-drawn |
| Jacket type | Full, insulated 304L stainless jacket |
| Draw-off valve | 2" compression style with ¼" perforated strainer |
| Overall height (C) | ≈ 30.4 in / 773 mm to kettle rim |
| Overall width (A) | 23.0 in / 584 mm |
| Steam & return connections | Rear mounted, ¾" NPT (steam) & ½" NPT (condensate) |
| Legs | 4 × 2" Ø 304 stainless with cross bracing & flanged feet |
| Certifications | ASME, NSF; built to UL, ETL, AGA, CSA, CGA criteria |
| Standard warranty | 12 months from installation / 15 months from ship date |
Popular factory options
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Mixer/Agitator – two-speed
- Automatic water fill meter
- Lift-off or two-piece hinged cover
- 1⁄8" perforated disk strainer, tri-basket inserts & other accessories
Legion Industries reserves the right to modify design or dimensions without notice. Register your kettle within 10 days of installation to activate warranty coverage.
