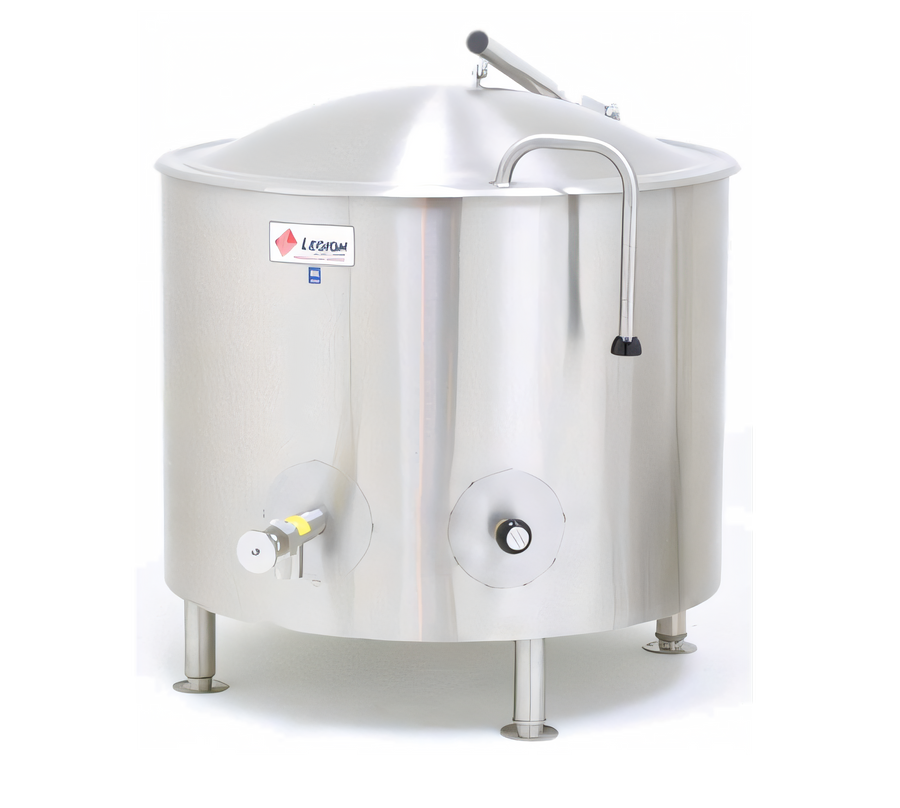

Low-Rim™ 100-Gallon Stationary Direct Steam Kettle with Mixer
Model LSI-100-MV | Legion Industries – Made in USAProduce consistent, large-batch results faster and safer. The Low-Rim™ LSI-100 pairs an insulated, full-jacket direct-steam kettle with a heavy-duty two-speed agitator that keeps even the thickest soups, sauces and starches moving for flawless heat transfer.
Performance & Safety Highlights
- 100-gal. (379 L) deep-drawn kettle formed from 304 stainless steel for unrivaled durability.
- 3 – 14 in. blanket of insulation between liner and outer jacket — Insulated for Safety™ keeps ambient heat low.
- Full 304L stainless jacket rated for 25 psi operating pressure.
- MV-series twin-shaft mixer with anchor agitator & counter-rotating beater:
- Low speed 23 RPM / 1 HP for delicate products
- High speed 46 RPM / 2 HP for rapid dispersion
- Nylon scraper blades sweep the entire kettle wall & bottom
- Actuator-assisted bridge lift plus positive rim-lock for one-handed, tool-free access.
- 2 in. compression draw-off valve with ¼ in. perforated disk strainer — ideal for pasta, beans & stock.
- Four 2 in. Ø stainless legs with cross-bracing and adjustable flanged feet level quickly on any floor.
- Front-mounted manual steam control; rear steam supply & condensate connections keep the work zone clear.
- Built and stamped to ASME & NSF requirements; ships ready for standard commercial utilities.
Technical Specifications
| Capacity | 100 gal | 379 L |
|---|---|
| Kettle Interior | 304 stainless steel, one-piece deep drawn |
| Jacket / Outer Casing | 304L stainless, fully welded |
| Insulation | 3 – 14 in. high-density fiberglass (full body) |
| Operating Pressure | 25 psi (steam) |
| Draw-off Valve | 2 in. compression type w/ ¼ in. perforated strainer |
| Mixer Type | MV twin-shaft, fixed mount & tilt-out |
| Agitator Speeds (Main / Beater) | Low 23 RPM / 60 RPM | High 46 RPM / 120 RPM |
| Mixer Motor | Low 1 HP | High 2 HP (totally-enclosed gear motor) |
| Construction Support | (4) 2 in. Ø legs, flanged & height-adjustable |
| Compliance | ASME, NSF, UL (components) |
Perfect For
- Central kitchens producing soup, chili or chowder by the barrel
- High-volume sauce, roux or gravy preparation
- Blanching vegetables & pasta before chill-pack
- Stewing proteins for shredding or canning operations
Looking for alternative voltages, higher pressure ratings or specialty draw-off fittings? Legion builds every kettle to order — reach out and we’ll configure the Low-Rim™ to match your exact production line.
Product Weight:
1220.0 lbFrequently Asked Questions
