Legion LSI-100 Low-Rim Steam Kettles
Description

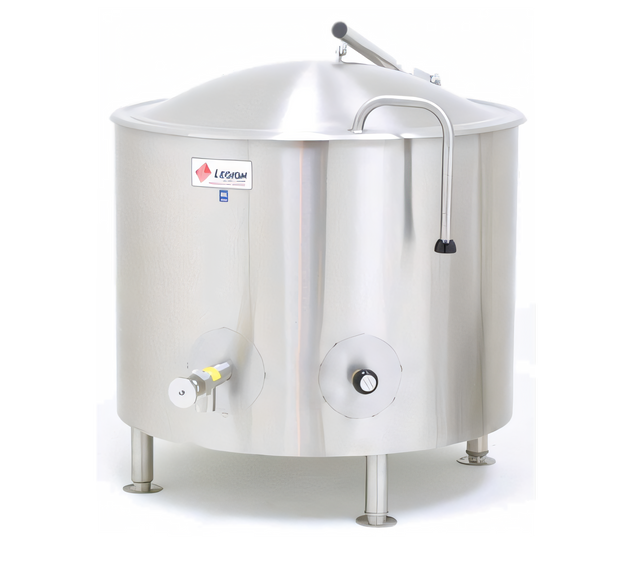

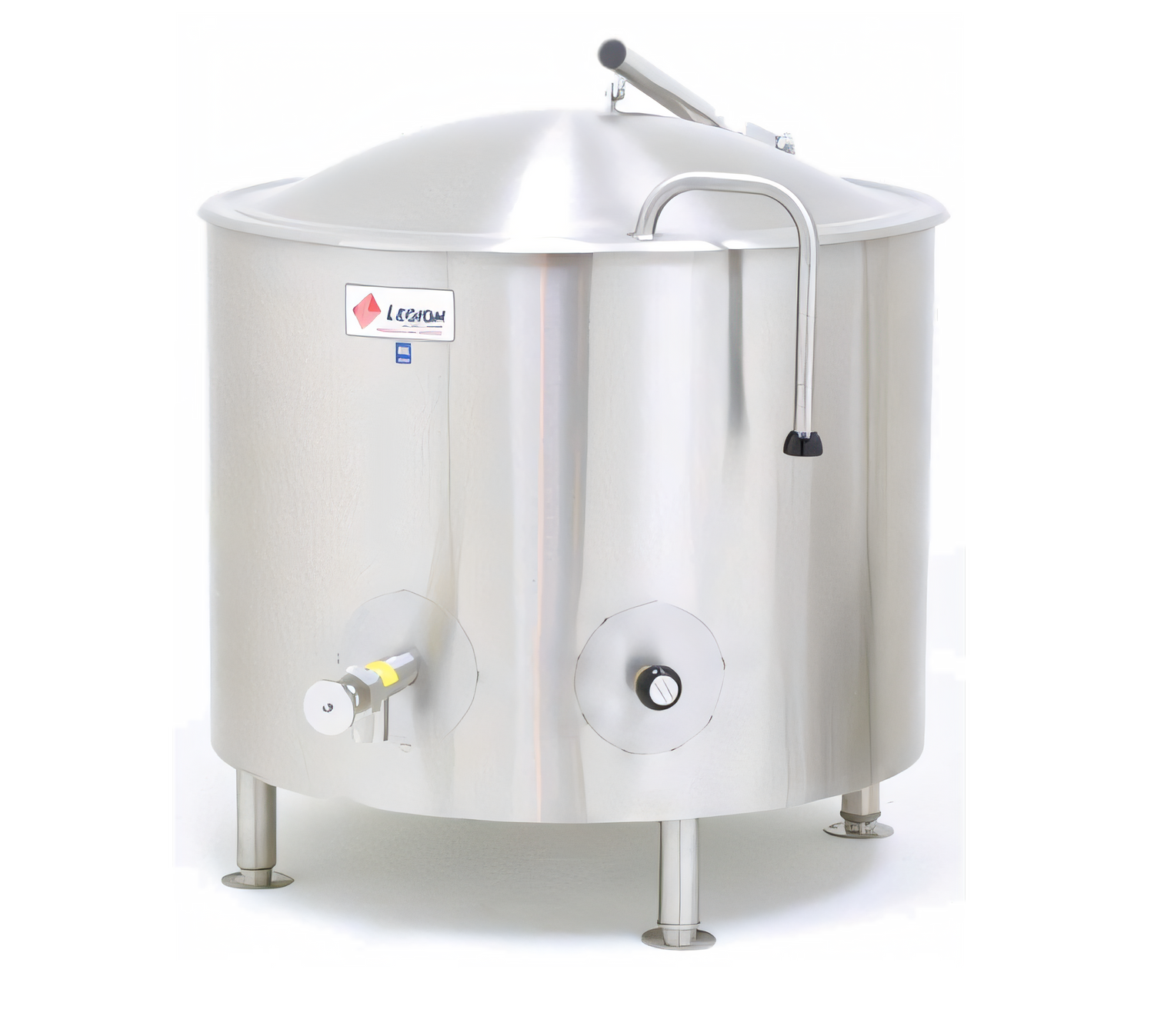

Legion Low-Rim™ 100-Gallon Stationary Direct Steam Kettle
Model LSI-100 • Full-Jacketed & Insulated for Safety • Made in USAEngineered for high-volume, high-precision cooking, the Legion Low-Rim™ LSI-100 delivers 100 gallons (379 L) of dependable, evenly-heated capacity in a low-profile, easy-access design. From delicate sauces to hearty soups and stews, this ASME-code kettle shortens cook times, lowers energy costs, and stands up to the daily demands of busy commercial kitchens.
Why You’ll Love It
- Ergonomic Low-Rim profile – safer, easier stirring and product removal without step-stools.

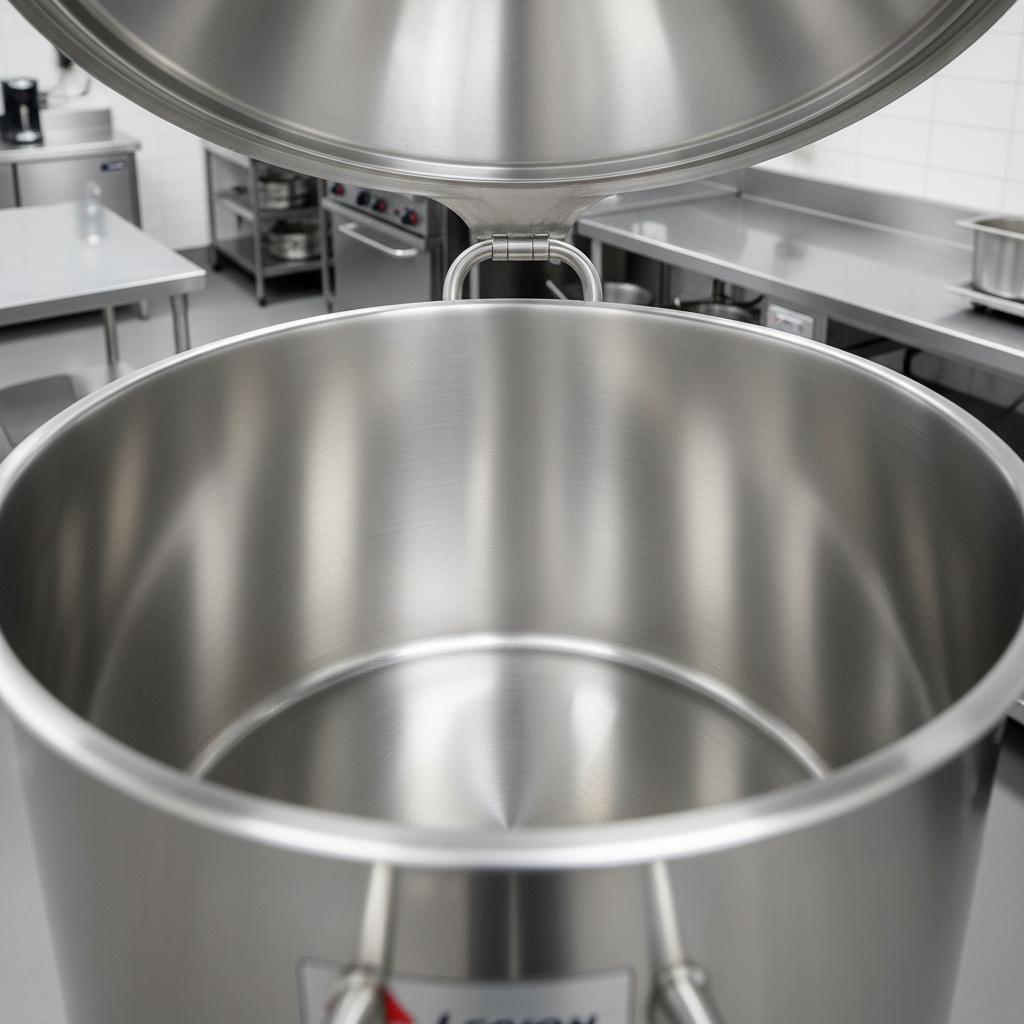

- Seamless 304 stainless liner – deep-drawn in one piece for maximum sanitation and easy clean-up.
- Full 304L stainless jacket – surrounds the kettle for fast, uniform heating.
- Factory-installed insulation – keeps heat in the vessel and surface temps comfortable for staff.
- Actuator-assisted domed cover – one-hand lift & hold; minimizes condensate drip-back.
- 2" compression draw-off valve with ¼" perforated stainless strainer – quick, clog-free dispensing.
- Front-mounted steam control valve – fingertip regulation of the 25 psi operating jacket.
- Four 2" dia. stainless legs with reinforcing bracing & flanged, height-adjustable feet.
- Rear ¾" NPT connections – dedicated inlets for steam supply and condensate return keep the work zone clear.
- ASME, NSF & UL compliant – built, inspected, and stamped to the latest codes.
Technical Specifications
| Capacity | 100 gal / 379 L |
|---|---|
| Operating Pressure | 25 psi max. jacket pressure |
| Interior (Food Zone) | Seamless 304 stainless steel, deep-drawn |
| Jacket | Full-coverage 304L stainless steel |
| Insulation | Factory-applied full-body insulation between jacket & casing |
| Exterior Casing | 304 stainless, seam welded to radius lip |
| Cover | One-piece domed stainless, actuator-assisted lift |
| Draw-off Valve | 2" compression type, 304 stainless, w/ ¼" perforated strainer disc |
| Steam Control | Front-mounted manual valve |
| Steam Inlet / Return | ¾" NPT (steam) • ¾" NPT (condensate) |
| Legs / Mounting | (4) 2" Ø 304 stainless legs, reinforced, adjustable flanged feet |
| Overall Width (F) | 50.4 in (128 cm) |
| Overall Height to Rim (C) | 37.6 in (95.5 cm) |
| Front-to-Back (A) | 44.0 in (112 cm) |
| Approx. Shipping Weight | Contact factory |
Popular Factory Options & Accessories
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Mixer/Agitator, 2-speed
- Automatic water-fill meter
- Tri-basket or nylon bag inserts for pasta & stocks
- Higher-pressure jacket (consult factory)
Legion kettles meet or exceed current ASME, NSF, UL, ETL, AGA, CSA & CGA standards. Standard factory warranty: 12 months from installation (90 days on wear components). Extended coverage available.
