Legion LS-80 Steam Kettles
$11,705.40
Unit price
/
Unavailable
Description

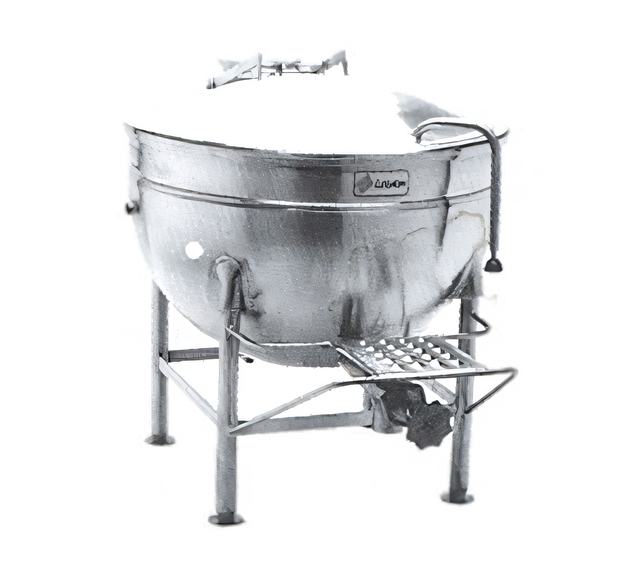

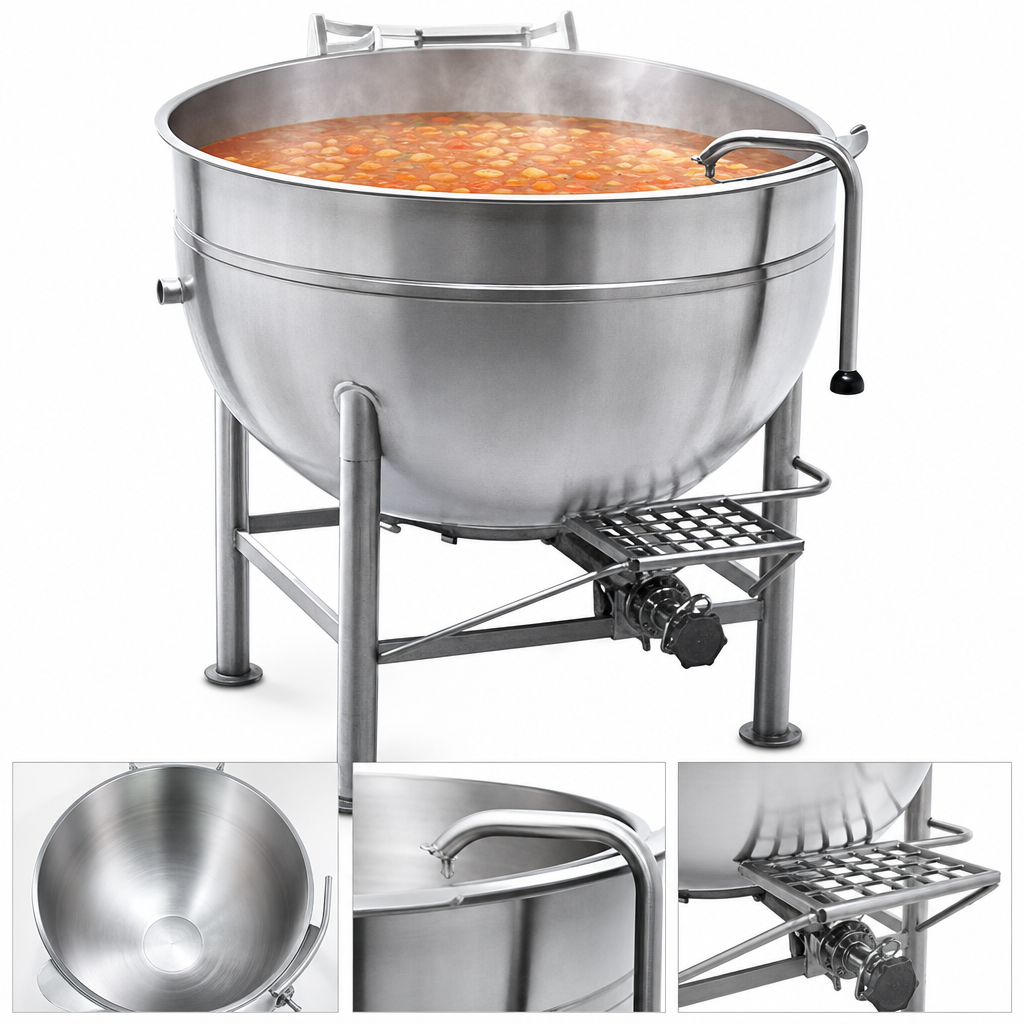

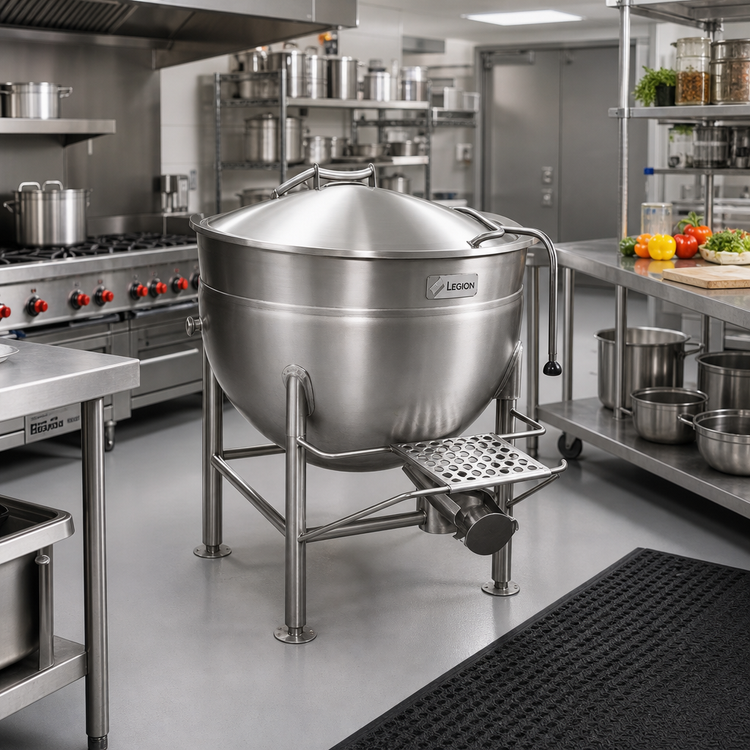

Legion LS-80 Direct Steam Kettle – 80 gal / 303 L
Full-Jacketed • LOW-RIM™ Deep-Drawn Construction • Made in USABuilt for high-volume, high-efficiency cooking, the Legion LS-80 delivers 80 gallons of uniform, steam-powered performance in a rugged, all-stainless package that’s easy to clean, easy to access and engineered to last.
Why You’ll Love It
- LOW-RIM™ design keeps the kettle rim at a comfortable working height for safer loading, stirring and serving.
- Seamless 304 stainless steel liner & 304L full jacket resist pitting, facilitate sanitation and promote even heat transfer.
- Actuator-assisted domed cover lifts effortlessly and stays in position—no springs, no surprises.
- 2" compression draw-off valve with removable ¼" perforated strainer speeds product transfer while trapping solids.
- Four 2" diameter legs with reinforced bracing and adjustable flanged feet add rock-solid stability on uneven floors.
- 30 psi operating pressure for rapid heat-up and precise simmer-to-boil control.
- NSF-listed & ASME-certified; proudly made in Waynesboro, Georgia, USA.
Technical Specifications
| Model | LS-80 (Stationary, Leg-Mounted) |
|---|---|
| Capacity | 80 gal | 303 L |

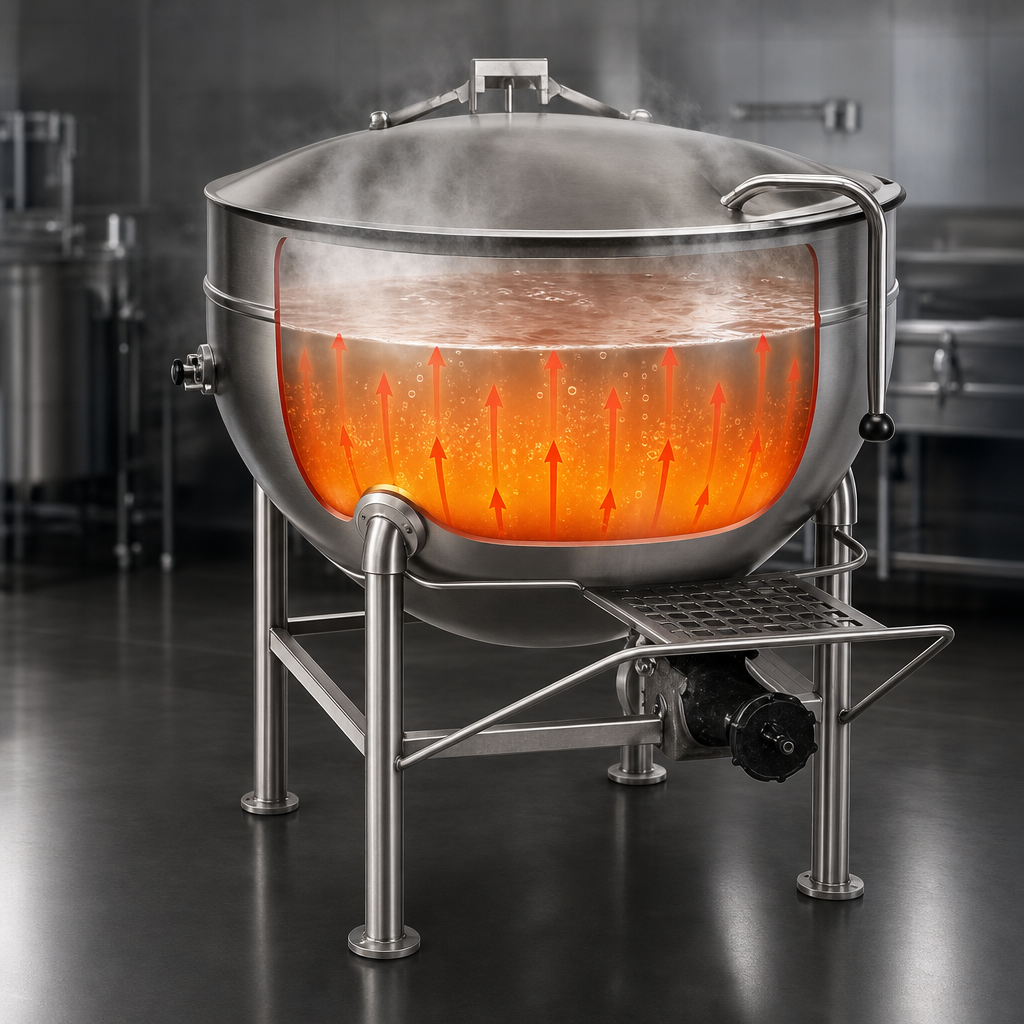

| Heat Source | Direct steam (external boiler required) |
| Operating Pressure | 30 psi (2.06 bar) |
| Construction – Liner | Seamless, deep-drawn 304 stainless steel |
| Construction – Jacket | Seamless 304L stainless steel, full-coverage |
| Cover | One-piece, actuator-assisted 304 stainless steel domed cover |
| Draw-Off Valve | 2" compression style, 304 stainless, with ¼" perforated disk strainer |
| Legs / Feet | 4 × 2" dia. 304 stainless legs with welded sockets & adjustable flanged feet |
| Exterior Finish | Satin stainless steel |
| Certifications | ASME “UM” stamped, NSF listed |
| Warranty | 12-month parts & labor (see full policy) |
Footprint & Clearances
For complete drawings, installation instructions and utility requirements, download the Legion LS engineering sheet.
| Overall Width (A) | 39.0 in / 991 mm |
|---|---|
| Overall Depth (C) | 37.5 in / 953 mm |
| Rim Height* | 28.5 in / 724 mm |
| Steam Inlet (NPT) | 1" NPT |
| Steam Outlet (Condensate) | ¾" NPT |
*LOW-RIM height makes manual handling safer and easier.
Important: This is a direct-steam kettle and must be connected to a
regulated steam supply not exceeding 30 psi. Always consult local codes
and a qualified installer before purchase.
Popular Accessories (sold separately)
- Single or dual fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- Tri-basket or nylon bag inserts for bulk cooking
- Measuring strip kit & kettle care kit
- 3" or ball-type draw-off valve upgrades
Downloads
Features & Specs
Features & Specs
Manufacturer
Legion
Shipping Weight
445.0lbs
Base
quad-leg
Kettle Liner
304 stainless steel
Capacity
80 - 150 gallon
Kettle Jacket
full jacket
Specifications
Stationary Direct Steam Kettle, 80-gallon, 304 stainless steel liner, full jacket, 2" draw-off valve with perforated 1/4" hole strainer, actuator-assisted cover, stainless steel construction, (4) legs with adjustable flanged feet, 30 psi
