Legion  |  SKU: LS-60

Legion LS-60 Steam Kettles

$10,522.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

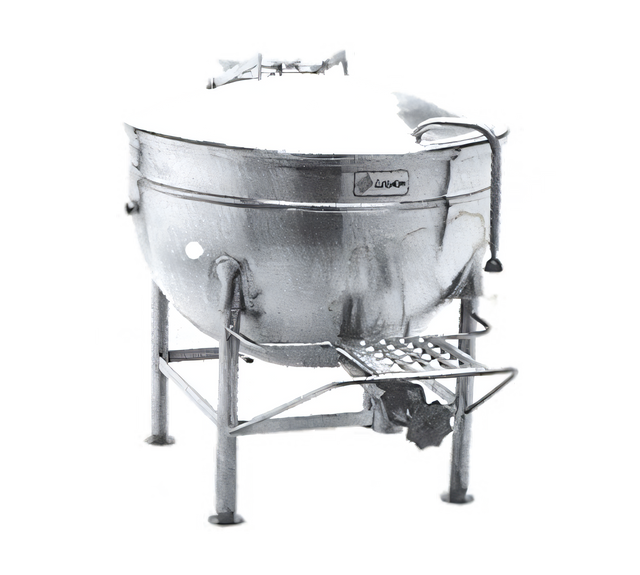

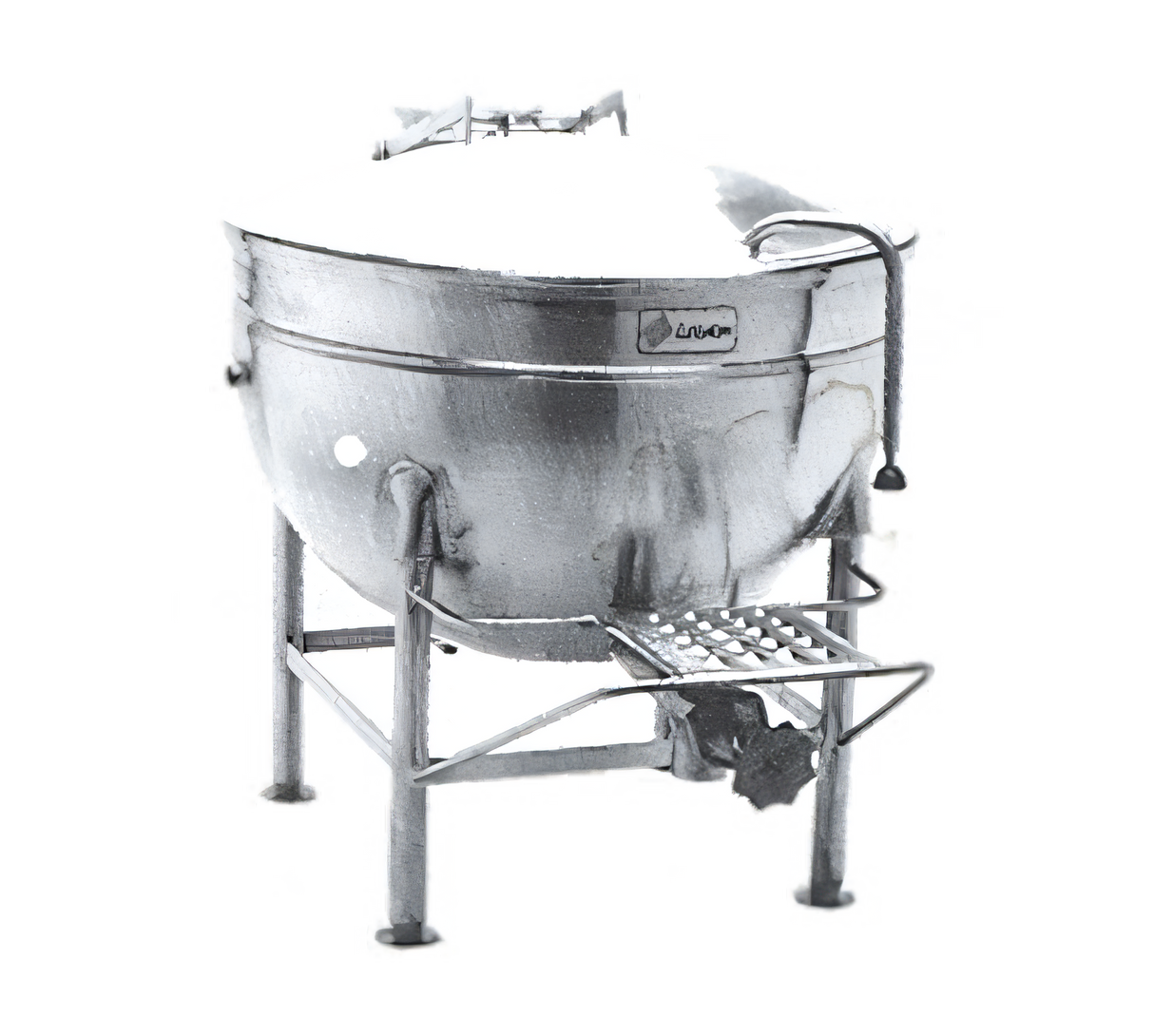

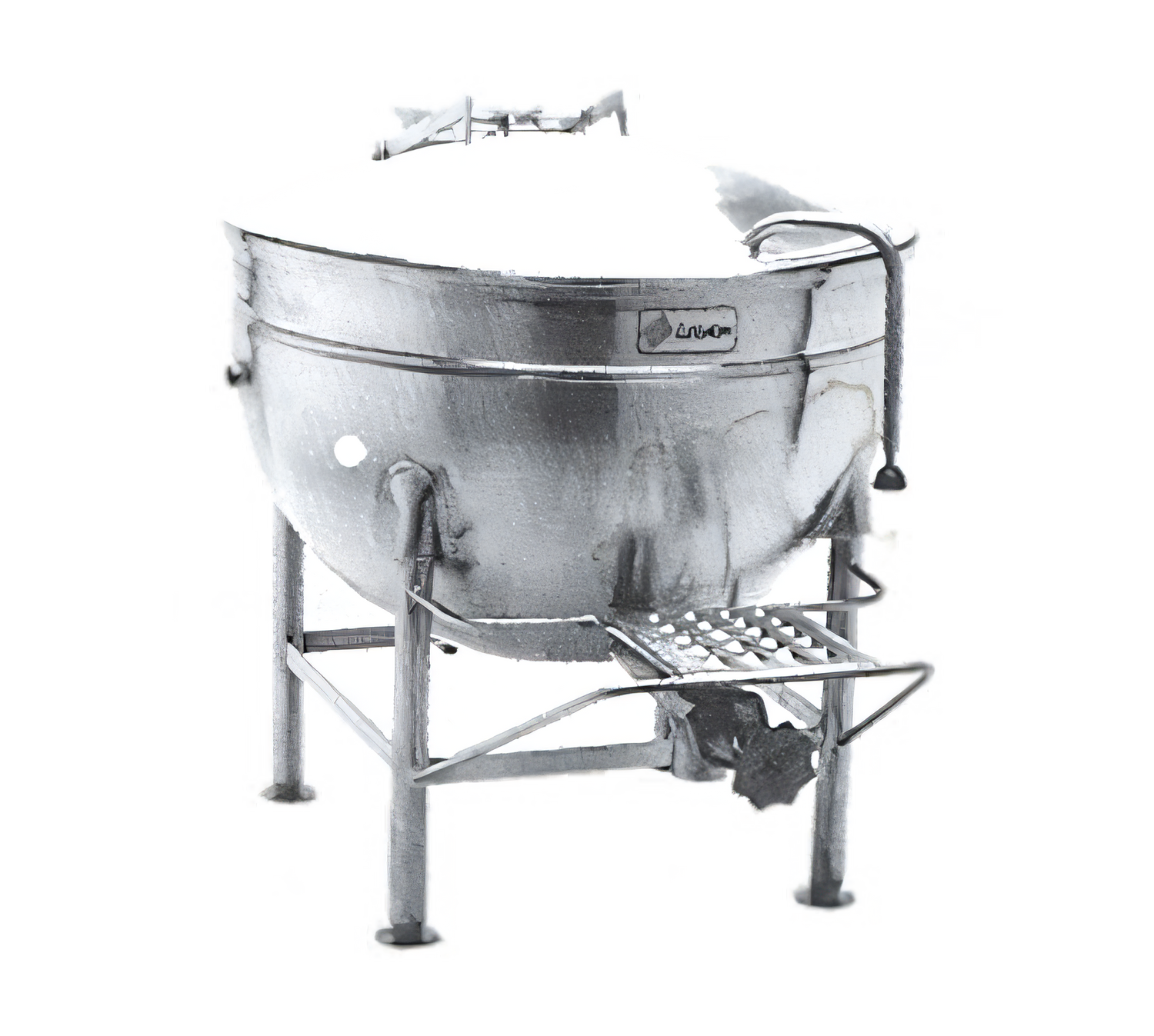

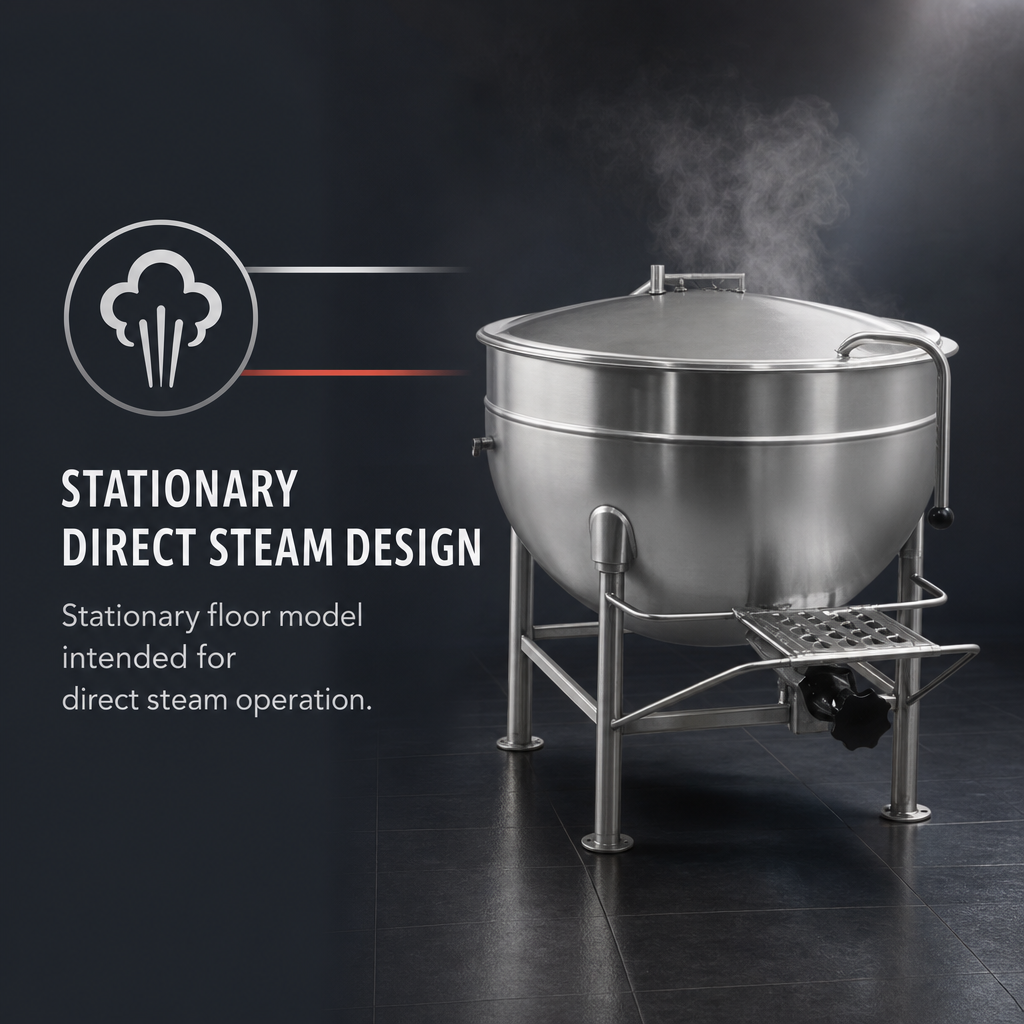

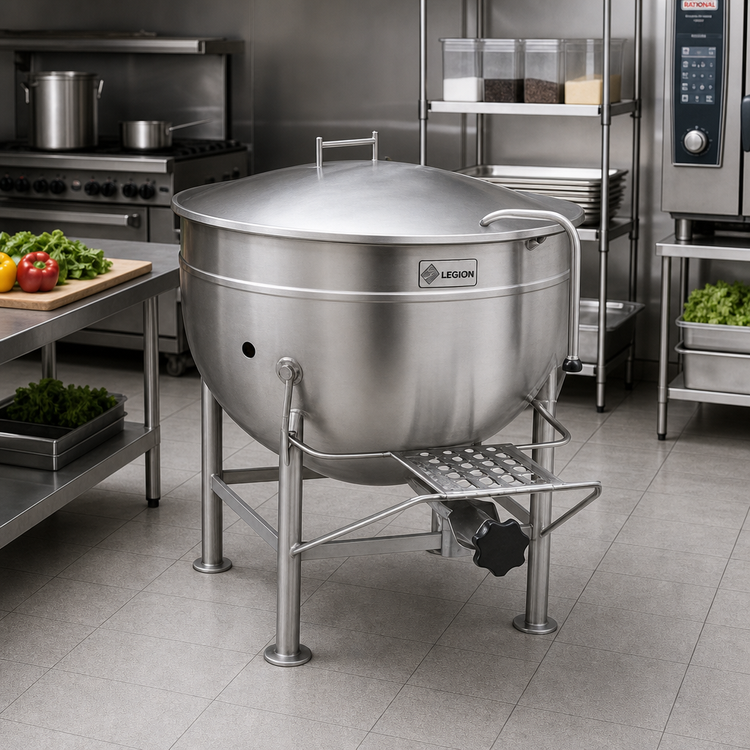

Legion LOW-RIM™ LS-60 Stationary Direct Steam Kettle — 60 Gal (227 L)

Full-jacketed | 304 stainless | Made in USA

Engineered for relentless commercial duty, the LS-60 delivers 60 gallons of fast, even, direct-steam cooking in a seamless 304 stainless steel vessel. Its low-rim profile, actuator-assisted domed lid and 2″ draw-off valve keep high-volume kitchens moving smoothly from prep to plating.

Key benefits

  • Seamless deep-drawn 304 SS liner eliminates internal weld seams for superior sanitation and easy cleaning.
  • Full 304L stainless jacket surrounds the kettle for 360° steam heating and faster batch turnaround.
  • One-piece actuator-assisted domed cover opens effortlessly and stays in position for safe loading and stirring.
  • 2″ compression draw-off valve with ¼″ perforated strainer speeds portioning while keeping solids out of the drain.
  • Low-RIM™ design plus three reinforced 2″-diameter legs with adjustable flanged feet provide stable, ergonomic access.
  • Rated 30 psi to take full advantage of your existing direct-steam supply.
  • All-stainless construction—including legs, bracing and welds—stands up to harsh cleaners and daily abuse.
  • Manufactured, tested and certified in the USA to ASME & NSF standards.

Technical specifications

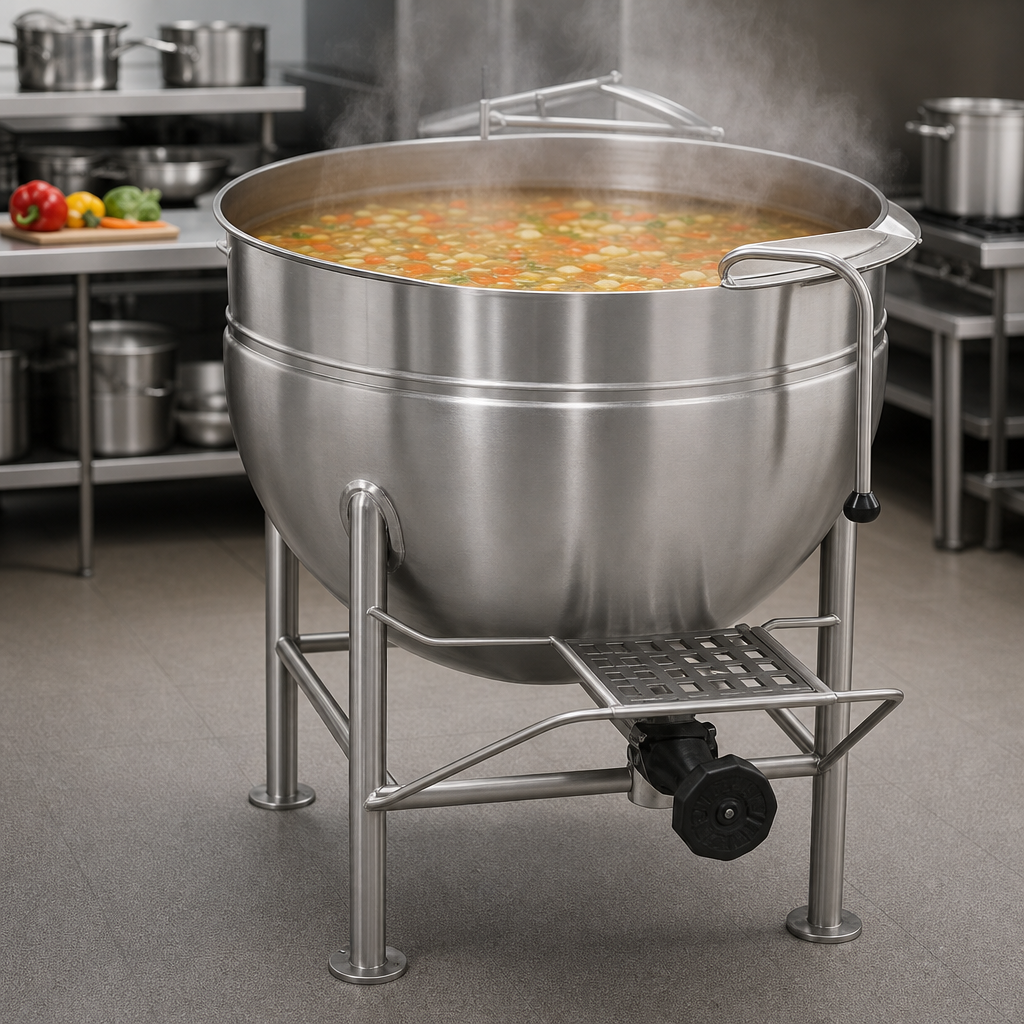

Capacity 60 gal / 227 L
Operating pressure 30 psi (2.07 bar)
Steam inlet 1″ NPT
Condensate outlet ¾″ NPT
Draw-off valve 2″ 304 SS compression type w/ ¼″ perforated disk strainer
Cover One-piece, actuator-assisted domed 304 SS
Legs / footing (3) 2″-Ø legs, reinforced bracing, adjustable flanged feet (bolt-down)
Overall width (A) 32.5″ / 826 mm
Overall depth (B) 22.3″ / 566 mm
Height to rim (J1) 73.4″ / 1864 mm
Height to lip (J2) 62.0″ / 1575 mm
Center of draw-off (S) 17.8″ / 452 mm above floor

Perfect for

  • Soups, stocks & broths
  • Stews, chili & sauces
  • Pasta, grains & legumes
  • Puddings, custards & dessert bases
  • Any high-volume, liquid-based prep
Installation note: A 30 psi direct-steam supply, condensate return and floor anchoring are required. Verify utilities and floor load rating prior to delivery.

Legion commercial warranty: 12 months from installation (15 months from ship date) on parts & labor. Ask about extended coverage plans.

Features & Specs

Manufacturer

Legion

Shipping Weight

375.0lbs

Base

tri-leg

Kettle Jacket

full jacket

Capacity

50 - 70 gallon

Kettle Liner

304 stainless steel

Specifications

Stationary Direct Steam Kettle, 60-gallon, 304 stainless steel liner, full jacket, 2" draw-off valve with perforated 1/4" hole strainer, actuator-assisted cover, stainless steel construction, (3) legs with adjustable flanged feet, 30 psi
