Legion LS-40 Steam Kettles
Description

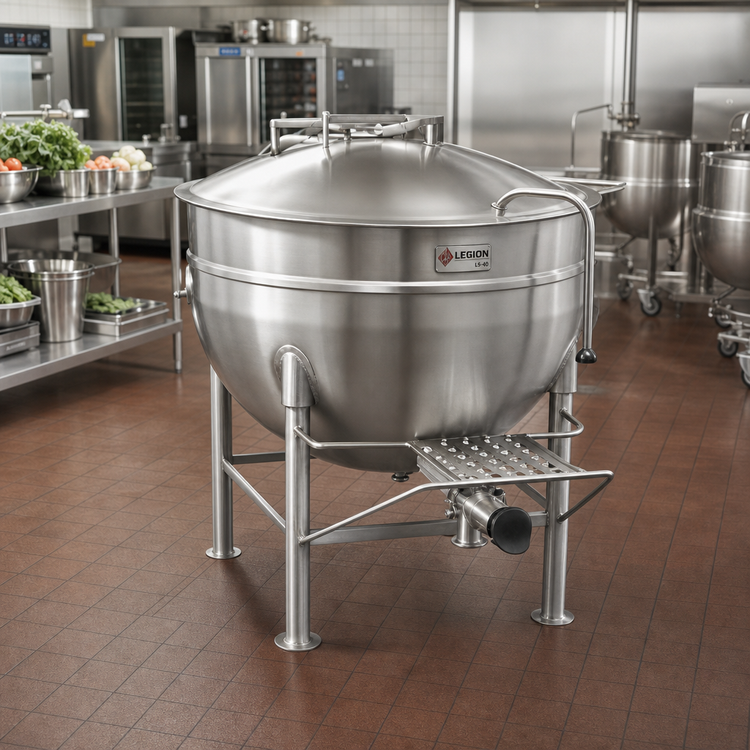

Legion LS-40 Stationary Direct Steam Kettle — 40 Gal.
Full-Jacketed • LOW-RIM™ Deep-Drawn Construction • Made in USAEngineered for demanding commercial kitchens, the Legion LS-40 combines a seamless 304 stainless work bowl, fast 30 psi steam heating and an ergonomic LOW-RIM™ profile. From silky soups to large-batch braises, this 40-gallon kettle gives you consistent results shift after shift.
Key Features
- 40 gal. (151 L) capacity – perfect for medium-volume production

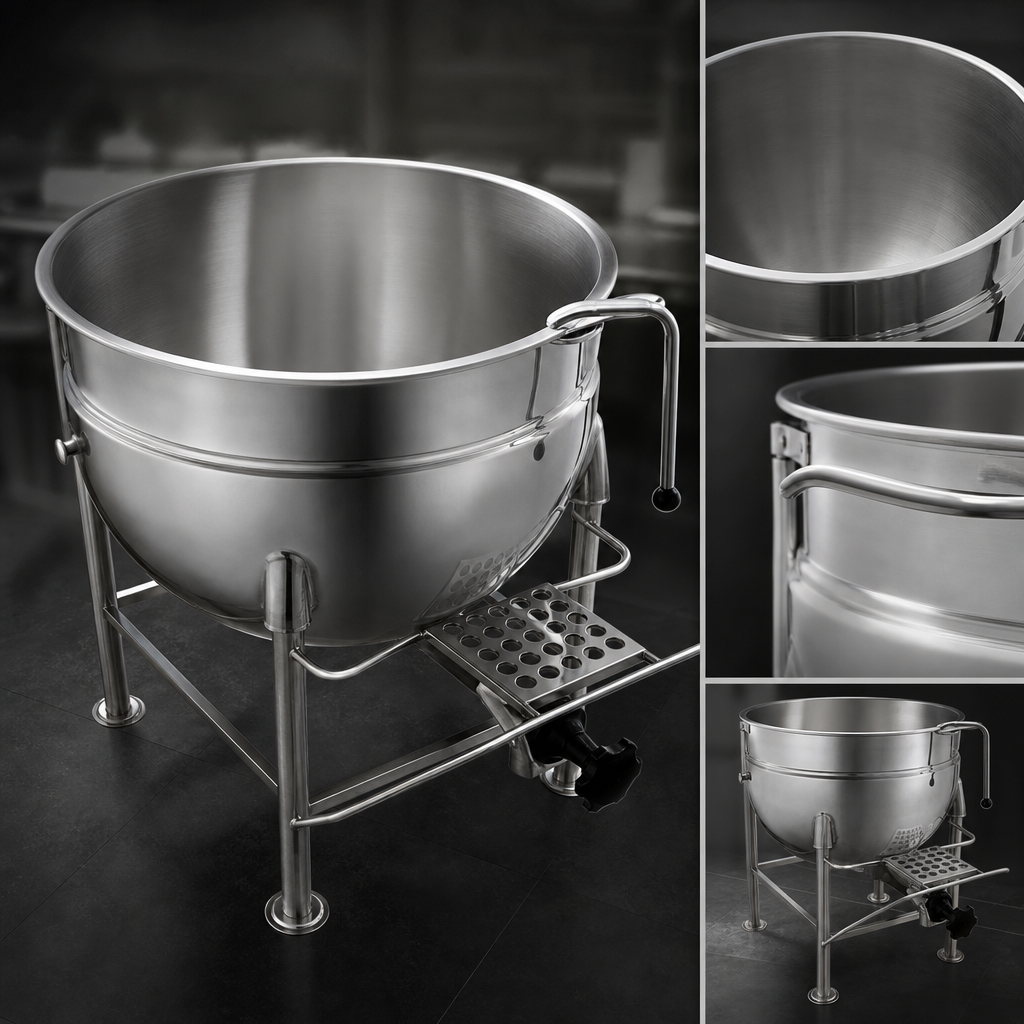

- Seamless deep-drawn 304 stainless kettle liner for maximum sanitation and easy cleaning

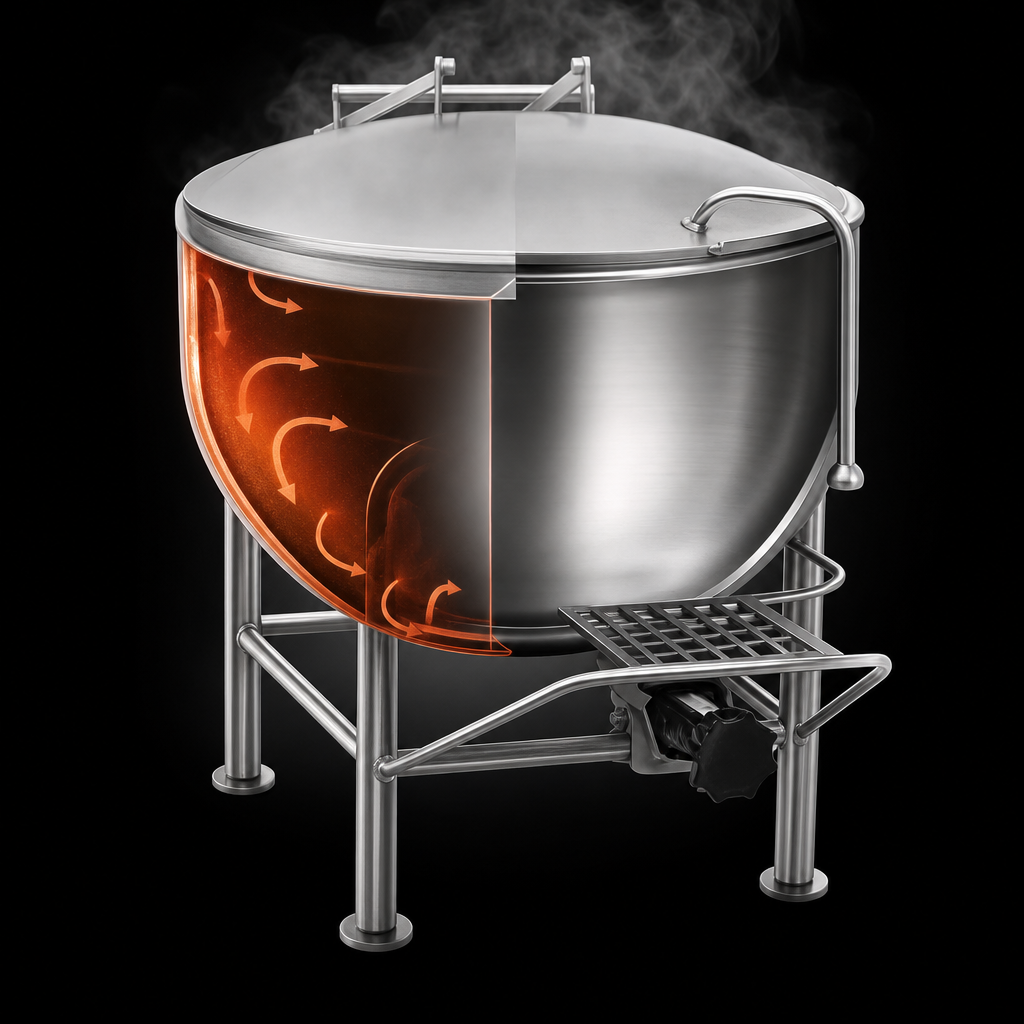

- Full 304L stainless steel jacket, rated 30 psi, delivers rapid, even heat with direct steam
- Actuator-assisted one-piece domed cover – open or close smoothly with one hand
- 2 in. 304 SS compression draw-off valve with removable 1/4 in. perforated disk strainer
- (3) heavy-duty 2 in. Ø stainless legs with reinforced cross-bracing and adjustable flanged feet
- LOW-RIM™ design keeps the rim at a comfortable 35.3 in. working height
- NSF & ASME compliant; built to current commercial code requirements
Technical Specifications
| Model | LS-40 (Stationary, Leg Mounted) |
|---|---|
| Capacity | 40 gal. / 151 L |
| Heating Source | Direct steam – full jacket |
| Operating Pressure | 30 psi |
| Kettle Diameter (A) | 29.5 in. |
| Rim (Working) Height (C) | 35.3 in. |
| Overall Height (J1) | 67.8 in. |
| Steam Inlet / Outlet | ¾ in. NPT / ½ in. NPT |
| Draw-Off Valve | 2 in. compression, 304 SS |
| Cover | 1-piece, actuator-assisted, 304 SS domed |
| Legs / Feet | (3) 2 in. Ø stainless legs with adjustable flanged feet |
| Construction | All 304 / 304L stainless – liner, jacket, legs, welds |
Why Choose Legion?
- Deep-drawn kettle wall eliminates interior weld seams where food can stick or scorch.
- LOW-RIM™ profile reduces lift height, improving safety and speed when loading or stirring.
- All-stainless framework resists corrosion, harsh cleaners and daily wear.
- Proudly fabricated in Waynesboro, Georgia and backed by a 12-month parts & labor warranty.
Looking for fill faucets, spray hoses or basket inserts? Ask us about factory options and accessories to tailor the LS-40 to your exact menu and workflow.
